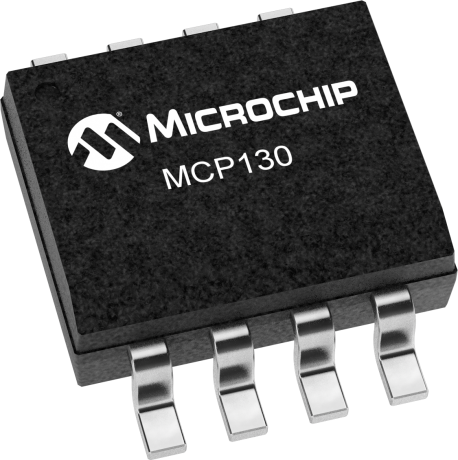

MCP130-315I/SN - Microchip

IC SUPERVISOR 1 CHANNEL 8SOIC Supervisor Open Drain or Open Collector 1 Channel 8-SOIC

Projected EOL Date	2034-01-01
Accuracy	-5%
Case/Package	SOIC
Country of Assembly	Thailand
Country of Fabrication	United States of America
Country of Origin	Thailand
Export Control Classification Number (ECCN) Code	EAR99
Height	1.55mm
Harmonized Tariff Schedule (HTS) Code	8542.39.0060
Introduction Date	2002-01-01
Lead Free	Lead Free
Length	5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Operating Temperature	85°C
Max Reset Threshold Voltage	3.15V
Max Supply Current	60µA
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Reset Threshold Voltage	3V
Min Supply Voltage	1V
Mount	Surface Mount
Nominal Supply Current	60µA
Number of Elements	1
Number of Pins	8
Number of Voltages Monitored	1
Operating Supply Current	60µA
Overvoltage Threshold	3.15V
Packaging	Bulk
Quiescent Current	45µA
Radiation Hardening	No
Reset	Active Low
Reset Timeout	150ms
RoHS	Compliant
Schedule B	8542390000
Type	Simple Reset/Power-On Reset
Undervoltage Threshold	3V
Watchdog Timer	No
Width	3.99mm

RoHS : Unconfirmed

Radiation Hardening : No

Microchip MCP130-315I/SN | Microchip

Microchip

Production

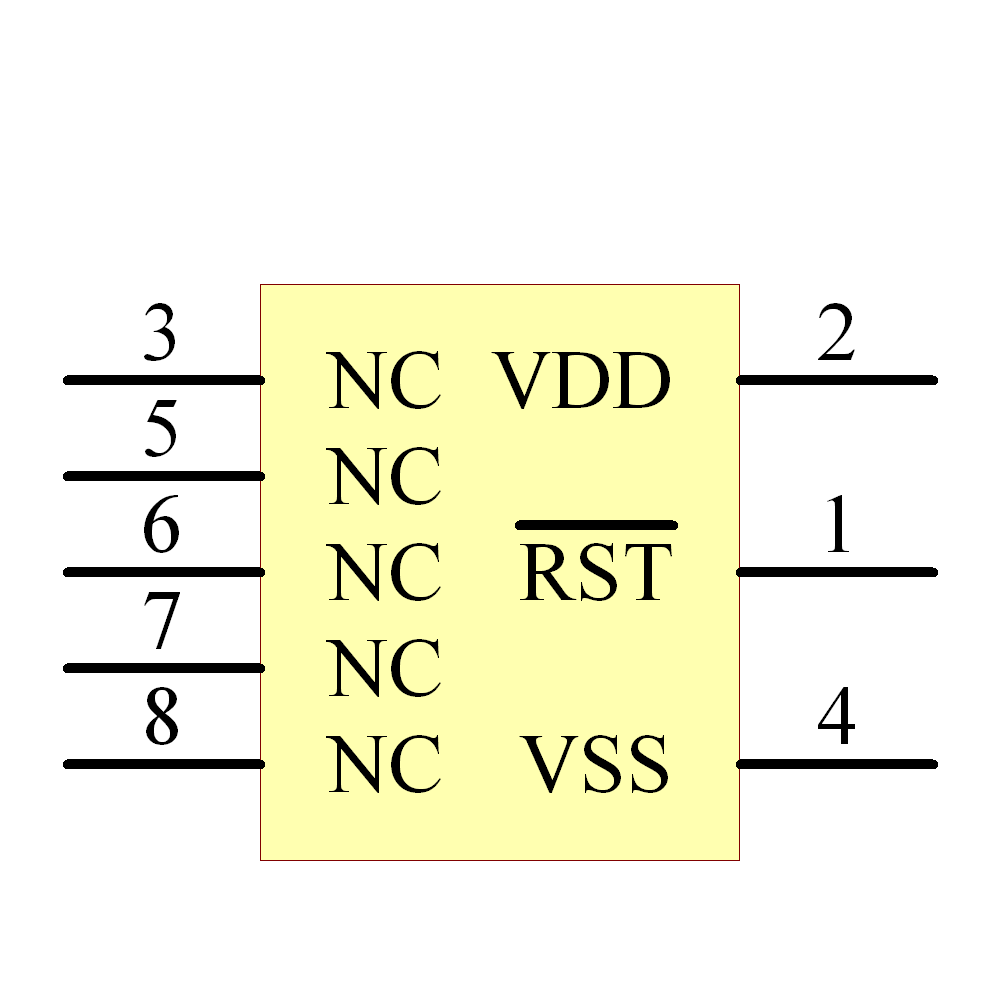

Symbol

‹ ›

Footprint

‹ ›
