Integrated Circuits (ICs)  >  Power Management ICs  >  Voltage Supervisors

Microchip - MCP130-485DI/TO

MCP130-485DI/TO - Microchip

Voltage Supervisor 4.725V Act.Low TO92 | Microchip Technology Inc. MCP130-485DI/TO

 Datasheets

Technical Details

Projected EOL Date 2034-01-01
Accuracy -5%
Case/Package TO-92
Country of Assembly Philippines, Taiwan
Country of Fabrication United States of America
Country of Origin Philippines, Taiwan
Export Control Classification Number (ECCN) Code EAR99
Height 4.62mm
Harmonized Tariff Schedule (HTS) Code 8542.39.0060
Introduction Date 2002-01-01
Lead Free Lead Free
Length 4.71mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Operating Temperature 85°C
Max Reset Threshold Voltage 4.85V
Max Supply Current 60µA
Max Supply Voltage 5.5V
Min Operating Temperature -40°C
Min Reset Threshold Voltage 4.6V
Min Supply Voltage 1V
Mount Through Hole
Nominal Supply Current 60µA
Number of Elements 1
Number of Pins 3
Number of Voltages Monitored 1
Operating Supply Current 60µA
Overvoltage Threshold 4.85V
Packaging Bulk
Quiescent Current 45µA
Radiation Hardening No
REACH SVHC No
Reset Active Low
Reset Timeout 150ms
RoHS Compliant
Threshold Voltage 4.725V
Type Simple Reset/Power-On Reset
Undervoltage Threshold 4.6V
Watchdog Timer No
Width 3.62mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Microchip MCP130-485DI/TO | Microchip

Microchip

Datasheets

 DigiKey
 Mouser
 Avnet Silica

Lifecycle Status Indicator

   Production

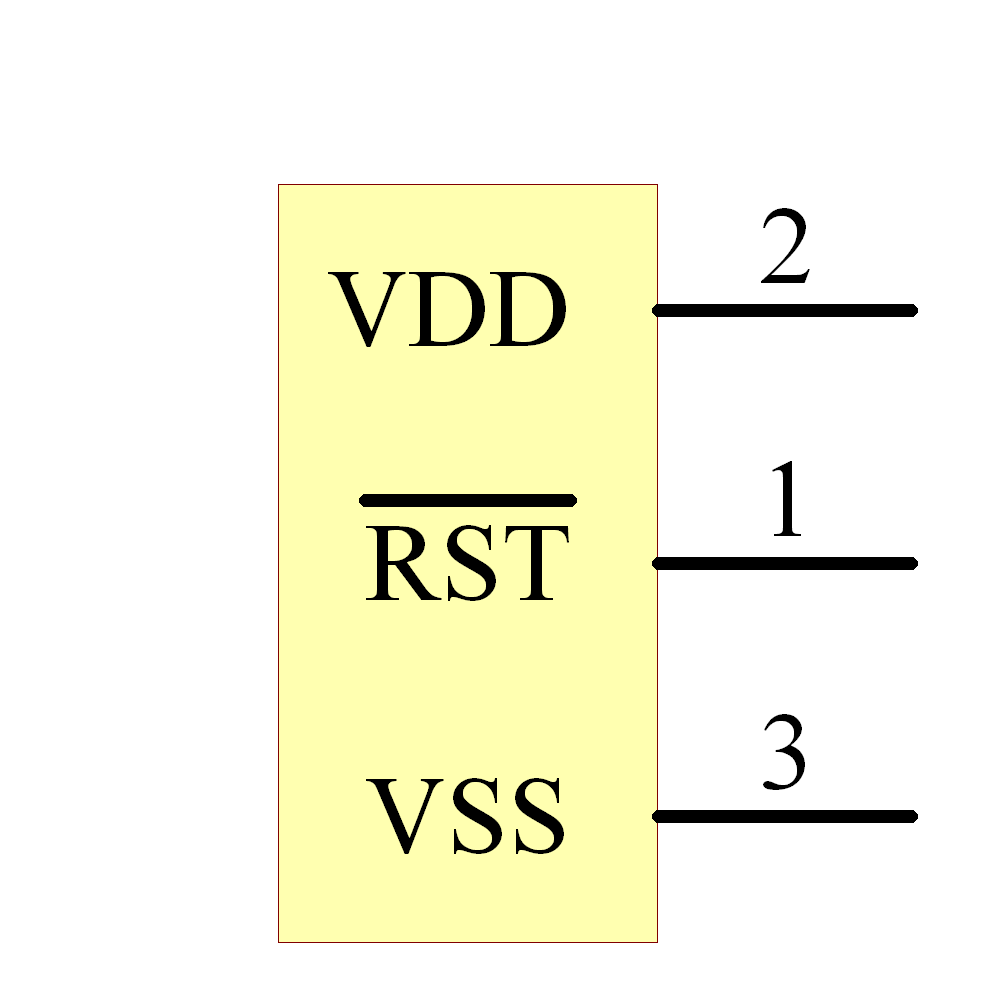

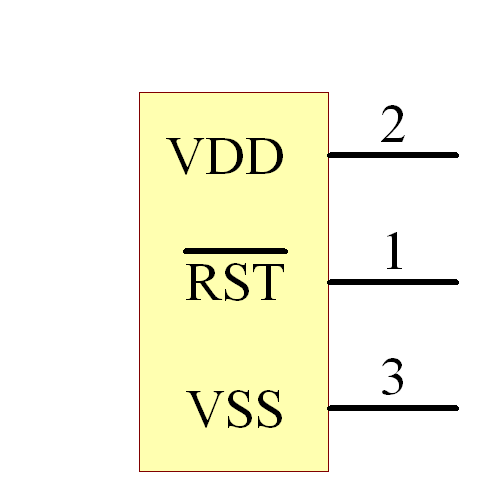

Symbol

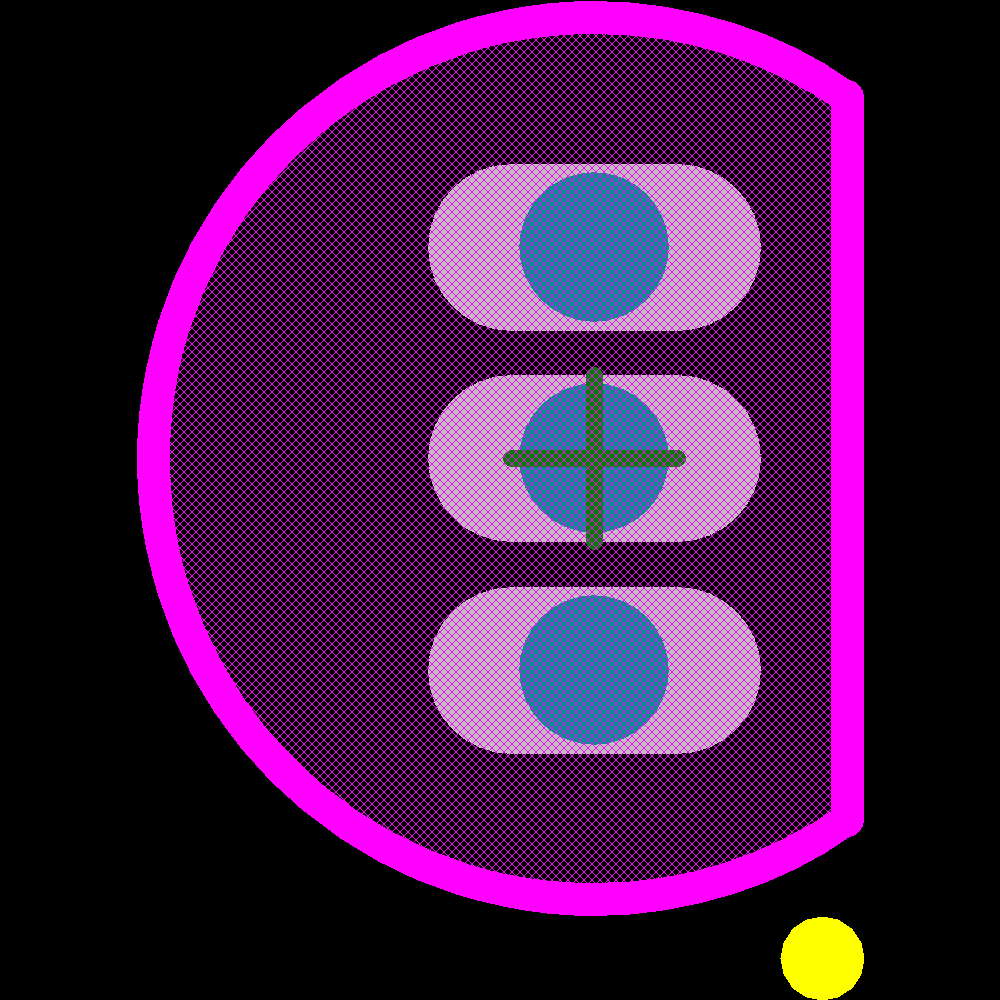

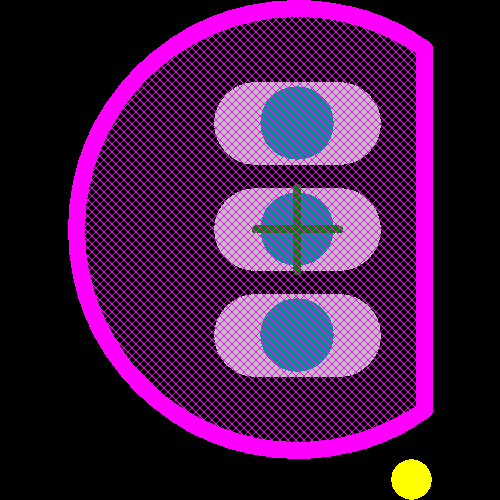

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
MCP120-485DI/TO
Production
Microchip
MCP120T-485I/TT
Production
Microchip
MCP130T-485I/TT
Production
Microchip
MCP120-485GI/TO
Production
Microchip
MCP120-485HI/TO
Production
Microchip
MCP130-485FI/TO
Production
Microchip
MCP130-485HI/TO
Production
Microchip
MCP130-485I/SN
Production
Microchip
MCP130T-485I/SN
Production
Microchip
MCP120-485I/SN
Production

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
DigiKey
MCP130-485DI/TO-ND
DE: 1501
 $ 0.5547 0.5547 0.4645 0.5547 0.5547 0.5547
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
579-MCP130-485DI/TO
US: 1294
 $ 0.53 0.53 0.44 0.40 0.40 0.40
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Silica
MCP130-485DI/TO
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Microchip
MCP130-485DI/TO
US: 0
 $ 0.53 0.53 0.44 0.40 0.33 0.31
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
MCP130-485DI/TO
US: 0
 $ 0.2985 0.2985 0.274 0.2526
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
MCP130-485DI/TO
US: 0
 $ 0.2985 0.2985 0.274 0.2526
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
MCP130-485DI/TO
US: 0
 $ 0.232
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
1817956
CA: 0
 $ 0.225 0.215
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
MCP130-485DI/TO
US: 0
 $ 0.3411
 Historical Pricing  Historical Stock Levels
Quantity
Location
NAC Semi
MCP130-485DI/TO
US: 19000
 $ 0.25
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
MCP130-485DI/TO
US: 0
 $ 0.412
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Worldway Electronics
MCP130-485DI/TO
HK: 66465
 $ 0.1344 0.1344 0.1303 0.1235 0.1235
 Historical Pricing  Historical Stock Levels
Quantity
Location
AAA CHIPS
MCP130-485DI/TO
HK: 1606
 $ 0.3277 0.318 0.318 0.3084 0.3084 0.3084
 Historical Pricing  Historical Stock Levels
Quantity
Location
SHENGYU ELECTRONICS
MCP130-485DI/TO
CN: 18432
 $ 0.2083 0.2041 0.2041 0.20 0.19 0.18
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lixinc
MCP130-485DI/TO
CN: 7142
 $ 0.50 0.50 0.4144 0.4144 0.4144 0.4144
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
MCP130-485DI/TO
HK: 1508
 $ 0.4505 0.3917 0.3917 0.3498 0.3269 0.2937
 Historical Pricing  Historical Stock Levels
Quantity
Location
Suntronic
MCP130-485DI/TO
CN: 1688
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lingto Electronic Ltd.
MCP130-485DI/TO
CN: 28038
 $ 0.58 0.551 0.551 0.522 0.5162 0.5104
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
MCP130-485DITO
US: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
