MCP1406-E/AT - Microchip

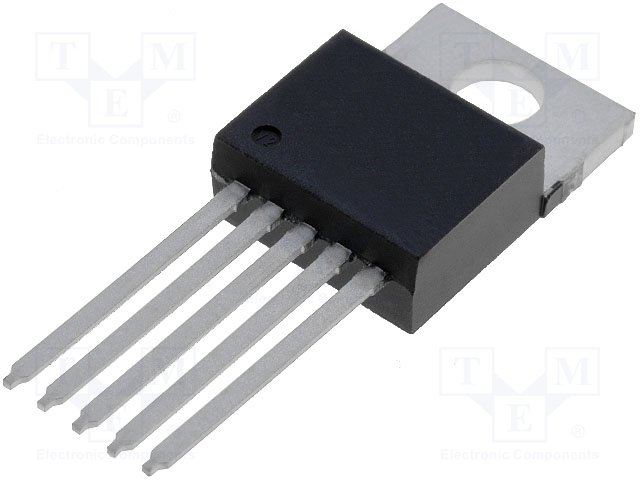

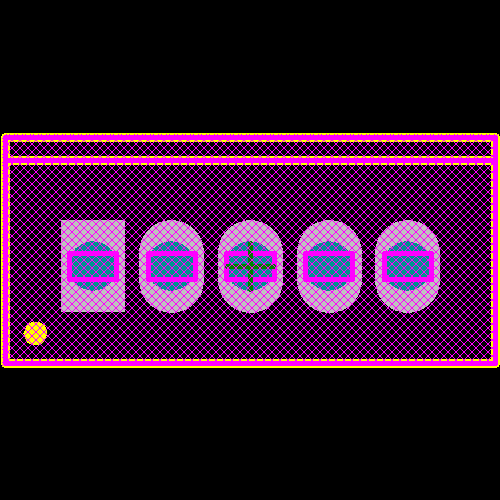

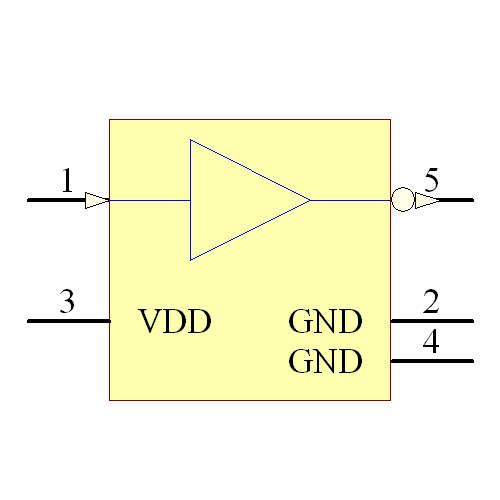

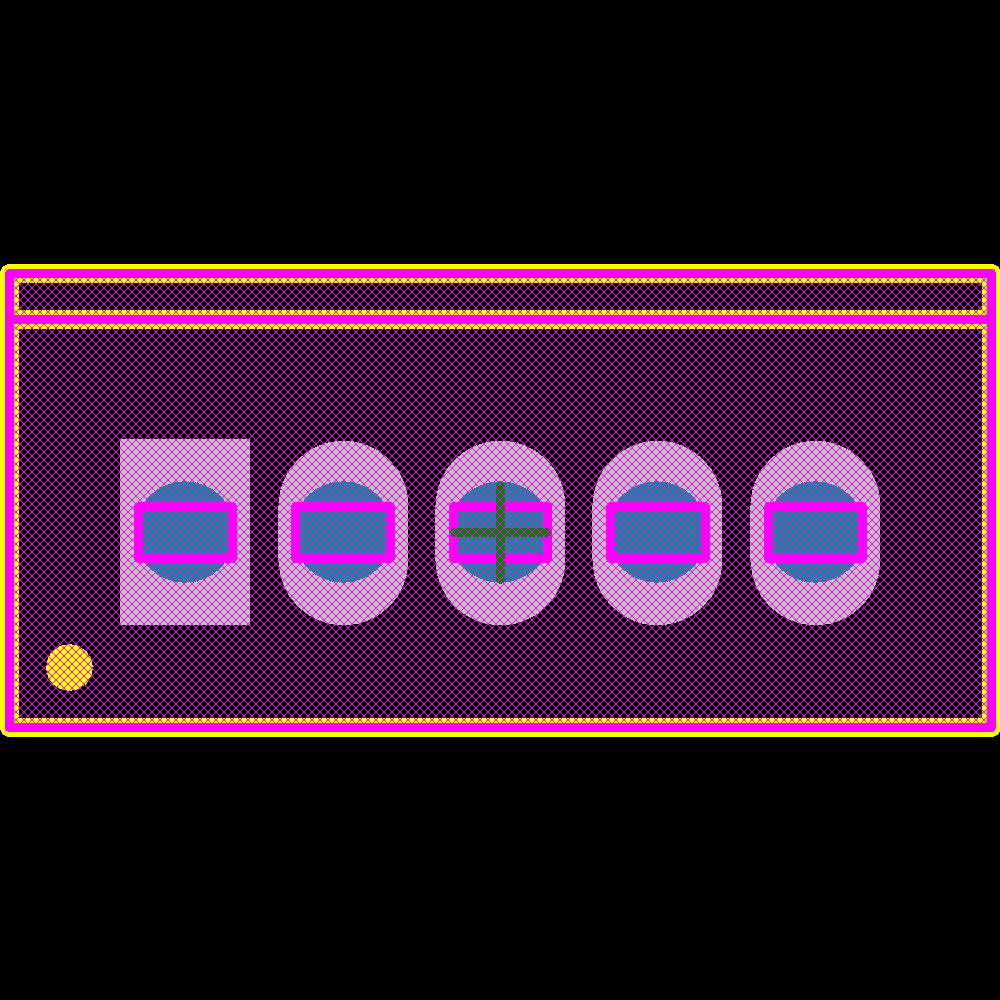

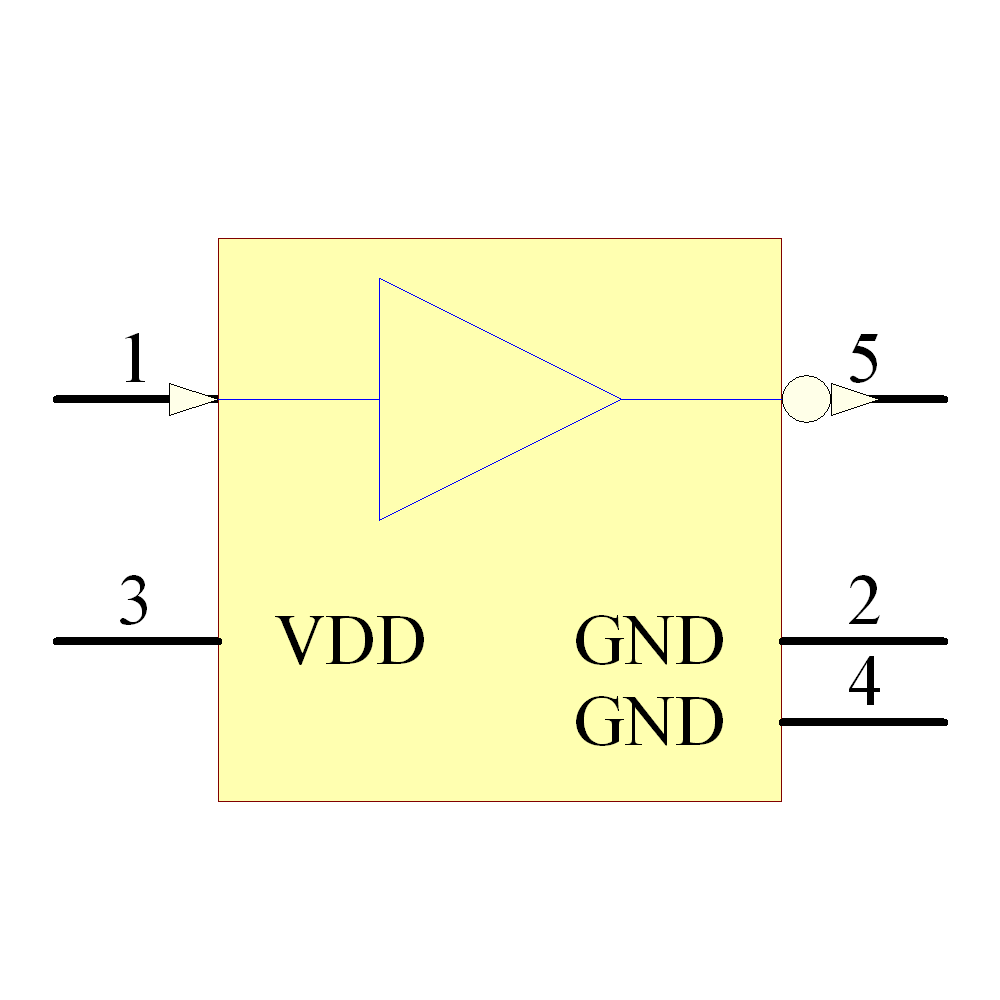

IC GATE DRVR LOW-SIDE TO220-5 Low-Side Gate Driver IC Inverting TO-220-5
Technical Details
| Projected EOL Date | 2034-12-22 |
| Case/Package | TO-220 |
| Country of Assembly | China |
| Country of Fabrication | United States of America |
| Country of Origin | China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 30ns |
| Harmonized Tariff Schedule (HTS) Code | 8542.33.0001 |
| Introduction Date | 2006-12-22 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Operating Temperature | 125°C |
| Max Output Current | 6A |
| Max Supply Current | 250µA |
| Max Supply Voltage | 18V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Nominal Supply Current | 250µA |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Packaging | Rail/Tube |
| Propagation Delay | 55ns |
| Radiation Hardening | No |
| Rise Time | 30ns |
| RoHS | Compliant |
| Turn-On Delay Time | 55ns |
