Microchip - MCP1406-E/SN

MCP1406-E/SN - Microchip

IC GATE DRVR LOW-SIDE 8SOIC Low-Side Gate Driver IC Inverting 8-SOIC

 Datasheets

Technical Details

Projected EOL Date 2034-12-22
Case/Package SOIC
Country of Assembly Thailand
Country of Fabrication United States of America
Country of Origin Thailand
Export Control Classification Number (ECCN) Code EAR99
Fall Time 30ns
Height 1.25mm
Harmonized Tariff Schedule (HTS) Code 8542.33.0001
Introduction Date 2006-12-22
Lead Free Lead Free
Length 4.9mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Operating Temperature 125°C
Max Output Current 6A
Max Supply Current 250µA
Max Supply Voltage 18V
Min Operating Temperature -40°C
Min Supply Voltage 4.5V
Mount Surface Mount
Nominal Supply Current 250µA
Number of Channels 1
Number of Drivers 1
Number of Pins 8
Output Current 6A
Propagation Delay 55ns
Radiation Hardening No
REACH SVHC No
Rise Time 30ns
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000
Turn-On Delay Time 55ns
Width 3.9mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

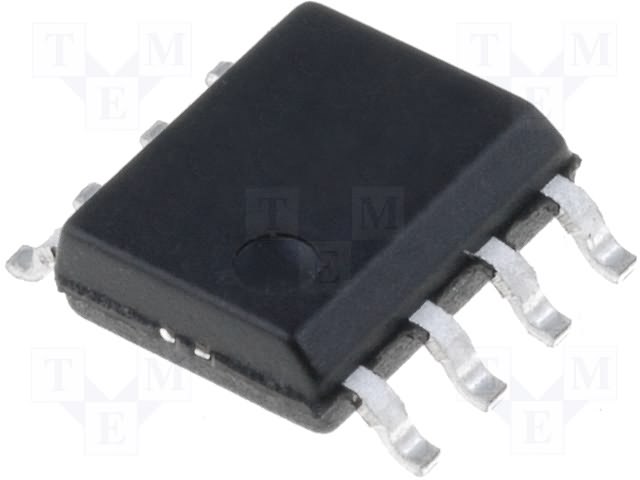

Microchip MCP1406-E/SN | TME

TME

Datasheets

 Onlinecomponents.com
 Master Electronics
 DigiKey

Lifecycle Status Indicator

   Production

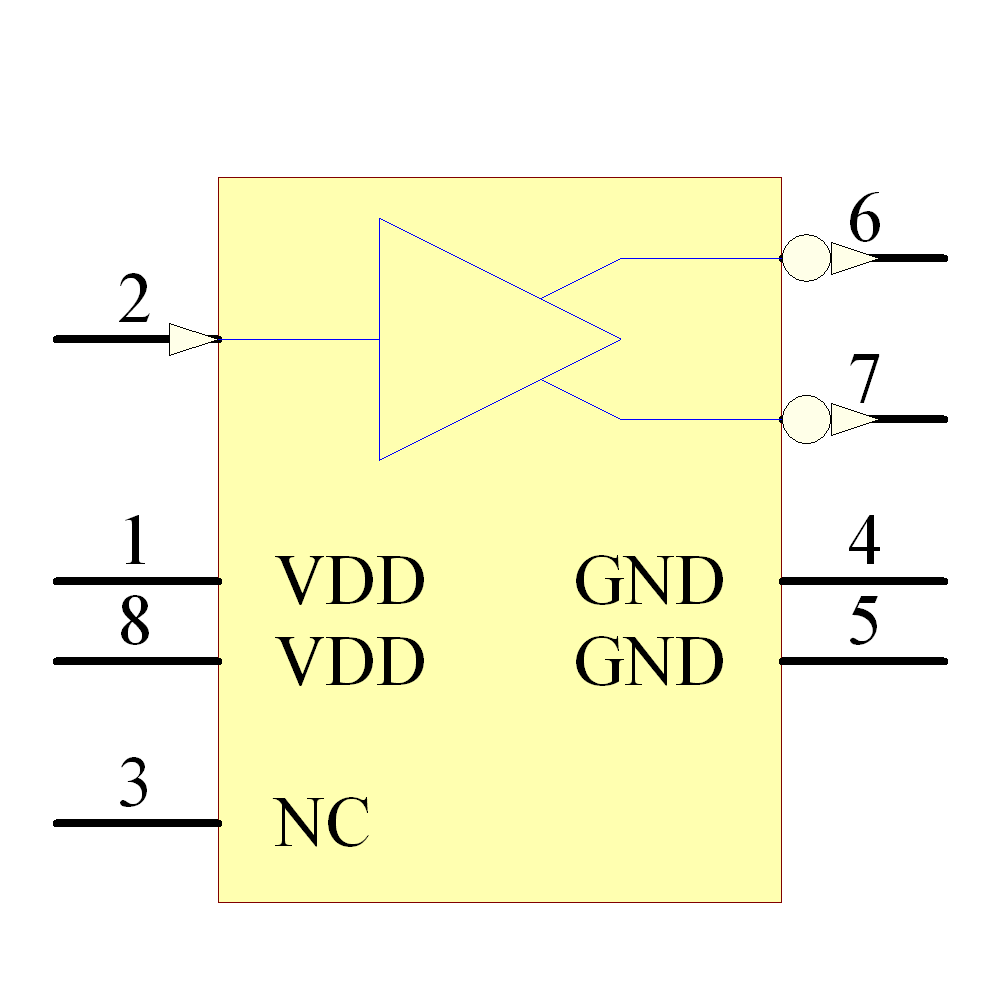

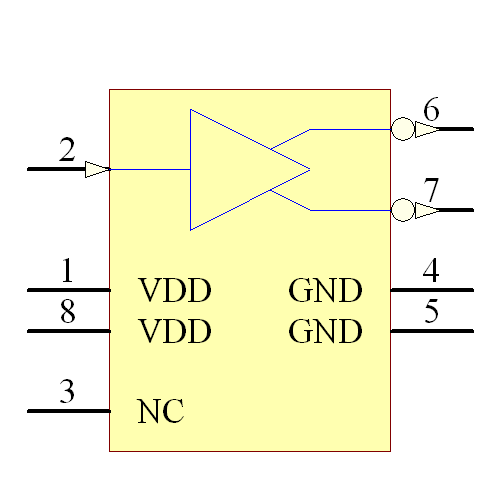

Symbol

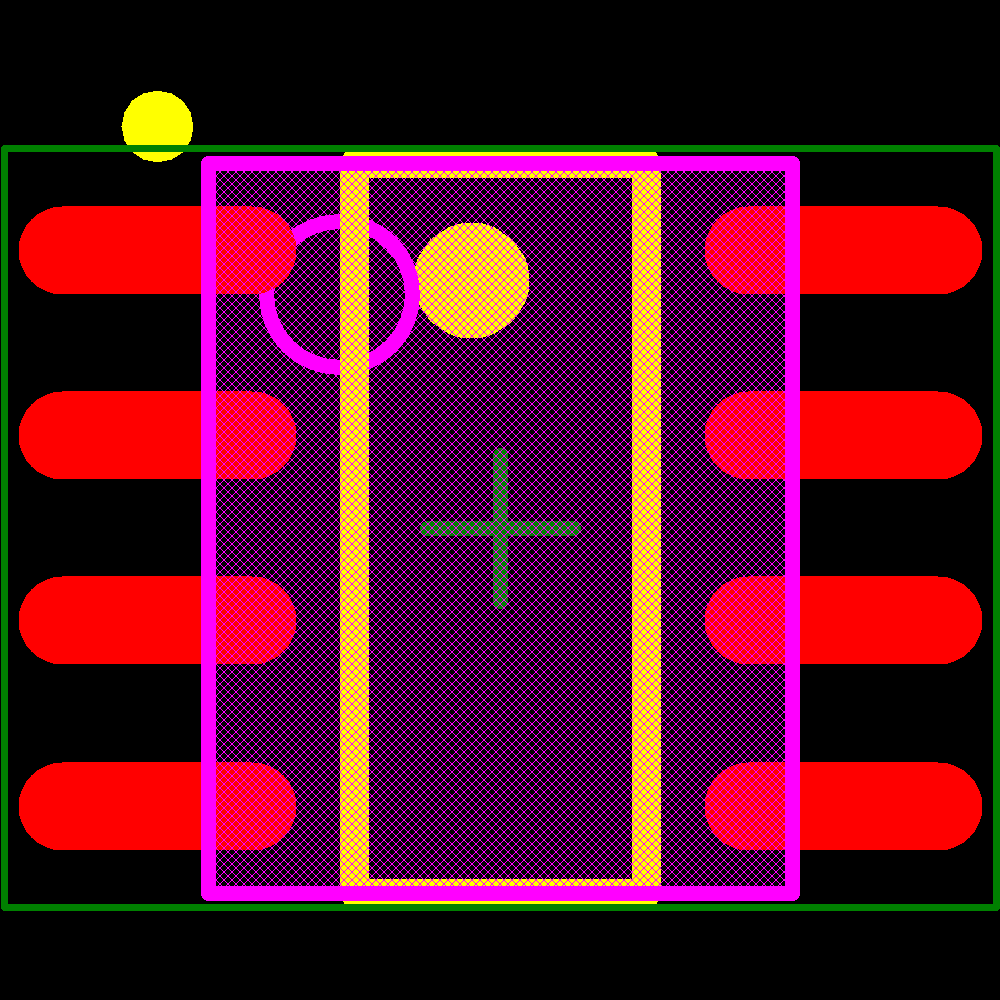

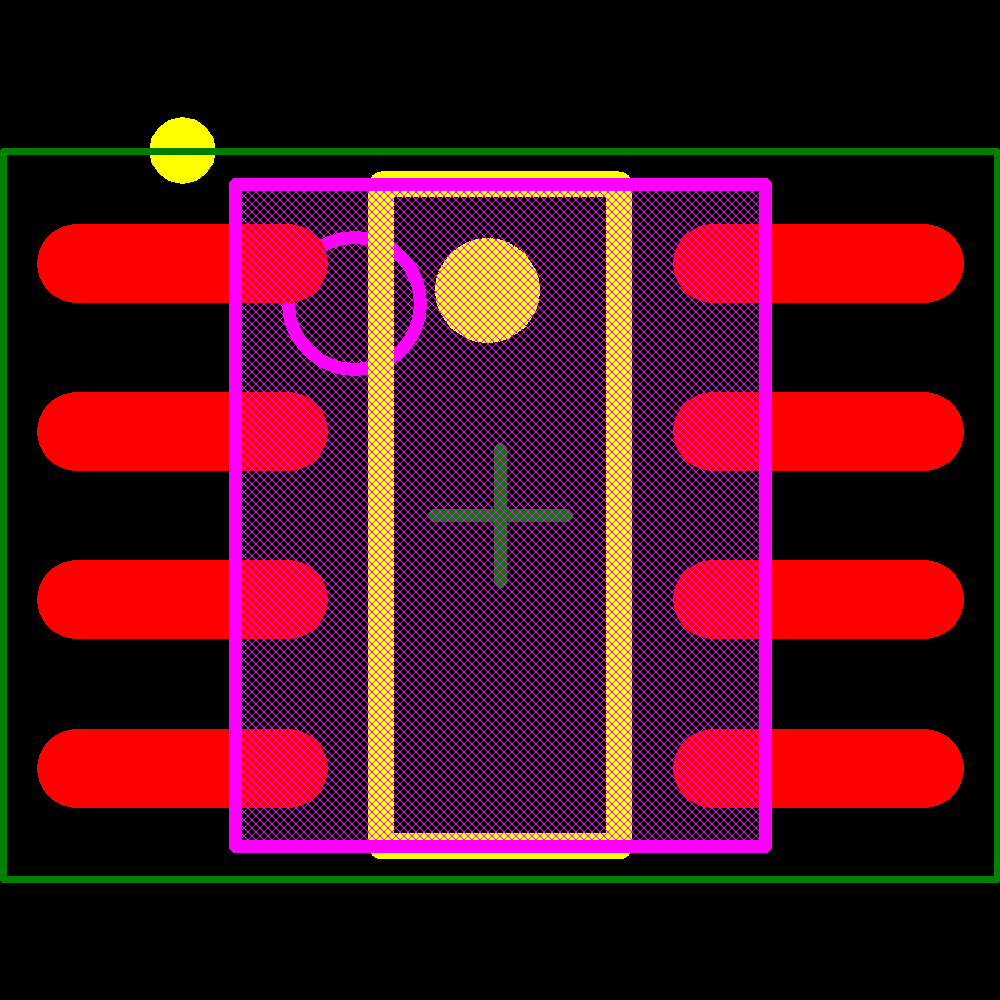

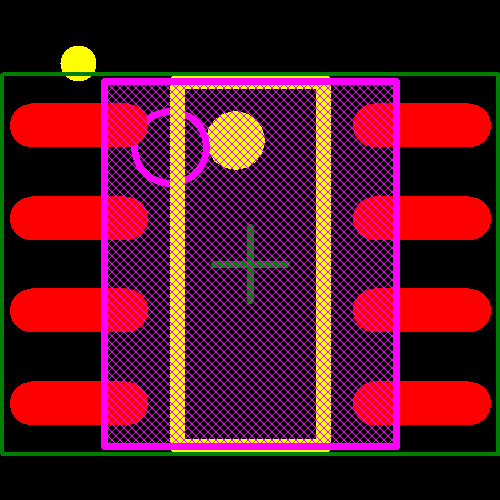

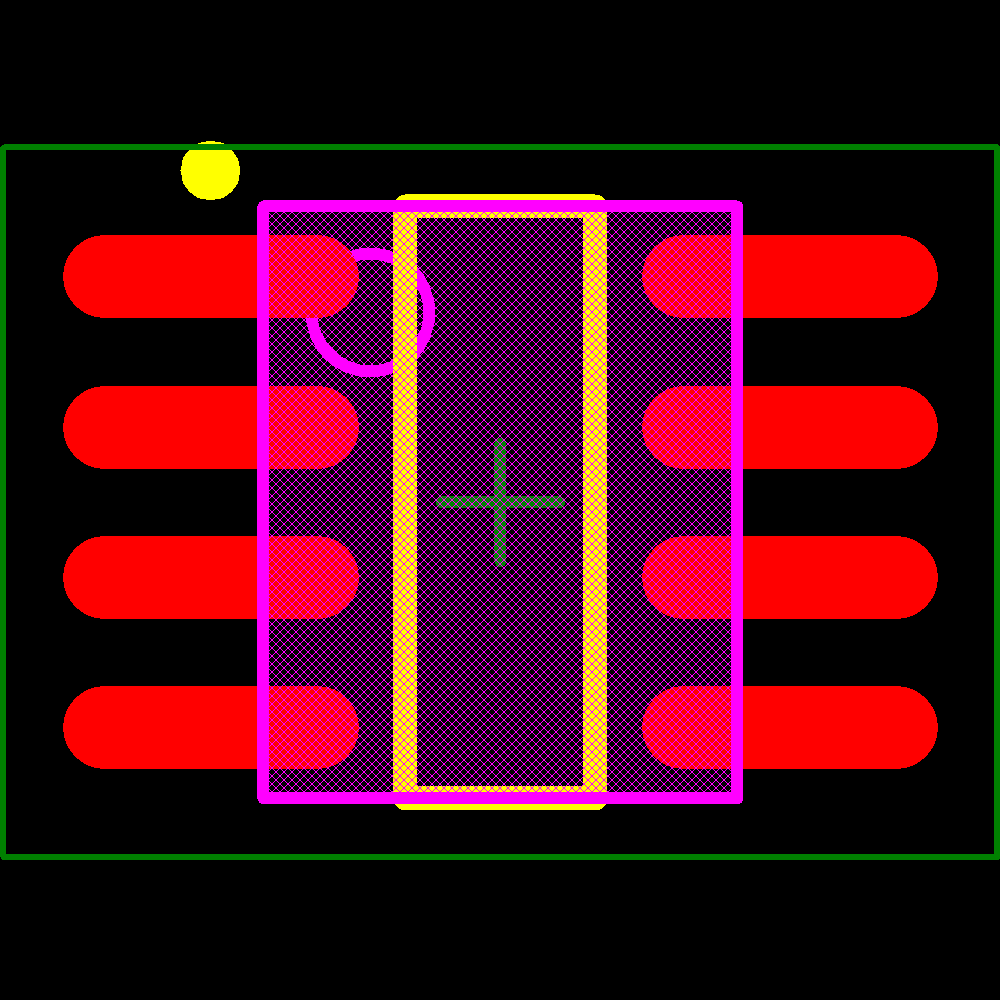

Footprint
