MCP14E9T-E/MF - Microchip

Tape & Reel (TR) MCP14E9 Low-Side 2011 gate driver 14ns -40C~150C TJ 3A 3A 0.8V 2.4V

Projected EOL Date	2039-03-28
Case/Package	DFN
Country of Assembly	Philippines, Thailand
Country of Fabrication	United States of America
Country of Origin	Philippines, Thailand
Export Control Classification Number (ECCN) Code	EAR99
Fall Time	17ns
Harmonized Tariff Schedule (HTS) Code	8542.33.0001
Introduction Date	2011-03-28
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Operating Temperature	125°C
Max Output Current	3A
Max Supply Current	1.8mA
Max Supply Voltage	18V
Min Operating Temperature	-40°C
Min Supply Voltage	4.5V
Nominal Supply Current	1.8mA
Number of Outputs	2
Number of Pins	8
Output Current	3A
Rise Time	14ns
RoHS	Compliant

RoHS : Unconfirmed

Microchip MCP14E9T-E/MF | Microchip

Microchip

Production

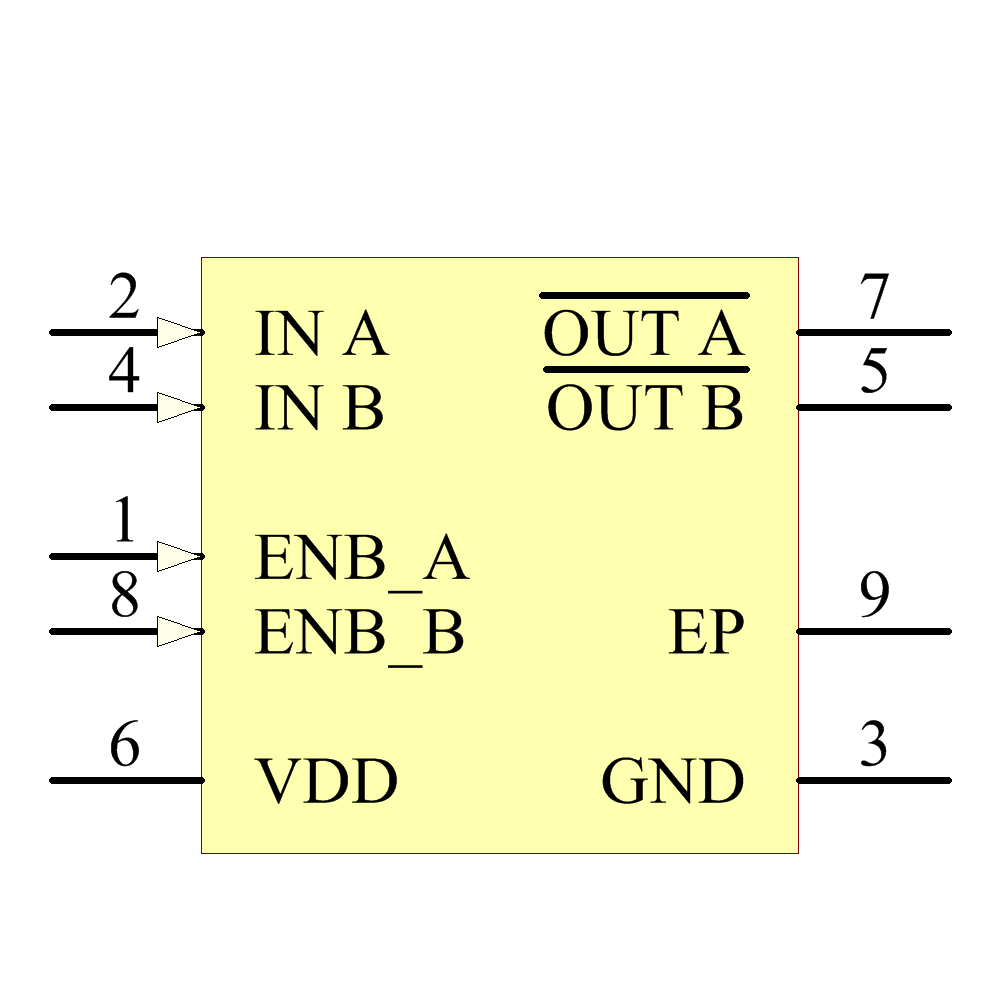

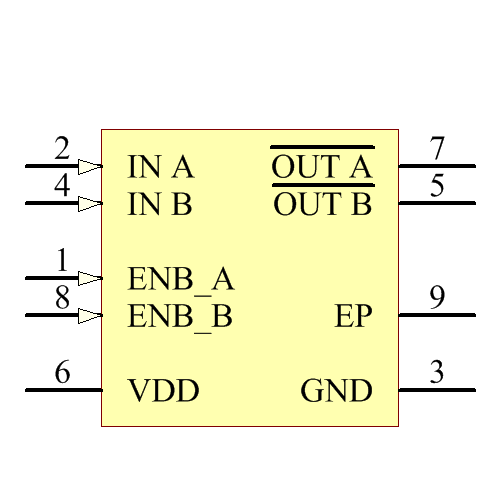

Symbol

‹ ›

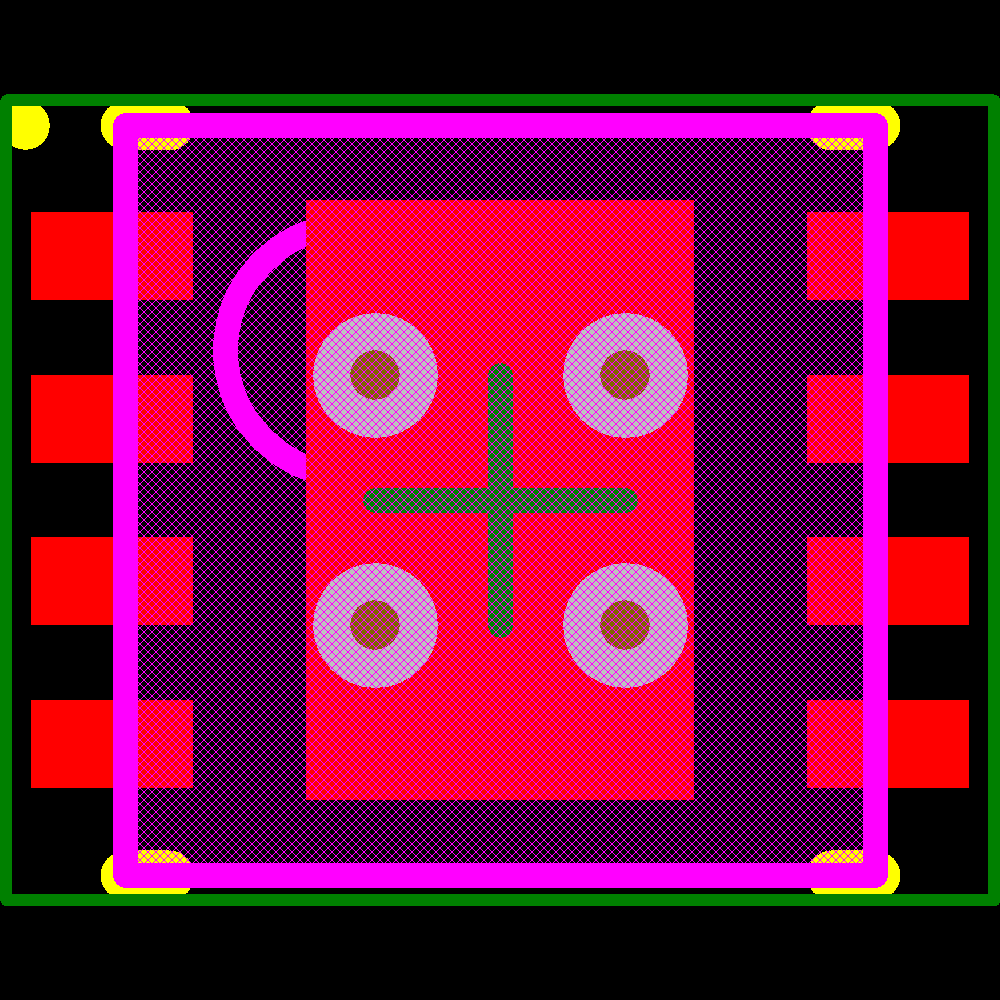

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Microchip	MCP14E9-E/MF	Production
Microchip	MCP14E10T-E/SN	Production
Microchip	MCP14E11-E/SN	Production
Microchip	MCP14E9-E/P	Production
Microchip	MCP14E10-E/MF	Production
Microchip	MCP14E10-E/P	Production
Microchip	MIC4103YM-TR	Production
Microchip	MCP14E9-E/SN	Production
Microchip	MCP14E11T-E/MF	Production
Microchip	MCP14E9T-E/SN	Production
