Integrated Circuits (ICs) > Power Management ICs > Voltage Regulators - Switching

MCP1603T-330I/MC - Microchip

IC REG BUCK 3.3V 500MA 8DFN Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 500mA 8-VFDFN Exposed Pad

Projected EOL Date	2034-04-12
Case/Package	DFN
Country of Assembly	Thailand
Country of Fabrication	Taiwan
Country of Origin	Thailand
Export Control Classification Number (ECCN) Code	EAR99
Efficiency	90%
Height	950µm
Harmonized Tariff Schedule (HTS) Code	8542.39.0060
Input Bias Current	100pA
Introduction Date	2007-04-12
Lead Free	Lead Free
Length	3mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Input Voltage	5.5V
Max Operating Temperature	85°C
Max Output Current	500mA
Max Output Voltage	3.3V
Min Input Voltage	2.7V
Min Operating Temperature	-40°C
Min Output Voltage	3.3V
Mount	Surface Mount
Number of Outputs	1
Number of Pins	8
Operating Supply Voltage	5.5V
Output Configuration	Positive
Output Current	500mA
Output Type	Fixed
Output Voltage	3.3V
Packaging	Tape & Reel (TR)
Radiation Hardening	No
RoHS	Compliant
Switching Frequency	2.8MHz
Synchronous Rectifier	Yes
Width	2mm

RoHS : Unconfirmed

Radiation Hardening : No

Microchip MCP1603T-330I/MC | Microchip

Microchip

Production

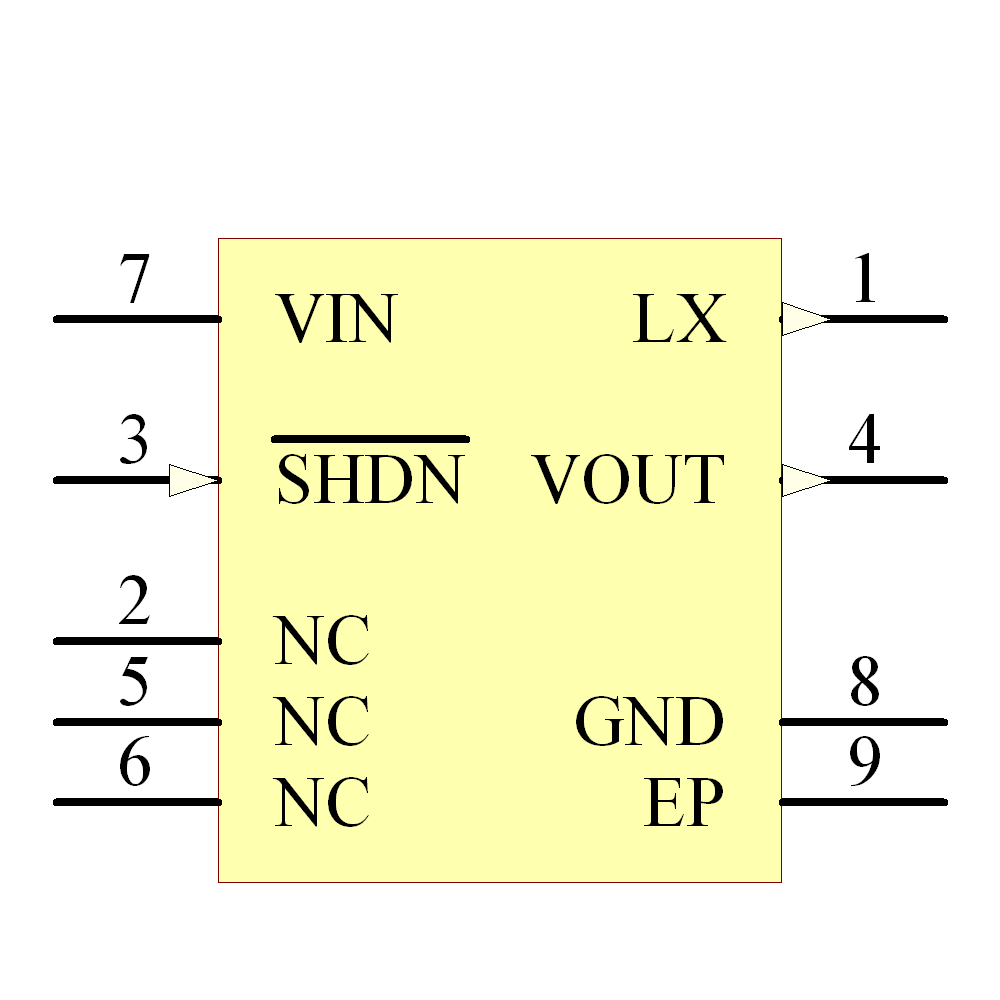

Symbol

‹ ›

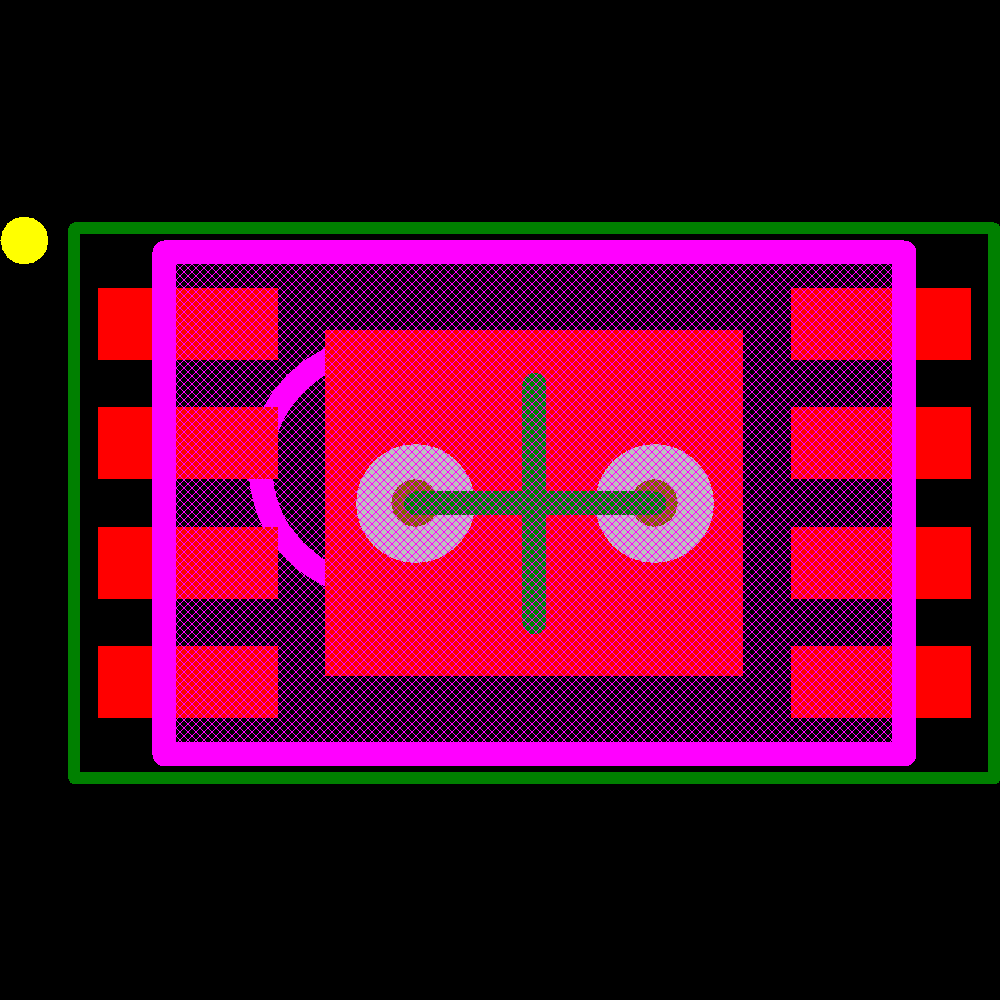

Footprint

‹ ›
