Microchip - MCP1630VT-E/MS

MCP1630VT-E/MS - Microchip

Current Mode PWM Controller 1000kHz Automotive AEC-Q100 8-Pin MSOP T/R

 Datasheets

Technical Details

Projected EOL Date 2034-06-17
Case/Package MSOP
Clock Sync No
Country of Assembly Thailand
Country of Fabrication United States of America
Country of Origin Thailand
Duty Cycle 75%
Export Control Classification Number (ECCN) Code EAR99
Fall Time 6.2ns
Harmonized Tariff Schedule (HTS) Code 8542.39.0060
Introduction Date 2005-06-17
Lead Free Lead Free
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Frequency 1MHz
Max Operating Temperature 125°C
Max Supply Voltage 6V
Min Operating Temperature -40°C
Mount Surface Mount
Number of Output Phases 1
Number of Pins 8
Quiescent Current 2.8mA
Radiation Hardening No
Rise Time 5.9ns
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Switching Frequency 1MHz
Synchronous Rectifier Yes
Topology Buck-Boost, Flyback, SEPIC

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Microchip MCP1630VT-E/MS | Microchip

Microchip

Datasheets

 Avnet
 Arrow Electronics
 DigiKey

Lifecycle Status Indicator

   Production

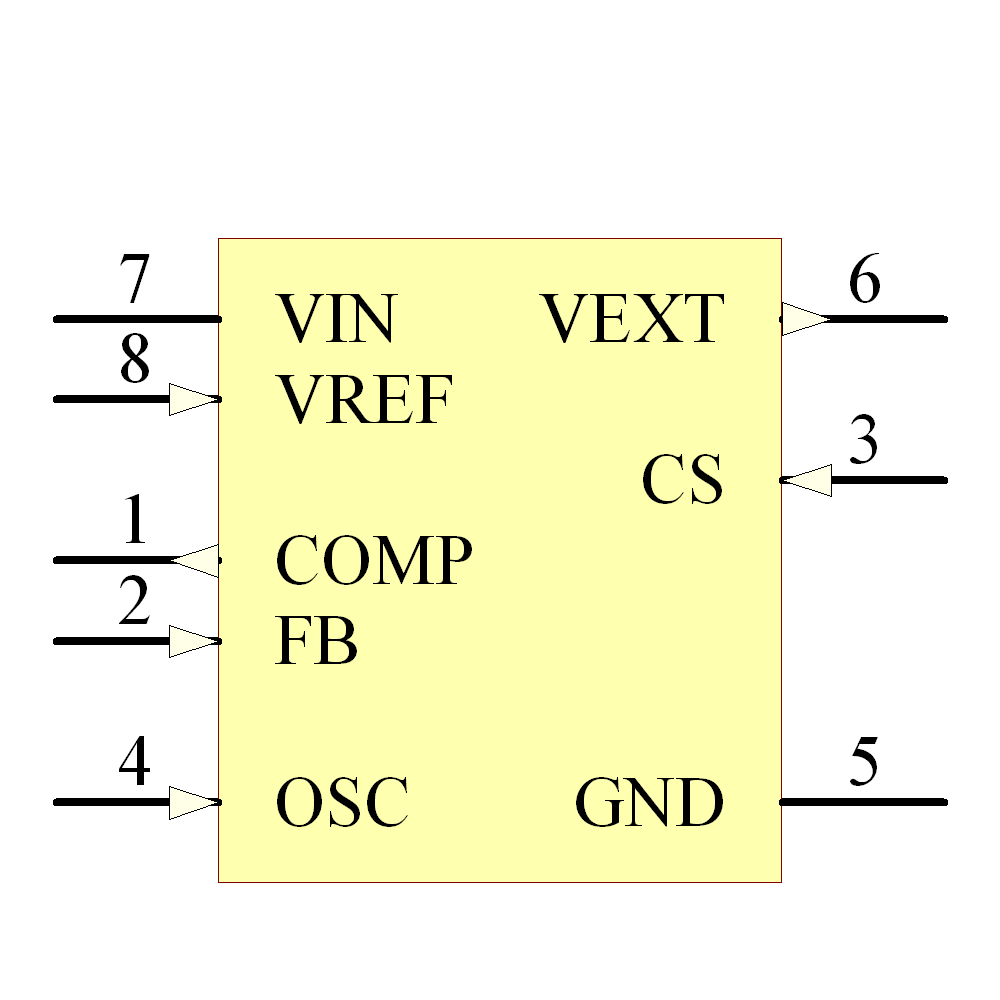

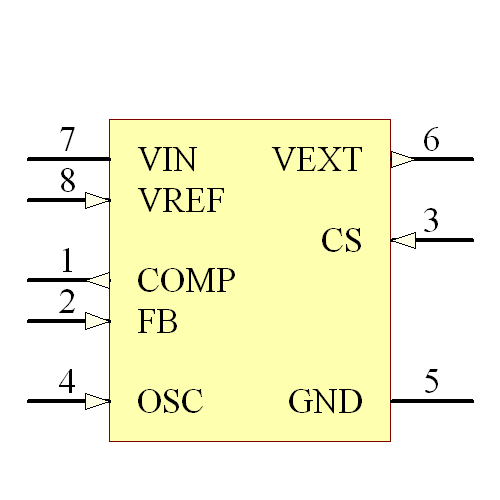

Symbol

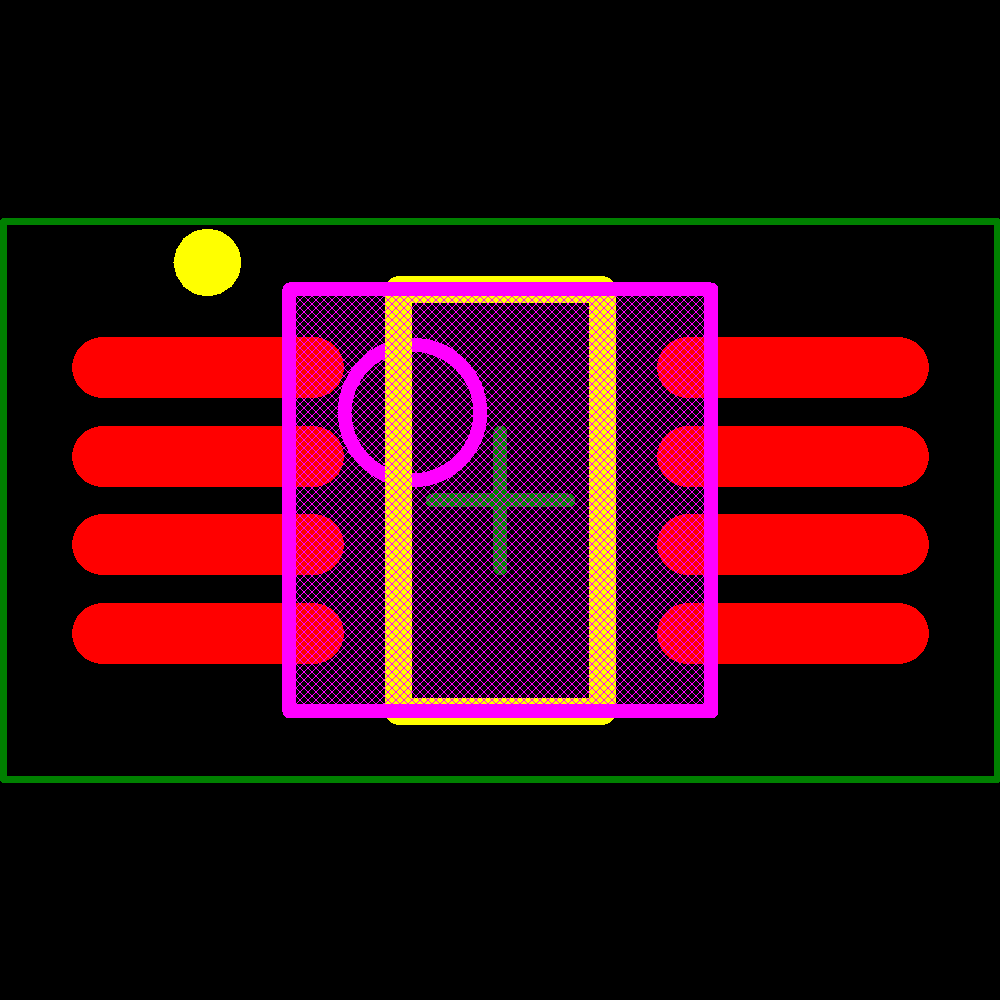

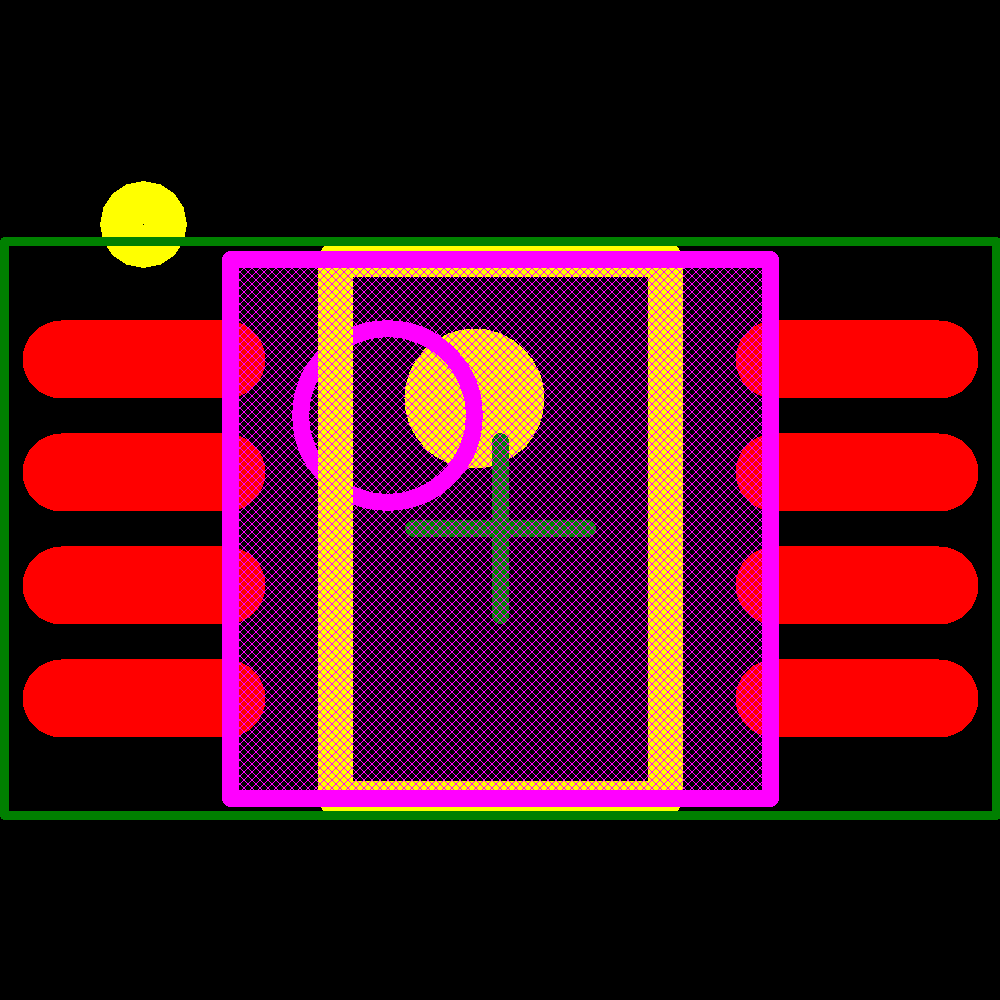

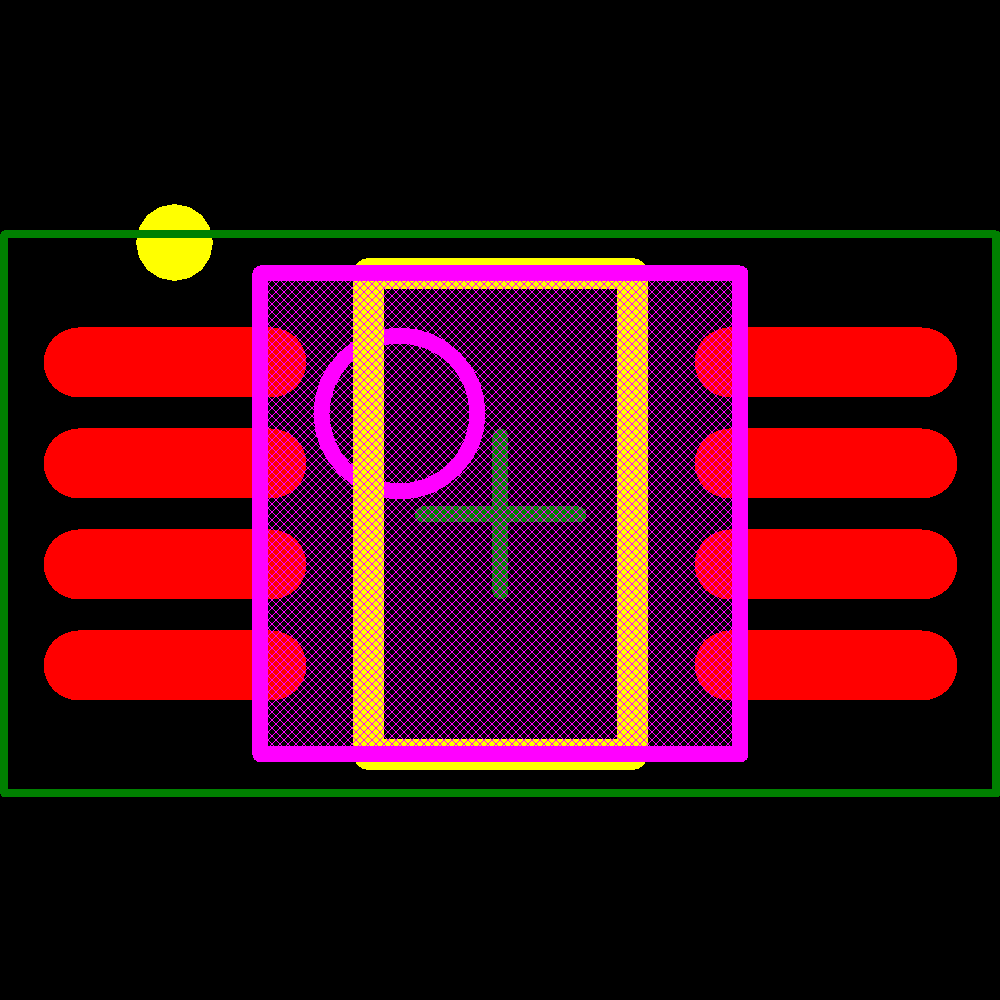

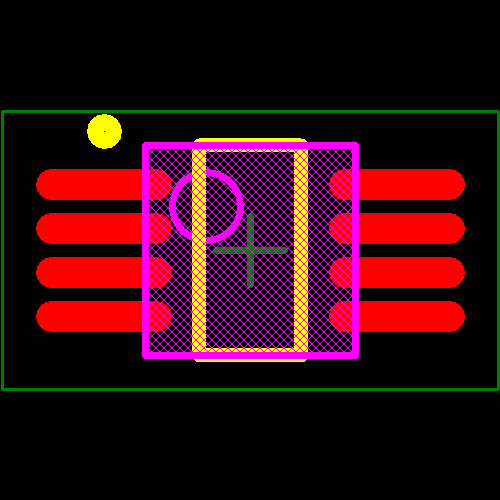

Footprint
