Microchip - MCP1631-E/ML

MCP1631-E/ML - Microchip

Current Mode PWM Controller 250mA 2000kHz Automotive 20-Pin QFN EP Tube

 Datasheets

Technical Details

Projected EOL Date 2034-08-28
Case/Package QFN
Clock Sync No
Country of Assembly Malaysia, Thailand
Country of Fabrication United States of America
Country of Origin Malaysia, Thailand
Duty Cycle 0%
Export Control Classification Number (ECCN) Code EAR99
Fall Time 2.7ns
Height 1mm
Harmonized Tariff Schedule (HTS) Code 8542.39.0060
Introduction Date 2007-08-28
Lead Free Lead Free
Length 4mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Duty Cycle 10%
Max Frequency 2MHz
Max Operating Temperature 125°C
Max Supply Voltage 5.5V
Min Operating Temperature -40°C
Min Supply Voltage 3V
Mount Surface Mount
Number of Output Phases 1
Number of Outputs 1
Number of Pins 20
Output Configuration Positive
Output Current 250mA
Output Voltage 5V
Packaging Rail/Tube
Radiation Hardening No
Rise Time 2.5ns
RoHS Compliant
Switching Frequency 2MHz
Synchronous Rectifier No
Topology SEPIC
Width 4mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Microchip MCP1631-E/ML | Microchip

Microchip

Datasheets

 Mouser
 DigiKey
 Avnet Silica

Lifecycle Status Indicator

   Production

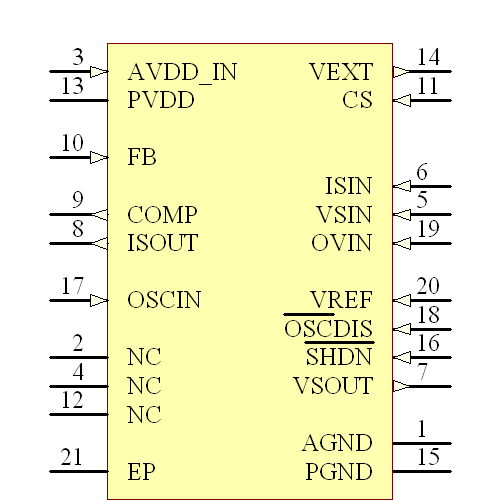

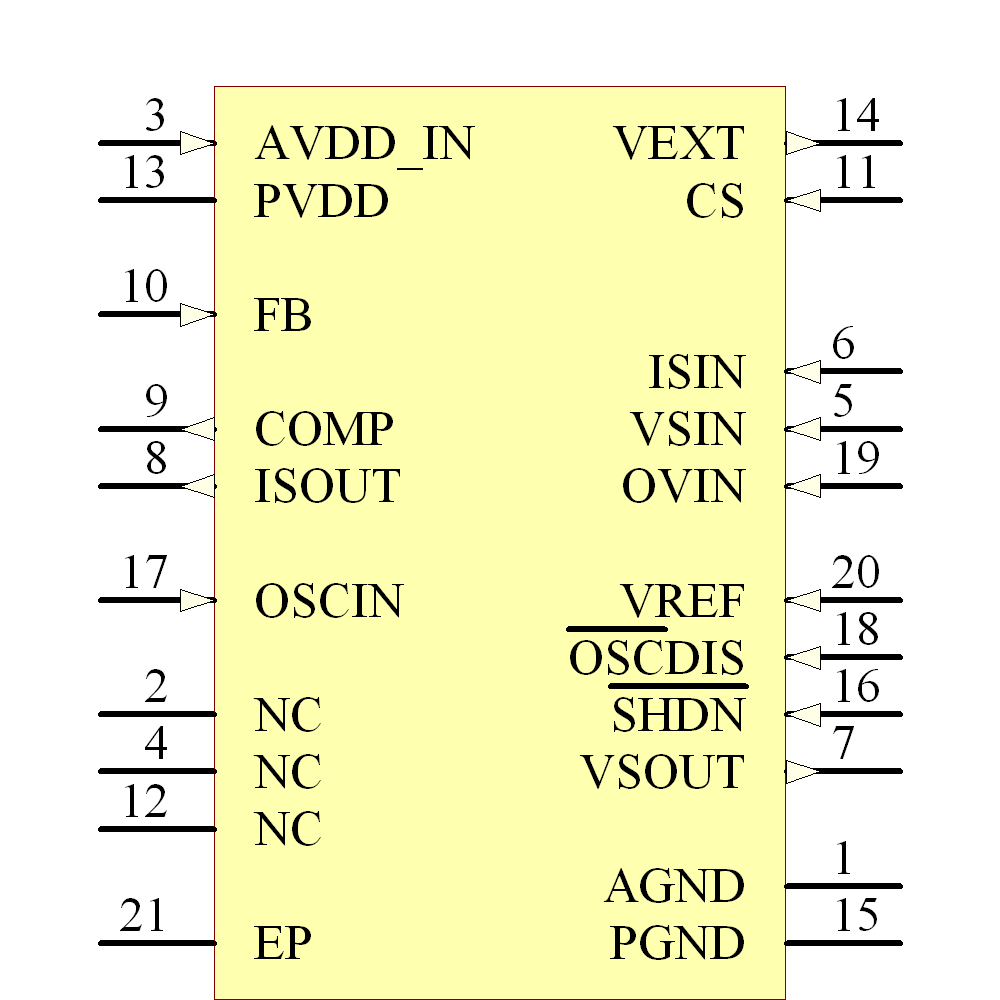

Symbol

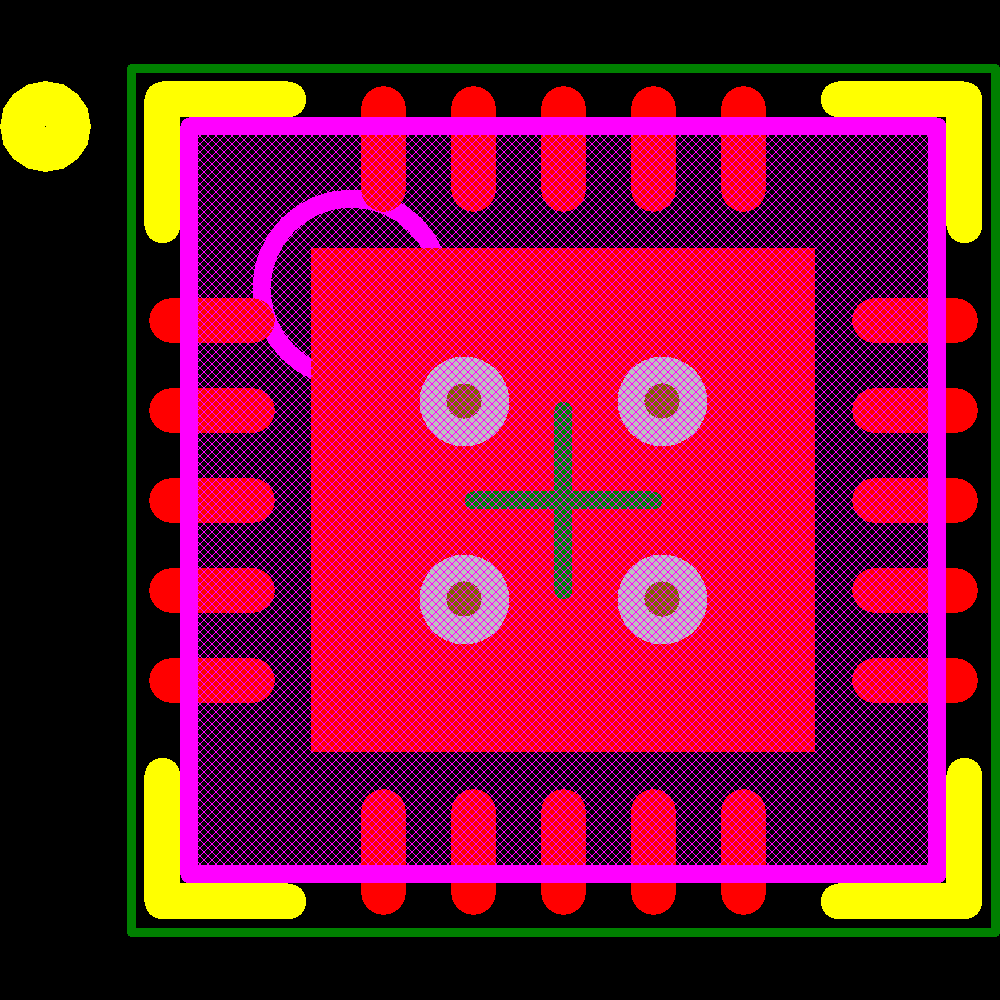

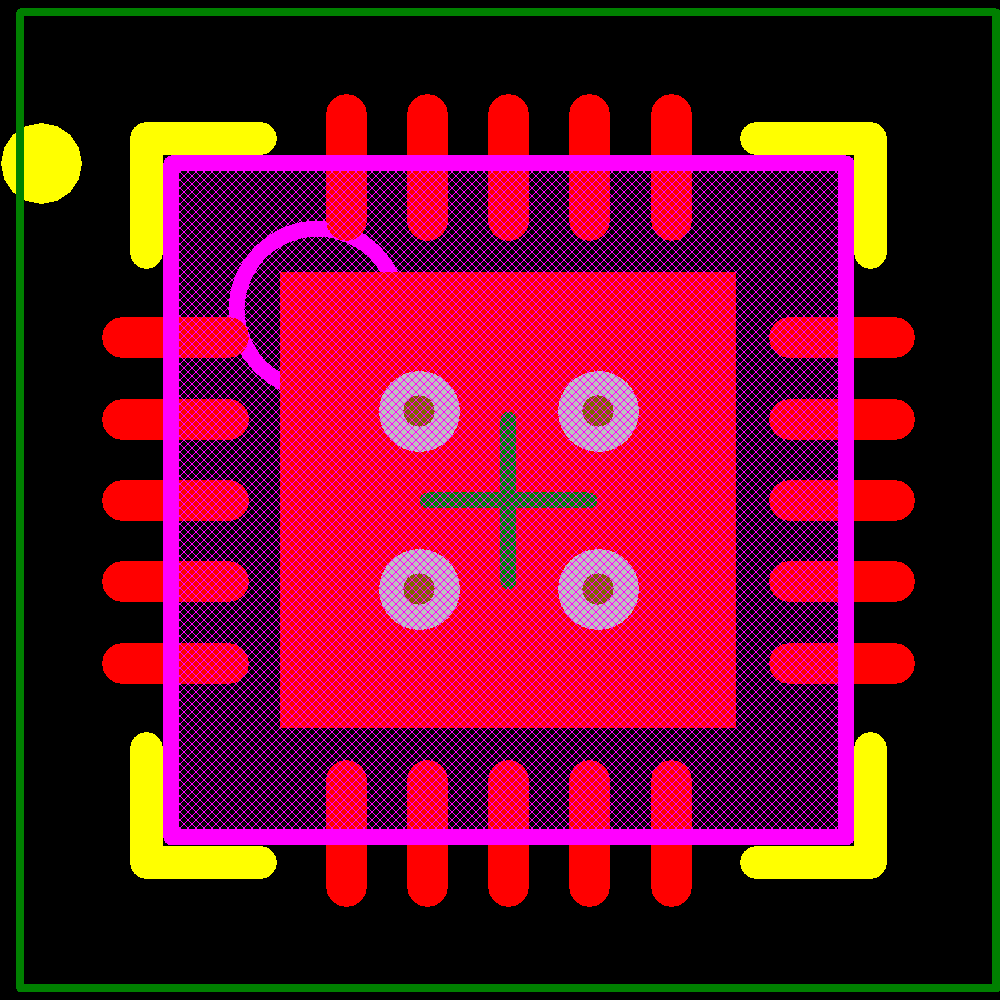

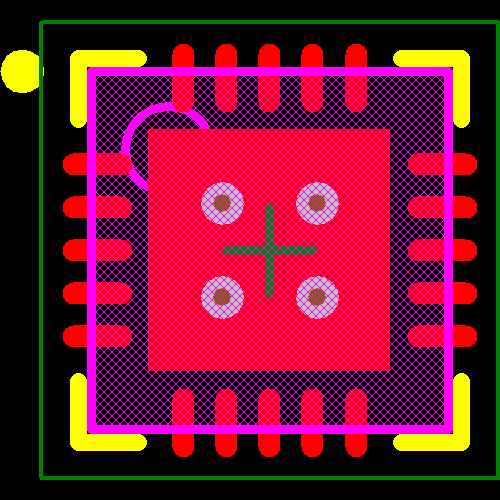

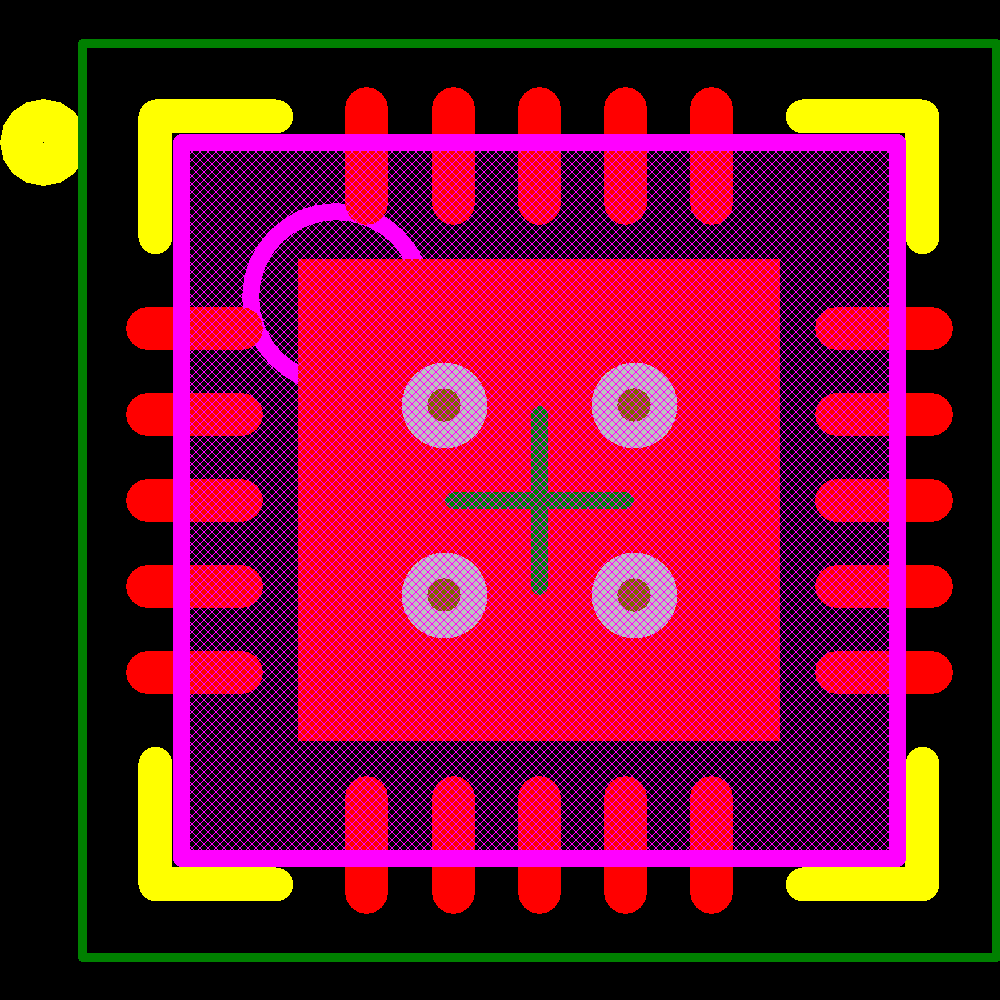

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
MCP1631T-E/ML
Production
Microchip
MCP1631T-E/MLVAO
Production
Microchip
MCP1631-E/ST
Production
Microchip
MCP1631T-E/SS
Production
Microchip
MCP1631-E/SS
Production
Microchip
MCP1631T-E/ST
Production
Microchip
MCP1631T-E/STVAO
Production
Analog Devices
ADP5040ACPZ-1-R7
Production
Analog Devices
LT3477IUF#TRPBF
Production
Analog Devices
LT3477EUF#PBF
Production

See more alternatives See less alternatives
