Microchip - MCP1631HV-500E/ST

MCP1631HV-500E/ST - Microchip

MCP1631HV-500E/ST, Pwm Current Mode Controller, 2000 Khz, 3.5 to 16V, 20-PIN TSSOP

 Datasheets

Technical Details

Projected EOL Date 2034-11-07
Case/Package TSSOP
Clock Sync No
Country of Assembly Philippines
Country of Fabrication United States of America
Country of Origin Philippines
Duty Cycle 10%
Export Control Classification Number (ECCN) Code EAR99
Fall Time 2.7ns
Frequency 1MHz
Height 1mm
Harmonized Tariff Schedule (HTS) Code 8542.39.0060
Introduction Date 2007-11-07
Lead Free Lead Free
Length 6.5mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Frequency 2MHz
Max Operating Temperature 125°C
Max Supply Voltage 16V
Min Operating Temperature -40°C
Min Supply Voltage 3.5V
Mount Surface Mount
Nominal Input Voltage 16V
Number of Output Phases 1
Number of Outputs 1
Number of Pins 20
Output Configuration Positive
Output Current 250mA
Output Voltage 5V
Radiation Hardening No
REACH SVHC No
Rise Time 2.5ns
RoHS Compliant
Switching Frequency 2MHz
Synchronous Rectifier No
Topology SEPIC
Width 4.4mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Microchip MCP1631HV-500E/ST | Microchip

Microchip

Datasheets

 DigiKey
 Mouser
 Microchip

Lifecycle Status Indicator

   Production

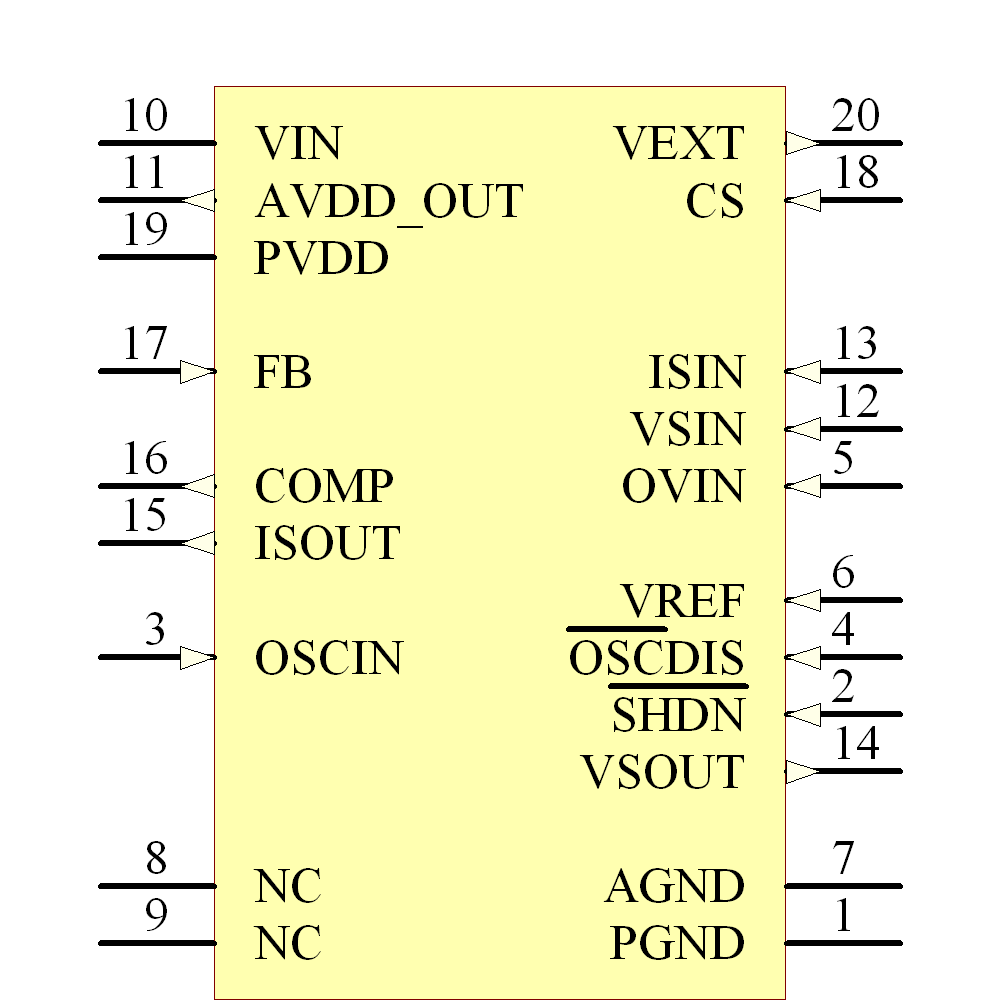

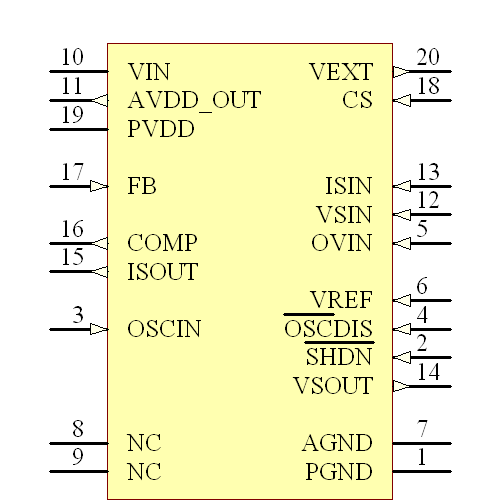

Symbol

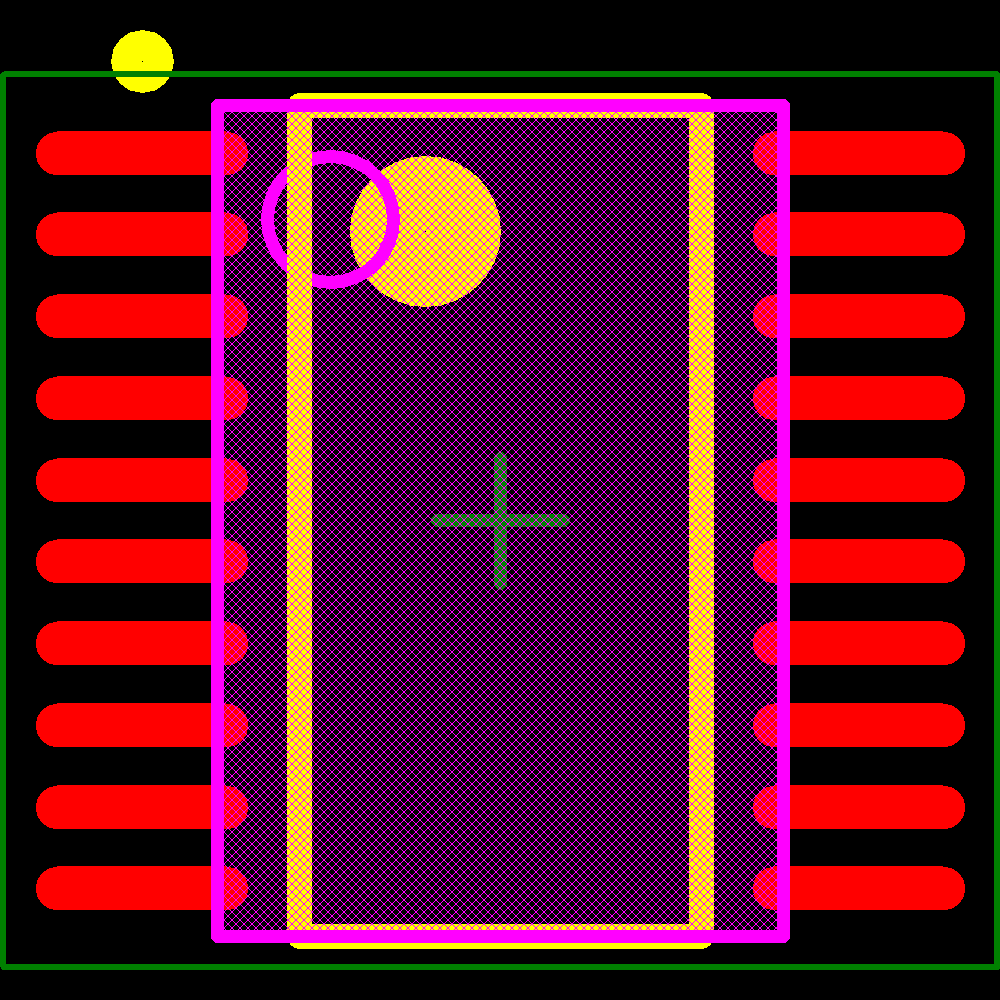

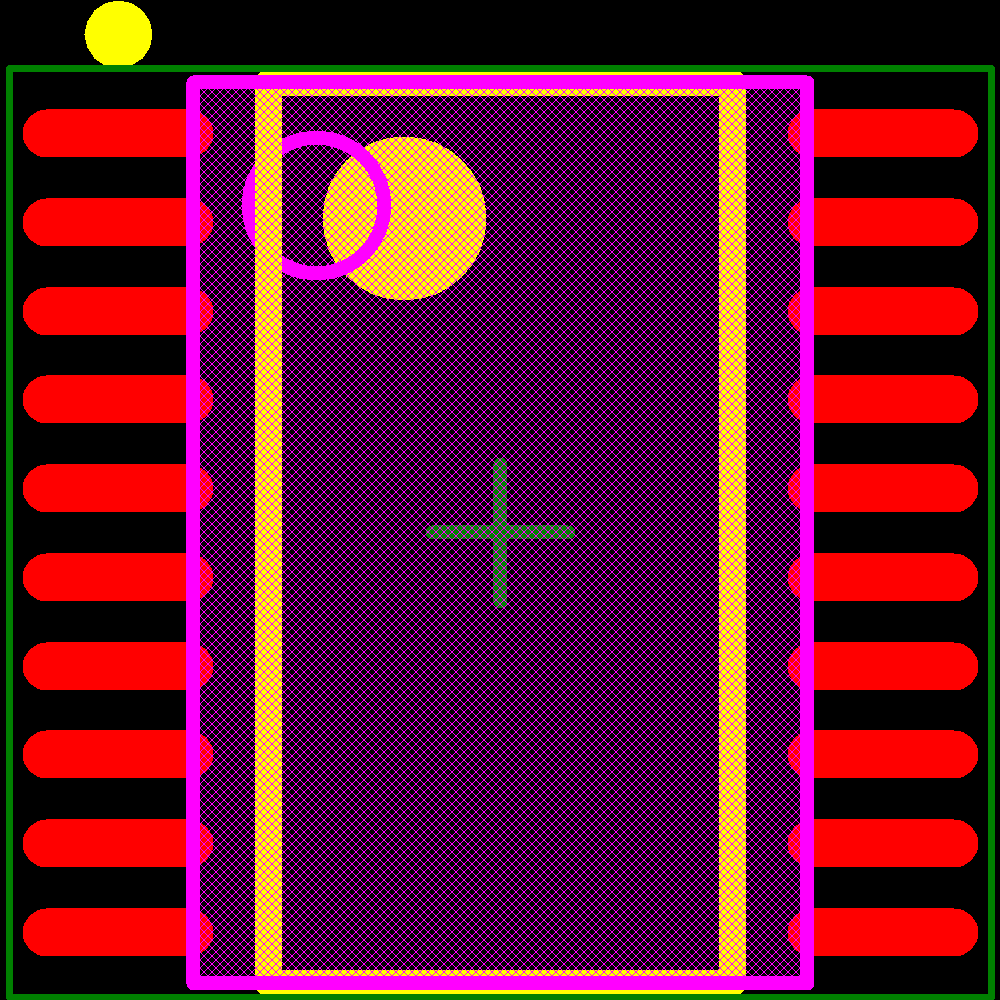

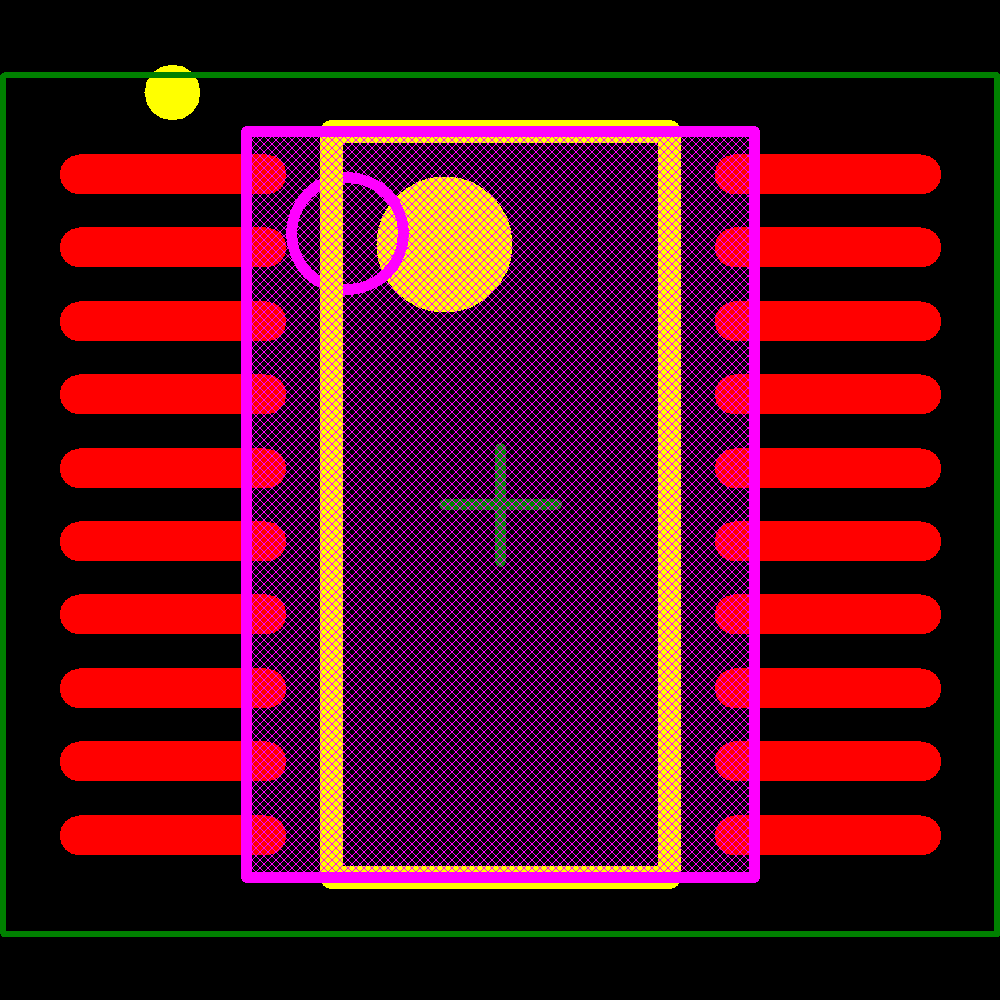

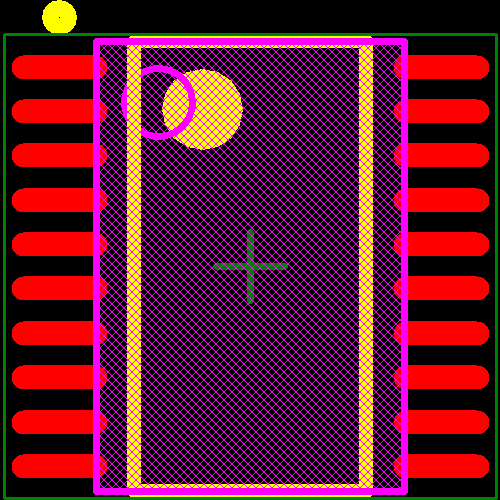

Footprint
