Microchip - MCP1631V-E/SS

MCP1631V-E/SS - Microchip

Voltage Mode PWM Controller 250mA 2000kHz Automotive 20-Pin SSOP Tube

 Datasheets

Technical Details

Projected EOL Date 2034-08-28
Case/Package SSOP
Clock Sync No
Country of Assembly Philippines, Thailand
Country of Fabrication United States of America
Country of Origin Philippines, Thailand
Duty Cycle 0%
Export Control Classification Number (ECCN) Code EAR99
Fall Time 2.7ns
Harmonized Tariff Schedule (HTS) Code 8542.39.0060
Introduction Date 2007-08-28
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Frequency 2MHz
Max Operating Temperature 125°C
Max Supply Voltage 5.5V
Min Operating Temperature -40°C
Mount Surface Mount
Number of Output Phases 1
Number of Outputs 1
Number of Pins 20
Output Configuration Positive
Output Current 250mA
Radiation Hardening No
Rise Time 2.5ns
RoHS Compliant
Switching Frequency 2MHz
Synchronous Rectifier No
Topology SEPIC

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Microchip MCP1631V-E/SS | Microchip

Microchip

Datasheets

 DigiKey
 Mouser
 Microchip

Lifecycle Status Indicator

   Production

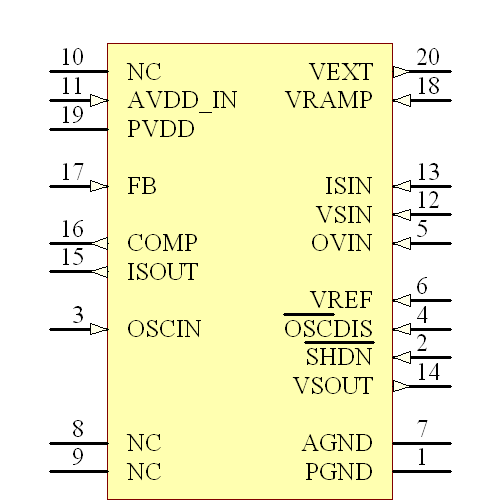

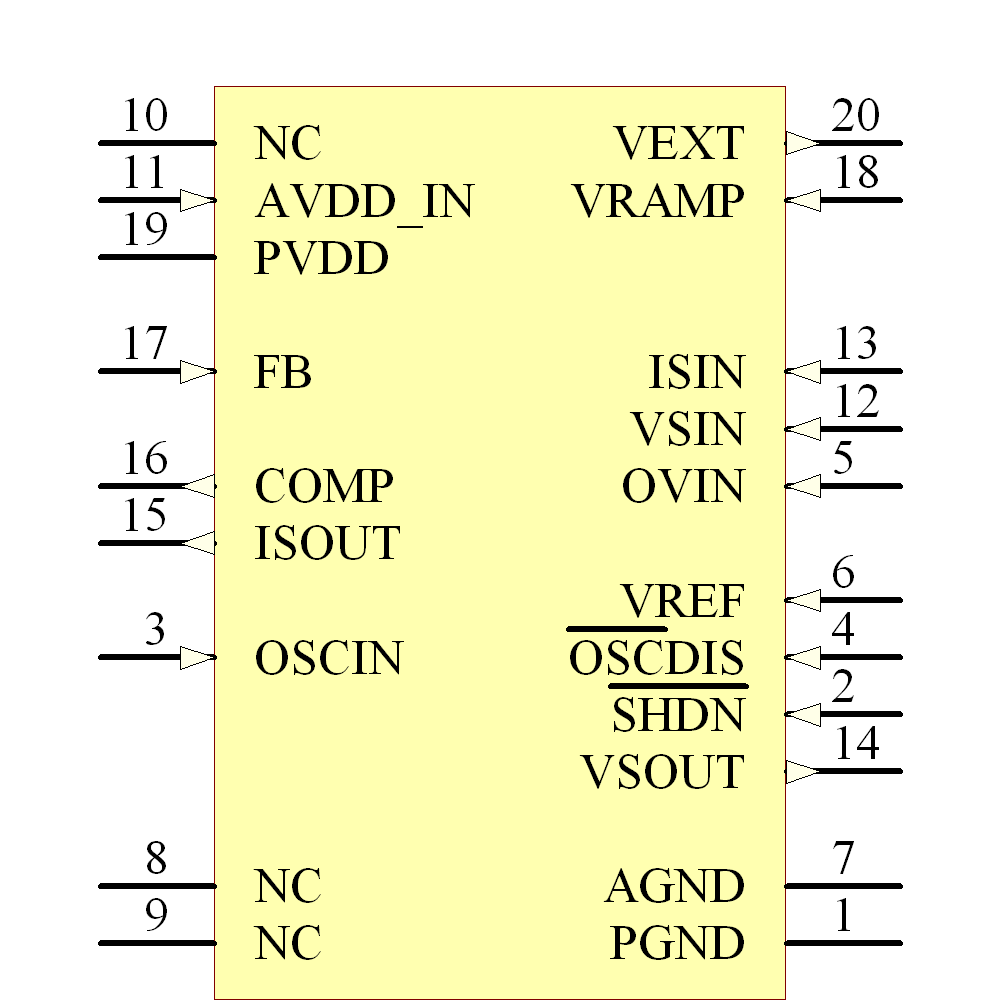

Symbol

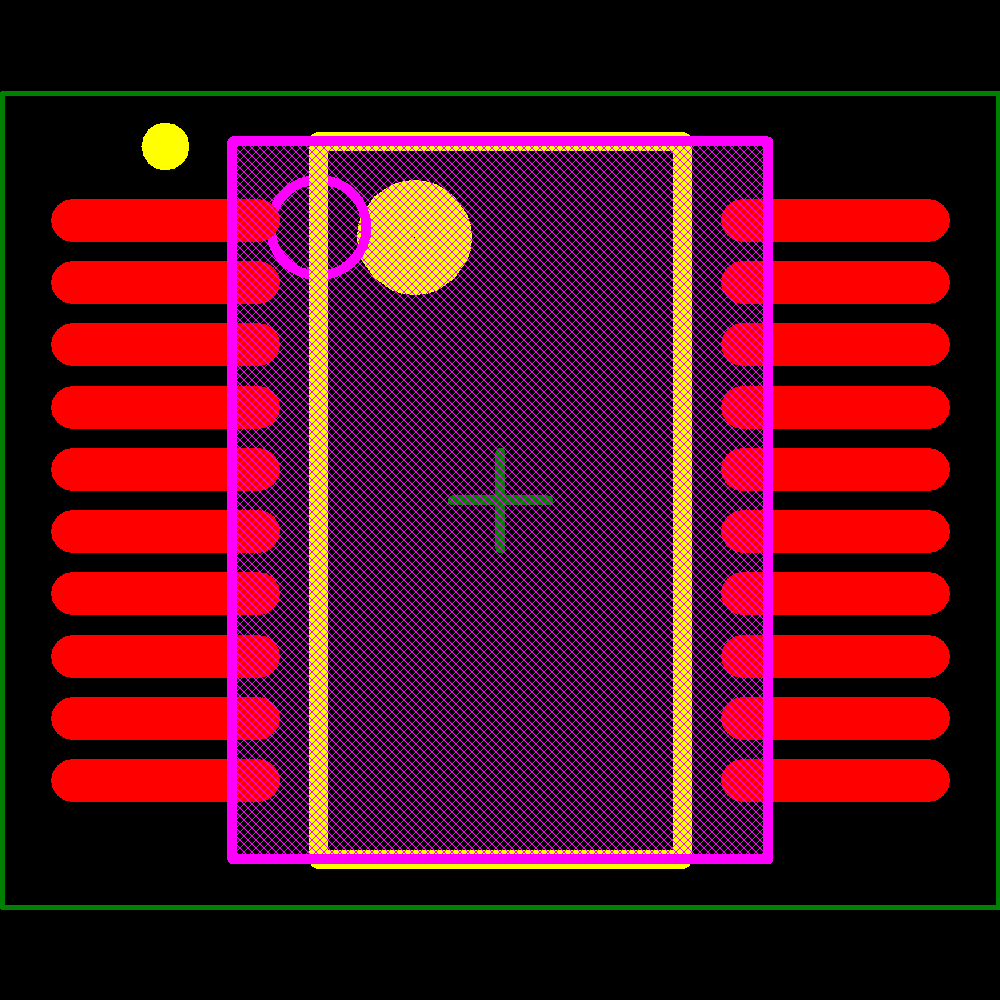

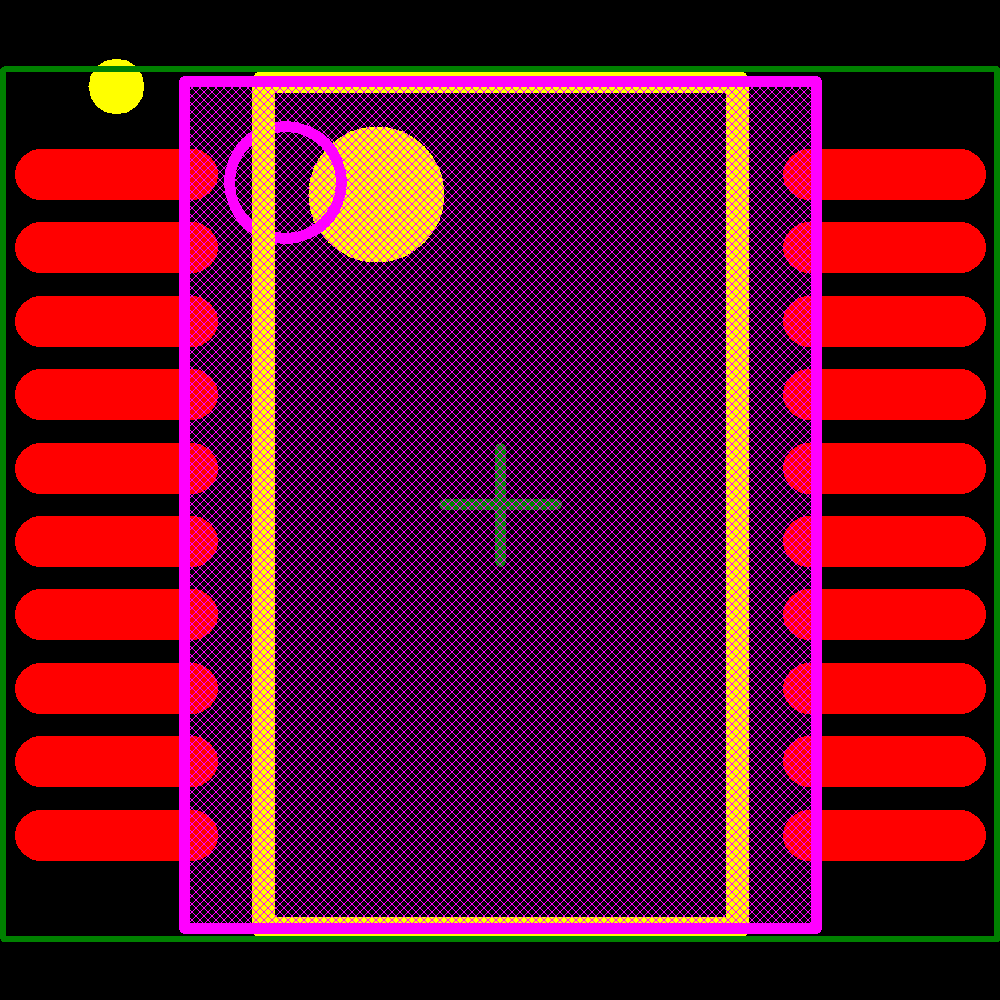

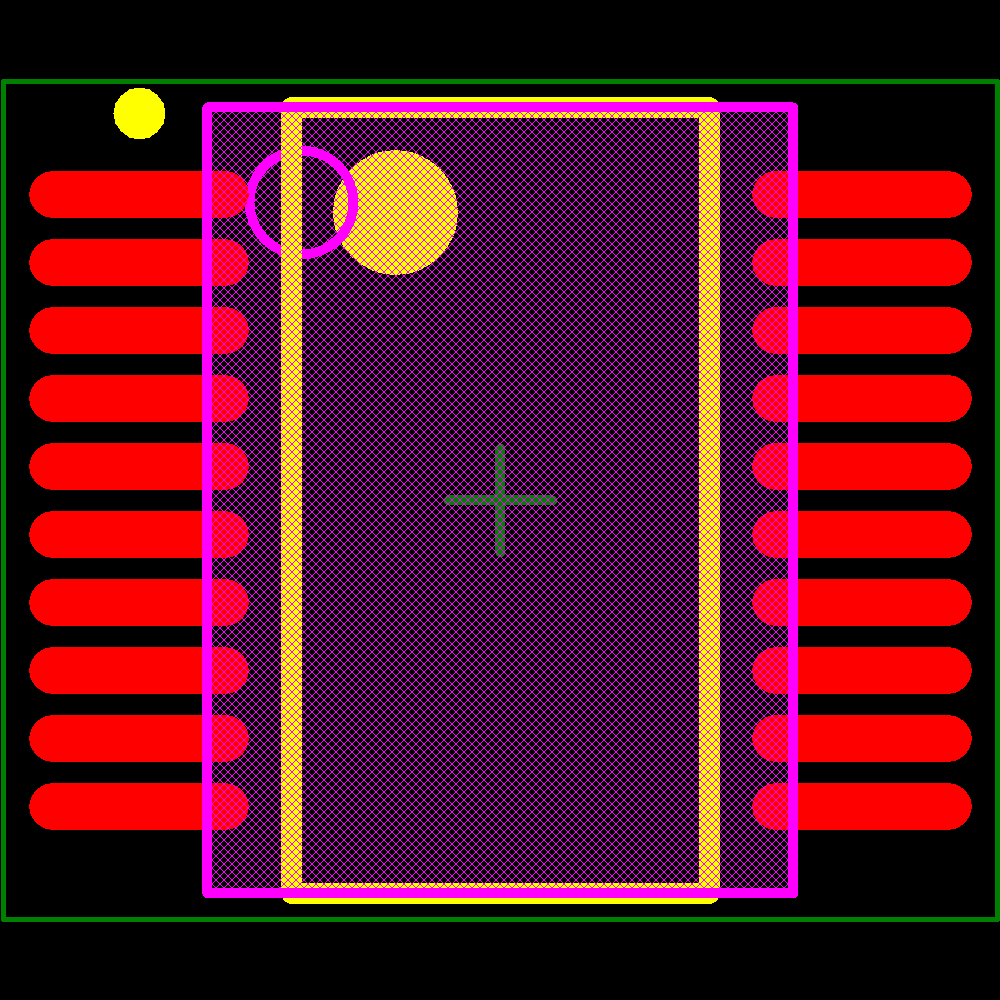

Footprint
