Integrated Circuits (ICs)  >  Power Management ICs  >  LDO Voltage Regulators

Microchip - MCP1702T-2802E/CB

MCP1702T-2802E/CB - Microchip

Sot-23A Low Iq 250Ma Ldo, Vin 13.2V Max, Vout=2.8V Rohs Compliant: Yes

 Datasheets

Technical Details

Projected EOL Date 2034-09-28
Accuracy 2%
Country of Assembly China, Taiwan, Thailand
Country of Fabrication United States of America
Country of Origin China, Taiwan, Thailand
Current Rating 250mA
Dropout Voltage 625mV
Export Control Classification Number (ECCN) Code EAR99
Height 1.3mm
Harmonized Tariff Schedule (HTS) Code 8542.39.0060
Introduction Date 2006-09-28
Lead Free Lead Free
Length 3.1mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Input Voltage 13.2V
Max Operating Temperature 125°C
Max Output Current 250mA
Min Input Voltage 2.7V
Min Operating Temperature -40°C
Mount Surface Mount
Number of Channels 1
Number of Outputs 1
Number of Pins 3
Output Current 250mA
Output Type Fixed
Output Voltage 2.8V
Output Voltage Accuracy 2%
Polarity Positive
Power Supply Rejection Ratio (PSRR) 44dB
Quiescent Current 5µA
Radiation Hardening No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|8542390000|85
Voltage Rating 13.2V
Width 1.8mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Microchip MCP1702T-2802E/CB | Farnell

Farnell

Datasheets

 Farnell
 Farnell
 Onlinecomponents.com

Lifecycle Status Indicator

   Production

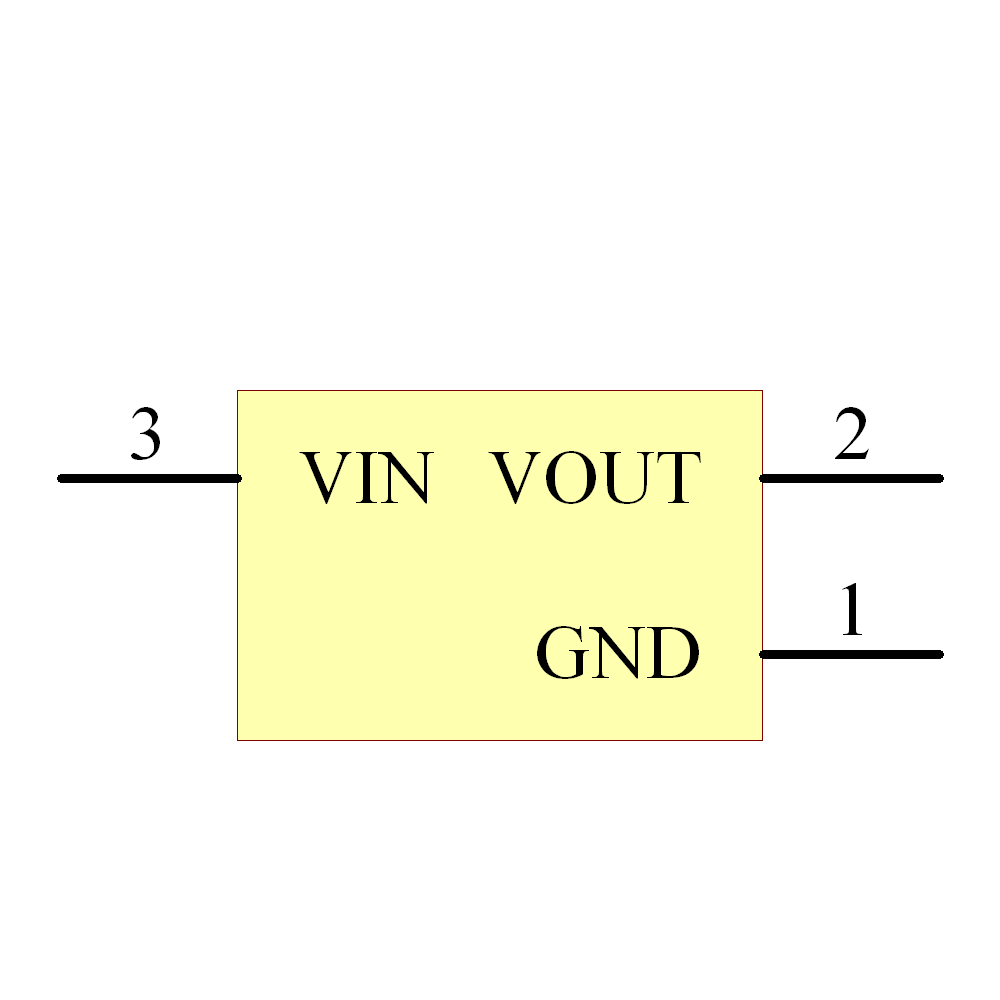

Symbol

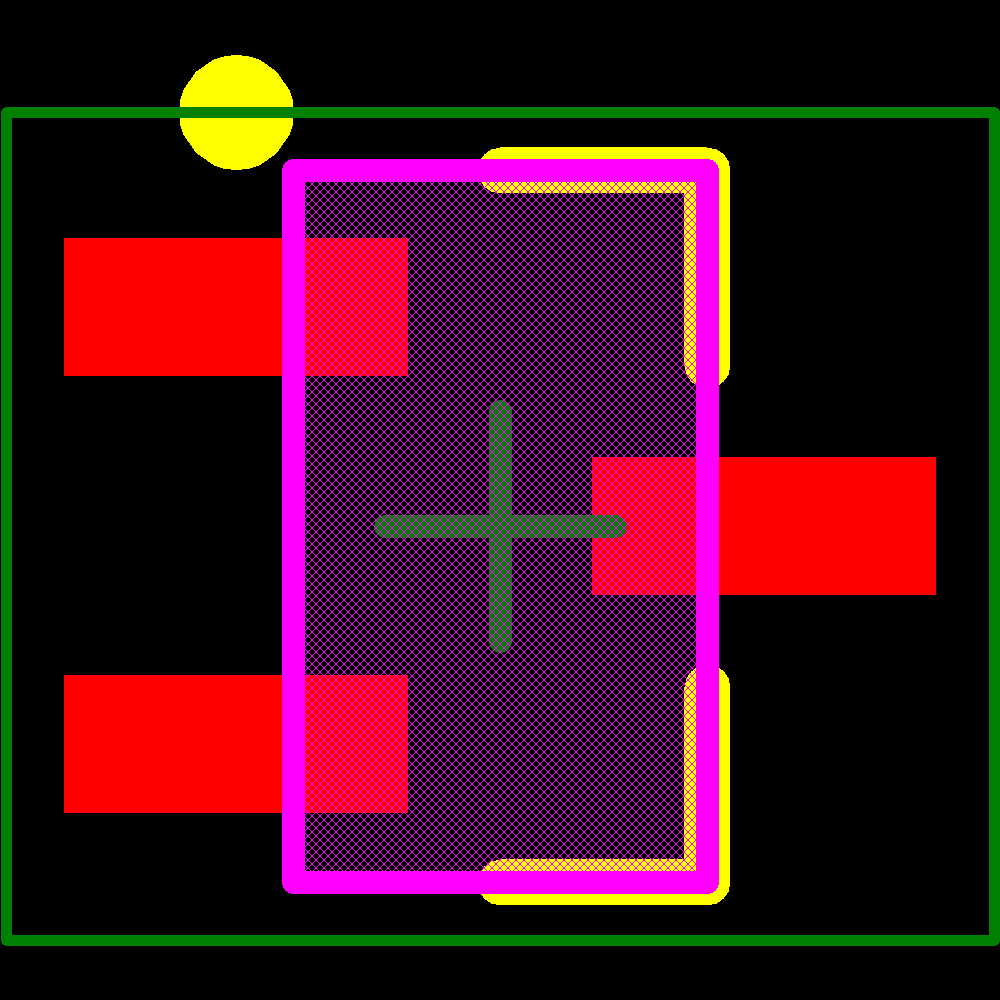

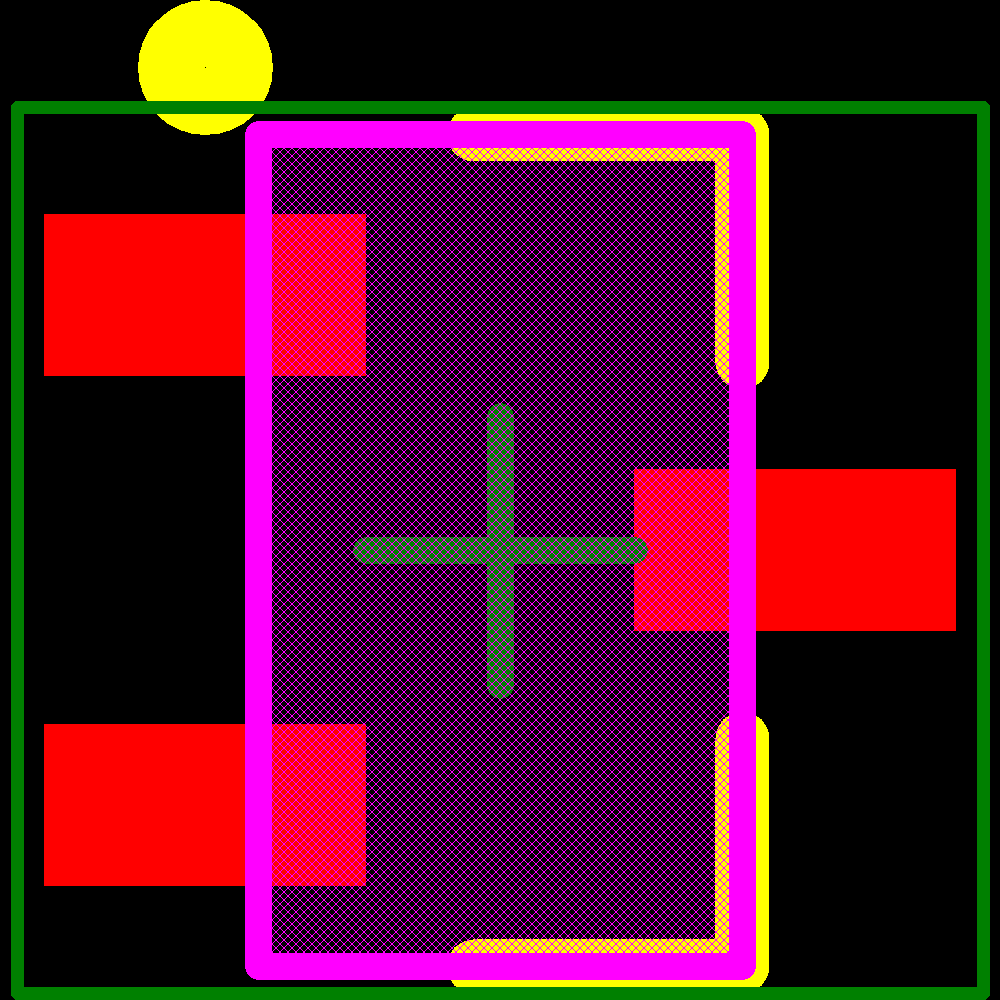

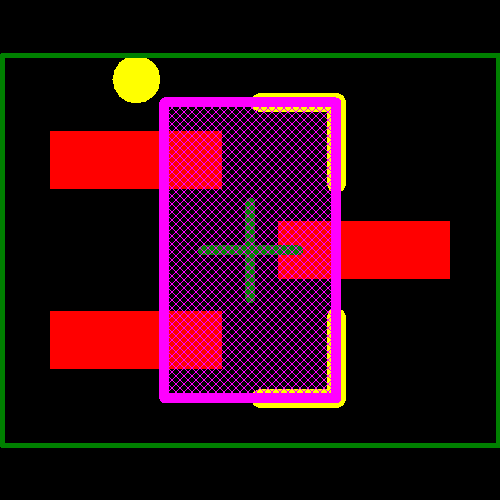

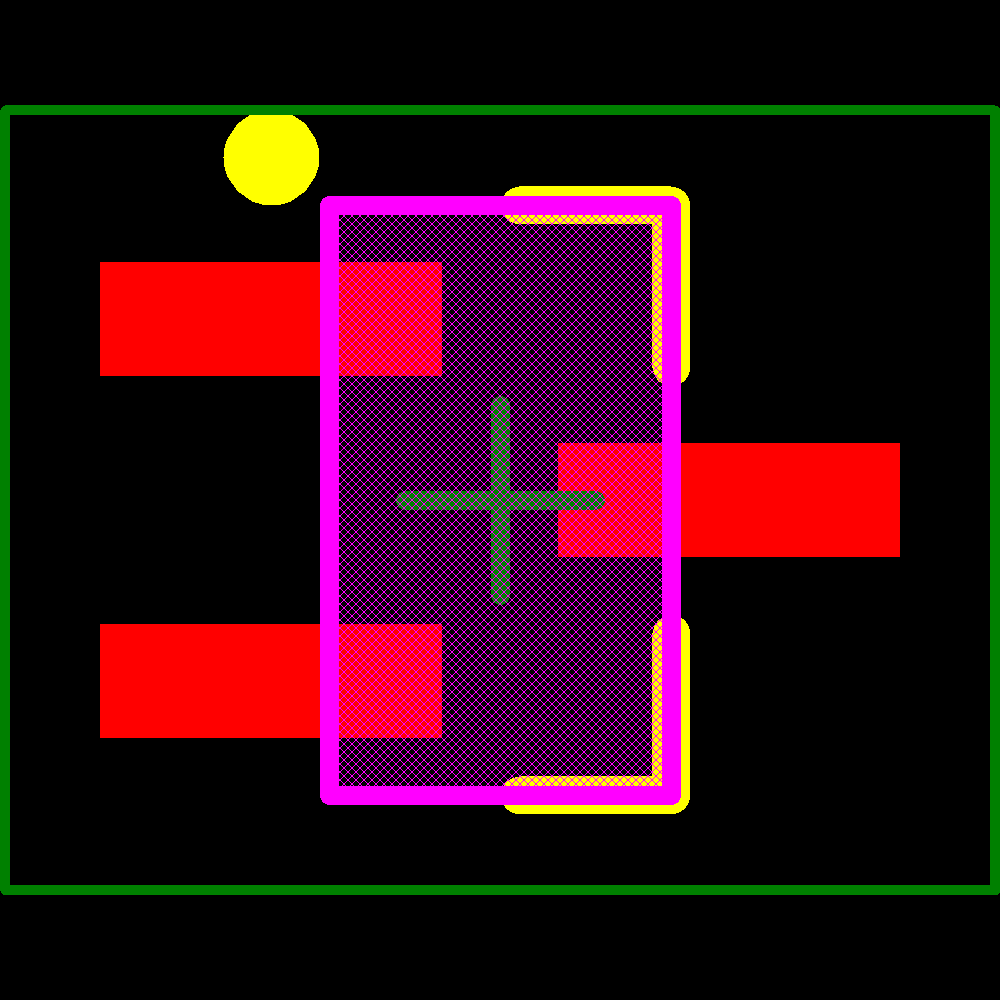

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
MCP1702T-2502E/CB
Production
Microchip
MCP1702-2502E/TO
Production
Microchip
MCP1702T-2802E/MB
Production
Microchip
MCP1702-2802E/TO
Production
Microchip
MCP1702T-2502E/MB
Production
Torex
XC62FP2802ML
NRND
Toko
TK71528SCL
Obsolete
Diodes Inc.
AP130-28RL-7
Production
Diodes Inc.
AP130-28SAG-7
Production
Microchip
MCP1703T-2802E/CB
Production

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Farnell
2851550
DE: 1708
 $ 0.6842 0.6842 0.5769 0.5239 0.5239 0.5165
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
2851550RL
DE: 1708
 $ 0.5239 0.5239 0.5165
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
MCP1702T-2802E/CB
US: 3000
 $ 0.91 0.4345
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
7047677P
DE: 5669
 $ 0.604 0.604 0.604 0.604 0.604 0.604
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
7047677
DE: 5669
 $ 0.604 0.604 0.604 0.604 0.604 0.604
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
1653427
DE: 5669
 $ 0.5301
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
MCP1702T-2802E/CB
US: 3000
 $ 0.91 0.4345
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
MCP1702T-2802E/CB
US: 2985
 $ 0.2186 0.2153 0.2119 0.2085 0.1984 0.1984
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
MCP1702T-2802E/CBCT-ND
DE: 1438
 $ 0.6903 0.6903 0.57 0.6903 0.6903 0.6903
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
MCP1702T-2802E/CBDKR-ND
DE: 1438
 $ 0.6903 0.6903 0.57 0.6903 0.6903 0.6903
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
MCP1702T-2802E/CBTR-ND
DE: 0
 $ 0.5172
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
579-MCP1702T2802E/CB
US: 4552
 $ 0.65 0.65 0.54 0.49 0.49 0.49
 Historical Pricing  Historical Stock Levels
Quantity
Location
TME
MCP1702T-2802E/CB
PL: 0
 $ 0.8629 0.7717 0.6829 0.6127 0.551 0.5104
 Historical Pricing  Historical Stock Levels
Quantity
Location
Microchip
MCP1702T-2802E/CB
US: 1420
 $ 0.65 0.65 0.54 0.49 0.46 0.43
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Silica
MCP1702T-2802E/CB
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
EBV Elektronik
MCP1702T-2802E/CB
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
MCP1702T-2802E/CB
US: 0
 $ 0.5676
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
6010350
CA: 0
 $ 0.475
 Historical Pricing  Historical Stock Levels
Quantity
Location
NAC Semi
MCP1702T-2802E/CB
US: 6000
 $ 0.52
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
MCP1702T-2802E/CB
US: 0
 $ 0.52
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Win Source
490755-MCP1702T-2802E/CB
CN: 99000
 $ 0.5244 0.3496 0.3496
 Historical Pricing  Historical Stock Levels
Quantity
Location
Worldway Electronics
MCP1702T-2802E/CB
HK: 58907
 $ 0.1178 0.1178 0.1142 0.1082 0.1082
 Historical Pricing  Historical Stock Levels
Quantity
Location
UnikeyIC
MCP1702T-2802E/CB
SG: 5669
 $ 0.6012
 Historical Pricing  Historical Stock Levels
Quantity
Location
AAA CHIPS
MCP1702T-2802E/CB
HK: 2614
 $ 0.4602 0.4466 0.4466 0.4331 0.4331 0.4331
 Historical Pricing  Historical Stock Levels
Quantity
Location
LCSC
C48918
CN: 1
 $ 1.6535 1.4353 1.3139 1.1787 1.0865 1.0865
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
MCP1702T-2802E/CB
HK: 95892
 $ 0.7334 0.5433 0.5433 0.4724 0.4415 0.3967
 Historical Pricing  Historical Stock Levels
Quantity
Location
Anlinkda
MCP1702T-2802E/CB
HK: 45042
 $ 1.439 1.289 1.289 1.171 1.068 0.945
 Historical Pricing  Historical Stock Levels
Quantity
Location
SHENGYU ELECTRONICS
MCP1702T-2802E/CB
CN: 16096
 $ 0.2083 0.2041 0.2041 0.20 0.19 0.18
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lixinc
MCP1702T-2802E/CB
CN: 15732
 $ 0.50 0.50 0.50 0.50 0.50 0.3708
 Historical Pricing  Historical Stock Levels
Quantity
Location
ALLICDATA ELECTRONICS
MCP1702T-2802E/CB
HK: 6000
 $ 0.232 0.225 0.225 0.2204 0.2158 0.2088
 Historical Pricing  Historical Stock Levels
Quantity
Location
AERI
MCP1702T-2802E/CB
US: 3994
 $ 0.529
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
MCP1702T-2802E/CB
US: 3000
 $ 1.1727 0.5404
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
MCP1702T-2802E/CB
US: 2985
 $ 0.2119 0.2085 0.1984 0.1984
 Historical Pricing  Historical Stock Levels
Quantity
Location
Quest
MCP1702T-2802E/CB
US: 1520
 $ 1.723 1.3784 0.8615 0.5169 0.448 0.448
 Historical Pricing  Historical Stock Levels
Quantity
Location
Quest
MCP1702T-2802E/CB
US: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
ODG (Origin Data Global)
MCP1702T-2802E/CB
CN: 18000
 $ 0.2277 0.2277
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
MCP1702T2802ECB
US: 6960
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Suntronic
MCP1702T-2802E/CB
CN: 12600
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lingto Electronic Ltd.
MCP1702T-2802E/CB
CN: 43326
 $ 0.58 0.551 0.551 0.522 0.5162 0.5104
 Historical Pricing  Historical Stock Levels
Quantity
Location
