MCP1703-1802E/DB - Microchip
MCP1703-1802E/DB, Ldovoltage Regulator, 200MA, 1.8V 2%, 2.7 to 16 Vin, 3-PIN SOT-223
Technical Details
| Projected EOL Date | 2034-06-26 |
| Accuracy | 2% |
| Case/Package | SOT-223 |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Taiwan, Thailand |
| Dropout Voltage | 650mV |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.7mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Input Bias Current | 2µA |
| Introduction Date | 2007-06-26 |
| Lead Free | Lead Free |
| Length | 6.7mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Input Voltage | 16V |
| Max Operating Temperature | 125°C |
| Max Output Current | 200mA |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 3 |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 1.8V |
| Output Voltage Accuracy | 2% |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 5µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Width | 3.7mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

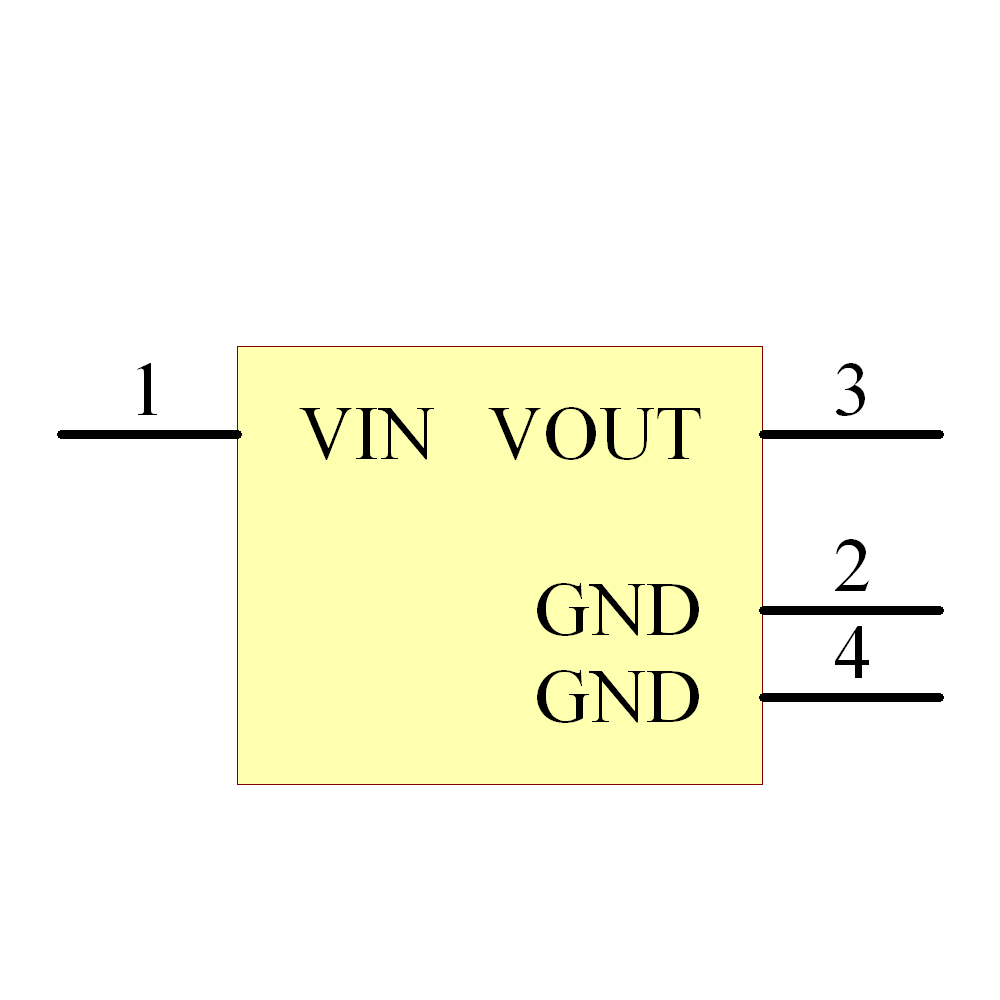

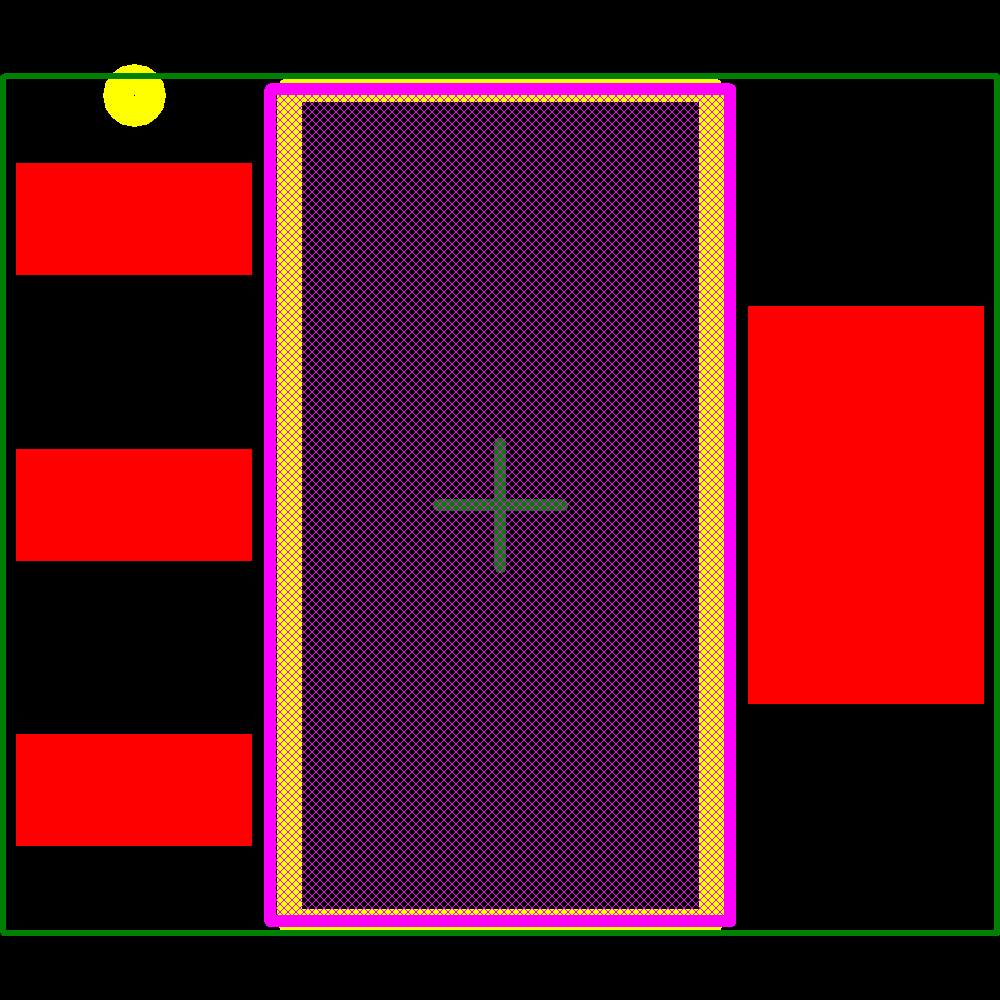

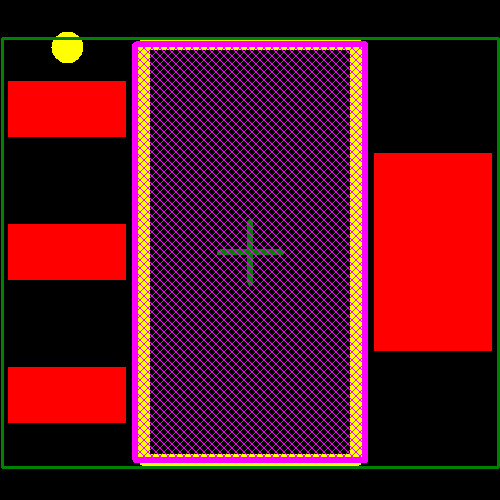

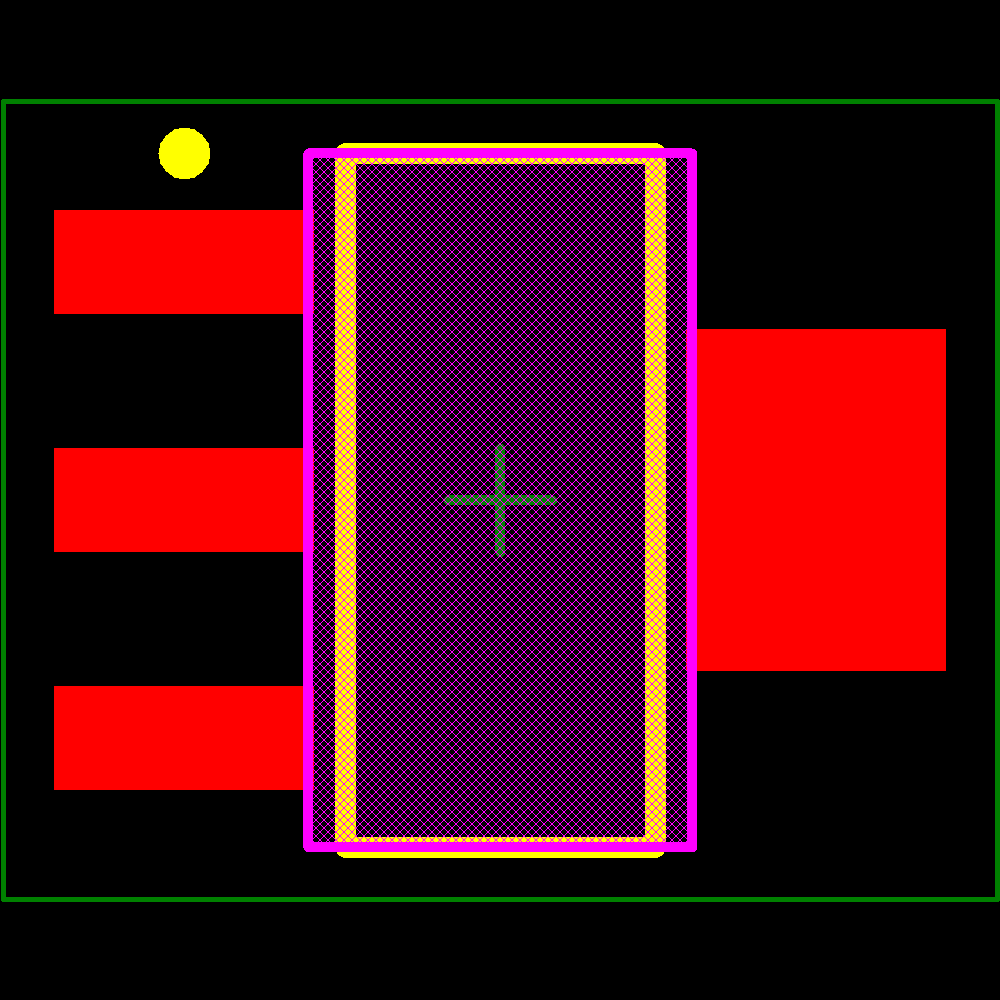

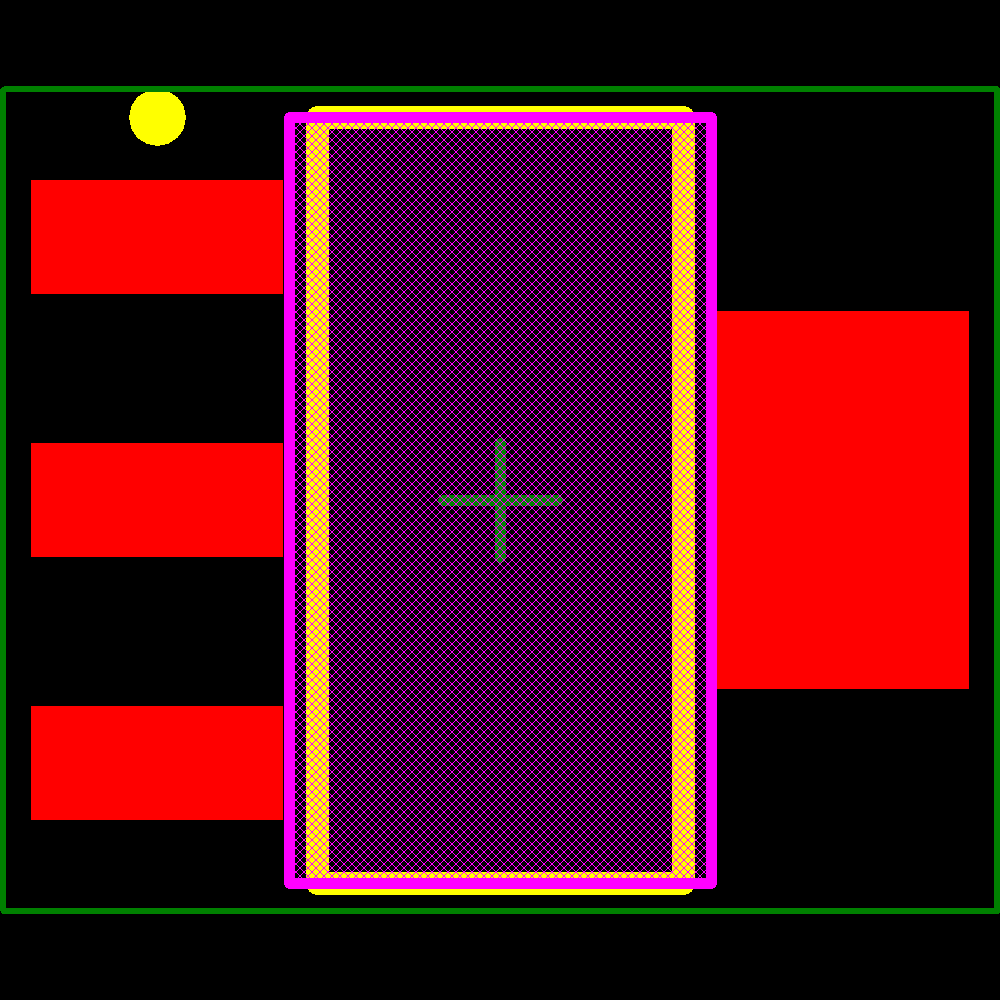

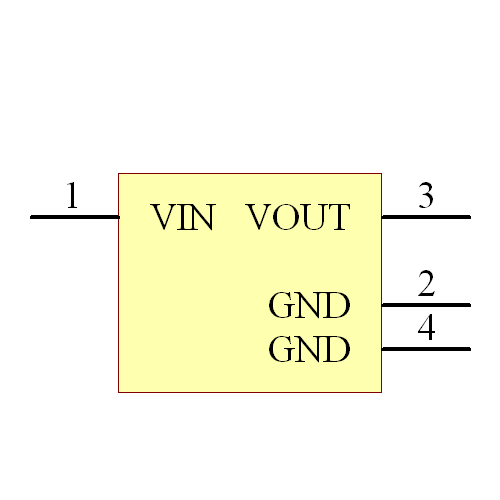

Images
Microchip
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Texas Instruments | Production | ||
| Diodes Inc. | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete |
