Integrated Circuits (ICs)  >  Power Management ICs  >  LDO Voltage Regulators

Microchip - MCP1725-1202E/MC

MCP1725-1202E/MC - Microchip

LDO Regulator Pos 1.2V 0.5A Automotive 8-Pin DFN EP

 Datasheets

Technical Details

Projected EOL Date 2034-12-22
Accuracy 2%
Case/Package DFN
Country of Assembly Malaysia, Thailand
Country of Fabrication United States of America
Country of Origin Malaysia, Thailand
Dropout Voltage 210mV
Export Control Classification Number (ECCN) Code EAR99
Height 950µm
Harmonized Tariff Schedule (HTS) Code 8542.39.0060
Input Bias Current 120µA
Introduction Date 2006-12-22
Lead Free Lead Free
Length 2mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Input Voltage 6V
Max Operating Temperature 125°C
Max Output Current 500mA
Min Input Voltage 2.3V
Min Operating Temperature -40°C
Mount Surface Mount
Nominal Supply Current 120µA
Number of Channels 1
Number of Outputs 1
Number of Pins 8
Output Current 500mA
Output Type Fixed
Output Voltage 1.2V
Output Voltage Accuracy 2%
Polarity Positive
Quiescent Current 220µA
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000
Tolerance 2%
Width 3mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Microchip MCP1725-1202E/MC | Microchip

Microchip

Datasheets

 Arrow Electronics
 DigiKey
 Mouser

Lifecycle Status Indicator

   Production

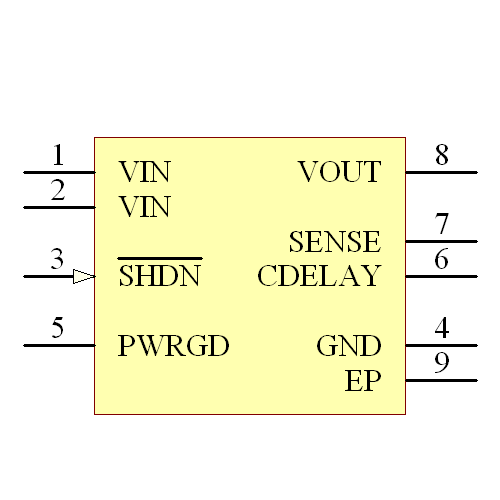

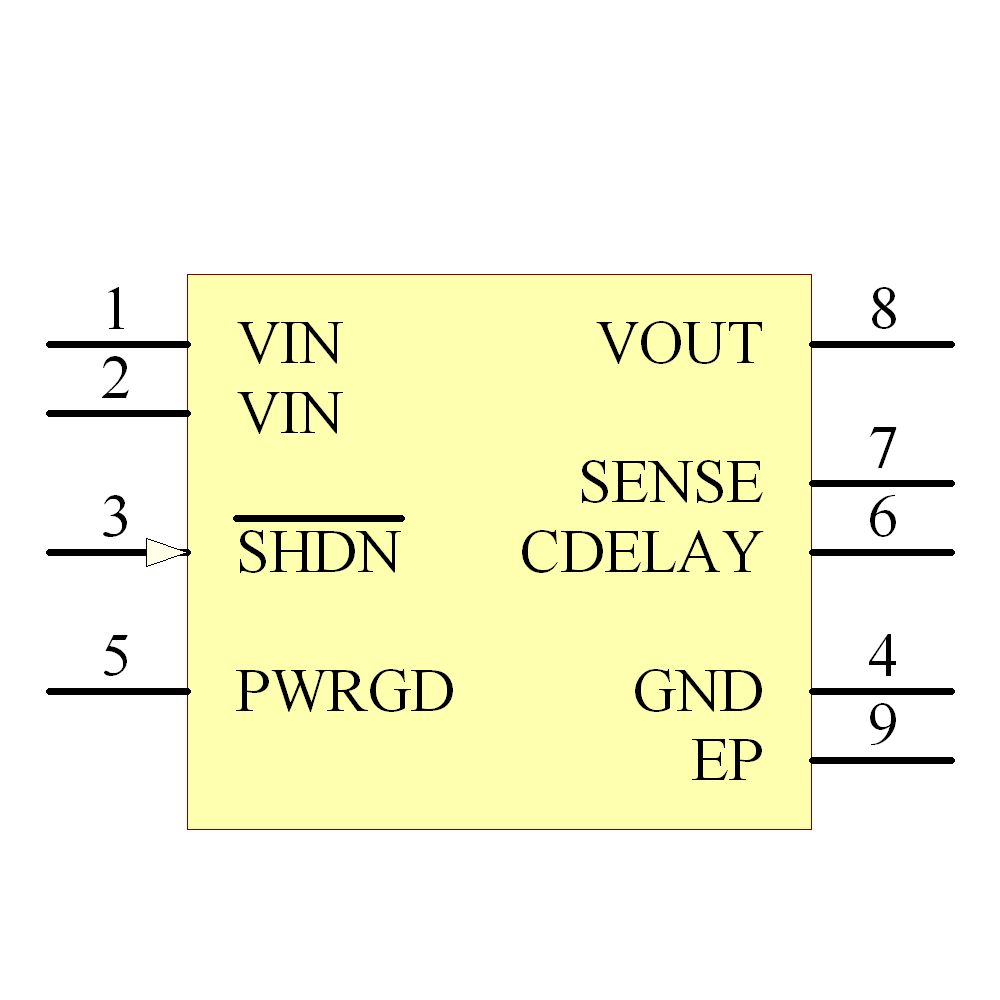

Symbol

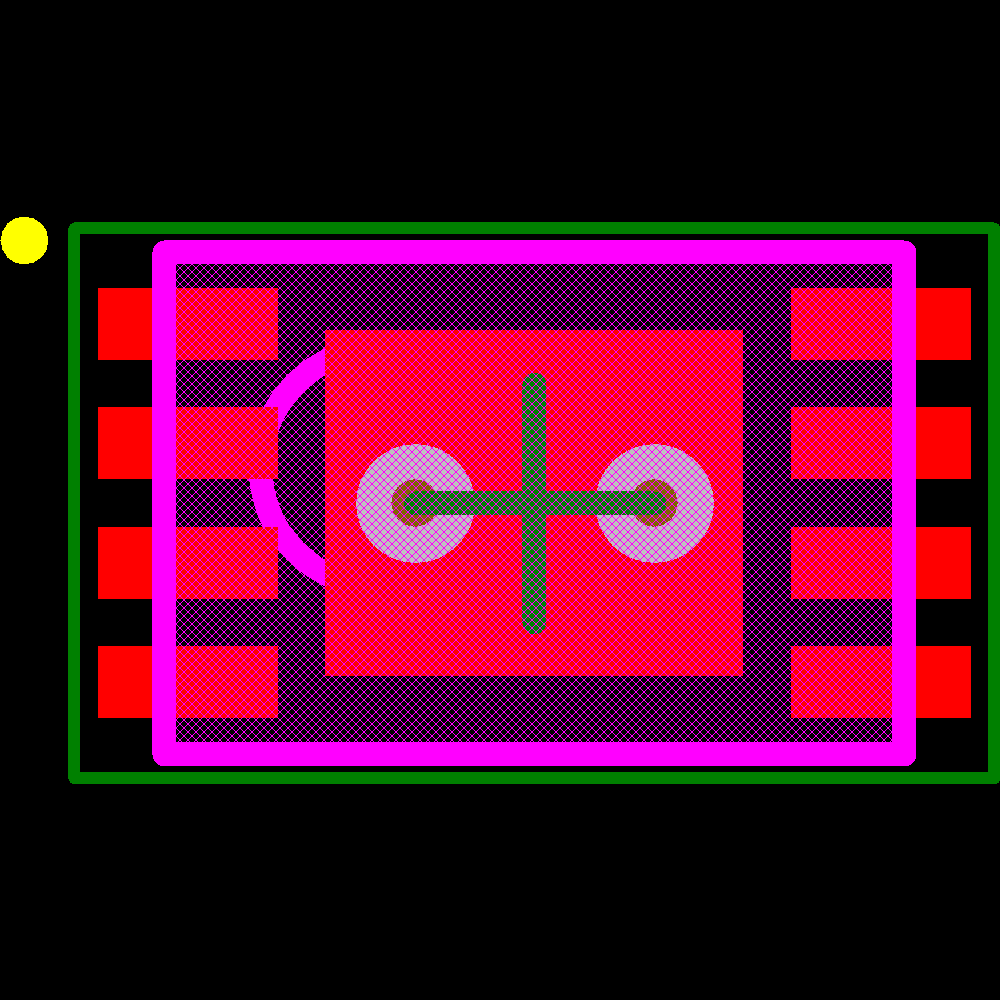

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
MCP1725T-1202E/MC
Production
Microchip
MCP1725-1202E/MCVAO
Production
Microchip
MCP1725T-1202E/SN
Production
Microchip
MCP1725-1202E/SN
Production
onsemi
NCV8705MW12TCG
Obsolete
Analog Devices
ADP1706ACPZ-1.2-R7
Production
Analog Devices
ADP1707ACPZ-1.2-R7
Unknown
Analog Devices / Linear Technology
LT3020EDD12
Unknown
Analog Devices
LT3020EDD-1.2#PBF
Production
Analog Devices / Linear Technology
LT3020EDD-1.2#TR
Unknown

See more alternatives See less alternatives
