MCP1725T-5002E/SN - Microchip
IC REG LINEAR 5V 500MA 8SOIC Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 8-SOIC
Technical Details
| Projected EOL Date | 2034-12-22 |
| Accuracy | 2% |
| Case/Package | SOIC |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Thailand |
| Dropout Voltage | 210mV |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Input Bias Current | 120µA |
| Introduction Date | 2006-12-22 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Input Voltage | 2.3V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Polarity | Positive |
| Quiescent Current | 220µA |
| Radiation Hardening | No |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

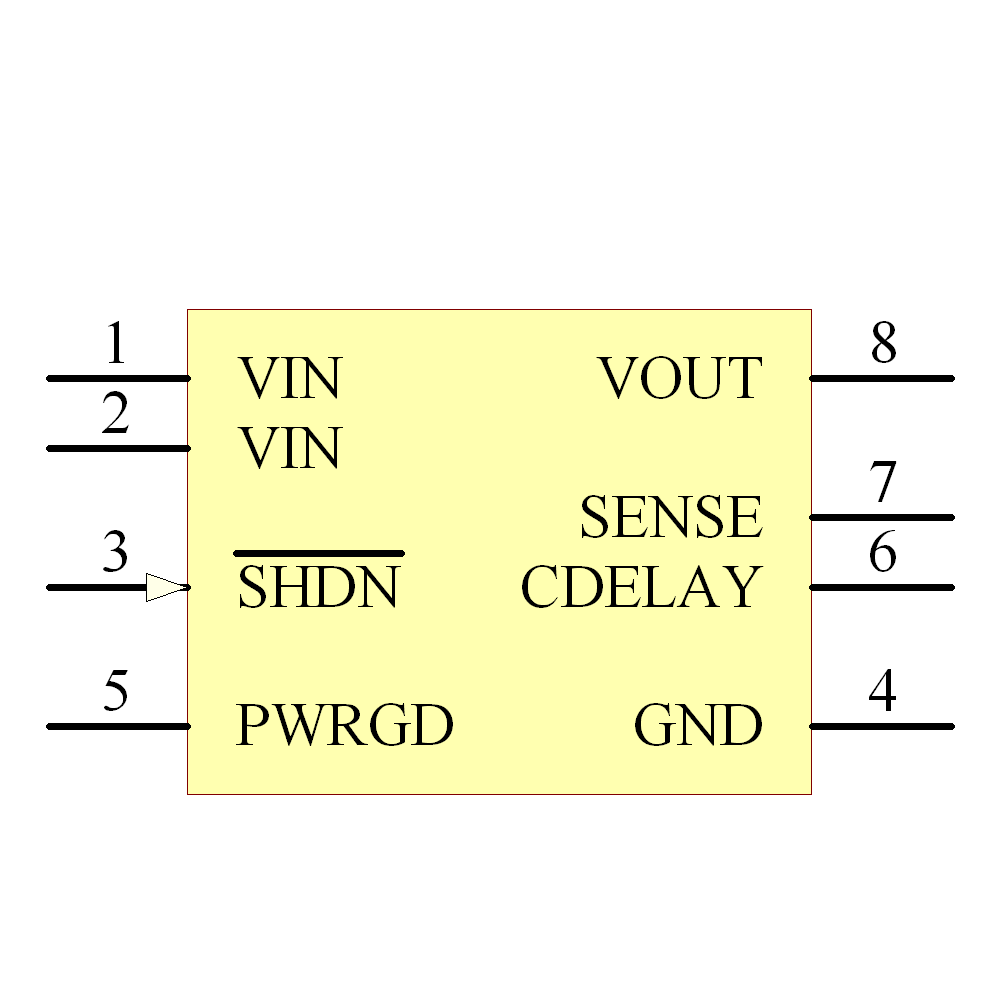

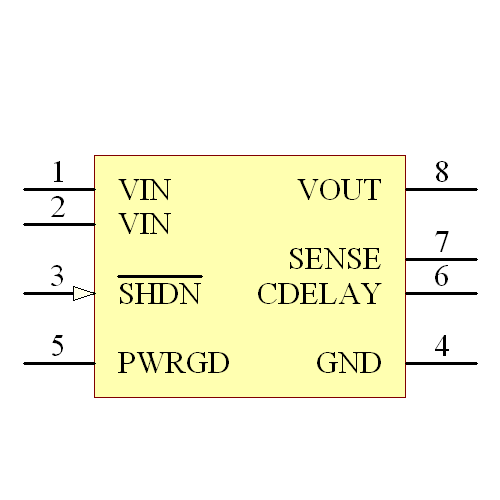

Images
Microchip
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| onsemi | Obsolete | ||
| Sanyo | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| onsemi | Obsolete |
