MCP1726-3302E/MF - Microchip
LDO Voltage Regulator, Fixed, 2.3 V to 6 V, 1 Output, 220mV @ 1A, 3.3 V, 1 A, 8 Pins, DFN-EP
Technical Details
| Projected EOL Date | 2034-02-22 |
| Accuracy | 2.5% |
| Case/Package | DFN |
| Country of Assembly | Philippines, Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Philippines, Thailand |
| Dropout Voltage | 220mV |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 950µm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Input Bias Current | 140µA |
| Introduction Date | 2005-02-22 |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Max Output Current | 1A |
| Min Input Voltage | 2.3V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Polarity | Positive |
| Quiescent Current | 220µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

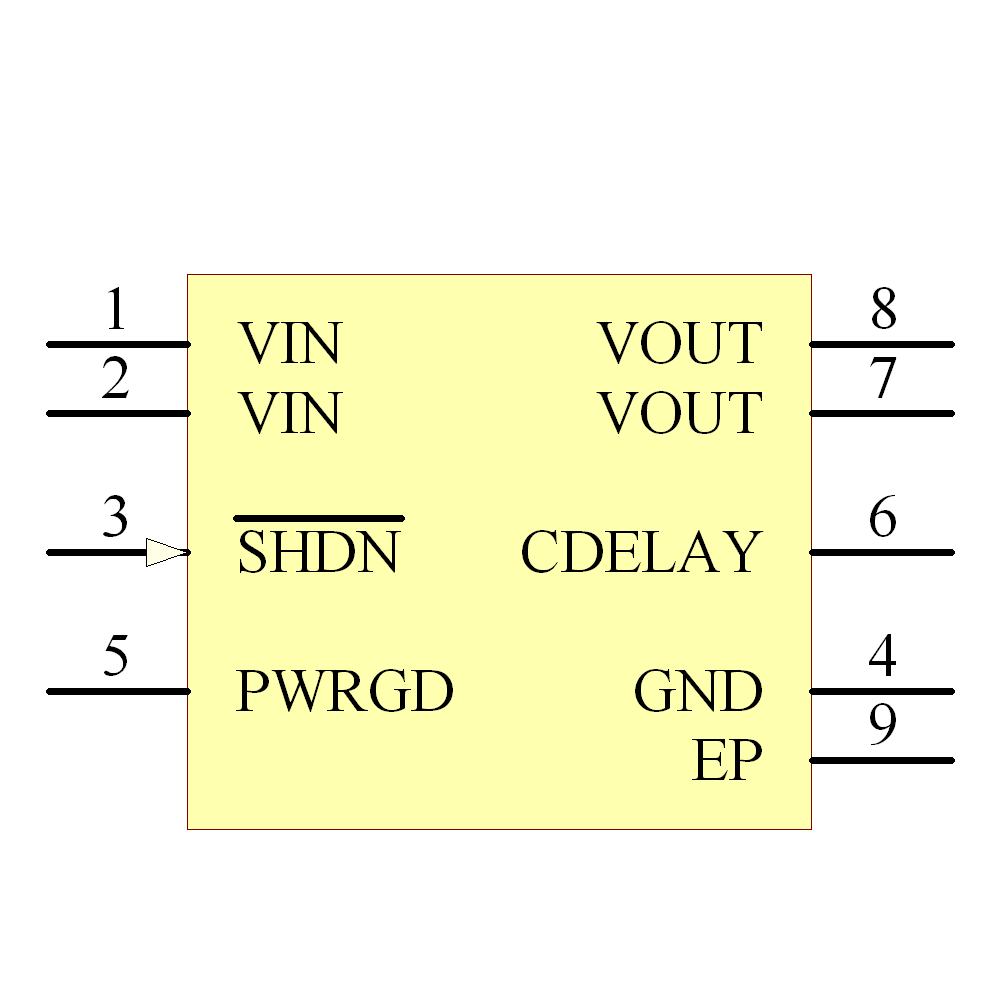

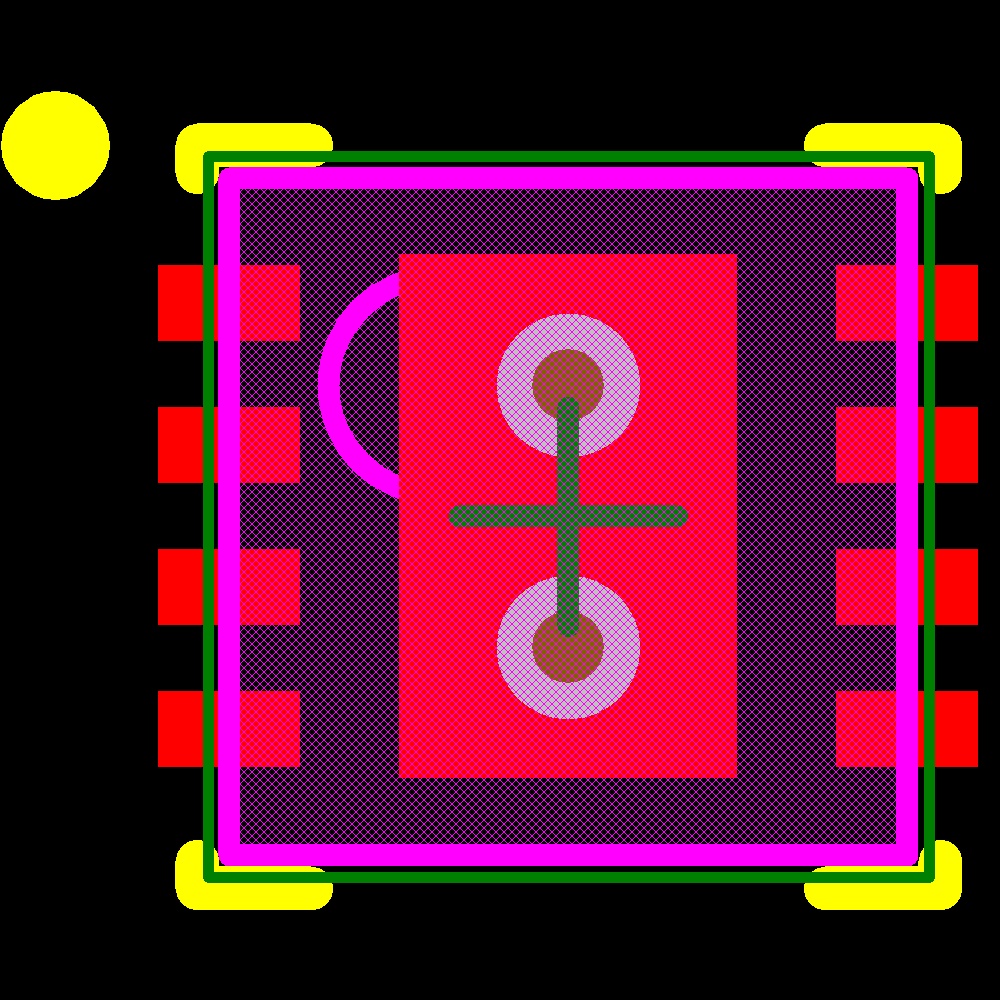

Images
Microchip
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| onsemi | Obsolete | ||
| onsemi | EOL | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Production |
