Integrated Circuits (ICs)  >  Power Management ICs  >  LDO Voltage Regulators

Microchip - MCP1754ST-5002E/DB

MCP1754ST-5002E/DB - Microchip

LDO Regulator Pos 5V 0.15A Automotive AEC-Q100 4-Pin(3+Tab) SOT-223 T/R

 Datasheets

Technical Details

Projected EOL Date 2039-08-16
Accuracy 2%
Case/Package SOT-223
Country of Assembly Taiwan, Thailand
Country of Fabrication Taiwan
Country of Origin Taiwan, Thailand
Dropout Voltage 300mV
Export Control Classification Number (ECCN) Code EAR99
Height 1.7mm
Harmonized Tariff Schedule (HTS) Code 8542.39.0060
Introduction Date 2011-08-16
Length 6.7mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Input Voltage 16V
Max Operating Temperature 150°C
Max Output Current 150mA
Min Input Voltage 3.6V
Min Operating Temperature -40°C
Number of Channels 1
Number of Outputs 1
Number of Pins 3
Output Current 150mA
Output Type Fixed
Output Voltage 5V
Output Voltage Accuracy 2%
Packaging Tape and Reel
Polarity Positive
Quiescent Current 90µA
Radiation Hardening No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Width 3.7mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

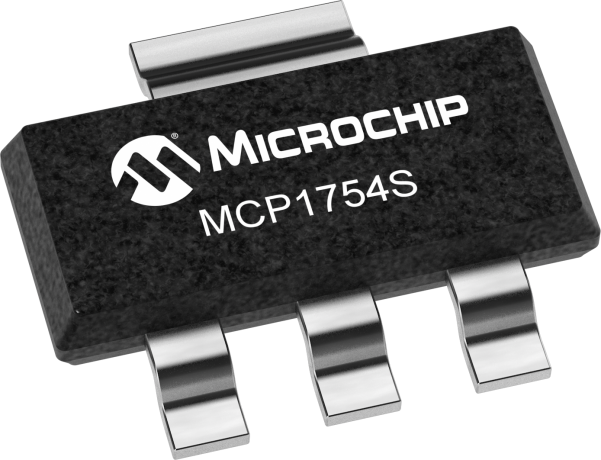

Images

Microchip MCP1754ST-5002E/DB | Farnell

Farnell

Datasheets

 Farnell
 Farnell
 Arrow Electronics

Lifecycle Status Indicator

   Production

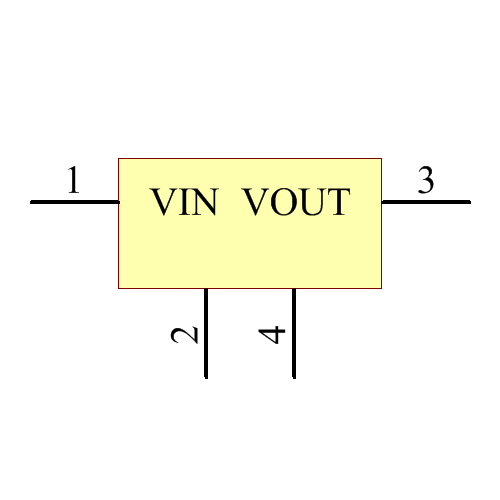

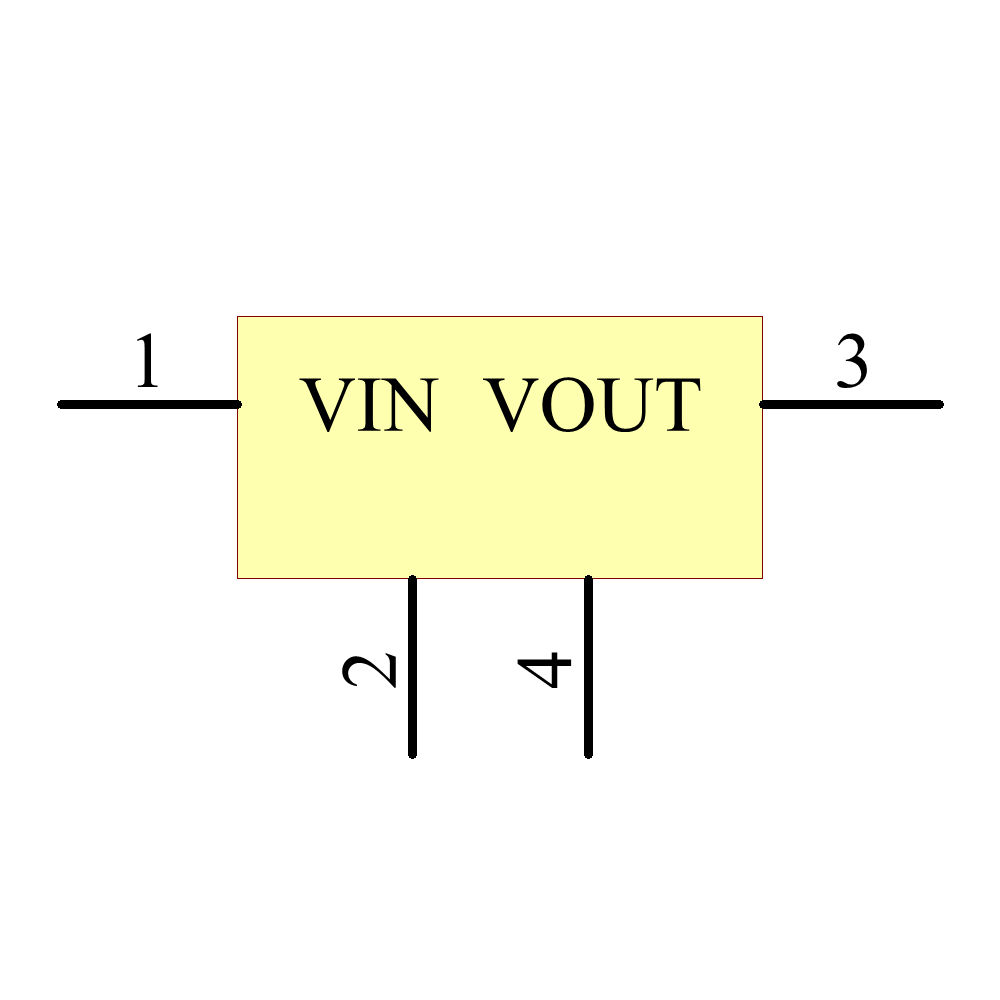

Symbol

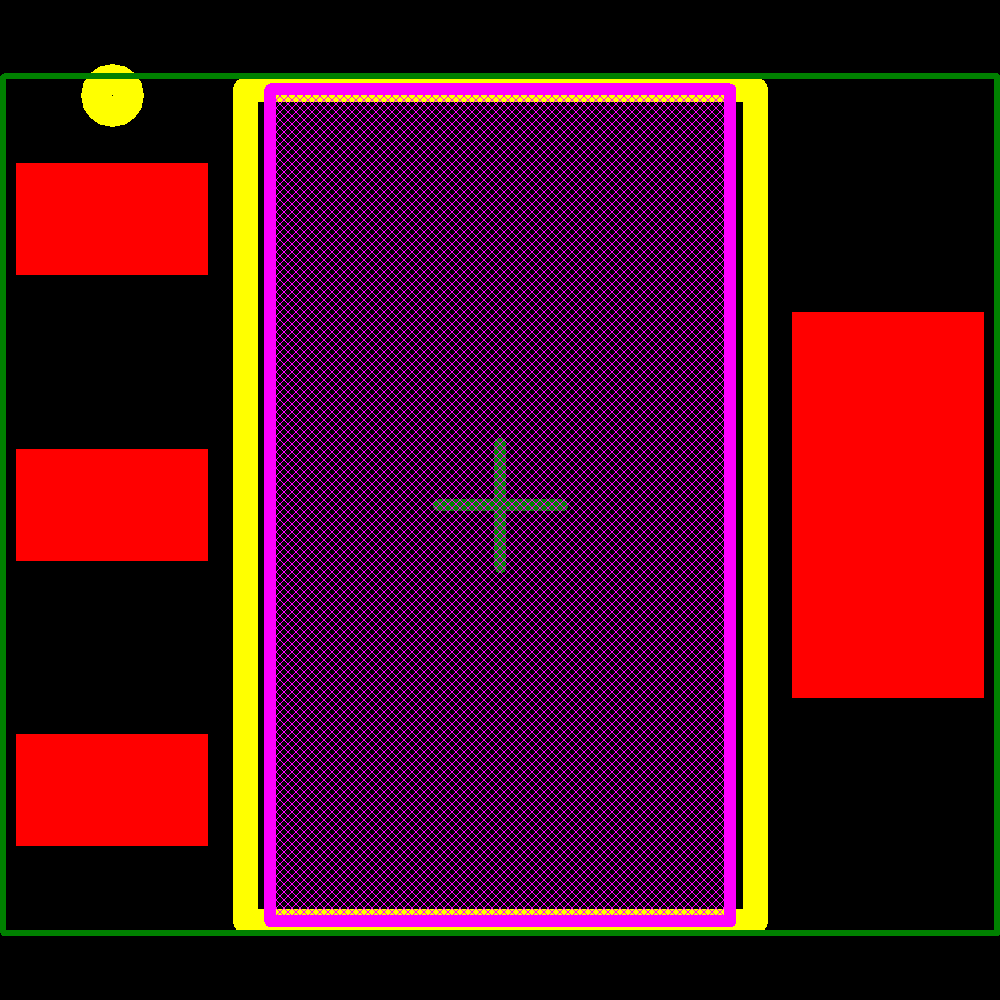

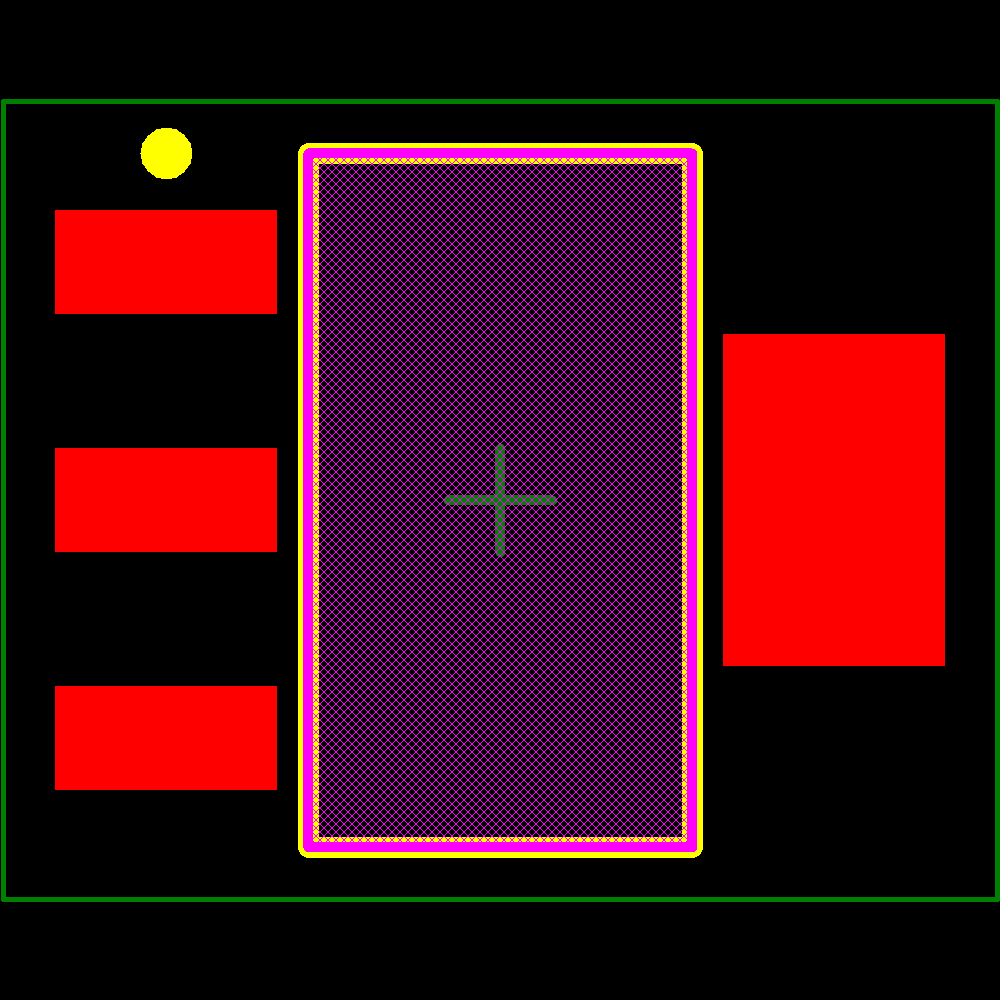

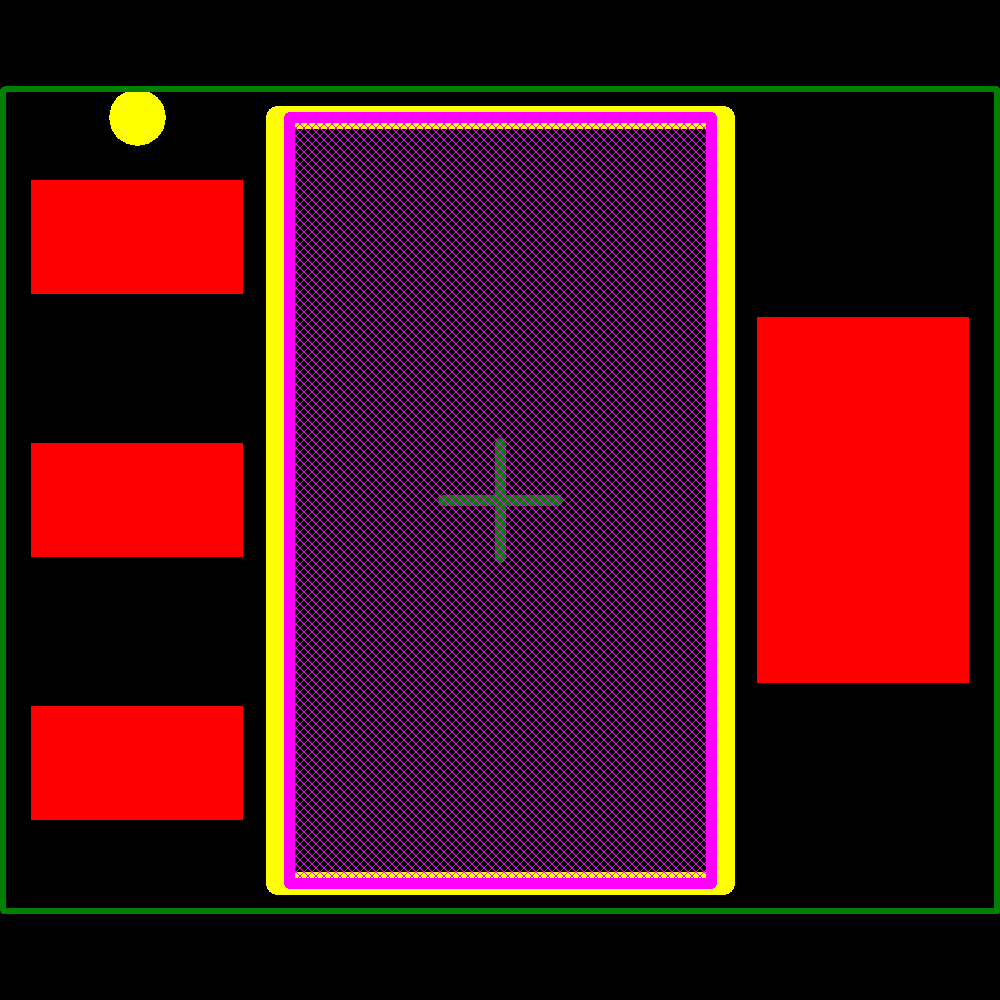

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
MCP1754S-5002E/DB
Production
Microchip
MCP1754T-5002E/OT
Production
Microchip
MCP1754-5002E/MC
Production
Microchip
MCP1754T-5002E/MC
Production
Microchip
MCP1754S-5002E/MC
Production
Microchip
MCP1754ST-5002E/CB
Production
Microchip
MCP1754ST-5002E/MB
Production
Microchip
MCP1754T-5002E/DC
Production
Microchip
MCP1754ST-5002E/MC
Production
Microchip
MCP1703T-5002E/DB
Production

See more alternatives See less alternatives
