MCP1804T-1802I/OT - Microchip
MCP1804 Series 150 mA 1.8 V Fixed Output Surface Mount LDO Regulator - SOT-23-5
Technical Details
| Projected EOL Date | 2034-07-25 |
| Accuracy | 2% |
| Case/Package | SOT-23 |
| Country of Assembly | Japan |
| Country of Fabrication | N/A |
| Country of Origin | Japan |
| Dropout Voltage | 2.2V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.3mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Introduction Date | 2009-07-25 |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Input Voltage | 28V |
| Max Operating Temperature | 85°C |
| Max Output Current | 150mA |
| Max Power Dissipation | 250mW |
| Min Input Voltage | 2V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.8V |
| Mount | Surface Mount |
| Nominal Output Voltage | 1.8V |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 1.8V |
| Packaging | Cut Tape |
| Polarity | Positive |
| Quiescent Current | 105µA |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Width | 1.8mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

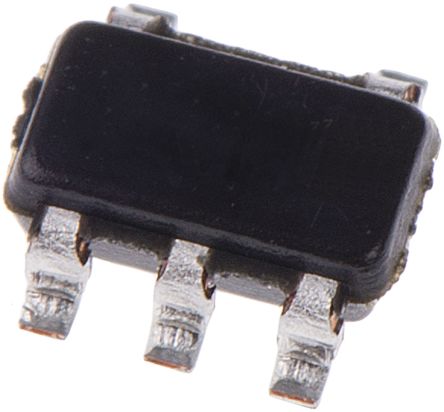

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Diodes Inc. | Obsolete | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| onsemi | Production | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| Microchip | Production | ||
| onsemi | Obsolete | ||
| International Rectifier | Obsolete |
