MCP1804T-2502I/MB - Microchip
MCP1804 Series 150 mA 2.5 V Fixed Output SMT LDO Shutdown Regulator - SOT-89
Technical Details
| Projected EOL Date | 2034-07-27 |
| Accuracy | 2% |
| Case/Package | SOT-89 |
| Dropout Voltage | 1.5V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 1.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Introduction Date | 2009-07-27 |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Input Voltage | 28V |
| Max Operating Temperature | 85°C |
| Max Output Current | 150mA |
| Max Power Dissipation | 500mW |
| Min Input Voltage | 2V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Pins | 3 |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Output Voltage Accuracy | 2% |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 105µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Width | 2.6mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

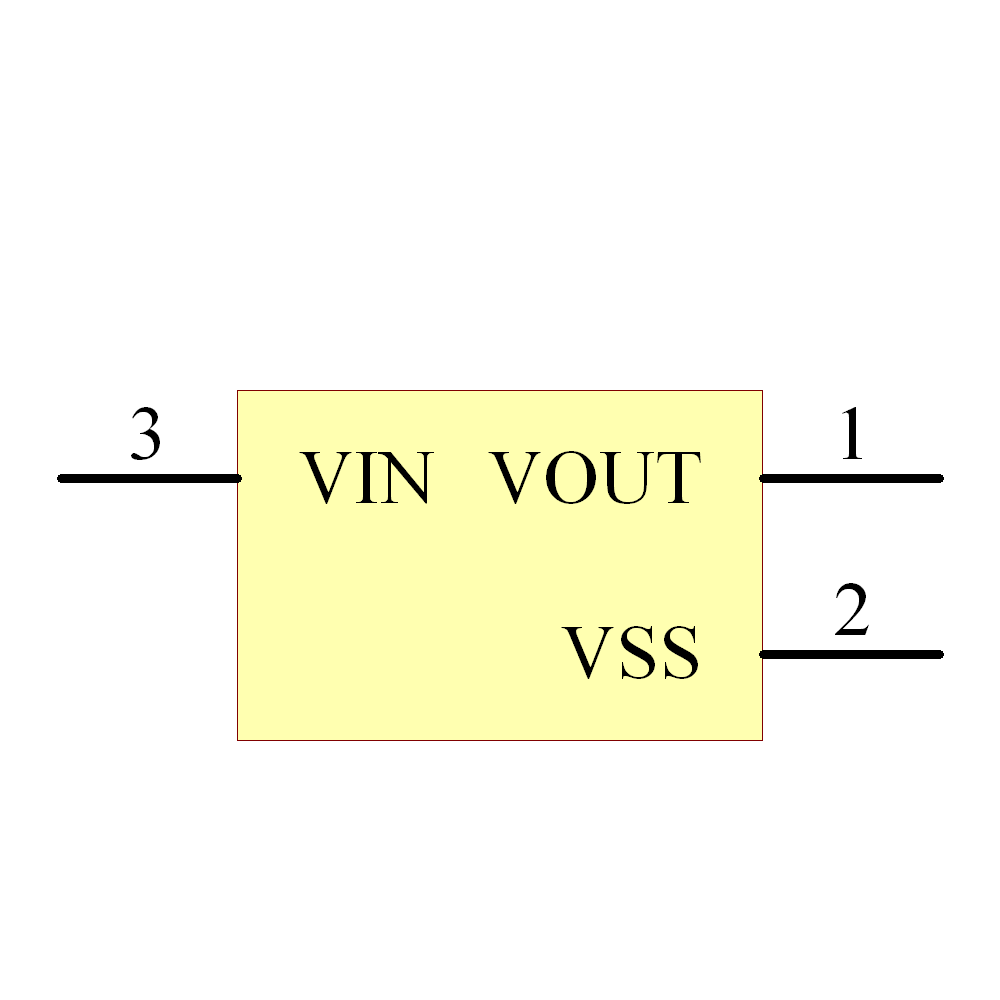

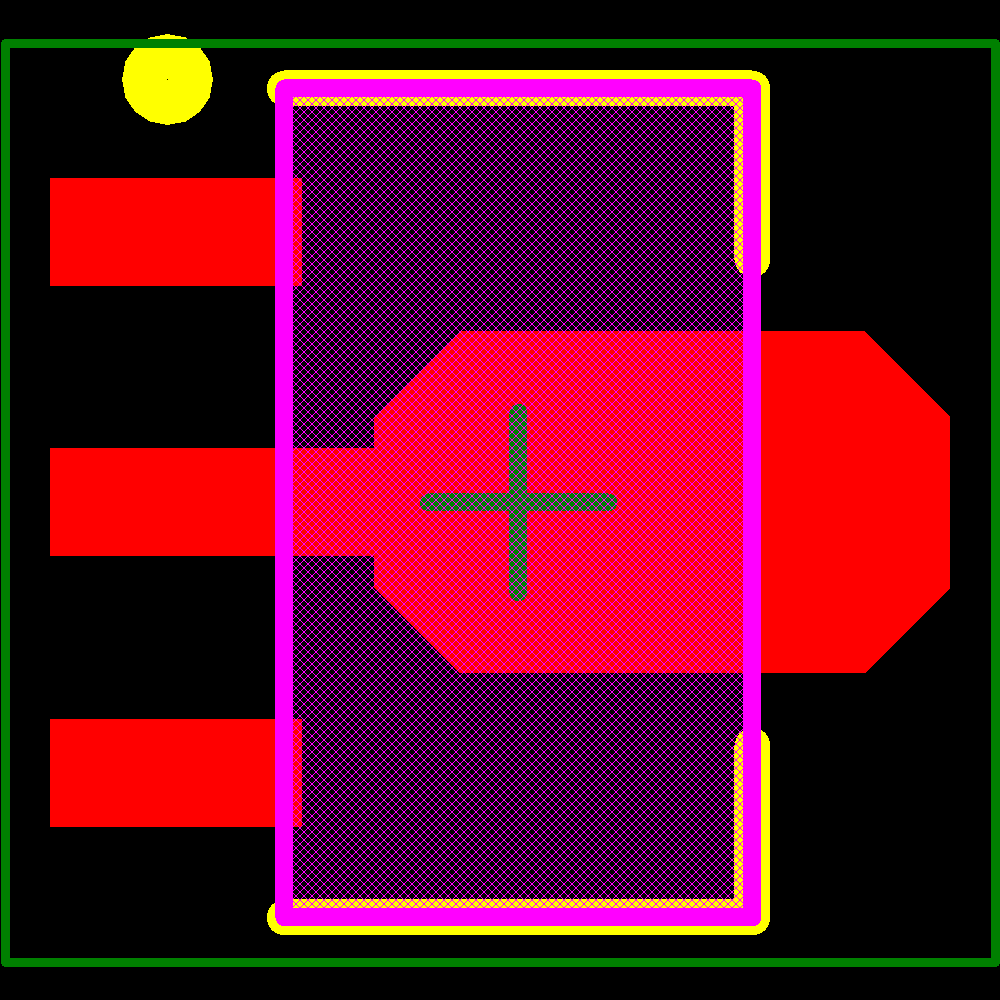

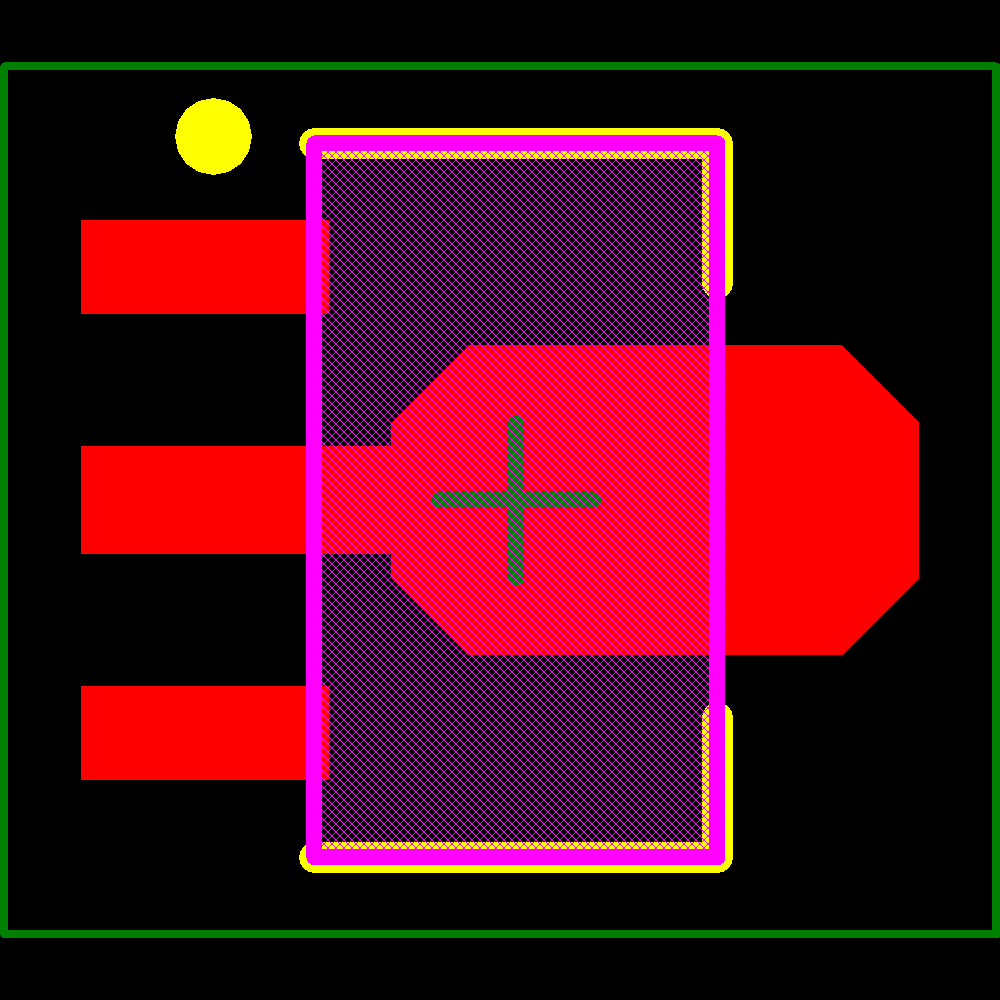

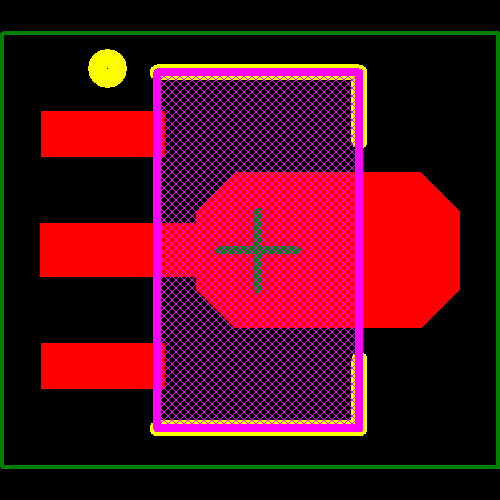

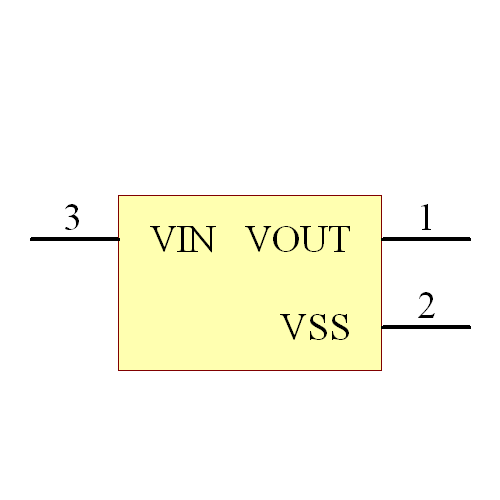

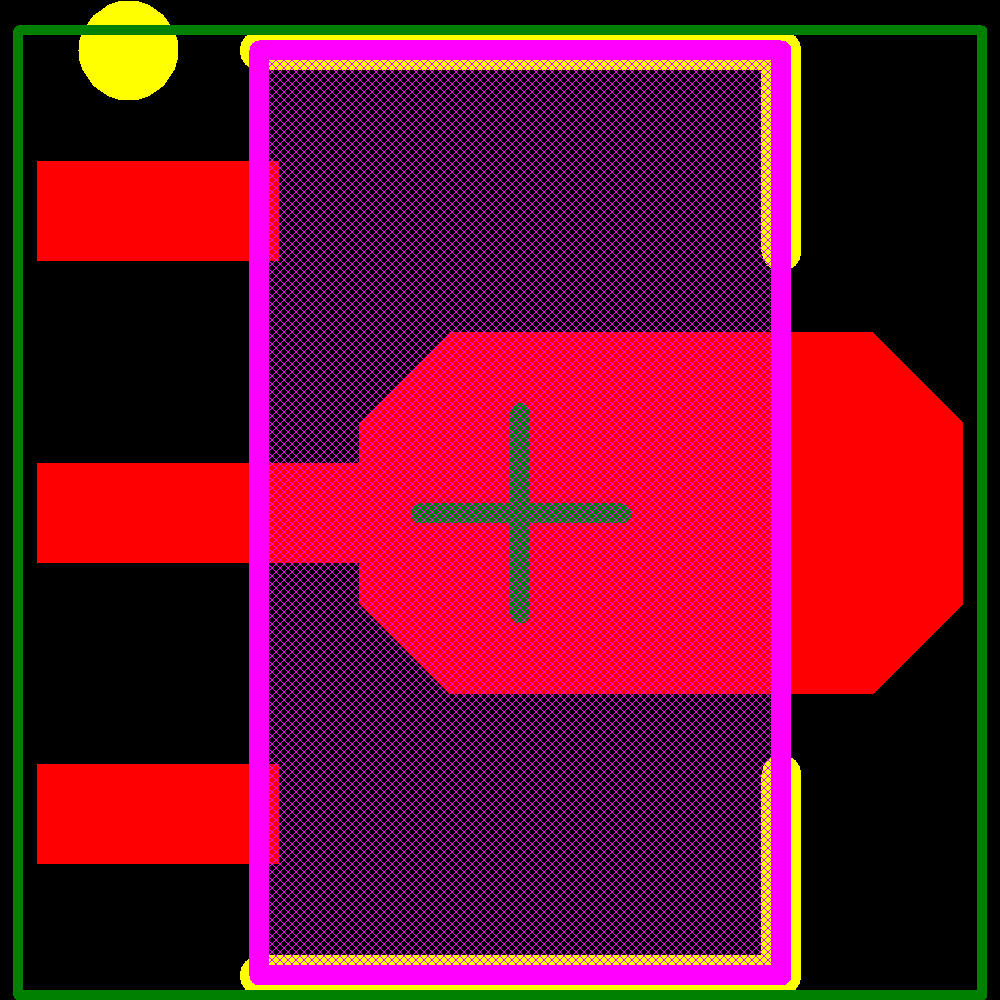

Images
Microchip
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | Obsolete |
