Integrated Circuits (ICs)  >  Power Management ICs  >  LDO Voltage Regulators

Microchip - MCP1824T-1802E/OT

MCP1824T-1802E/OT - Microchip

MCP1824 Series 1.8 V 300 mA Fixed Low Quiescent Current LDO Regulator - SOT-23-5

 Datasheets

Technical Details

Projected EOL Date 2034-12-04
Accuracy 2.5%
Case/Package SOT-23
Country of Assembly Thailand
Country of Fabrication United States of America
Country of Origin Thailand
Dropout Voltage 200mV
Export Control Classification Number (ECCN) Code EAR99
Height 1.2954mm
Harmonized Tariff Schedule (HTS) Code 8542.39.0060
Input Bias Current 120µA
Introduction Date 2007-12-04
Lead Free Lead Free
Length 3.0988mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Input Voltage 6V
Max Operating Temperature 125°C
Max Output Current 300mA
Min Input Voltage 2.1V
Min Operating Temperature -40°C
Mount Surface Mount
Nominal Output Voltage 1.8V
Number of Outputs 1
Number of Pins 5
Output Current 300mA
Output Type Fixed
Output Voltage 1.8V
Output Voltage Accuracy 2.5%
Packaging Cut Tape
Polarity Positive
Quiescent Current 220µA
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000
Width 1.8034mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Microchip MCP1824T-1802E/OT | Farnell

Farnell

Datasheets

 Farnell
 Farnell
 Onlinecomponents.com

Lifecycle Status Indicator

   Production

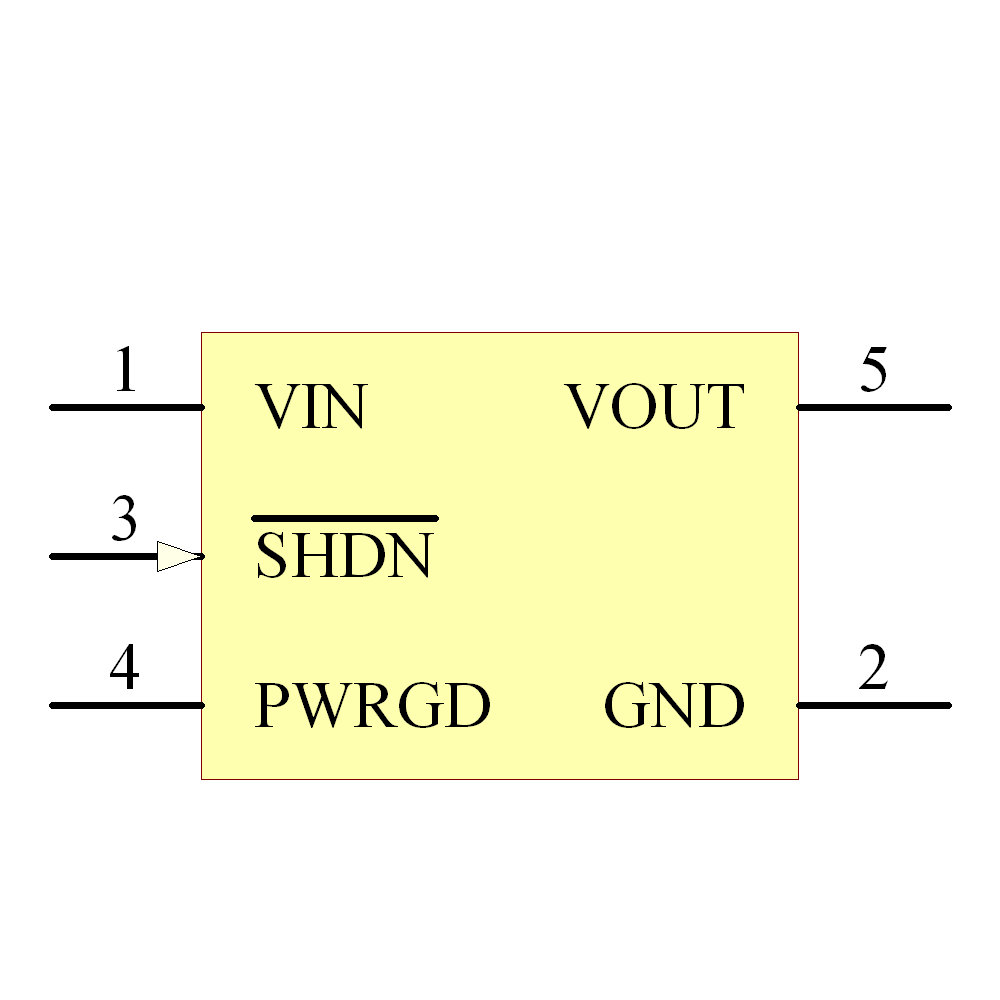

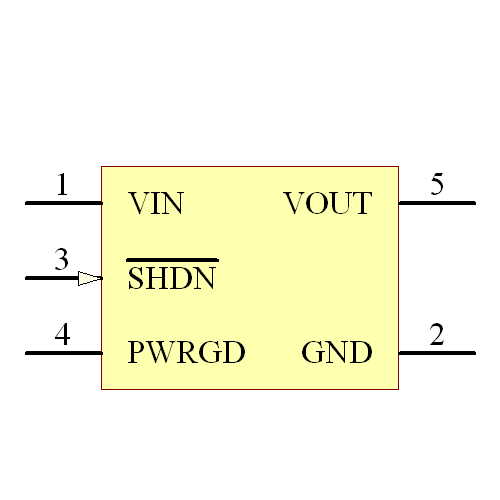

Symbol

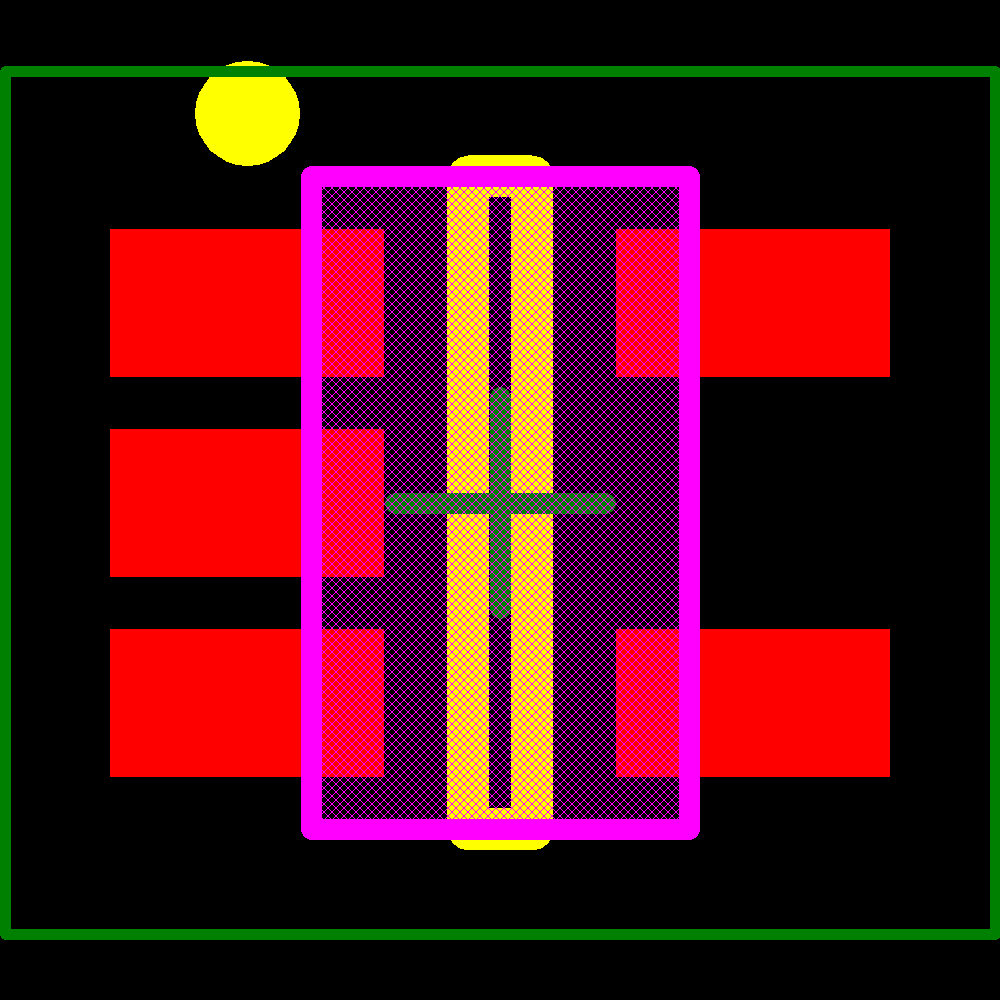

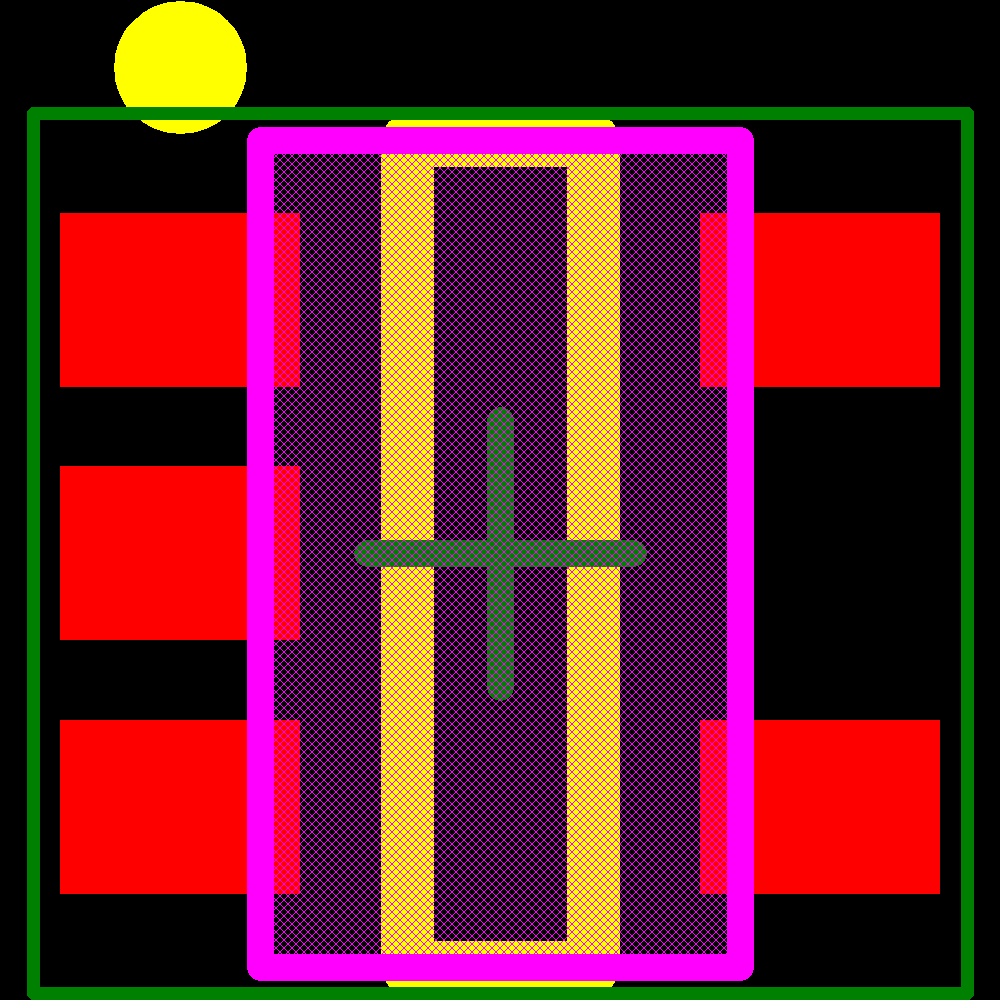

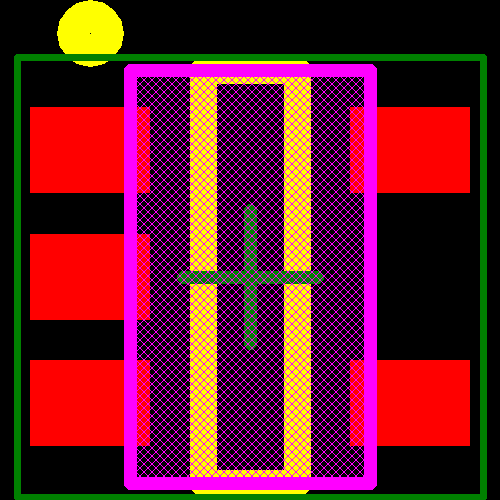

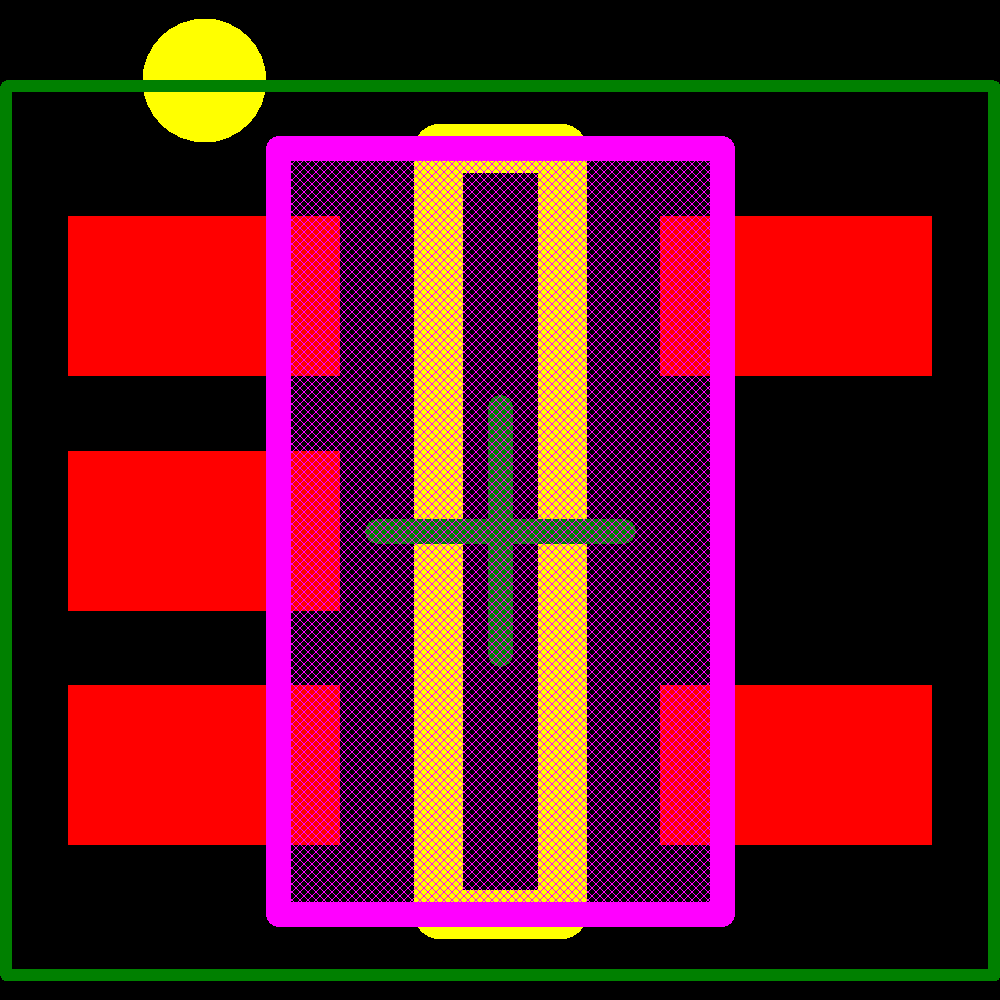

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
MCP1824ST-1802E/DB
Production
Microchip
MCP1824T-1802E/DC
Production
Texas Instruments
TPS79118DBVRG4
Unknown
Diodes Inc.
AP2121AK-1.8TRG1
Obsolete
onsemi
MC78LC18NTRG
Production
Torex
XC6221A182MR-G
Production
Torex
XC6209F182MRN
Obsolete
Torex
XC6222A181MR-G
Production
onsemi
NCP699SN18T1G
Production
Microchip
MIC5252-1.8BM5
Unknown

See more alternatives See less alternatives
