MCP1826-3002E/ET - Microchip
IC REG LINEAR 3V 1A 5DDPAK Linear Voltage Regulator IC Positive Fixed 1 Output 1A DDPAK-5
Technical Details
| Projected EOL Date | 2034-09-05 |
| Accuracy | 2% |
| Case/Package | D2PAK |
| Country of Assembly | China |
| Country of Fabrication | United States of America |
| Country of Origin | China |
| Dropout Voltage | 250mV |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 4.83mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Input Bias Current | 120µA |
| Introduction Date | 2007-09-05 |
| Length | 10.67mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Max Output Current | 1A |
| Min Input Voltage | 2.3V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 3V |
| Output Voltage Accuracy | 2% |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 220µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Width | 9.65mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

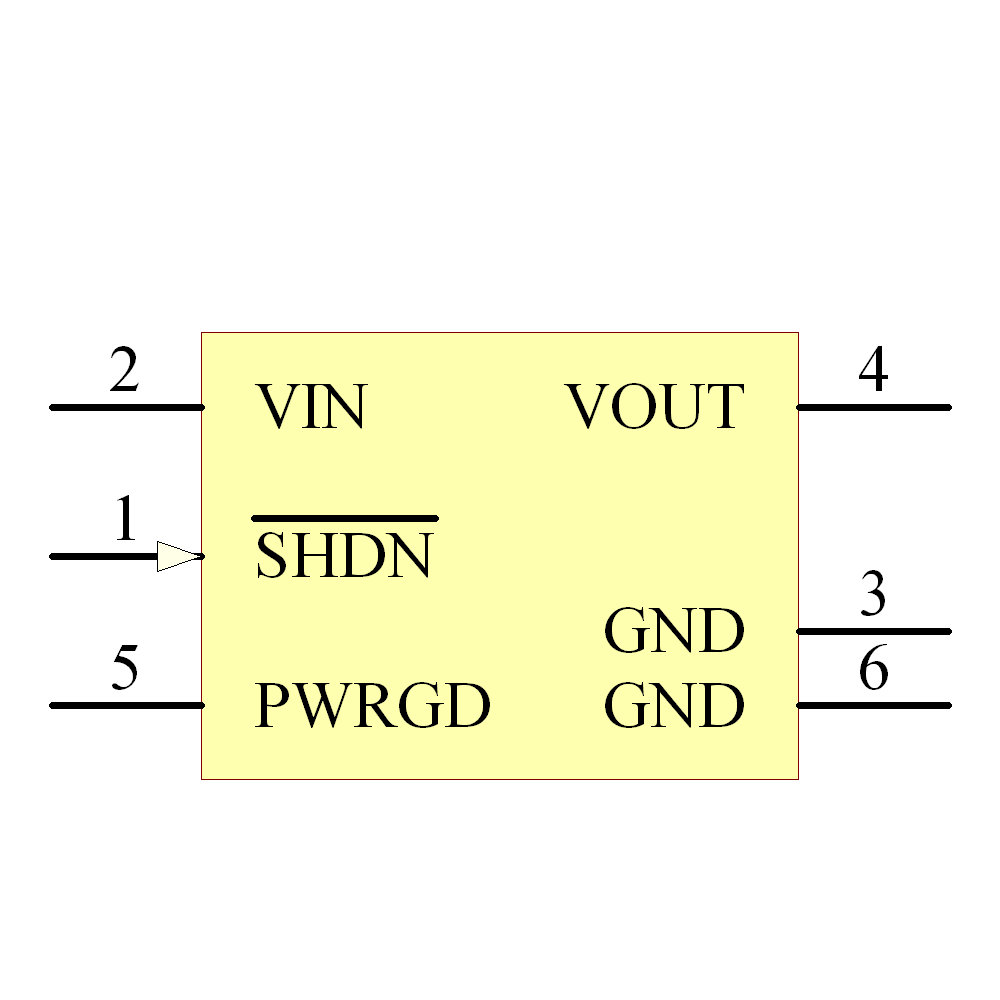

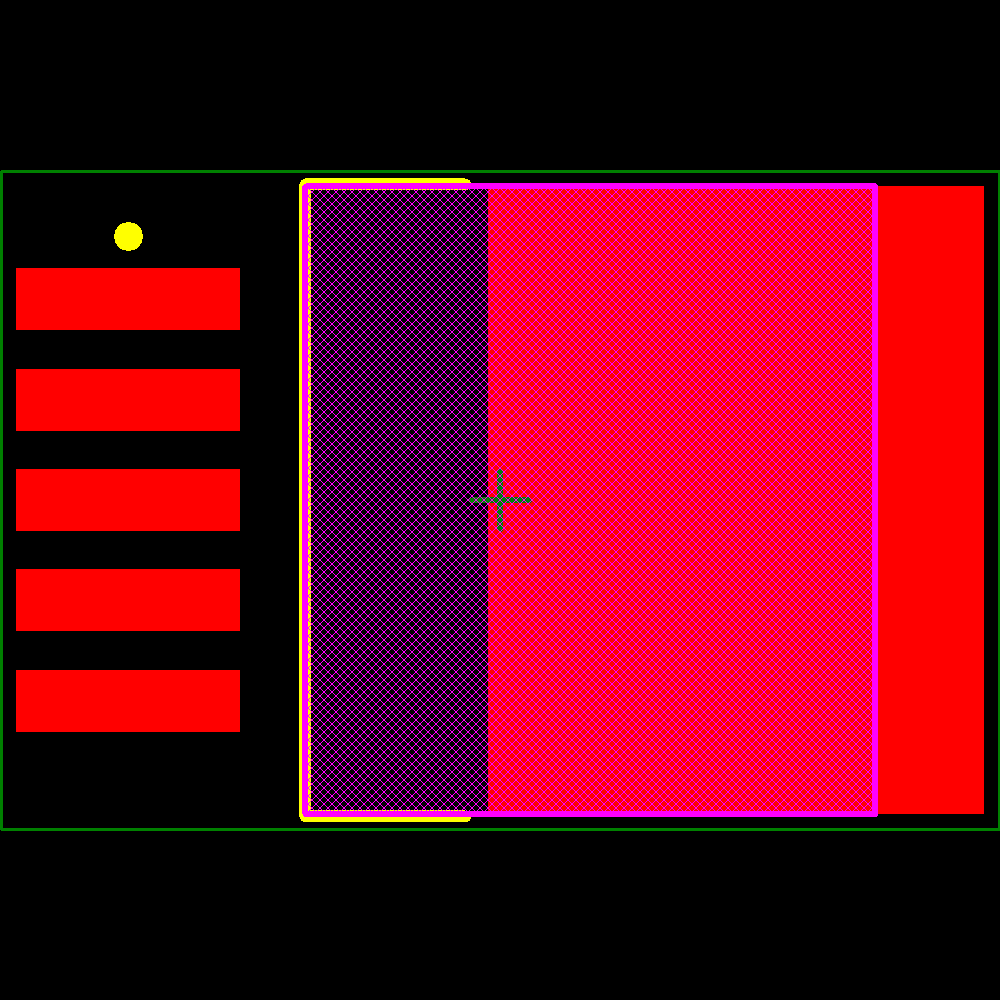

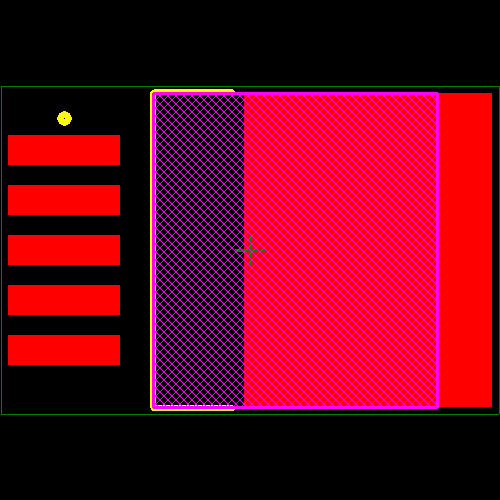

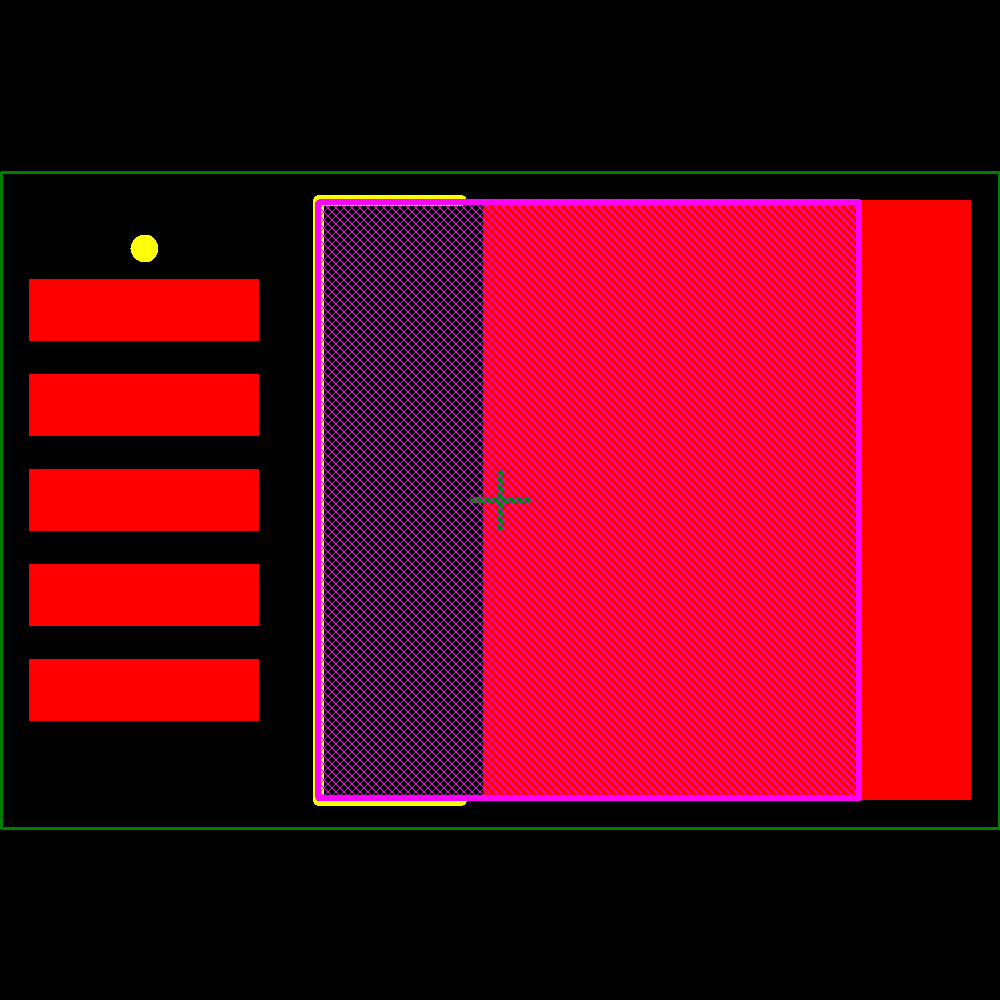

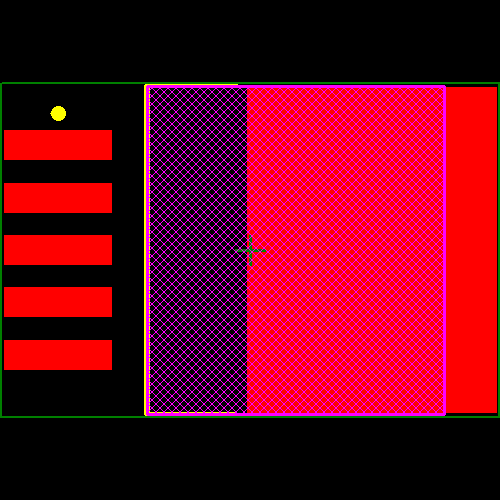

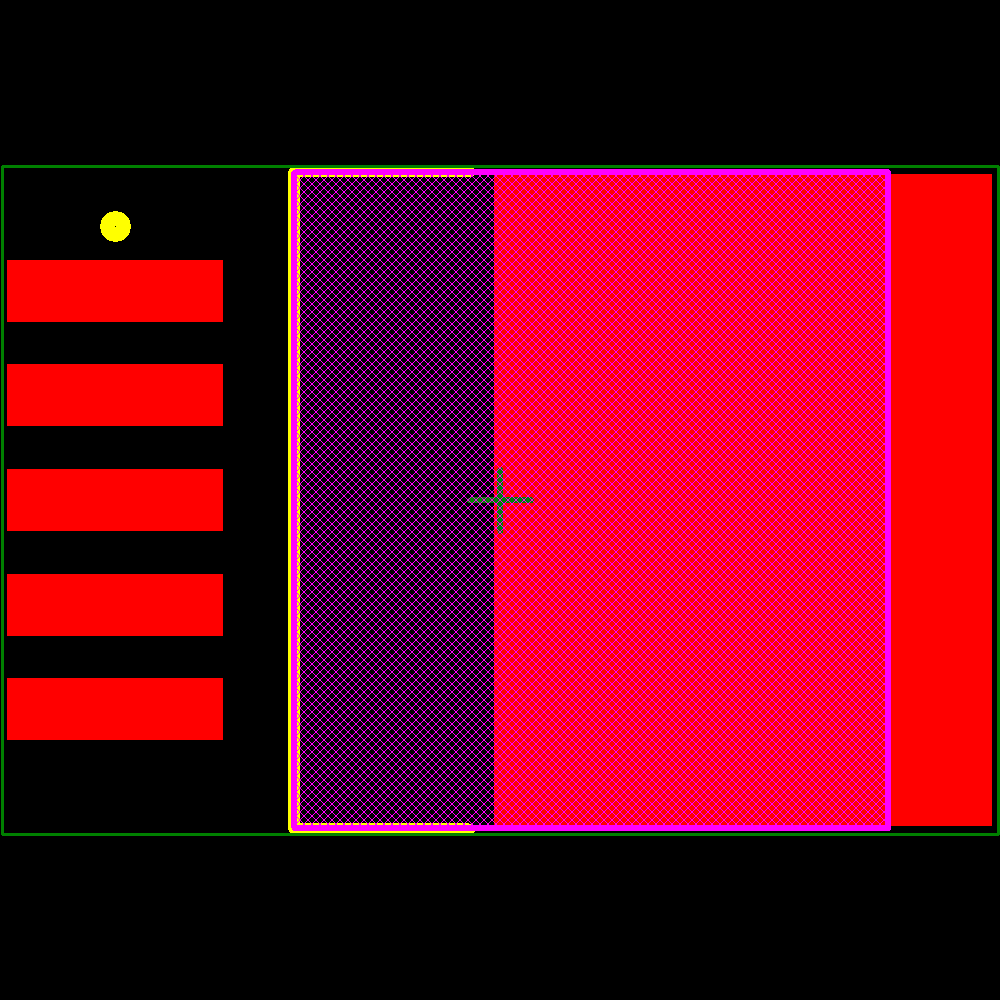

Images
Microchip
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Texas Instruments | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Texas Instruments | Unknown |
