MCP1826-3302E/AT - Microchip
IC REG LINEAR 3.3V 1A TO220-5 Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220-5
Technical Details
| Projected EOL Date | 2034-09-05 |
| Accuracy | 2% |
| Case/Package | TO-220 |
| Country of Assembly | China |
| Country of Fabrication | United States of America |
| Country of Origin | China |
| Dropout Voltage | 250mV |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 16.51mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Input Bias Current | 120µA |
| Introduction Date | 2007-09-05 |
| Lead Free | Lead Free |
| Length | 10.668mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Max Output Current | 1A |
| Min Input Voltage | 2.3V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Nominal Output Voltage | 3.3V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Output Voltage Accuracy | 2% |
| Polarity | Positive |
| Quiescent Current | 220µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Width | 4.826mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

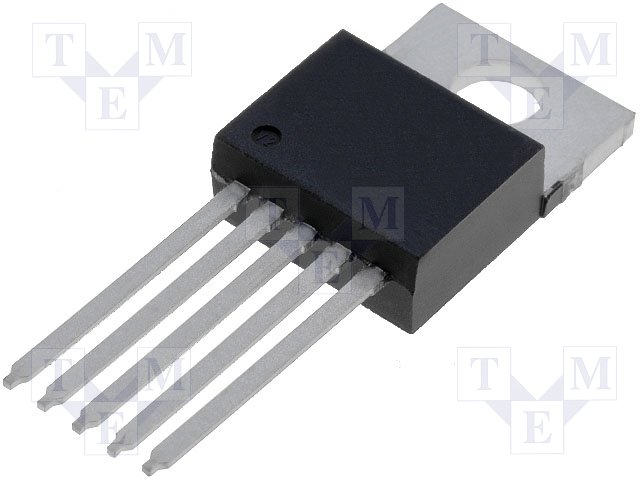

Images
