MCP23016-I/SS - Microchip

MCP23016 Series 5.5 V 400 kHz SMT 16-Bit I2C I/O Expander - SSOP-28

Technical Details

Projected EOL Date	2034-12-11
Case/Package	SSOP
Country of Assembly	Philippines, Thailand
Country of Fabrication	United States of America
Country of Origin	Philippines, Thailand
Export Control Classification Number (ECCN) Code	EAR99
Frequency	400kHz
Harmonized Tariff Schedule (HTS) Code	8542.39.0060
Interface	I2C
Introduction Date	2002-12-11
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	3.4MHz
Max Operating Temperature	85°C
Max Power Dissipation	1W
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	2V
Mount	Surface Mount
Number of Bits	16
Number of I/Os	16
Number of Pins	28
Operating Supply Voltage	5.5V
Output Current	25mA
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Weight	2.26799g

Compliance

RoHS : Unconfirmed

REACH SVHC : No

Images

Microchip MCP23016-I/SS | Farnell

Farnell

Datasheets

Onlinecomponents.com

Lifecycle Status Indicator

Production

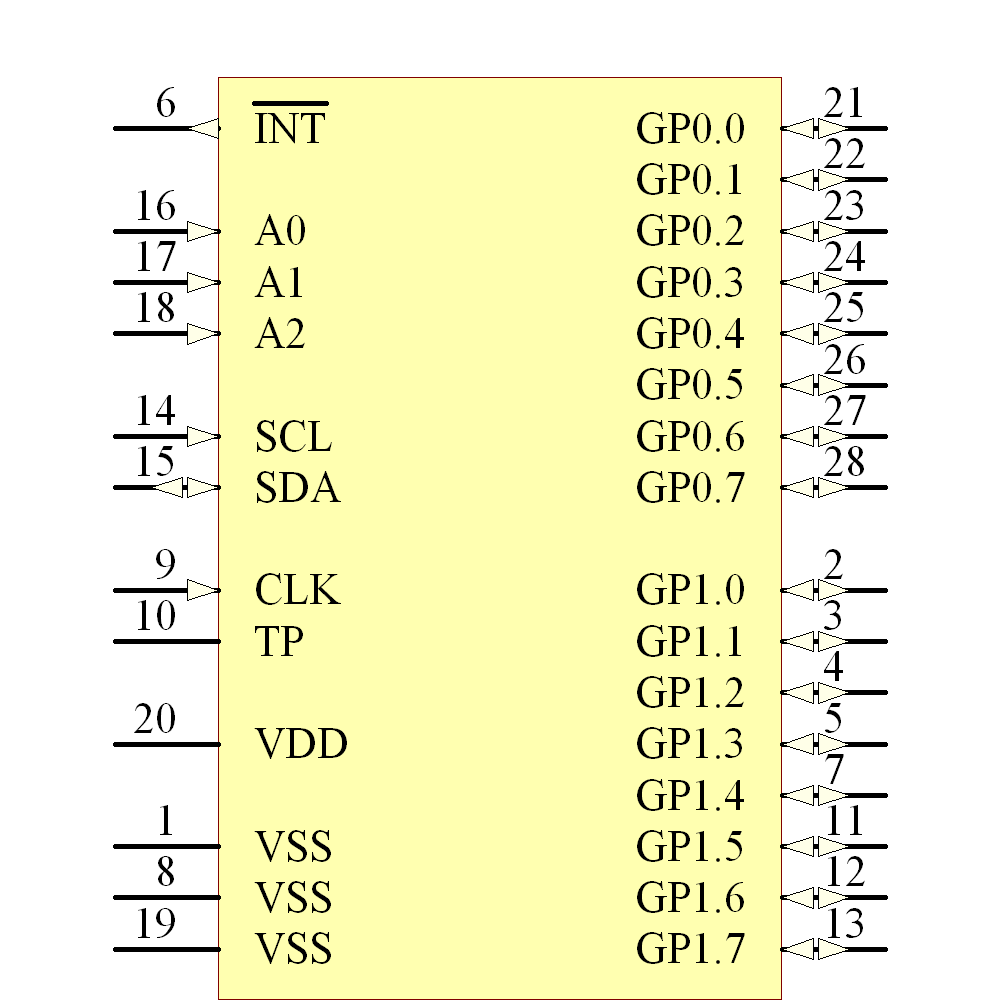

Symbol

MCP23016-I/SS Symbol - Microchip

MCP23016-I/SS Symbol - Microchip

MCP23016-I/SS Symbol - Microchip

MCP23016-I/SS Symbol - Microchip

‹ ›

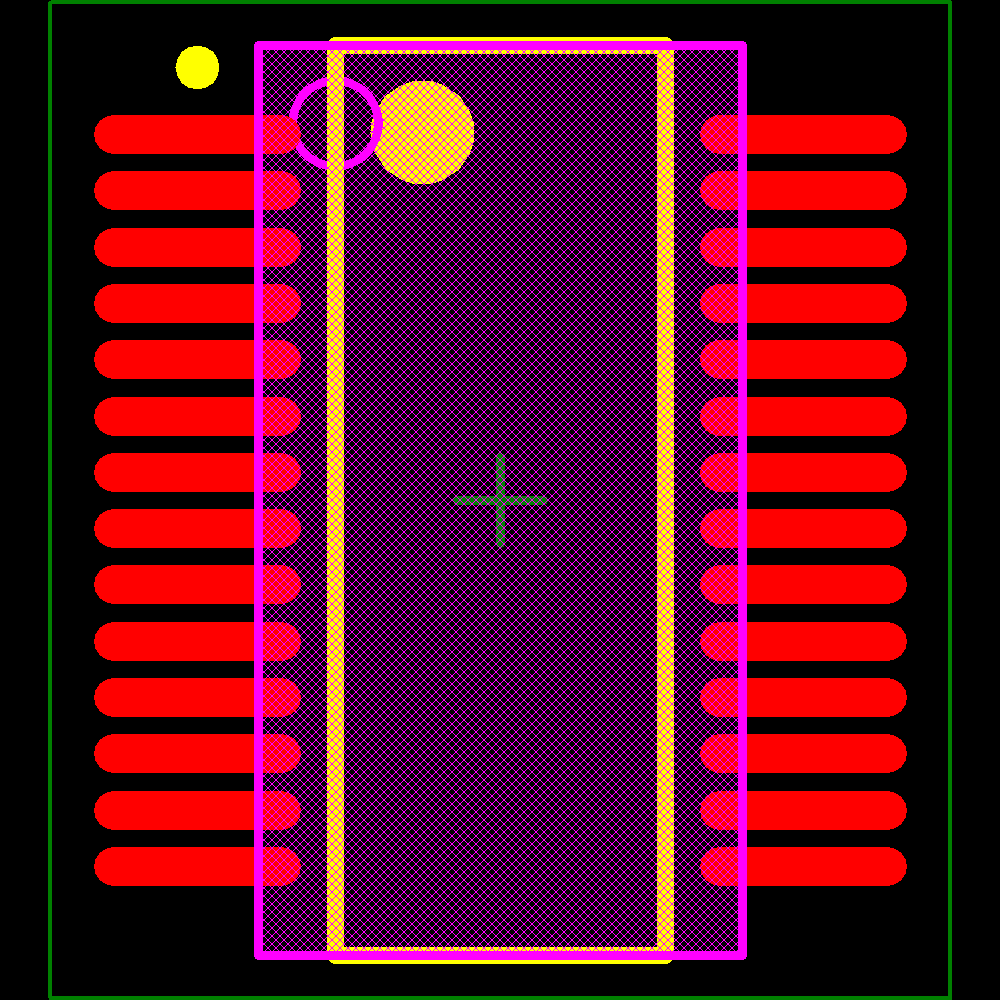

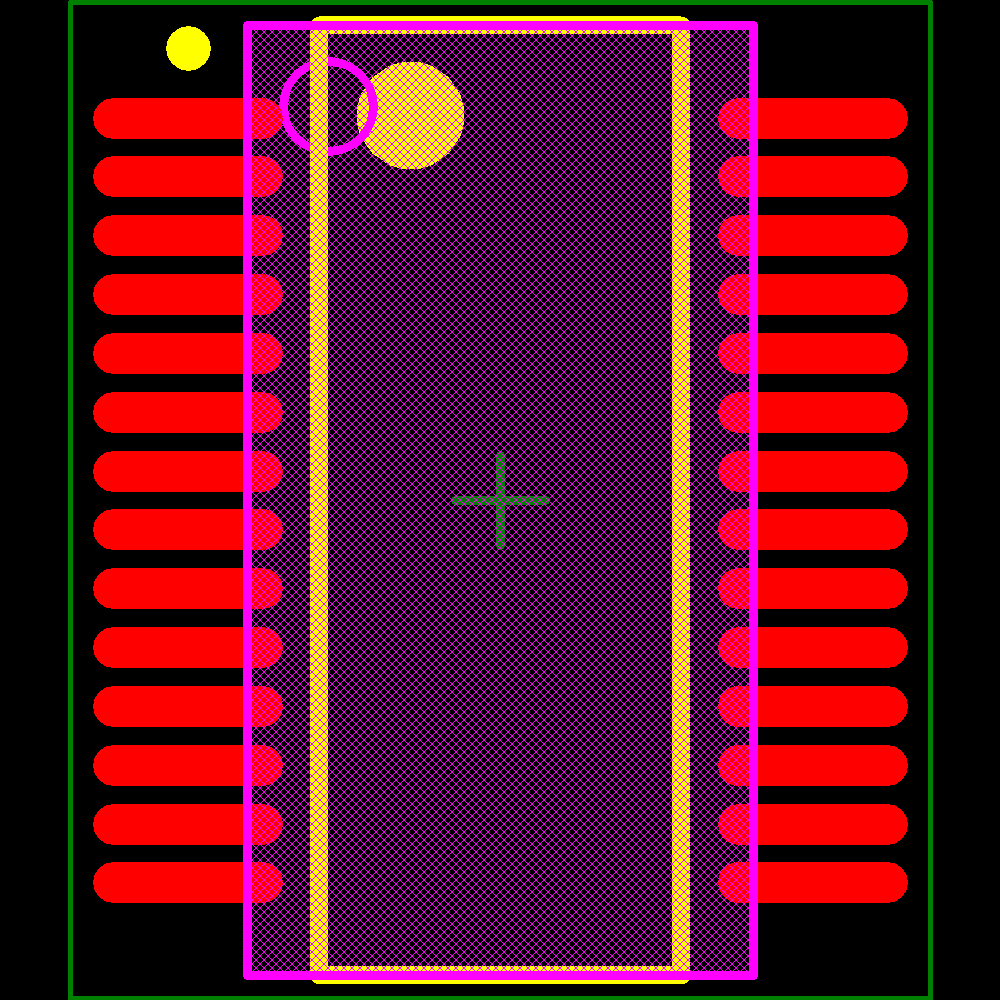

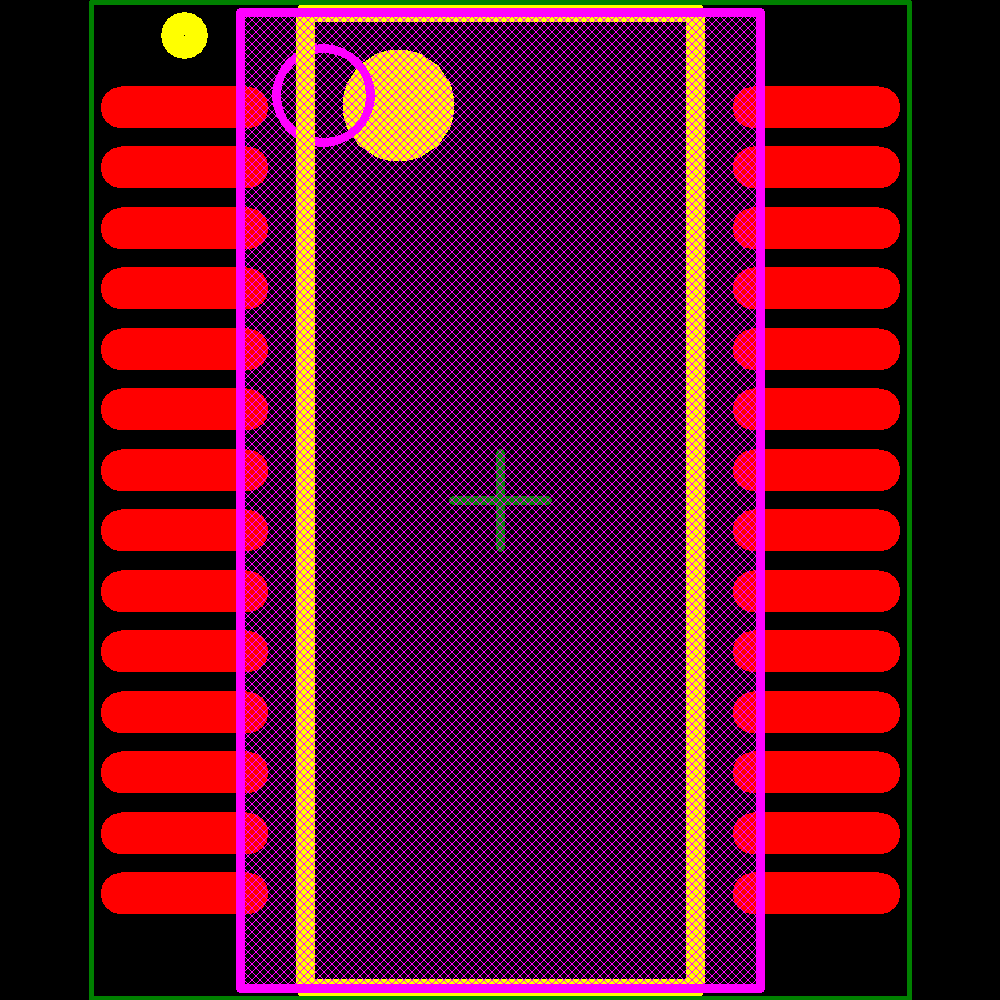

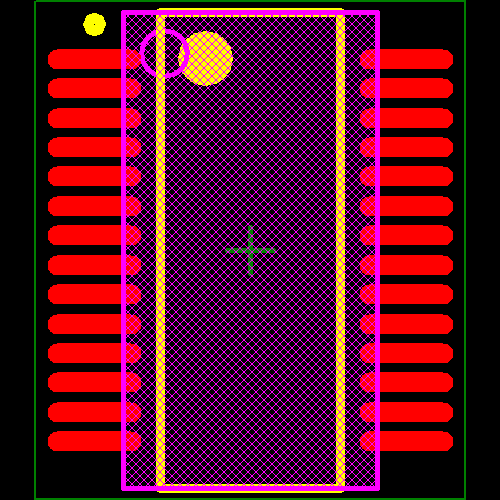

Footprint
