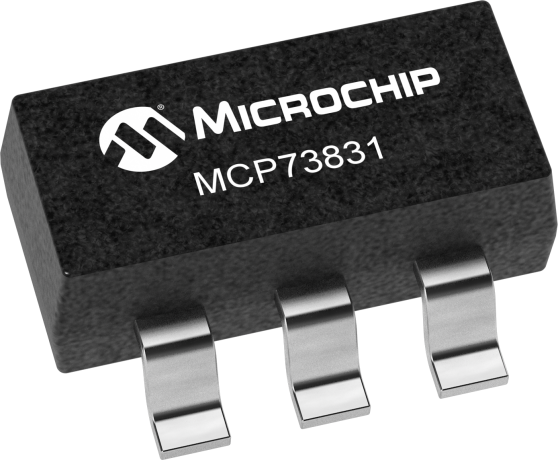

MCP73831T-3ACI/OT - Microchip
Linear Battery Charger Controller Li-Ion/Li-Pol 505mA 4.35V 5-Pin SOT-23 T/R
Technical Details
| Projected EOL Date | 2034-11-03 |
| Battery Pack Voltage | 4.35V |
| Case/Package | SOT-23-5 |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Thailand |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fault Protection | Over Voltage |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Introduction Date | 2005-11-03 |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Charge Current | 500mA |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3.75V |
| Mount | Surface Mount |
| Nominal Input Voltage | 6V |
| Number of Cells | 1 |
| Number of Pins | 5 |
| Operating Supply Current | 510µA |
| Output Current | 505mA |
| Output Voltage | 4.35V |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000 |
Compliance
RoHS : Unconfirmed
Images
Microchip
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Renesas | Obsolete | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Skyworks Solutions | NRND | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Unknown | ||
| Microchip | Production |
