MCP87130T-U/MF - Microchip
MOSFET N-CH 25V 43A 8PDFN N-Channel 25 V 43A (Tc) 2.1W (Ta) Surface Mount 8-PDFN (5x6)
Technical Details
| Projected EOL Date | 2025-01-14 |
| Case/Package | DFN |
| Continuous Drain Current (ID) | 54A |
| Country of Assembly | Malaysia |
| Country of Fabrication | United States of America |
| Country of Origin | Malaysia |
| Drain to Source Breakdown Voltage | 25V |
| Drain to Source Voltage (Vdss) | 25V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 2.1ns |
| Gate to Source Voltage (Vgs) | 10V |
| Height | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Input Capacitance | 400pF |
| Introduction Date | 2013-01-14 |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PHAS |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 2.2W |
| Min Operating Temperature | -55°C |
| Nominal Vgs | 1.35V |
| Number of Pins | 8 |
| Packaging | Tape and Reel |
| Power Dissipation | 2.2W |
| REACH SVHC | No |
| Rise Time | 5.4ns |
| RoHS | Compliant |
| Threshold Voltage | 1.35V |
| Turn-Off Delay Time | 4.2ns |
| Turn-On Delay Time | 2.2ns |
| Width | 6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

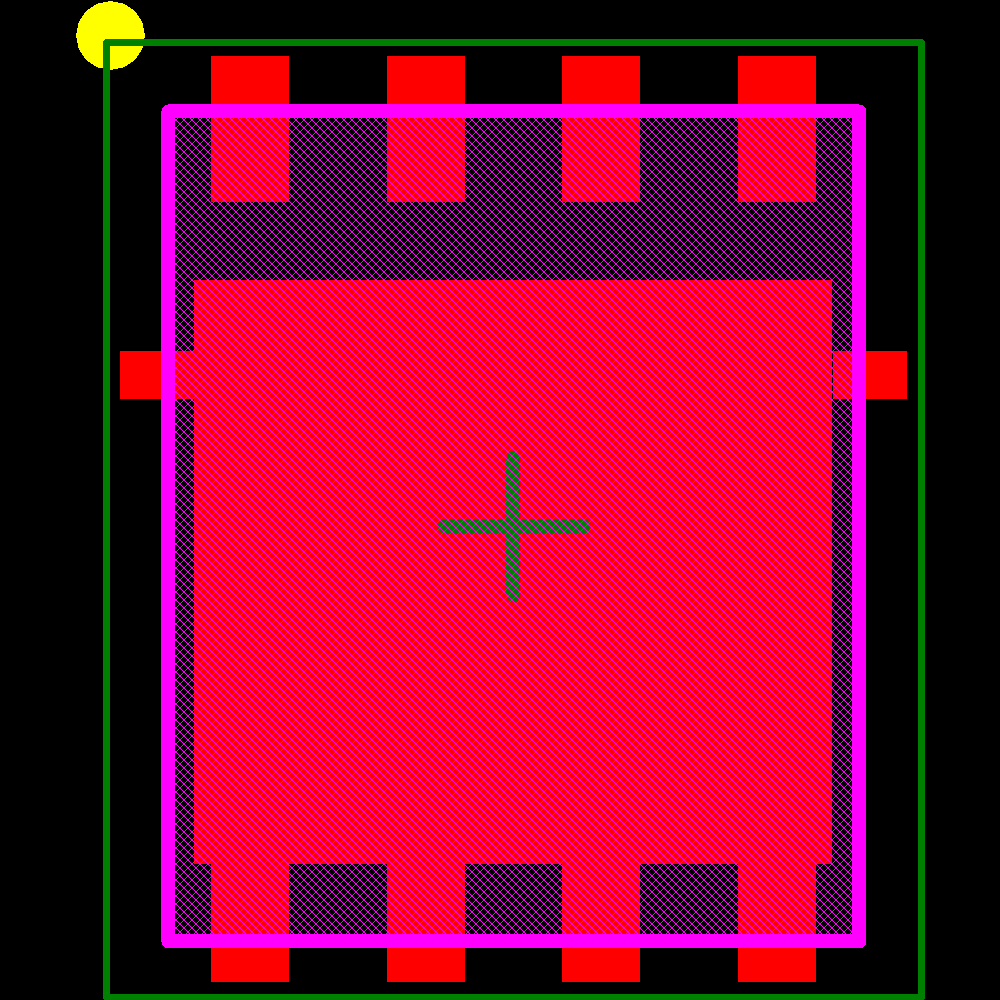

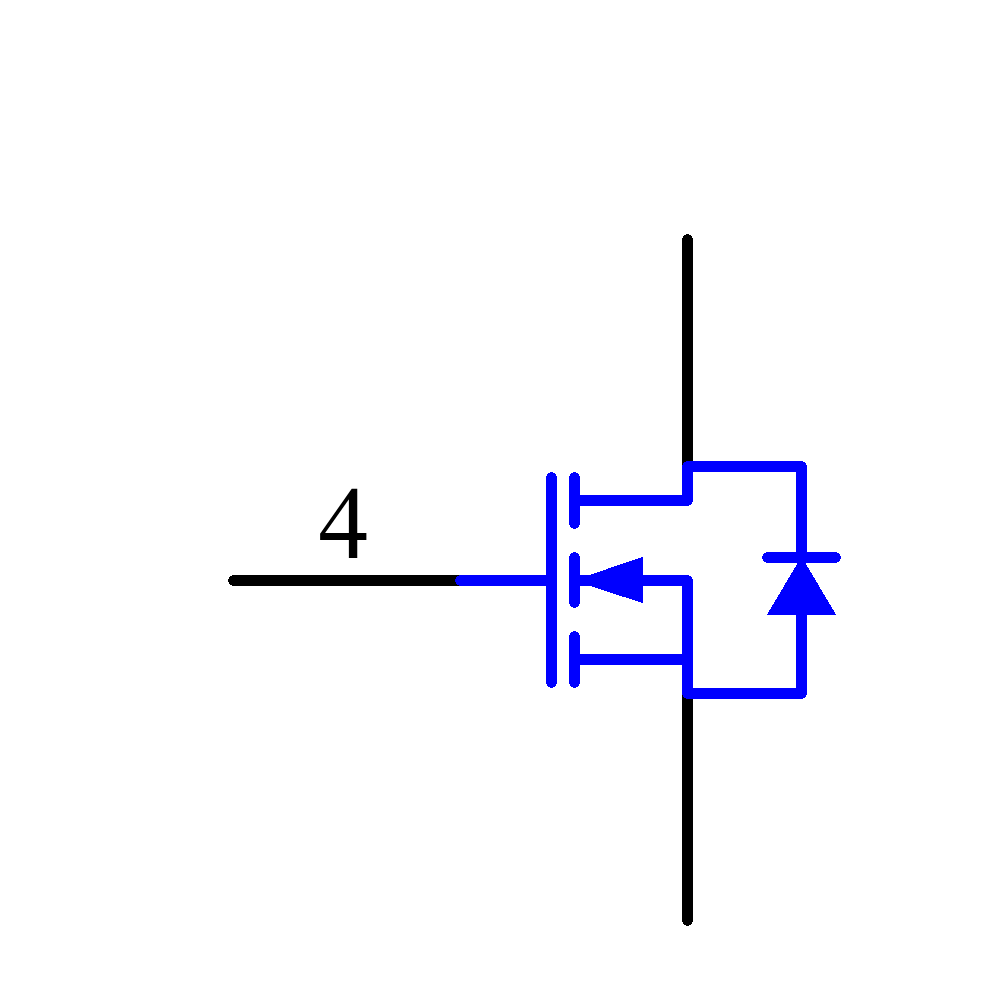

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Texas Instruments | Production | ||
| Alpha & Omega Semiconductor | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Production | ||
| onsemi | Production | ||
| Diodes Inc. | NRND | ||
| Diodes Inc. | Obsolete | ||
| Diodes Inc. | NRND |
