MIC2076-1YM-TR - Microchip

IC PWR SWITCH N-CHAN 1: 2 8SOIC Power Switch/Driver 1: 2 N-Channel 1.25A 8-SOIC

Technical Details

Projected EOL Date	2034-05-20
Ambient Temperature Range High	85°C
Case/Package	SOIC
Country of Assembly	Malaysia, Thailand
Country of Fabrication	United States of America
Country of Origin	Malaysia, Thailand
Current Rating	1.25A
Export Control Classification Number (ECCN) Code	EAR99
Fault Protection	Over Temperature
Height	1.73mm
Harmonized Tariff Schedule (HTS) Code	8542.39.0060
Interface	On/Off
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Operating Temperature	85°C
Max Output Current	500mA
Max Supply Voltage	5.5V
Manufacturer Package Identifier	SOICN-8LD-PL-1
Min Operating Temperature	-40°C
Min Supply Voltage	2.7V
Mount	Surface Mount
Nominal Input Voltage	5.5V
Nominal Supply Current	5µA
Number of Outputs	2
Number of Pins	8
Output Configuration	High Side
Output Current	500mA
Output Voltage	6V
Packaging	Cut Tape
Radiation Hardening	No
Resistance	140mΩ
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|85
Turn-Off Delay Time	100µs
Turn-On Delay Time	5µs

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Microchip MIC2076-1YM-TR | Microchip

Microchip

Datasheets

Onlinecomponents.com

Lifecycle Status Indicator

Production

Symbol

MIC2076-1YM-TR Symbol - Microchip

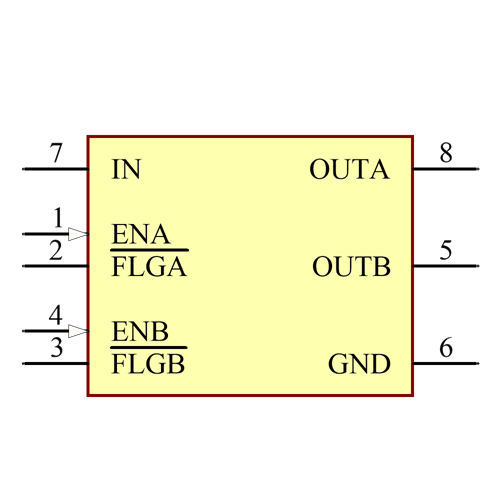

MIC2076-1YM-TR Symbol - Microchip

MIC2076-1YM-TR Symbol - Microchip

MIC2076-1YM-TR Symbol - Microchip

‹ ›

Footprint

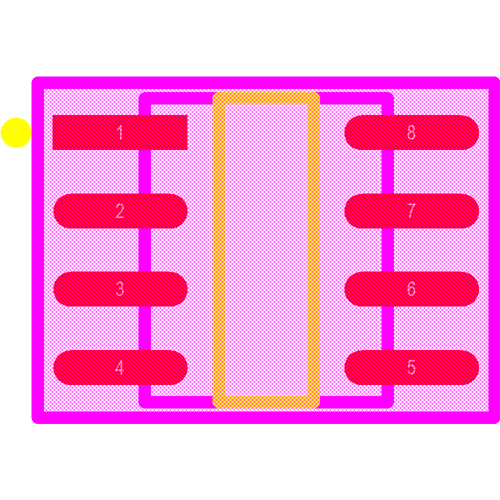

MIC2076-1YM-TR Footprint - Microchip

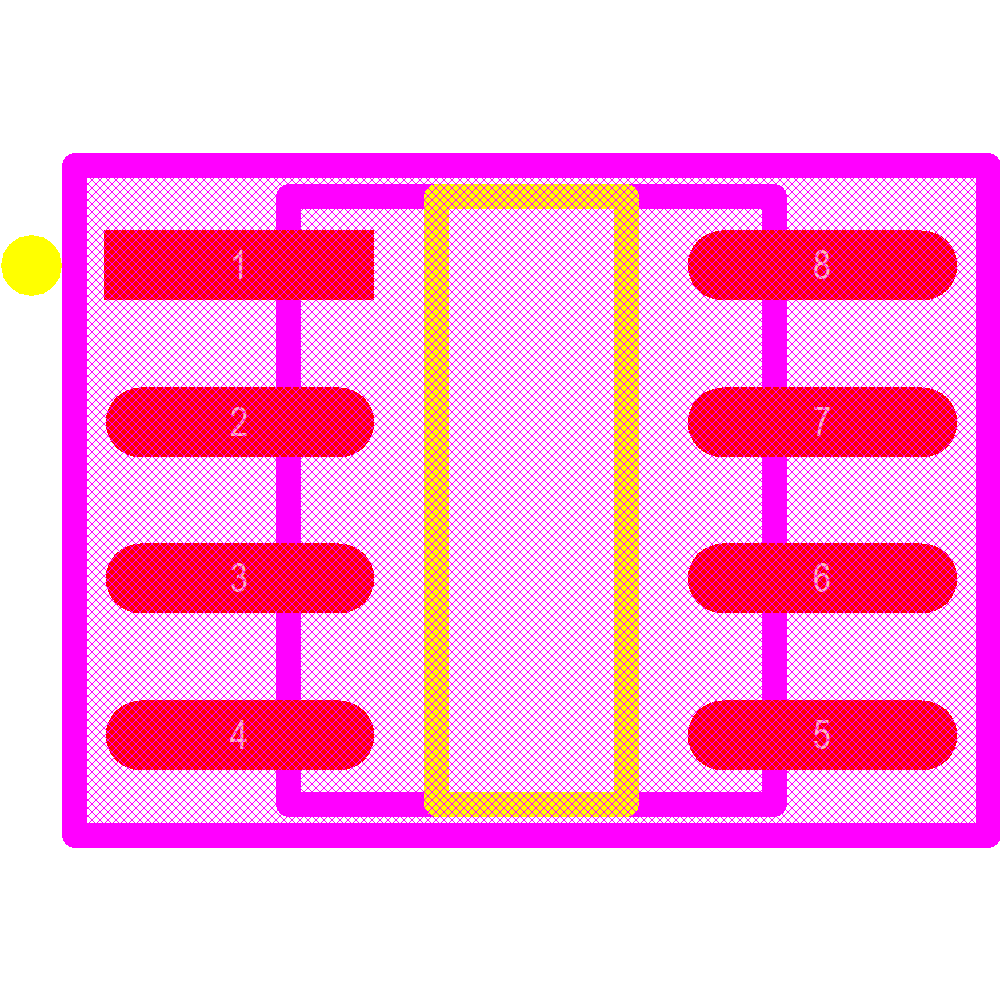

MIC2076-1YM-TR Footprint - Microchip

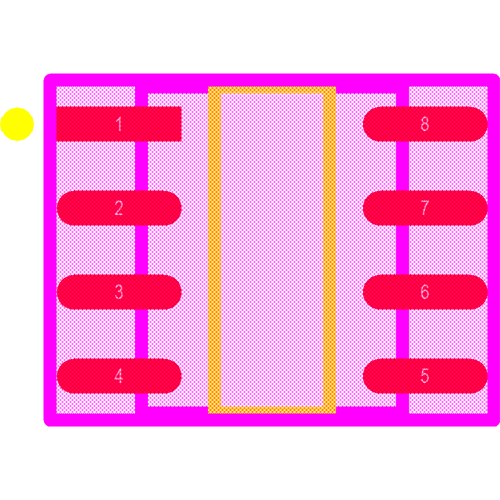

MIC2076-1YM-TR Footprint - Microchip

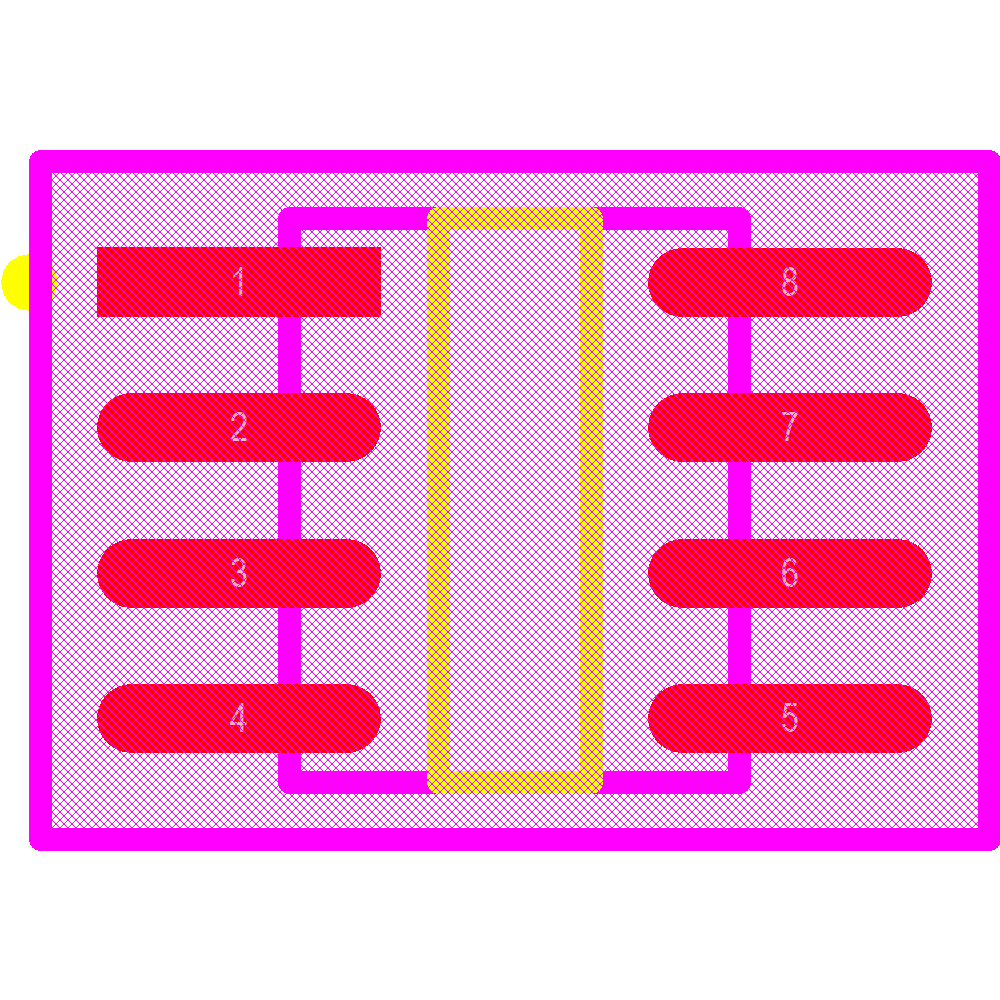

MIC2076-1YM-TR Footprint - Microchip

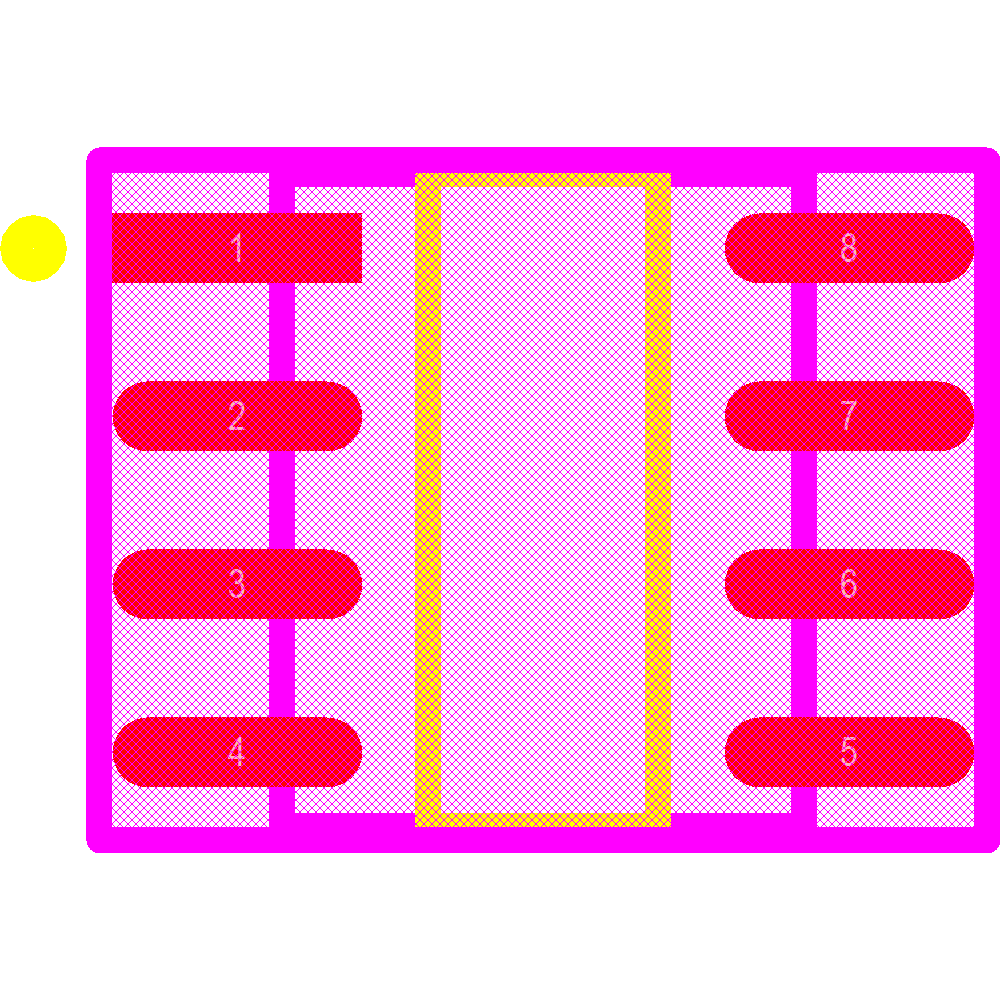

MIC2076-1YM-TR Footprint - Microchip

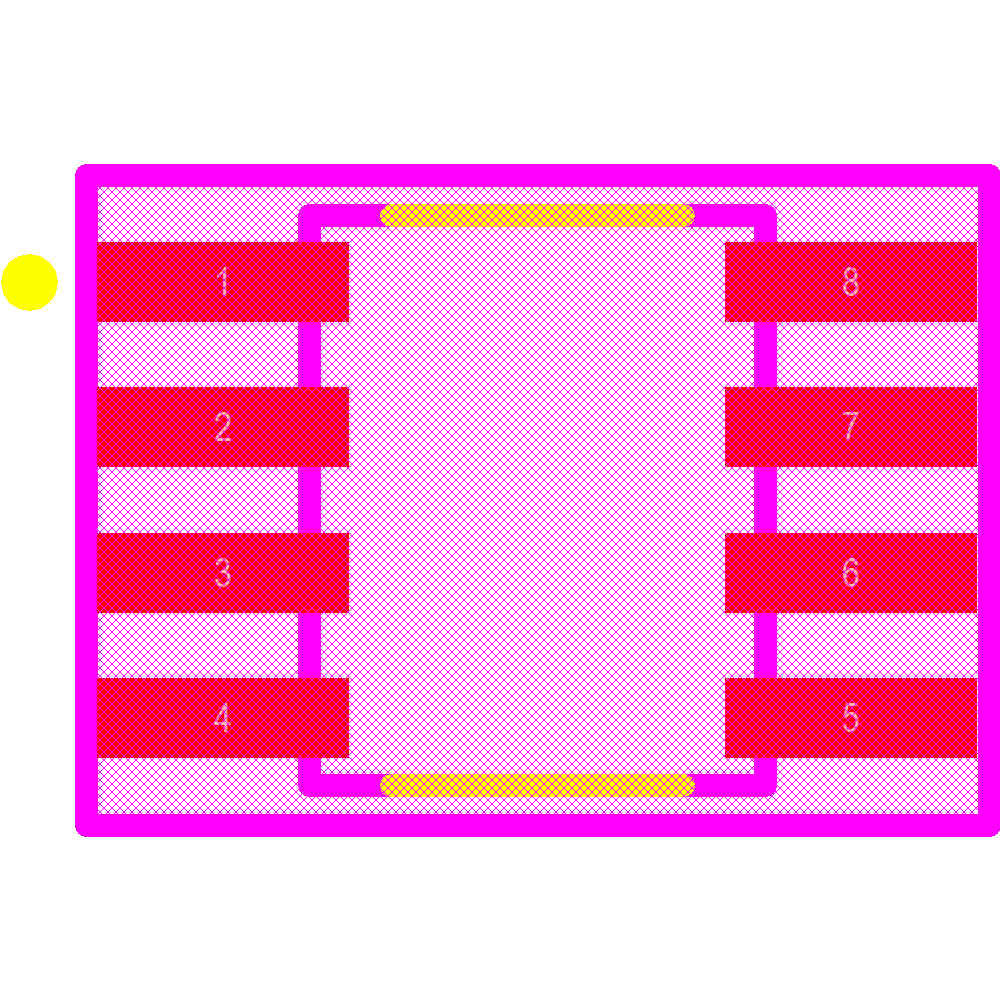

MIC2076-1YM-TR Footprint - Microchip
