MIC2182-3.3YSM - Microchip
IC REG CTRLR BUCK 16SSOP Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-SSOP
Technical Details
| Projected EOL Date | 2034-06-17 |
| Ambient Temperature Range High | 85°C |
| Case/Package | SSOP |
| Clock Sync | Yes |
| Country of Assembly | Philippines |
| Country of Fabrication | United States of America |
| Country of Origin | Philippines |
| Duty Cycle | 86% |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 60ns |
| Height | 2mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Duty Cycle | 86% |
| Max Frequency | 330kHz |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 85°C |
| Max Output Current | 20A |
| Max Power Dissipation | 270mW |
| Max Supply Voltage | 32V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Output Configuration | Positive |
| Output Current | 20A |
| Output Voltage | 3.3V |
| Radiation Hardening | No |
| Rise Time | 60ns |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Switching Frequency | 300kHz |
| Synchronous Rectifier | Yes |
| Topology | Buck |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

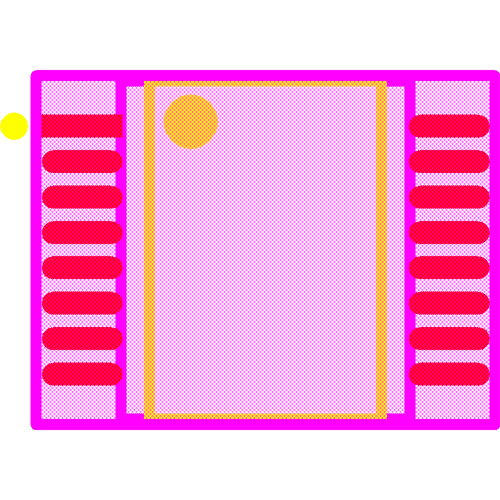

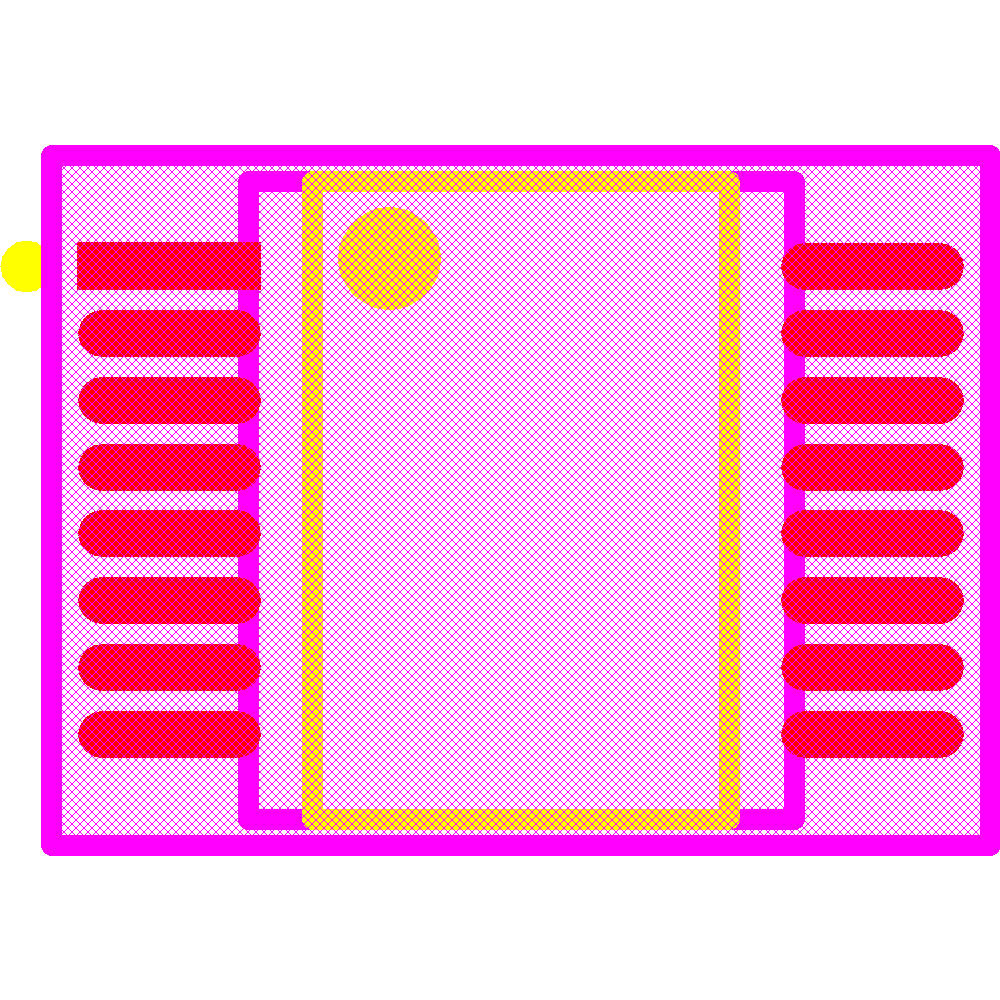

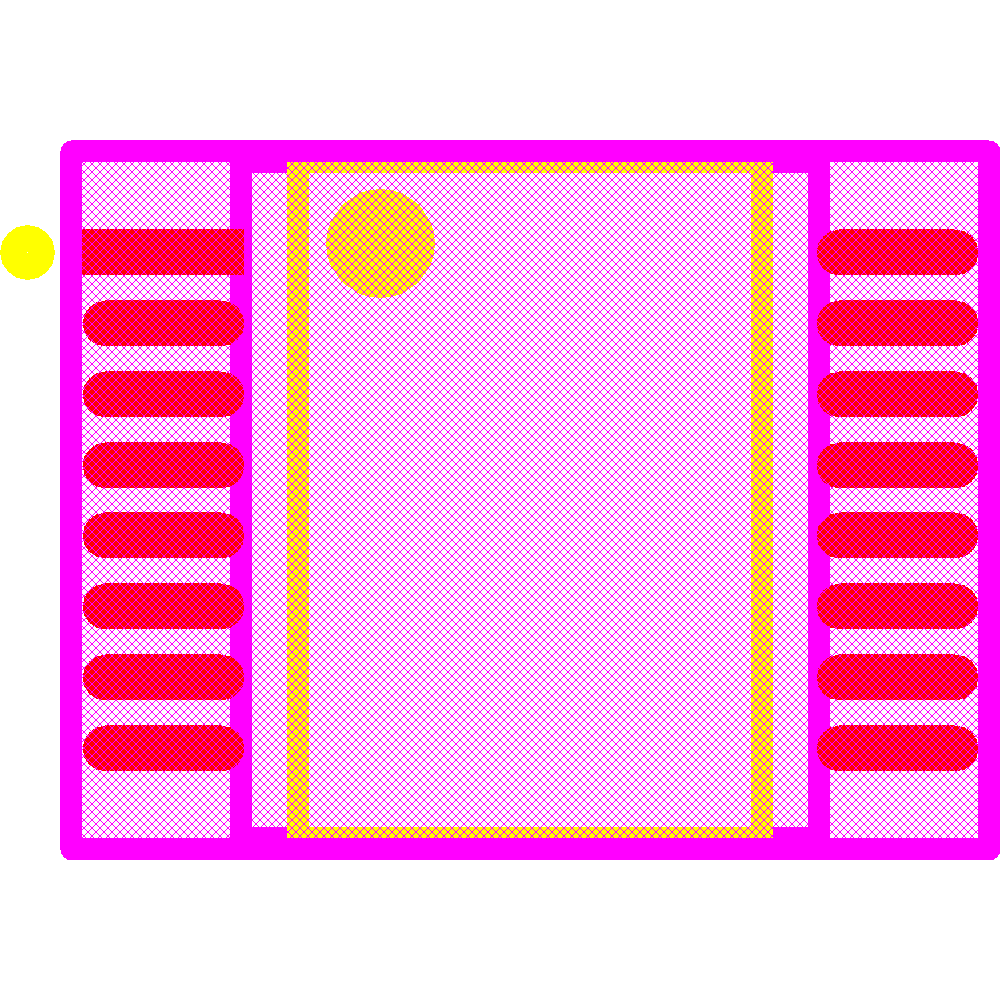

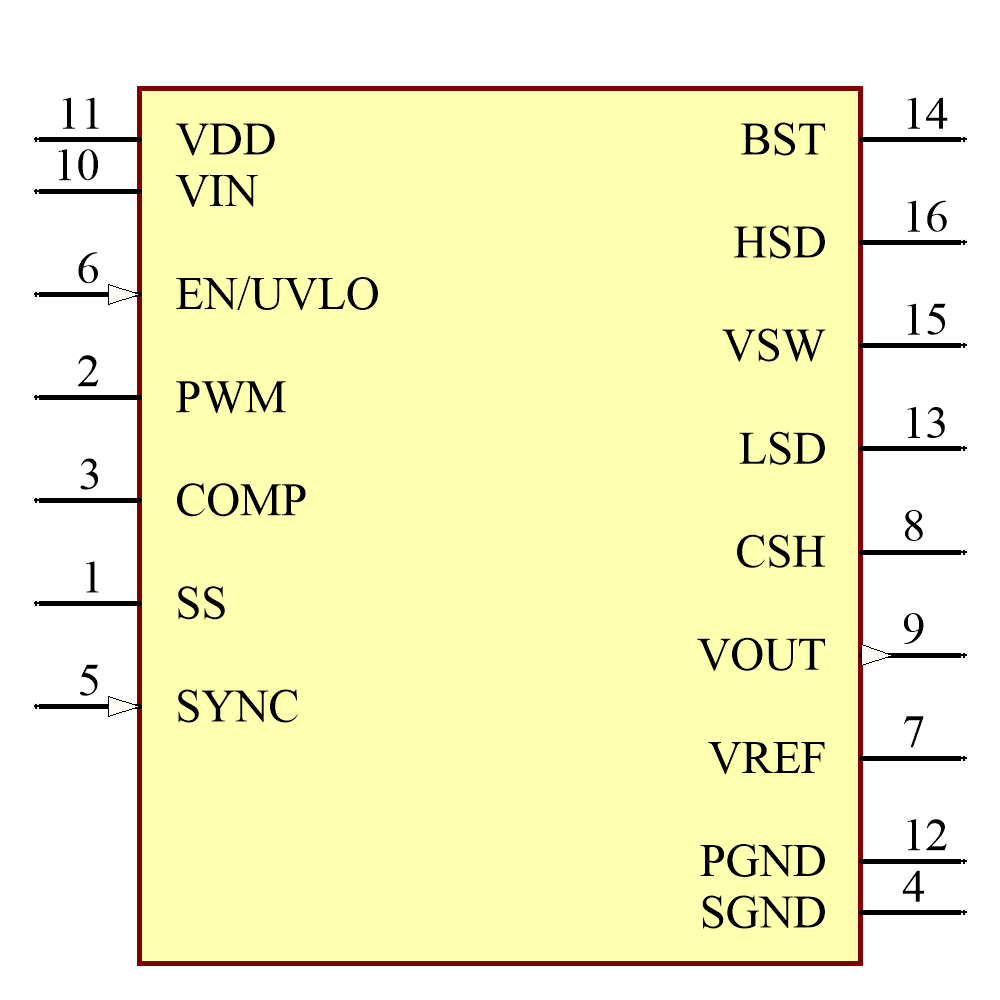

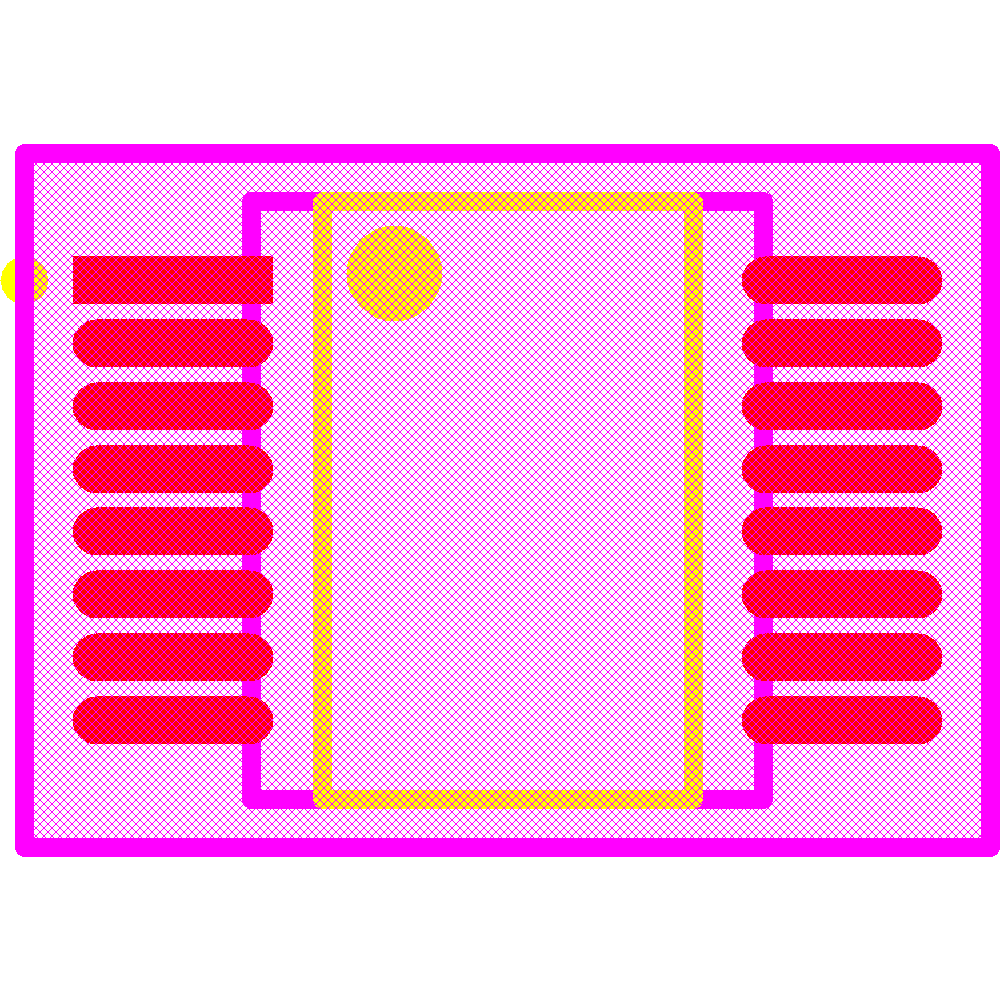

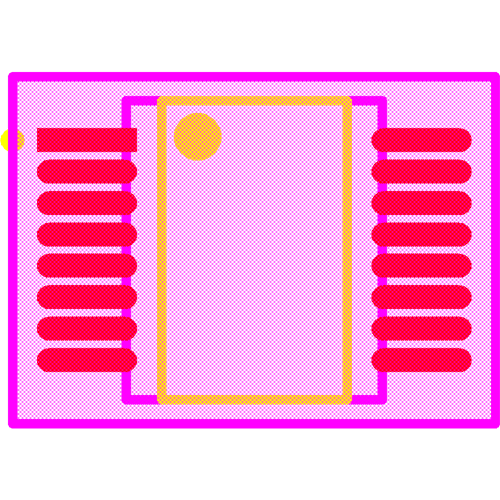

Images
