Integrated Circuits (ICs) > Power Management ICs > LDO Voltage Regulators

MIC2940A-5.0WT - Microchip

MIC2940A Series 5 V Fixed Output Voltage 1.25 A LDO Regulator - TO-220-3

Technical Details

Projected EOL Date	2034-01-25
Accuracy	1%
Case/Package	TO-220-3
Country of Assembly	China
Country of Fabrication	United States of America
Country of Origin	China
Current Rating	1.25A
Dropout Voltage	400mV
Export Control Classification Number (ECCN) Code	EAR99
Height	15.7226mm
Harmonized Tariff Schedule (HTS) Code	8542.39.0060
Input Bias Current	60nA
Lead Free	Lead Free
Length	10.67mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Input Voltage	26V
Max Operating Temperature	125°C
Max Output Current	1.2A
Max Supply Voltage	26V
Min Input Voltage	2V
Min Operating Temperature	-40°C
Min Output Voltage	5V
Min Supply Voltage	6V
Mount	Through Hole
Nominal Output Voltage	5V
Number of Channels	1
Number of Outputs	1
Number of Pins	3
Number of Regulators	1
Output Current	1.25A
Output Type	Fixed
Output Voltage	5V
Packaging	Bulk
REACH SVHC	No
Reference Voltage	1.235V
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Width	4.83mm

Compliance

RoHS : Unconfirmed

REACH SVHC : No

Images

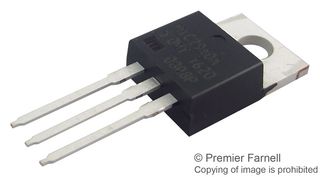

Microchip MIC2940A-5.0WT | Farnell

Farnell

Datasheets

Lifecycle Status Indicator

Production

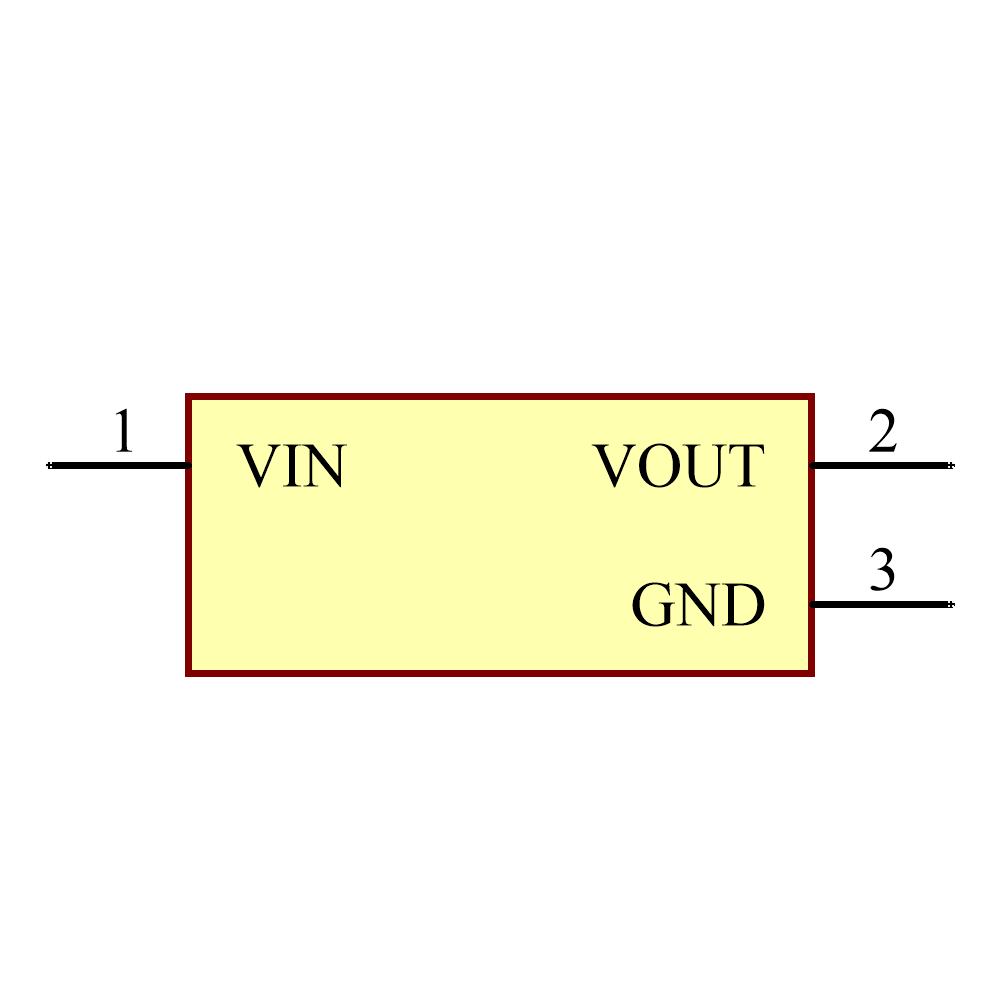

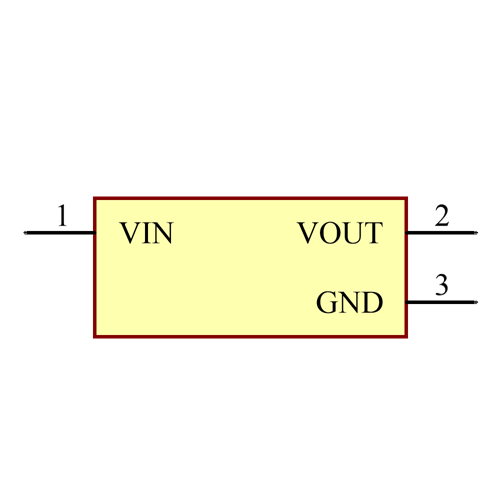

Symbol

MIC2940A-5.0WT Symbol - Microchip

MIC2940A-5.0WT Symbol - Microchip

MIC2940A-5.0WT Symbol - Microchip

MIC2940A-5.0WT Symbol - Microchip

‹ ›

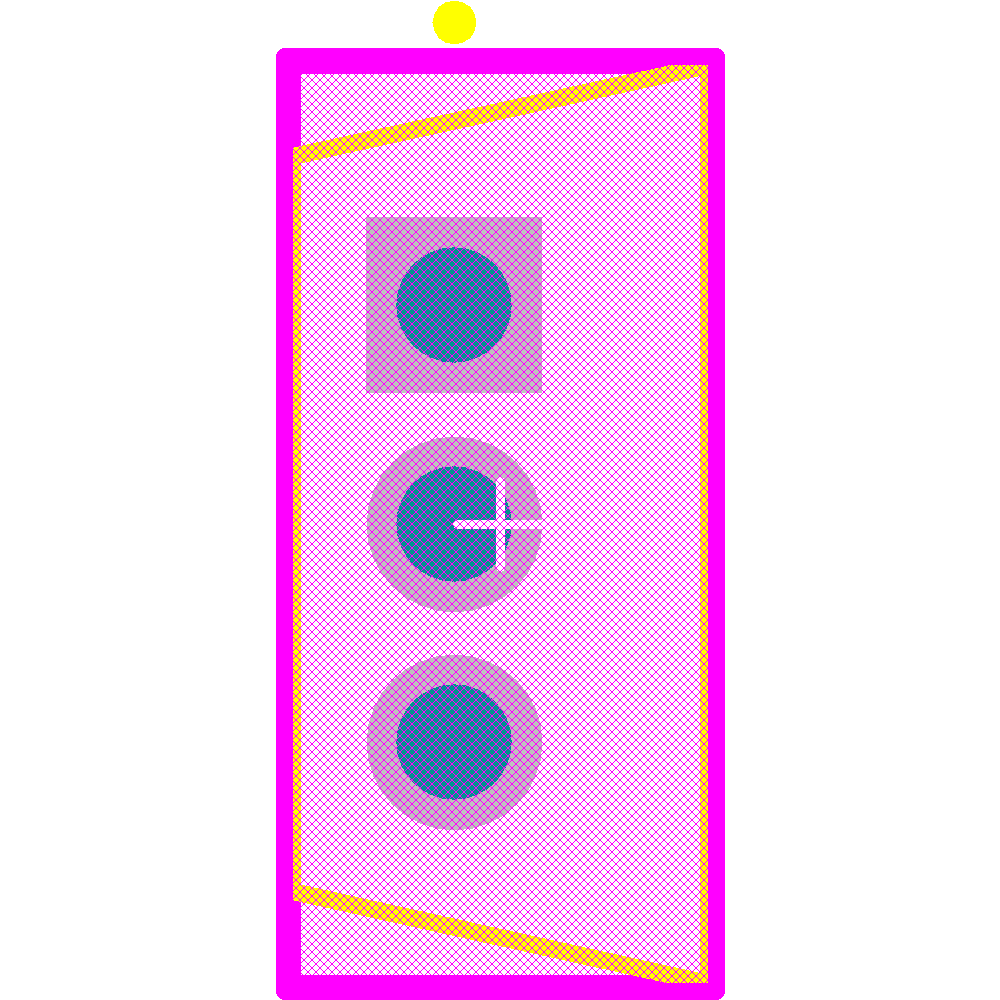

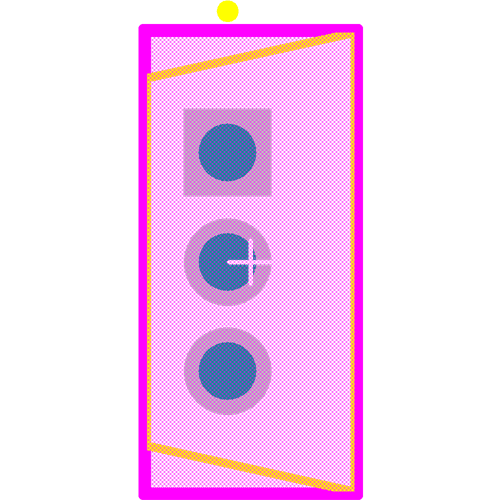

Footprint

MIC2940A-5.0WT Footprint - Microchip

MIC2940A-5.0WT Footprint - Microchip

MIC2940A-5.0WT Footprint - Microchip

MIC2940A-5.0WT Footprint - Microchip

‹ ›
