Microchip - MIC4452YN

MIC4452YN - Microchip

IC GATE DRVR LOW-SIDE 8DIP Low-Side Gate Driver IC Non-Inverting 8-PDIP

 Datasheets

Technical Details

Projected EOL Date 2034-09-08
Case/Package PDIP
Channel Type Single
Country of Assembly Thailand
Country of Fabrication United States of America
Country of Origin Thailand
Export Control Classification Number (ECCN) Code EAR99
Fall Time 50ns
Height 3.43mm
Harmonized Tariff Schedule (HTS) Code 8542.39.0060
Lead Free Lead Free
Length 9.65mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Operating Temperature 85°C
Max Output Current 12A
Max Power Dissipation 960mW
Max Supply Voltage 18V
Min Operating Temperature -40°C
Min Supply Voltage 4.5V
Mount Through Hole
Nominal Supply Current 450µA
Number of Bits 1
Number of Channels 1
Number of Drivers 1
Number of Outputs 1
Number of Pins 8
Output Current 12A
Packaging Bulk
Power Dissipation 960mW
Propagation Delay 60ns
Radiation Hardening No
REACH SVHC No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Turn-Off Delay Time 80ns
Turn-On Delay Time 80ns
Width 6.48mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

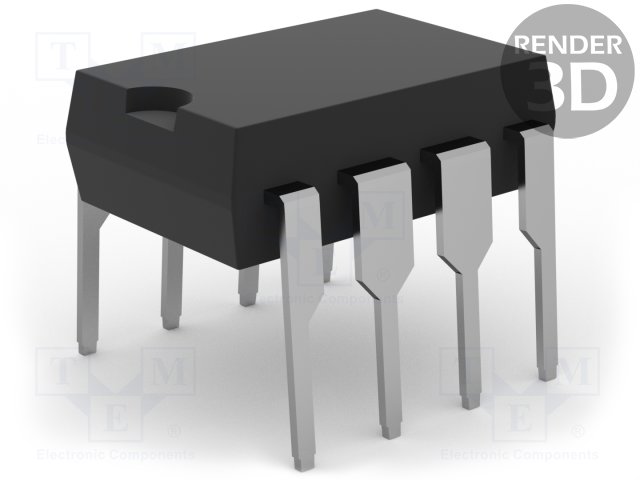

Microchip MIC4452YN | TME
