MIC5013BN - Microchip
IC GATE DRV HI-SIDE/LO-SIDE 8DIP High-Side or Low-Side Gate Driver IC Non-Inverting 8-PDIP
Technical Details
| Case/Package | PDIP |
| Channel Type | Single |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 32V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 7V |
| Mount | Through Hole |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Operating Supply Voltage | 15V |
| Packaging | Bulk |
| Power Dissipation | 1.25W |
| RoHS | Non-Compliant |
| Turn-Off Delay Time | 4µs |
| Turn-On Delay Time | 60µs |
Compliance
RoHS : Unconfirmed

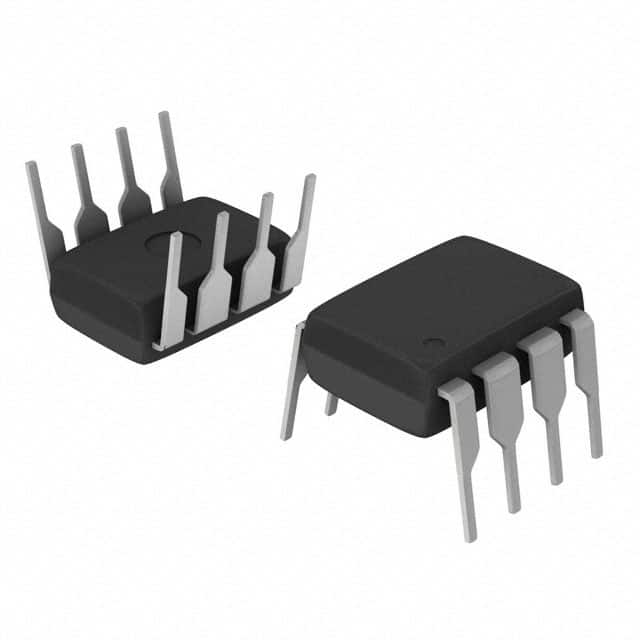

Images
Augswan
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Micrel | Obsolete | ||
| Micrel | Obsolete | ||
| Microchip | Production | ||
| Microchip | Unknown | ||
| STMicroelectronics | Obsolete | ||
| Texas Instruments | Unknown | ||
| Elantec | Obsolete | ||
| Elantec | Obsolete | ||
| Texas Instruments | Unknown | ||
| Microchip | Production |
