Microchip - PIC12LF1840T-I/SN

PIC12LF1840T-I/SN - Microchip

MCU 8-bit PIC12 PIC RISC 7KB Flash 3.3V 8-Pin SOIC N T/R

 Datasheets

Technical Details

Projected EOL Date 2039-03-03
Case/Package SOIC
Core Architecture PIC
Country of Assembly Thailand
Country of Fabrication United States of America
Country of Origin Thailand
Data Bus Width 8b
Export Control Classification Number (ECCN) Code EAR99
Frequency 32MHz
Harmonized Tariff Schedule (HTS) Code 8542.31.0015
Interface I2C, LIN, SPI, UART, USART
Introduction Date 2011-03-03
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Frequency 32MHz
Max Operating Temperature 85°C
Max Power Dissipation 800mW
Max Supply Voltage 3.6V
Memory Size 7kB
Memory Type FLASH
Min Operating Temperature -40°C
Min Supply Voltage 2.5V
Number of I/Os 5
Number of Pins 8
Number of Programmable I/O 5
Number of Timers/Counters 3
Operating Supply Voltage 3.3V
Radiation Hardening No
RAM Size 256B
RoHS Compliant
Watchdog Timer Yes

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Microchip PIC12LF1840T-I/SN | Microchip

Microchip

Datasheets

 DigiKey
 Microchip
 Farnell

Lifecycle Status Indicator

   Production

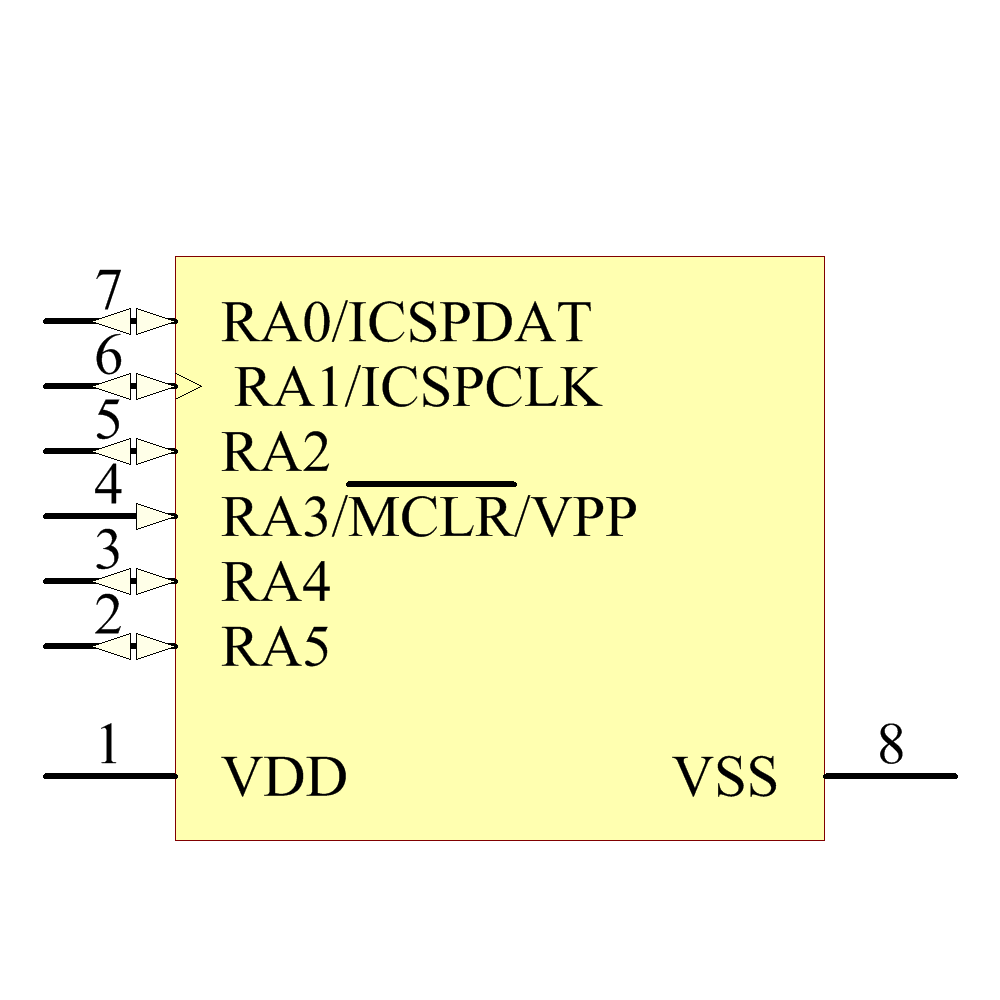

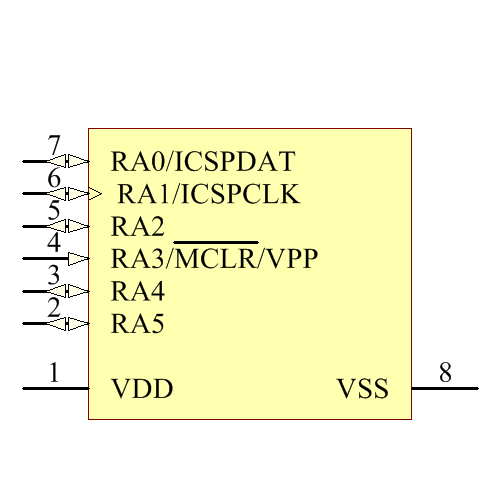

Symbol

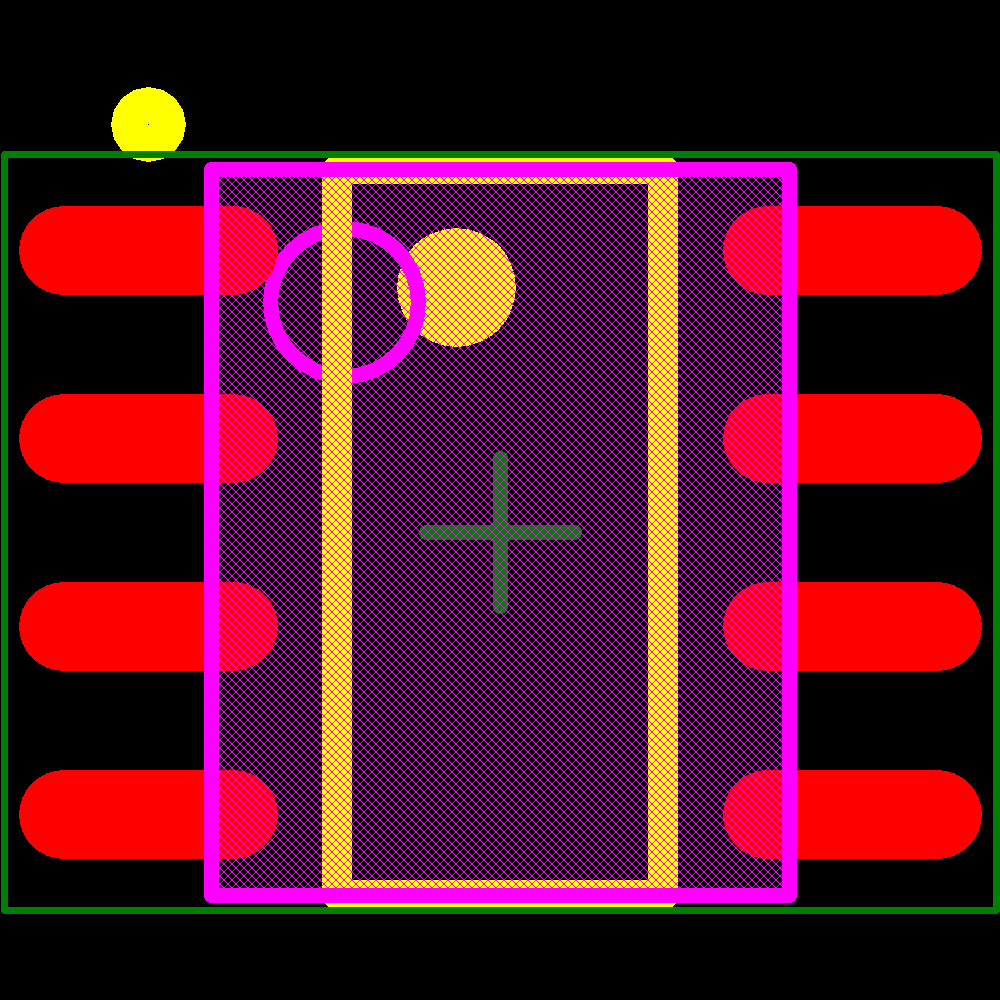

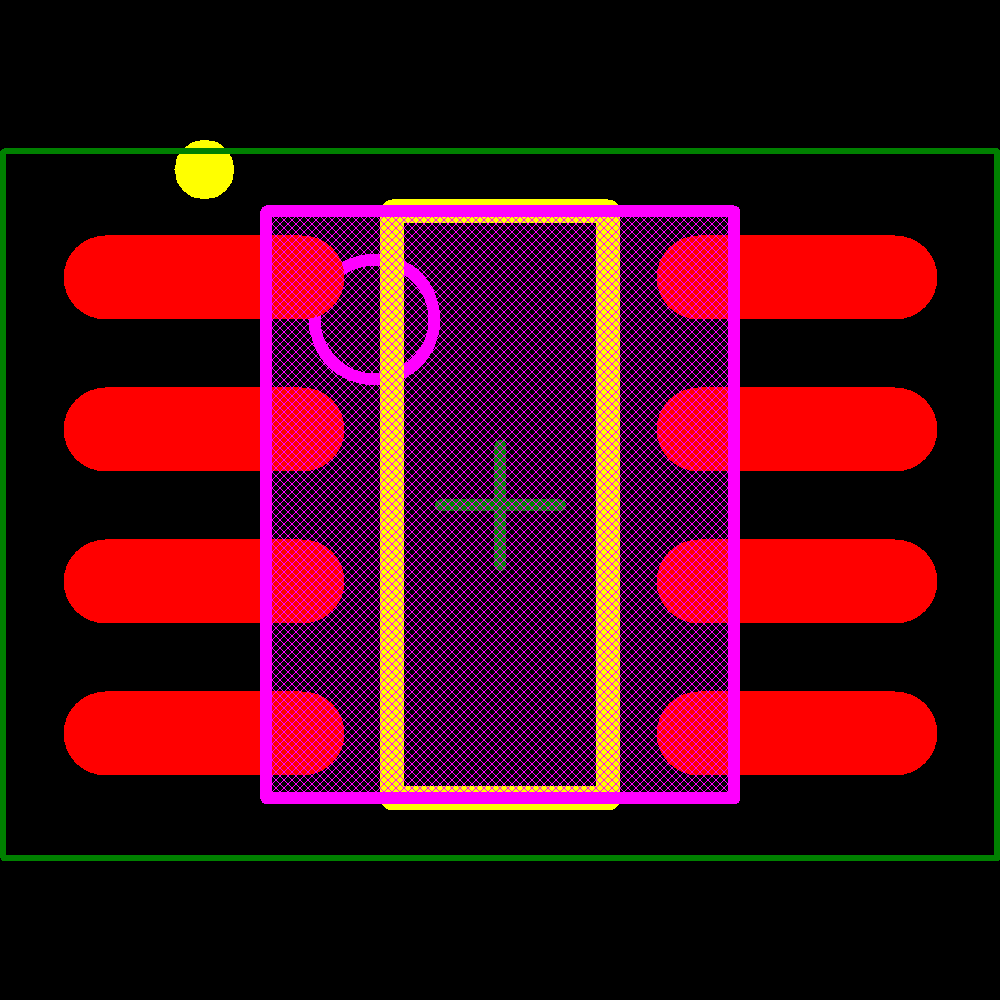

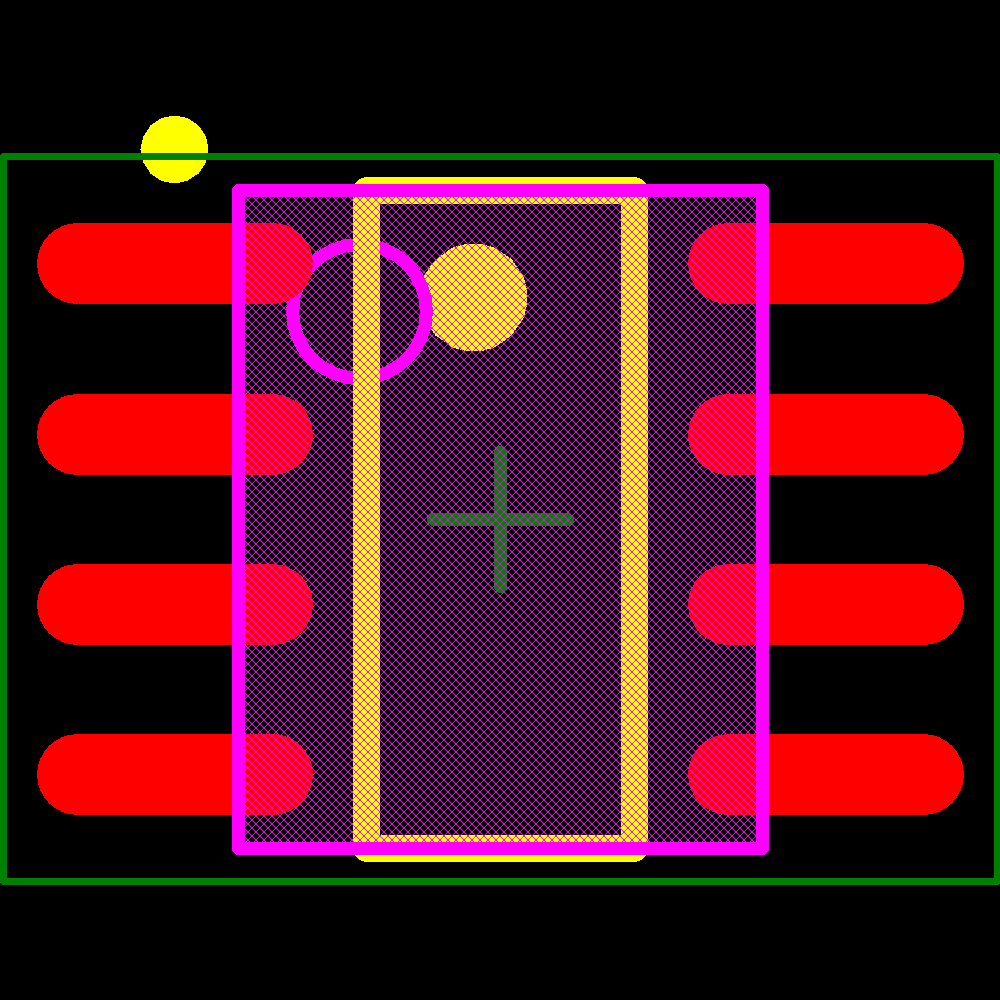

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
PIC12F1840-I/SN
Production
Microchip
PIC12LF1840-I/SN
Production
Microchip
PIC12F1840-E/SN
Production
Microchip
PIC12F1840T-I/SN
Production
Microchip
PIC12LF1840-E/SN
Production
Microchip
PIC12F1840T-E/SN
Production
Microchip
PIC12LF1840T-E/SN
Production
Microchip
PIC12F1840T-I/SNVAO
Production
Microchip
PIC12F1840-I/P
Production
Microchip
PIC12LF1840-I/MF
Production

See more alternatives See less alternatives
