PIC16F1526T-I/PT - Microchip
MCU 8-bit PIC16 PIC RISC 14KB Flash 3.3V/5V 64-Pin TQFP T/R - Tape and Reel
Technical Details
| Projected EOL Date | 2039-03-10 |
| Case/Package | TQFP |
| Core Architecture | PIC |
| Country of Assembly | Philippines, Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Philippines, Thailand |
| Data Bus Width | 8b |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 20MHz |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.0015 |
| Interface | I2C, LIN, SPI, UART, USART |
| Introduction Date | 2011-03-10 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Frequency | 20MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 5.5V |
| Memory Size | 14kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Number of I/Os | 53 |
| Number of Pins | 64 |
| Number of Programmable I/O | 53 |
| Number of Timers/Counters | 9 |
| Radiation Hardening | No |
| RAM Size | 768B |
| RoHS | Compliant |
| Schedule B | 8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000 |
| Watchdog Timer | Yes |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

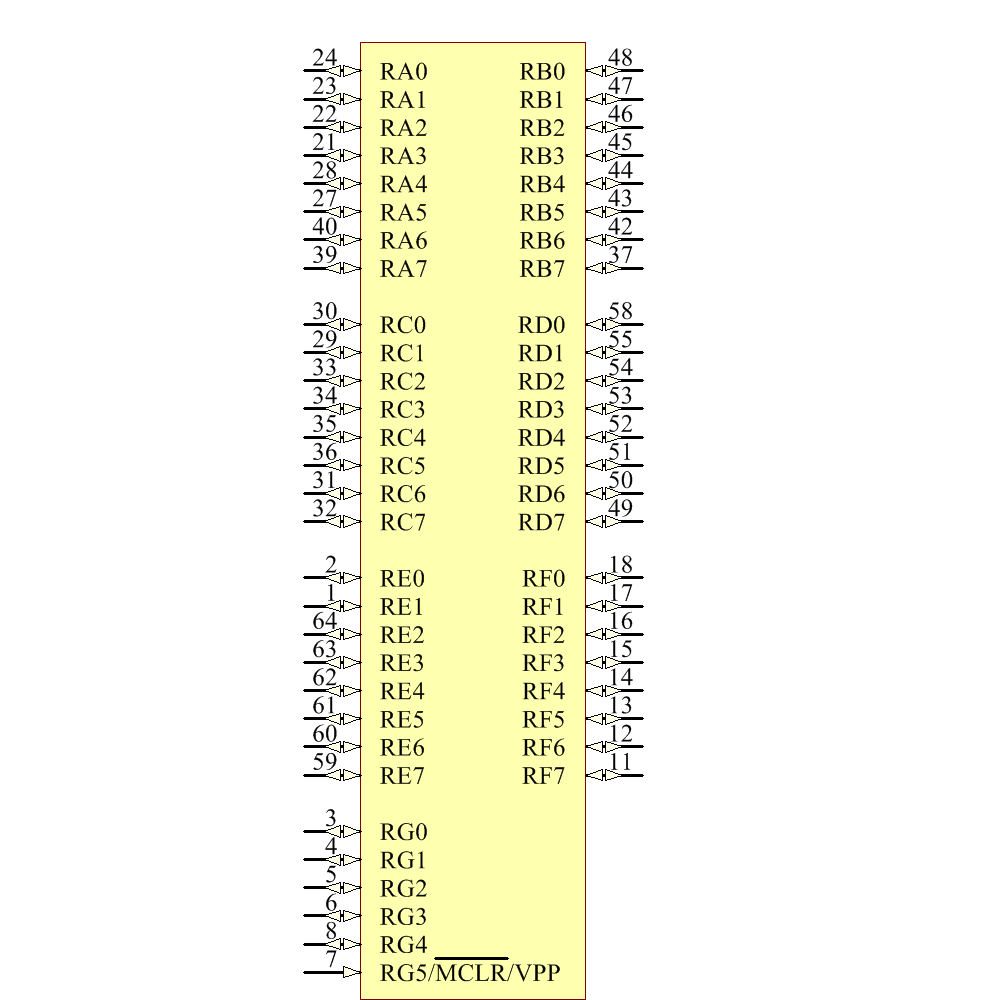

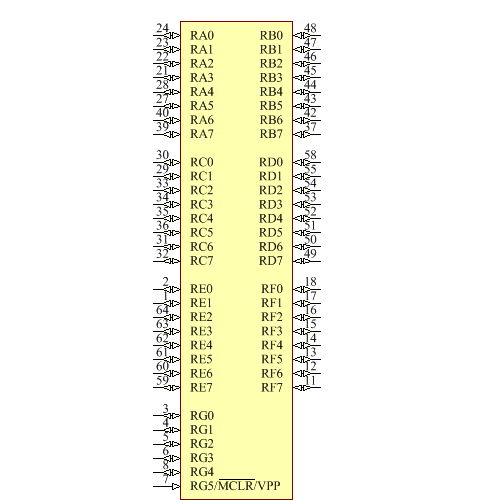

Images
Microchip
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Microchip | Unknown | ||
| Microchip | Production | ||
| Microchip | Unknown | ||
| Microchip | Production |
