PIC16F627AT-I/ML - Microchip

IC MCU 8BIT 1.75KB FLASH 28QFN PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 1.75KB (1K x 14) FLASH 28-QFN (6x6)

Projected EOL Date	2034-03-05
Access Time	20µs
Case/Package	QFN
Core Architecture	PIC
Country of Assembly	Malaysia, Thailand
Country of Fabrication	United States of America
Country of Origin	Malaysia, Thailand
Data Bus Width	8b
Export Control Classification Number (ECCN) Code	EAR99
Frequency	20MHz
Harmonized Tariff Schedule (HTS) Code	8542.31.0015
Interface	SCI, UART, USART
Introduction Date	2003-03-05
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	20MHz
Max Operating Temperature	85°C
Max Power Dissipation	800mW
Max Supply Voltage	5.5V
Memory Size	1.8kB
Memory Type	FLASH
Min Operating Temperature	-40°C
Min Supply Voltage	3V
Mount	Surface Mount
Number of I/Os	16
Number of Pins	28
Number of Programmable I/O	16
Number of Timers/Counters	3
Packaging	Tape & Reel (TR)
Radiation Hardening	No
RAM Size	224B
RoHS	Compliant
Watchdog Timer	Yes

RoHS : Unconfirmed

Radiation Hardening : No

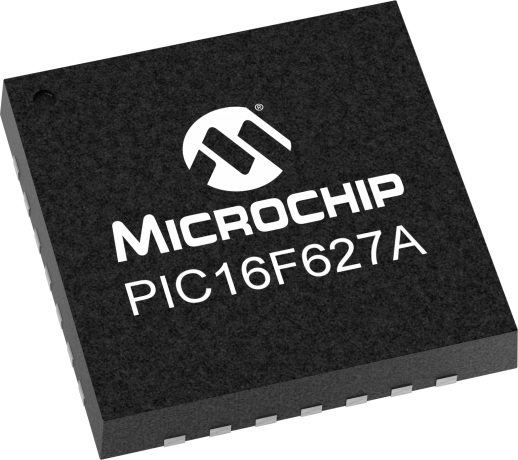

Microchip PIC16F627AT-I/ML | Microchip

Microchip

Production

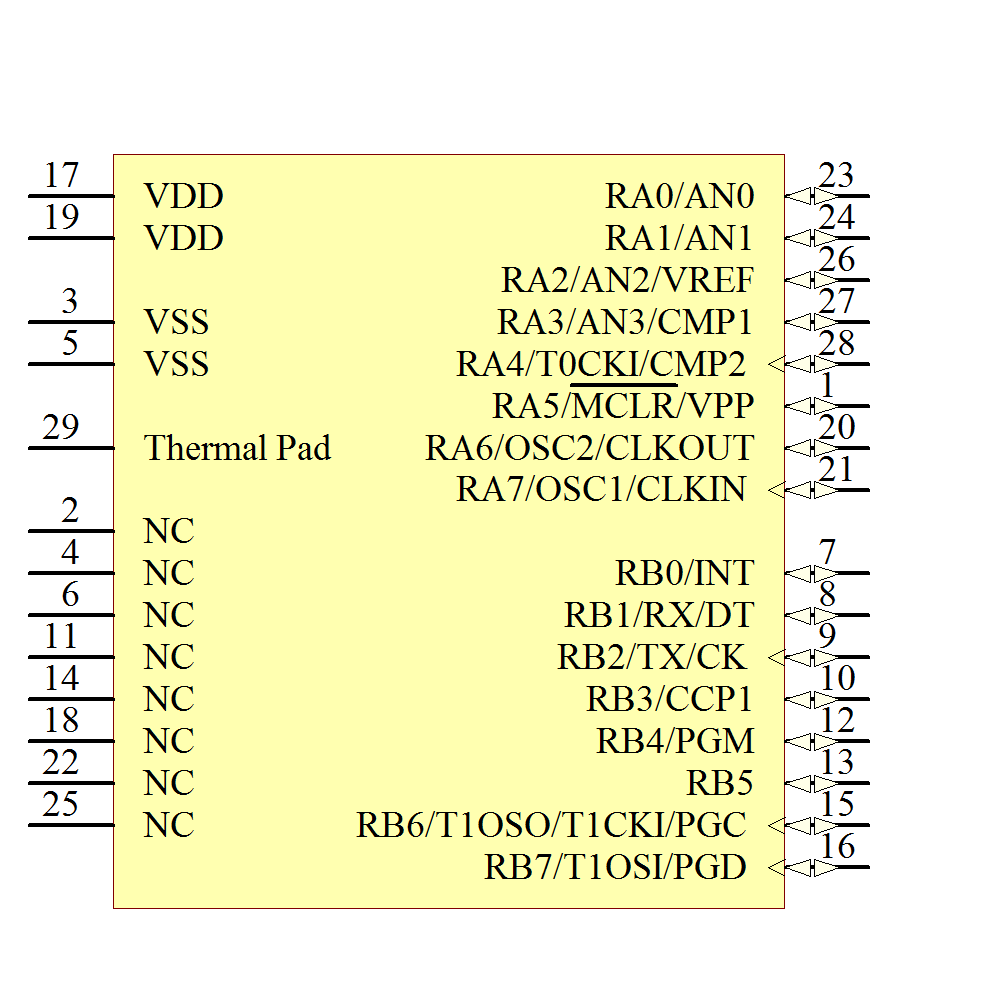

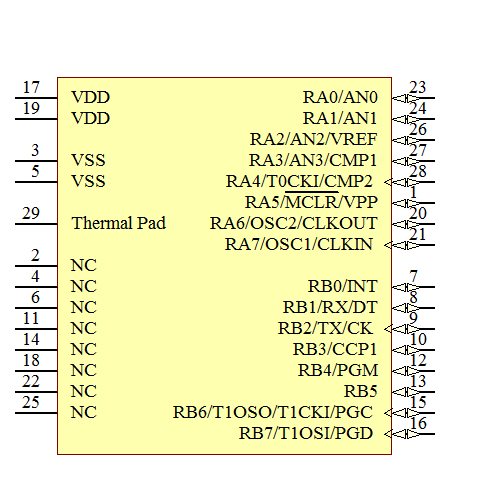

Symbol

‹ ›

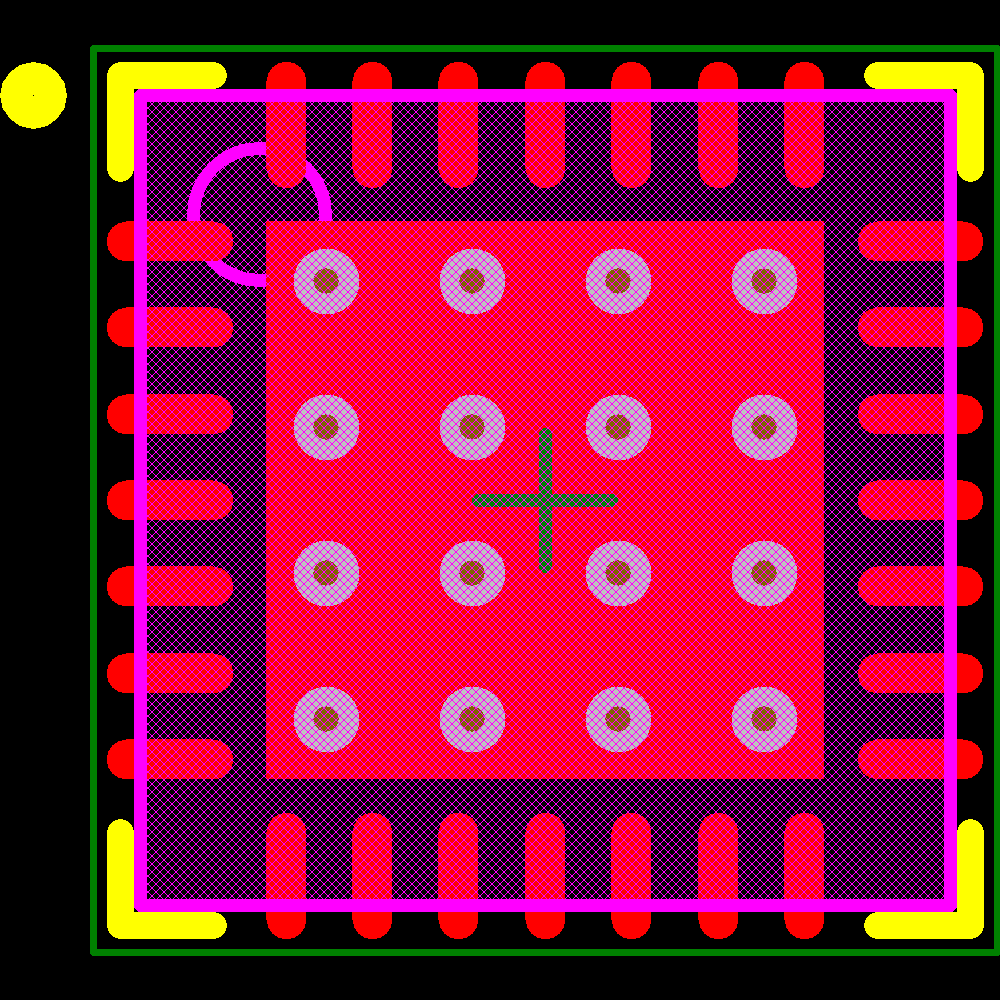

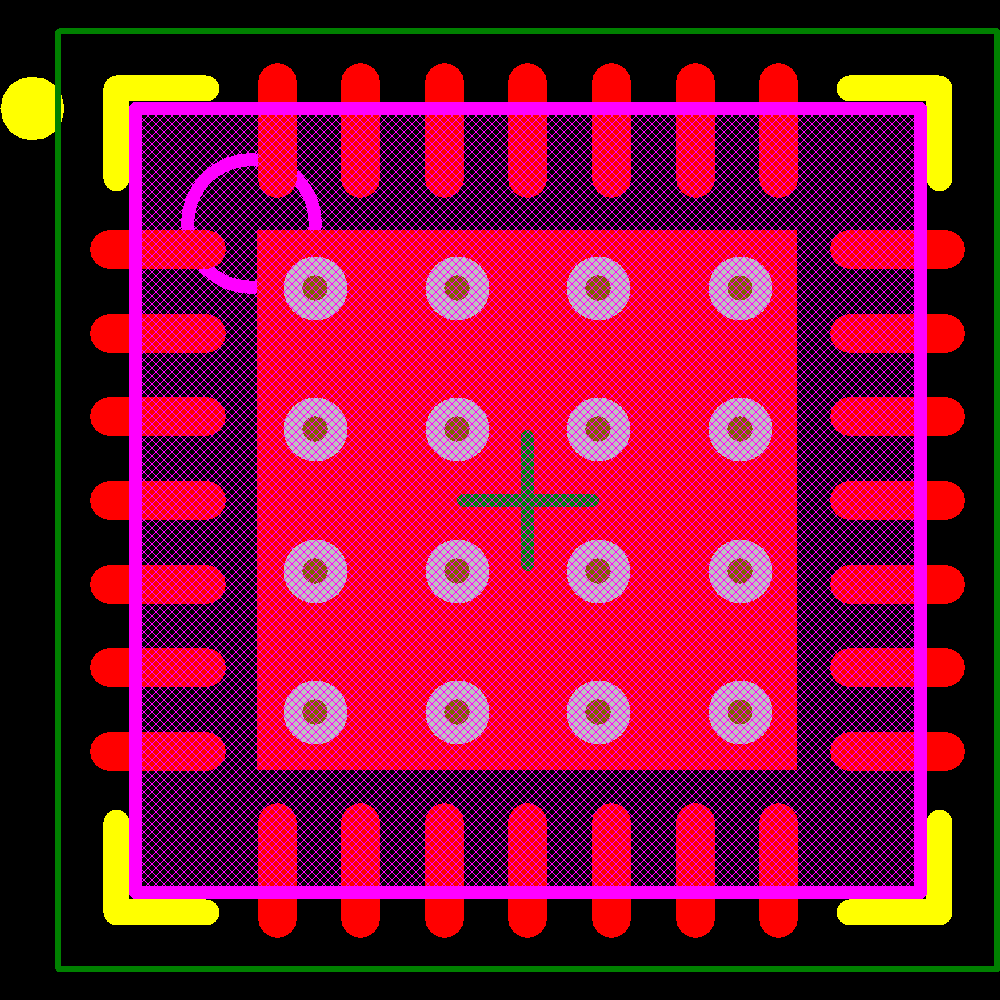

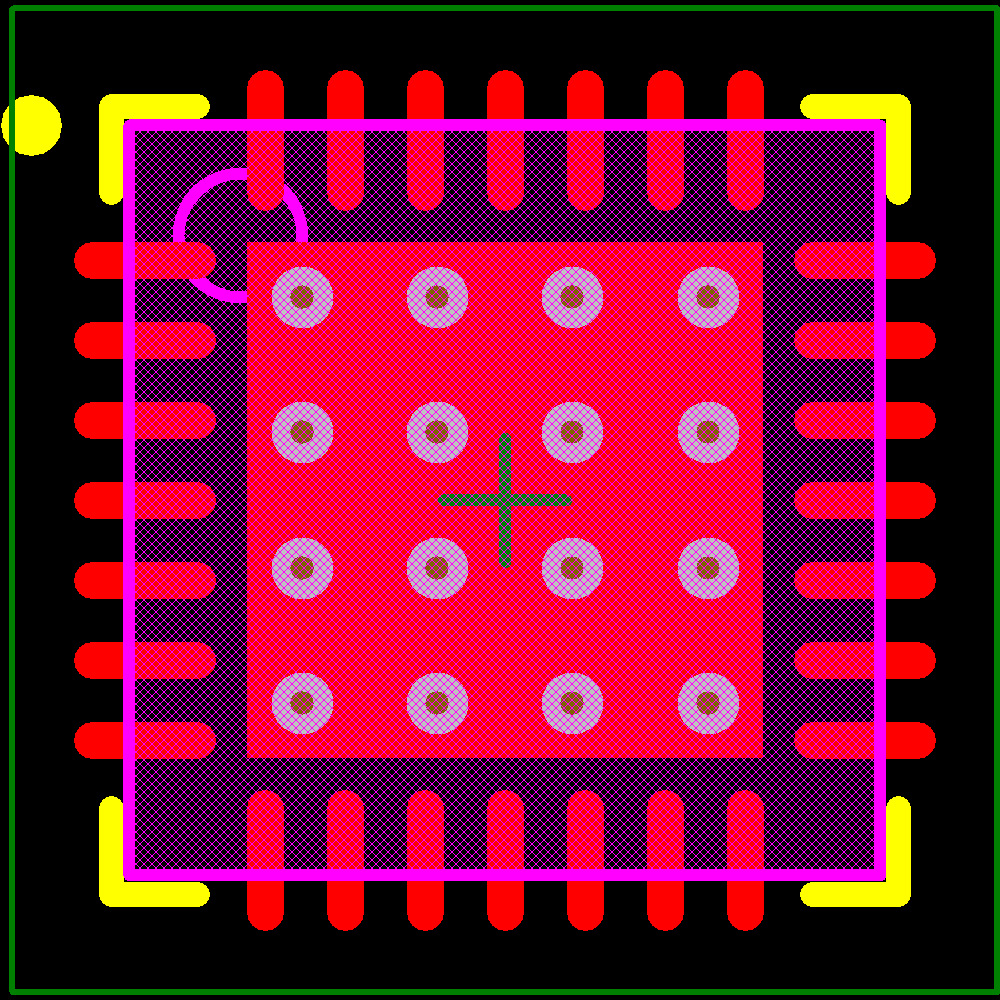

Footprint

‹ ›
