Integrated Circuits (ICs) > Embedded Processors and Controllers > Microcontrollers

PIC16F628T-04/SO - Microchip

IC MCU 8BIT 3.5KB FLASH 18SOIC PIC PIC® 16F Microcontroller IC 8-Bit 4MHz 3.5KB (2K x 14) FLASH 18-SOIC

Projected EOL Date	2034-01-01
Access Time	4µs
Case/Package	SOIC
Core Architecture	PIC
Country of Assembly	Thailand
Country of Fabrication	United States of America
Country of Origin	Thailand
Data Bus Width	8b
Export Control Classification Number (ECCN) Code	EAR99
Frequency	4MHz
Harmonized Tariff Schedule (HTS) Code	8542.31.0015
Interface	SCI, UART, USART
Introduction Date	2002-01-01
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	4MHz
Max Operating Temperature	70°C
Max Power Dissipation	800mW
Max Supply Voltage	5.5V
Memory Size	3.5kB
Memory Type	FLASH
Min Operating Temperature	0°C
Min Supply Voltage	3V
Number of I/Os	16
Number of Pins	18
Number of Programmable I/O	16
Number of Timers/Counters	3
Packaging	Tape & Reel (TR)
Radiation Hardening	No
RAM Size	224B
RoHS	Compliant
Watchdog Timer	Yes

RoHS : Unconfirmed

Radiation Hardening : No

Microchip PIC16F628T-04/SO | Onlinecomponents.com

Onlinecomponents.com

Production

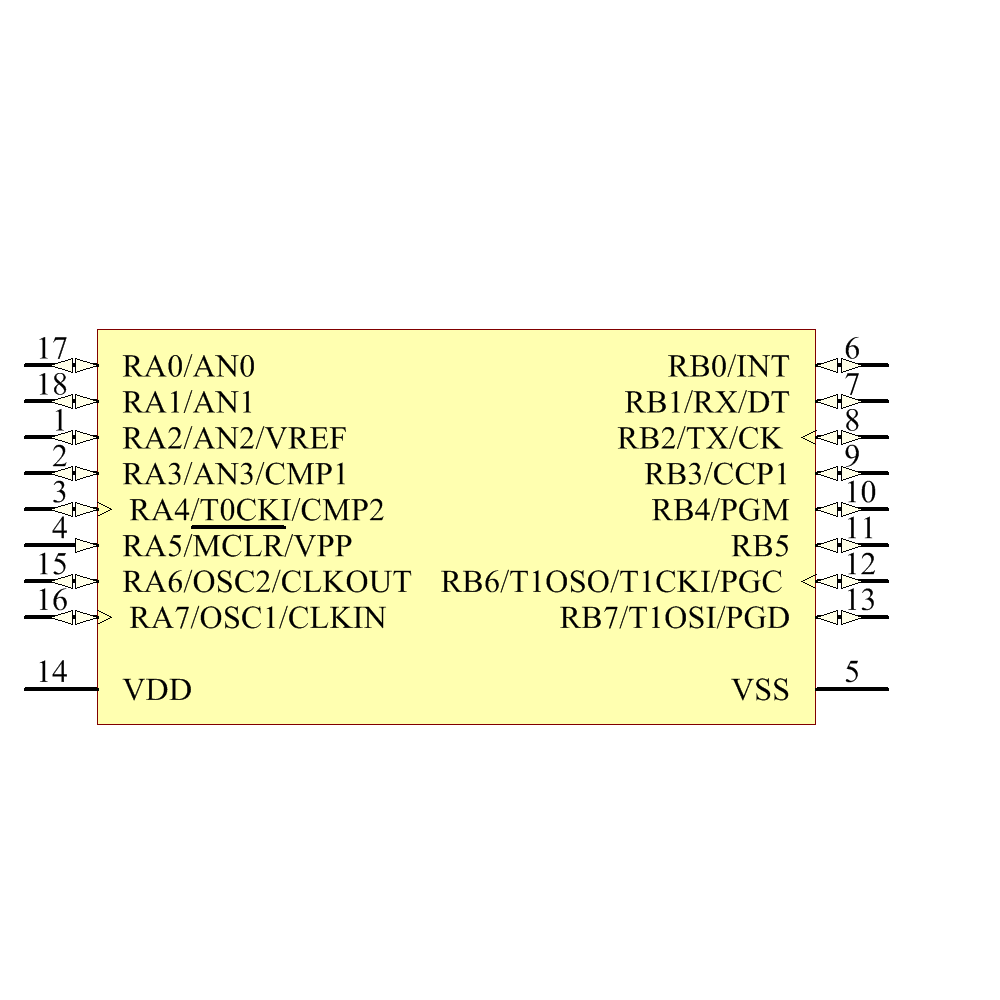

Symbol

‹ ›

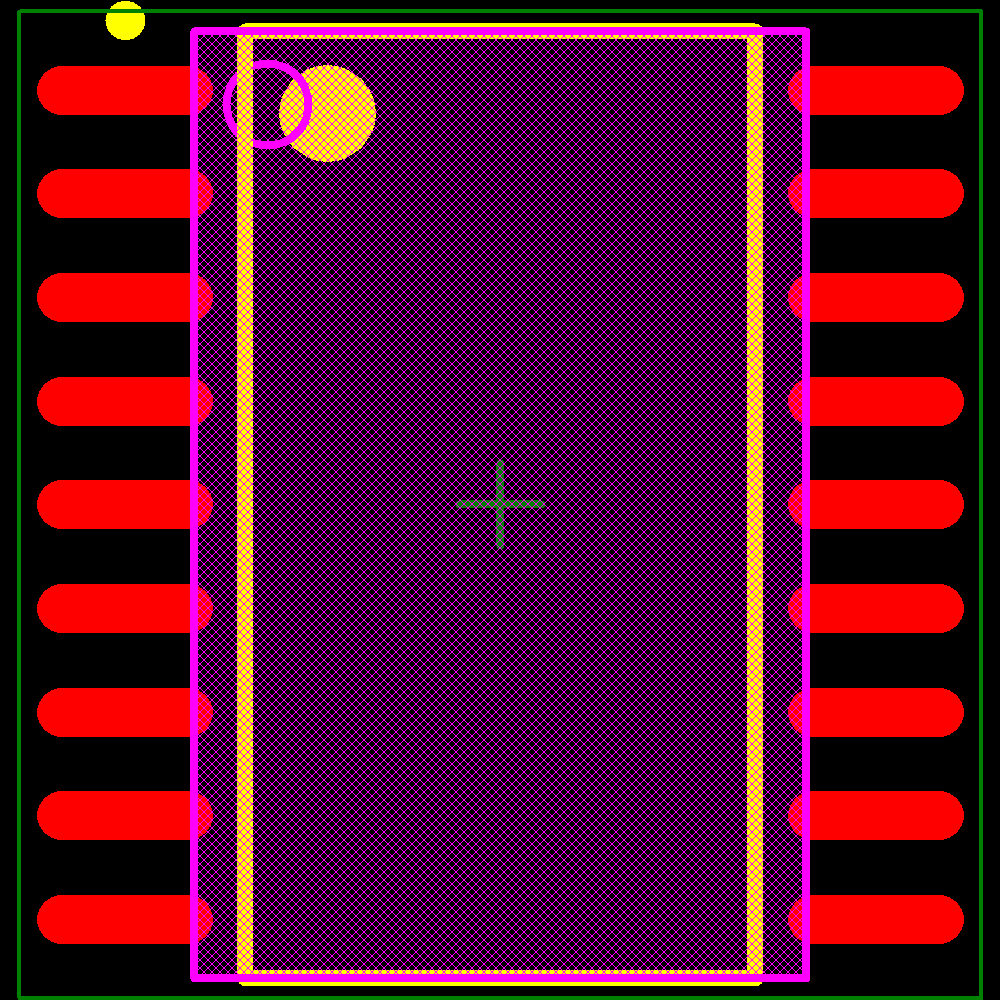

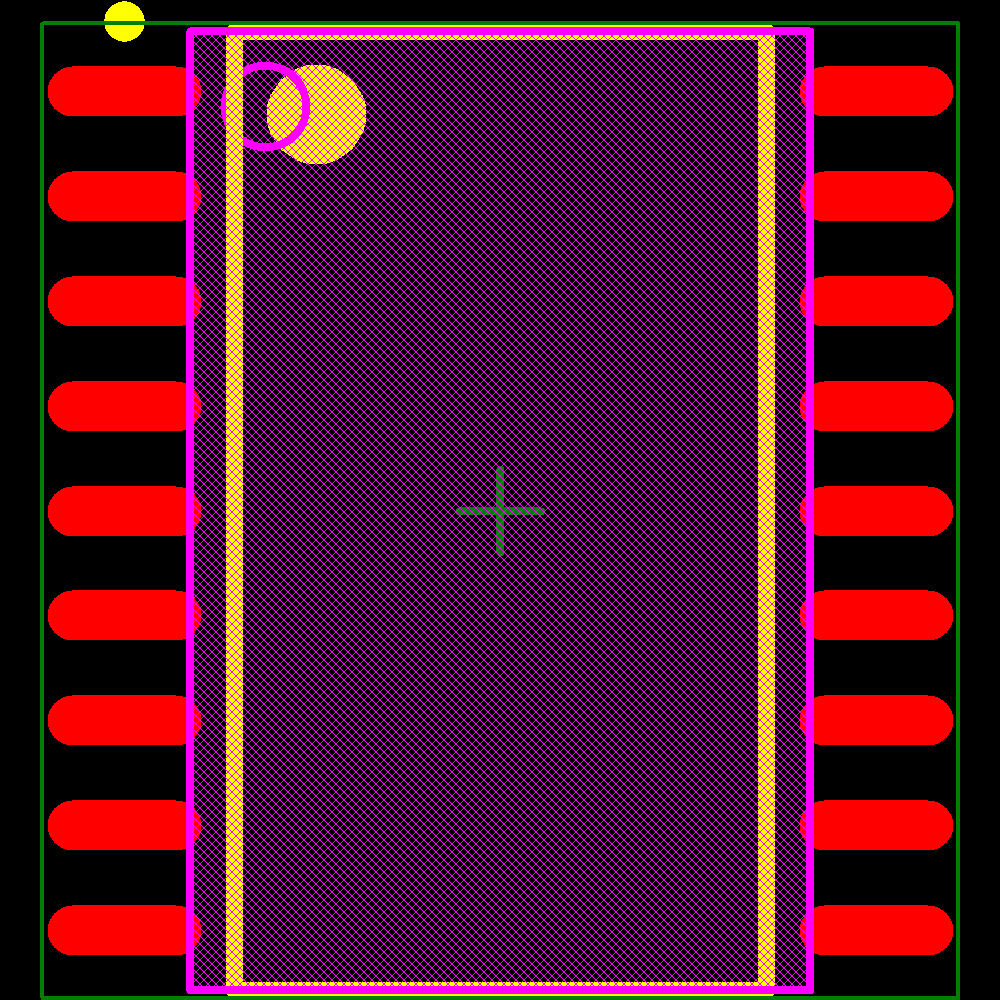

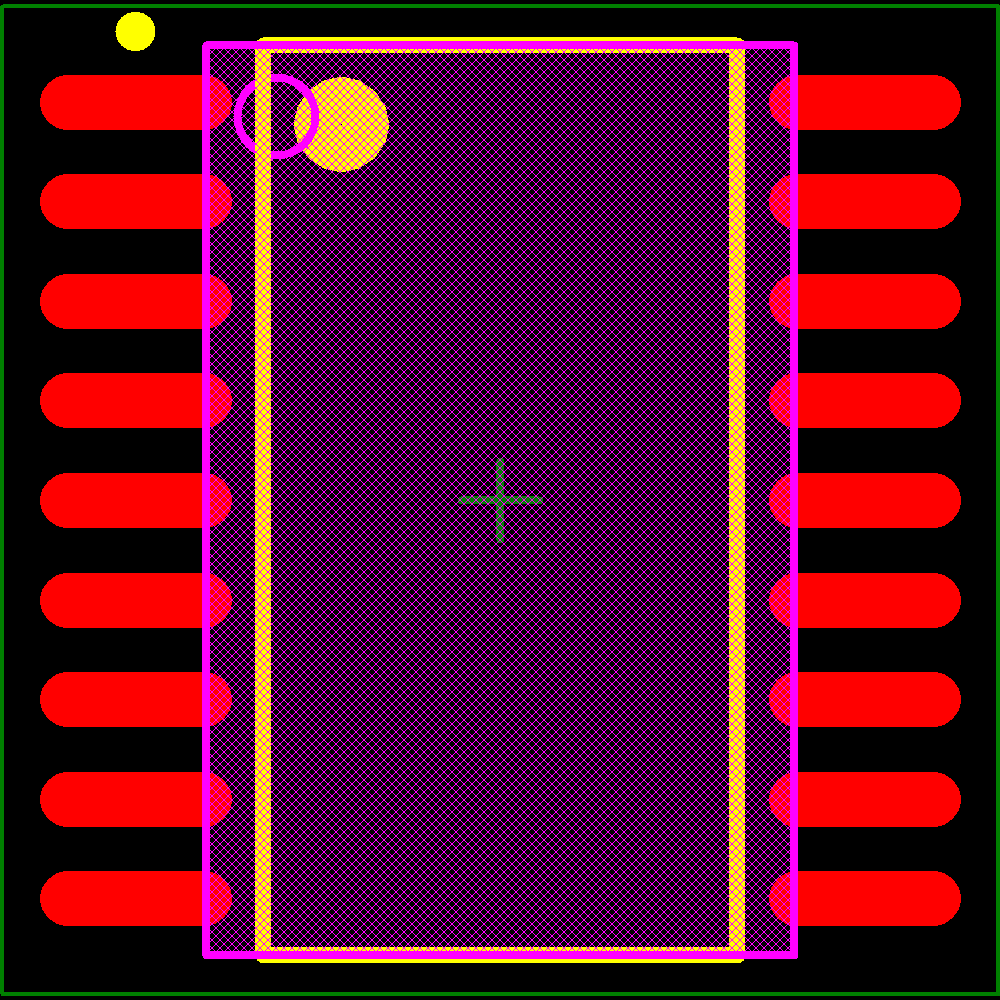

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Microchip	PIC16F628-04/SO	Production
Microchip	PIC16F628-04I/SO	Production
Microchip	PIC16F628-04E/SO	Production
Microchip	PIC16F628T-04I/SO	Production
Microchip	PIC16F628T-04E/SO	Unknown
Microchip	PIC16F628-04/P	Production
Microchip	PIC16F628-04I/P	Production
Microchip	PIC16F628-04/SS	Production
Microchip	PIC16F628-04I/SS	Production
Microchip	PIC16F628T-04/SS	Production
