Integrated Circuits (ICs) > Embedded Processors and Controllers > Microcontrollers

PIC16LC923-04/PT - Microchip

IC MCU 8BIT 7KB OTP 64TQFP PIC PIC® 16C Microcontroller IC 8-Bit 4MHz 7KB (4K x 14) OTP 64-TQFP (10x10)

Projected EOL Date	2034-01-01
Access Time	4µs
Case/Package	TQFP
Core Architecture	PIC
Country of Assembly	Thailand
Country of Fabrication	United States of America
Country of Origin	Thailand
Data Bus Width	8b
Export Control Classification Number (ECCN) Code	EAR99
Frequency	4MHz
Harmonized Tariff Schedule (HTS) Code	8542.31.0015
Interface	I2C, SPI
Introduction Date	2002-01-01
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	4MHz
Max Operating Temperature	70°C
Max Power Dissipation	1W
Max Supply Voltage	6V
Memory Size	7kB
Memory Type	OTP
Min Operating Temperature	0°C
Min Supply Voltage	2.5V
Number of I/Os	25
Number of Pins	64
Number of Programmable I/O	25
Number of Timers/Counters	3
Packaging	Bulk
Peripherals	I2C, LCD, PWM
Radiation Hardening	No
RAM Size	176B
RoHS	Compliant
Schedule B	8542310000, 8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|8542310000\|85
Watchdog Timer	Yes

RoHS : Unconfirmed

Radiation Hardening : No

Microchip PIC16LC923-04/PT | Microchip

Microchip

Production

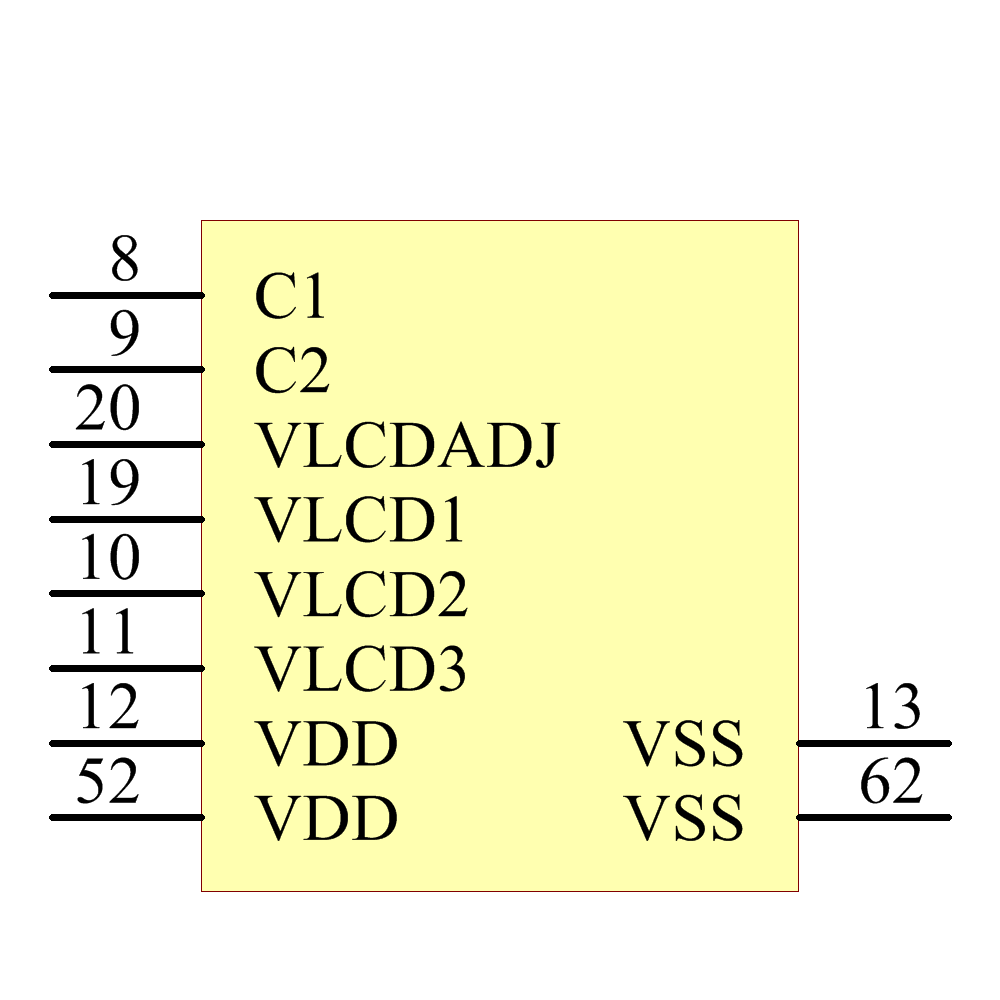

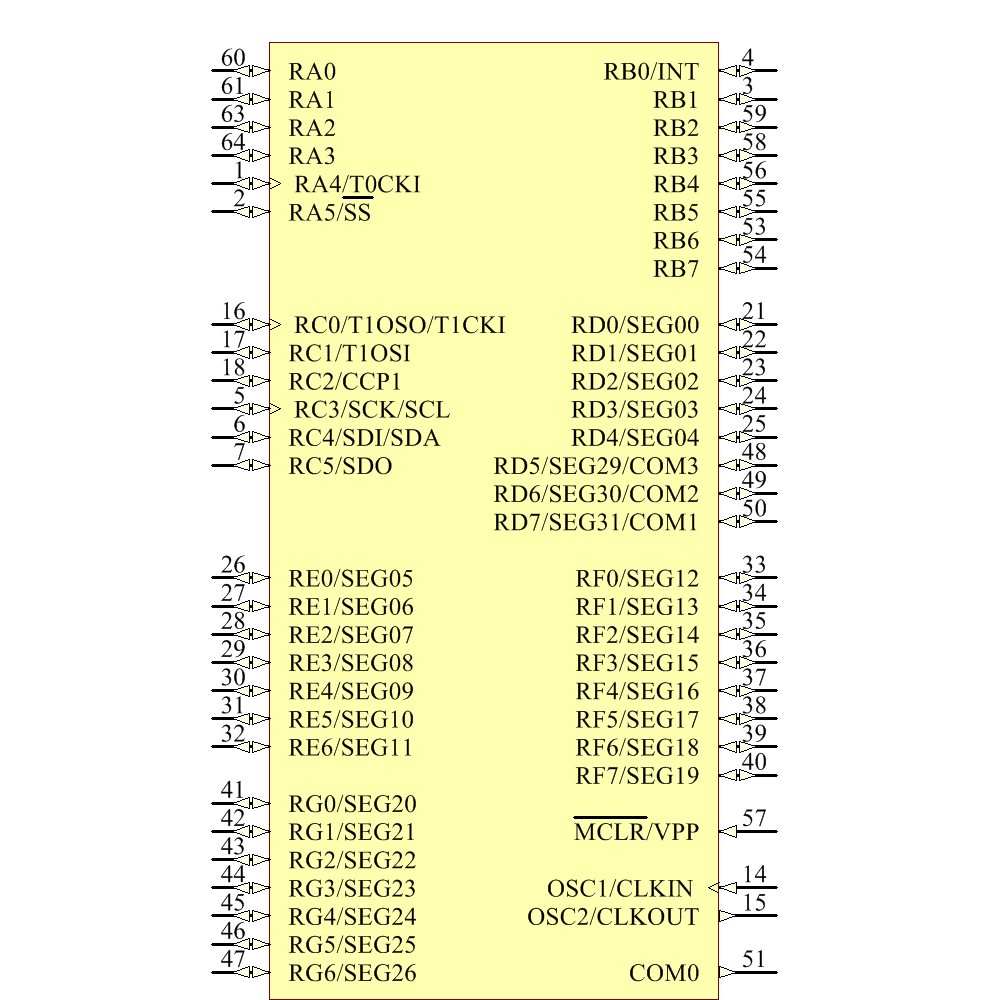

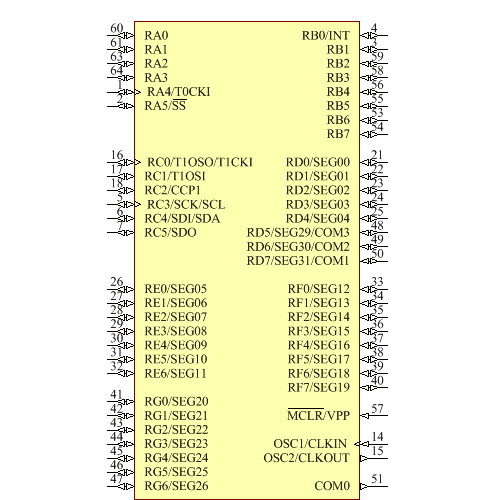

Symbol

‹ ›

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Microchip	PIC16LC923-04I/PT	Production
Microchip	PIC16LC923T-04I/PT	Unknown
Microchip	PIC16LC923T-04/PT	Unknown
Microchip	PIC16LC923-04/L	Production
Microchip	PIC16LC923-04I/L	Production
Microchip	PIC16LC923T-04I/L	Unknown
Microchip	PIC16LC923T-04/L	Unknown
Microchip	PIC16LC925-I/PT	Production
Microchip	PIC16LC924-04I/PT	Production
Microchip	PIC16LC924-04/PT	Production
