Integrated Circuits (ICs) > Embedded Processors and Controllers > Microcontrollers

PIC16LF1904T-I/MV - Microchip

MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V 40-Pin UQFN EP T/R

Projected EOL Date	2039-03-30
Case/Package	PDIP
Core Architecture	PIC
Country of Assembly	Thailand
Country of Fabrication	United States of America
Country of Origin	Thailand
Data Bus Width	8b
Export Control Classification Number (ECCN) Code	EAR99
Frequency	20MHz
Harmonized Tariff Schedule (HTS) Code	8542.31.0015
Interface	LIN, UART, USART
Introduction Date	2011-03-30
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	20MHz
Max Operating Temperature	85°C
Max Power Dissipation	800mW
Max Supply Voltage	3.6V
Memory Size	7kB
Memory Type	FLASH
Min Operating Temperature	-40°C
Min Supply Voltage	1.8V
Number of I/Os	35
Number of Pins	40
Number of Programmable I/O	36
Number of Timers/Counters	2
Packaging	Tape & Reel
Radiation Hardening	No
RAM Size	256B
RoHS	Compliant
Watchdog Timer	Yes

RoHS : Unconfirmed

Radiation Hardening : No

Microchip PIC16LF1904T-I/MV | Microchip

Microchip

Production

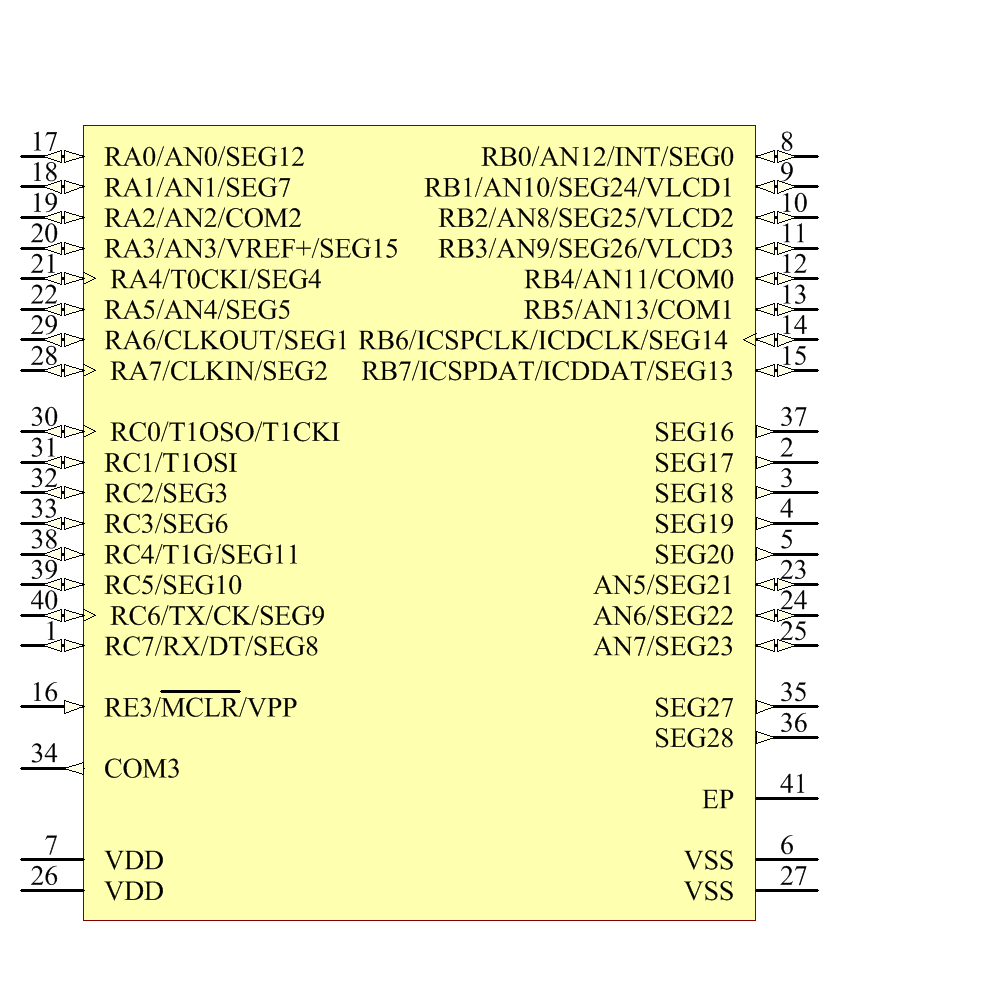

Symbol

‹ ›

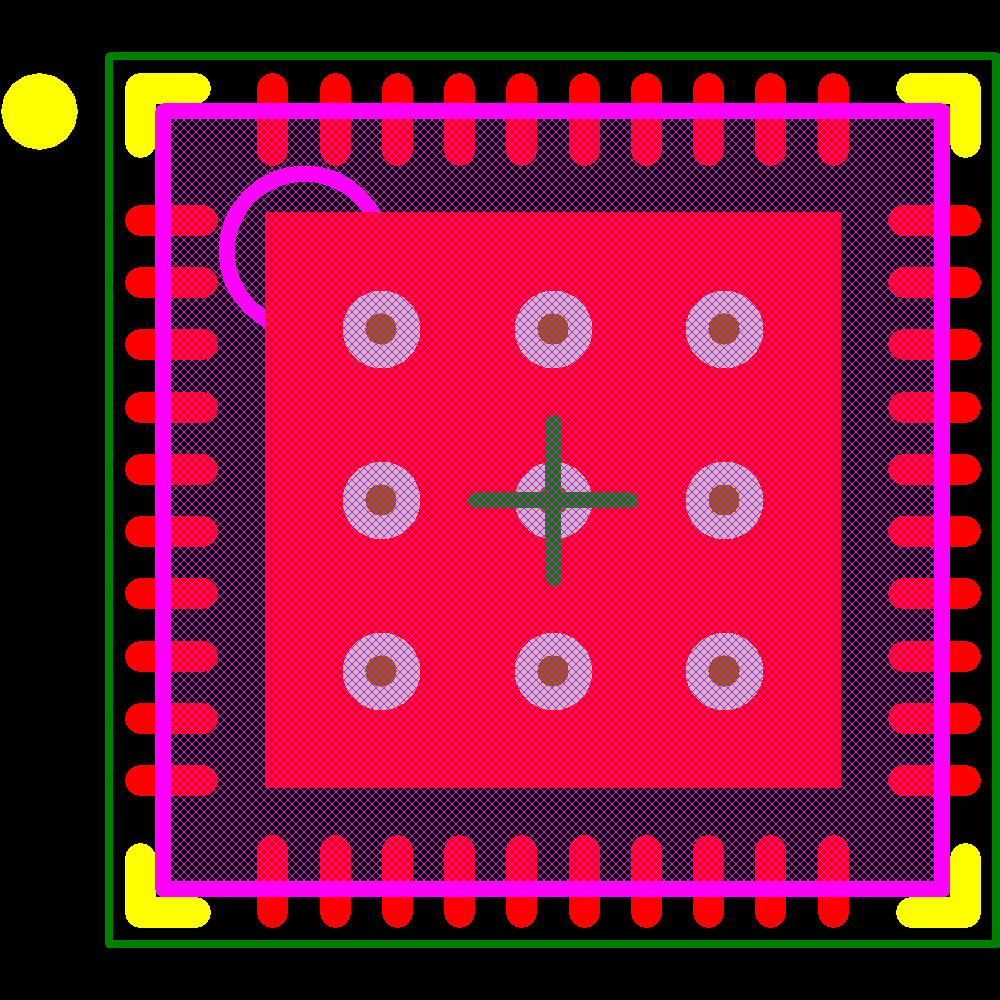

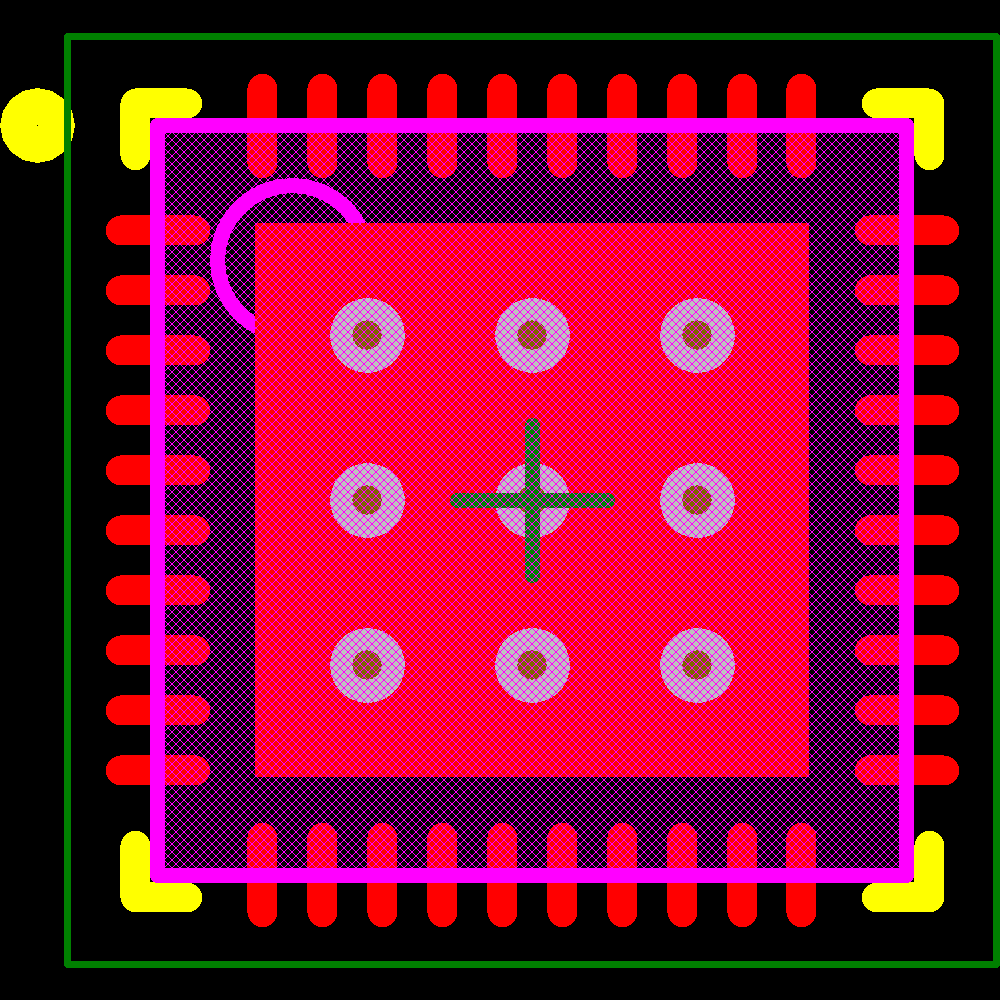

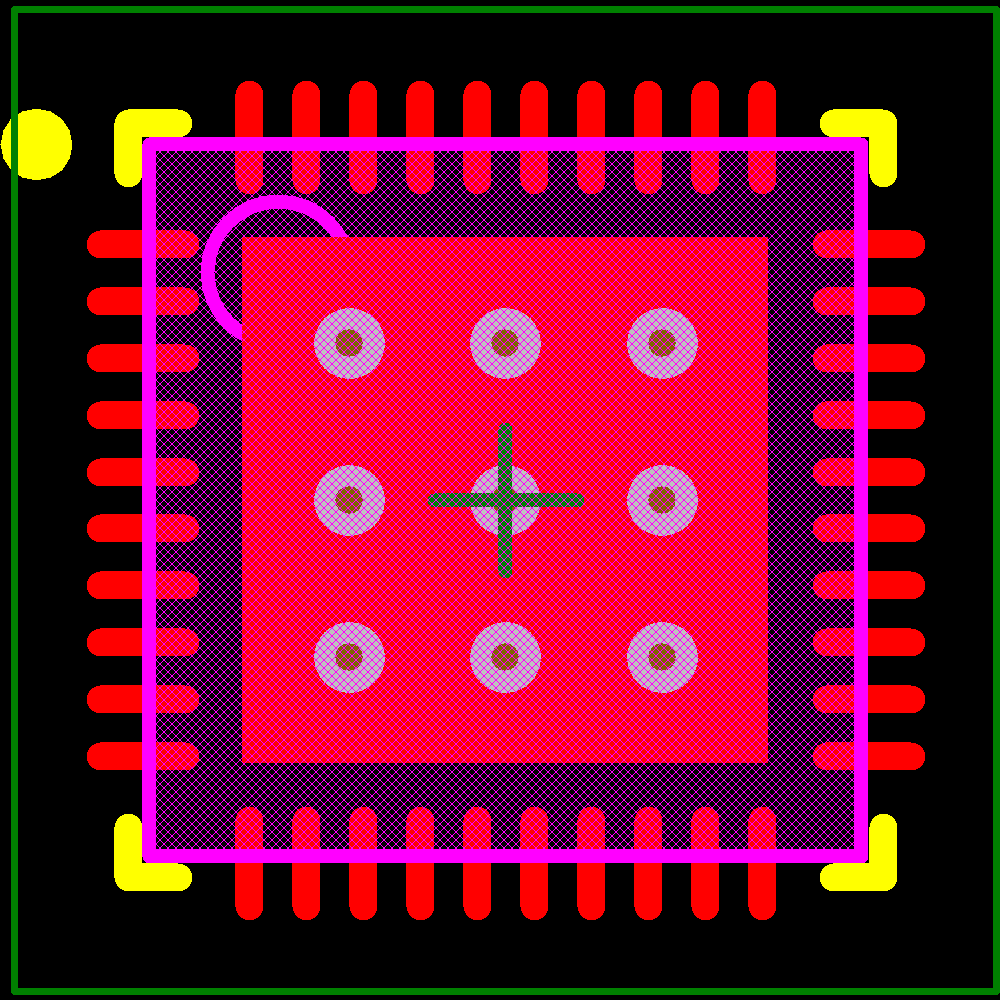

Footprint

‹ ›
