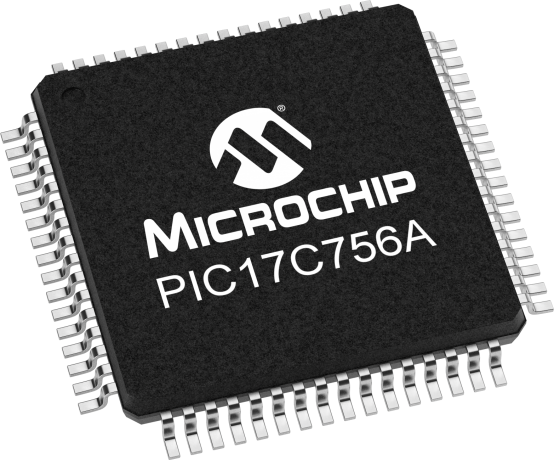

PIC17C756A-33/PT - Microchip
IC MCU 8BIT 32KB OTP 64TQFP PIC PIC® 17C Microcontroller IC 8-Bit 33MHz 32KB (16K x 16) OTP 64-TQFP (10x10)
Technical Details
| Projected EOL Date | 2034-01-01 |
| Access Time | 33µs |
| Case/Package | TQFP |
| Core Architecture | PIC |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Thailand |
| Data Bus Width | 8b |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 33MHz |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.0015 |
| Interface | I2C, RS-232, SCI, SPI, UART, USART |
| Introduction Date | 2002-01-01 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Frequency | 33MHz |
| Max Operating Temperature | 70°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 32kB |
| Memory Type | OTP |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Number of I/Os | 50 |
| Number of Pins | 64 |
| Number of Programmable I/O | 50 |
| Number of Timers/Counters | 4 |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Peripherals | I2C, PWM |
| Radiation Hardening | No |
| RAM Size | 902B |
| RoHS | Compliant |
| Watchdog Timer | Yes |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
