Integrated Circuits (ICs) > Embedded Processors and Controllers > Microcontrollers

PIC18C601-I/PT - Microchip

IC MCU 8BIT ROMLESS 64TQFP PIC PIC® 18C Microcontroller IC 8-Bit 25MHz ROMless 64-TQFP (10x10)

Projected EOL Date	2034-01-01
Access Time	25µs
Case/Package	TQFP
Core Architecture	PIC
Country of Assembly	Philippines, Thailand
Country of Fabrication	United States of America
Country of Origin	Philippines, Thailand
Data Bus Width	8b
Export Control Classification Number (ECCN) Code	EAR99
Frequency	25MHz
Harmonized Tariff Schedule (HTS) Code	8542.31.0015
Interface	EBI/EMI, I2C, SPI, UART, USART
Introduction Date	2002-01-01
Lead Free	Lead Free
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	25MHz
Max Operating Temperature	85°C
Max Power Dissipation	1W
Max Supply Voltage	5.5V
Memory Size	256kB
Memory Type	OTP
Min Operating Temperature	-40°C
Min Supply Voltage	4.2V
Number of Pins	64
Number of Programmable I/O	26
Number of Timers/Counters	4
Operating Supply Voltage	5V
Packaging	Bulk
Radiation Hardening	No
RAM Size	1.5kB
RoHS	Compliant

RoHS : Unconfirmed

Radiation Hardening : No

Microchip PIC18C601-I/PT | Microchip

Microchip

Production

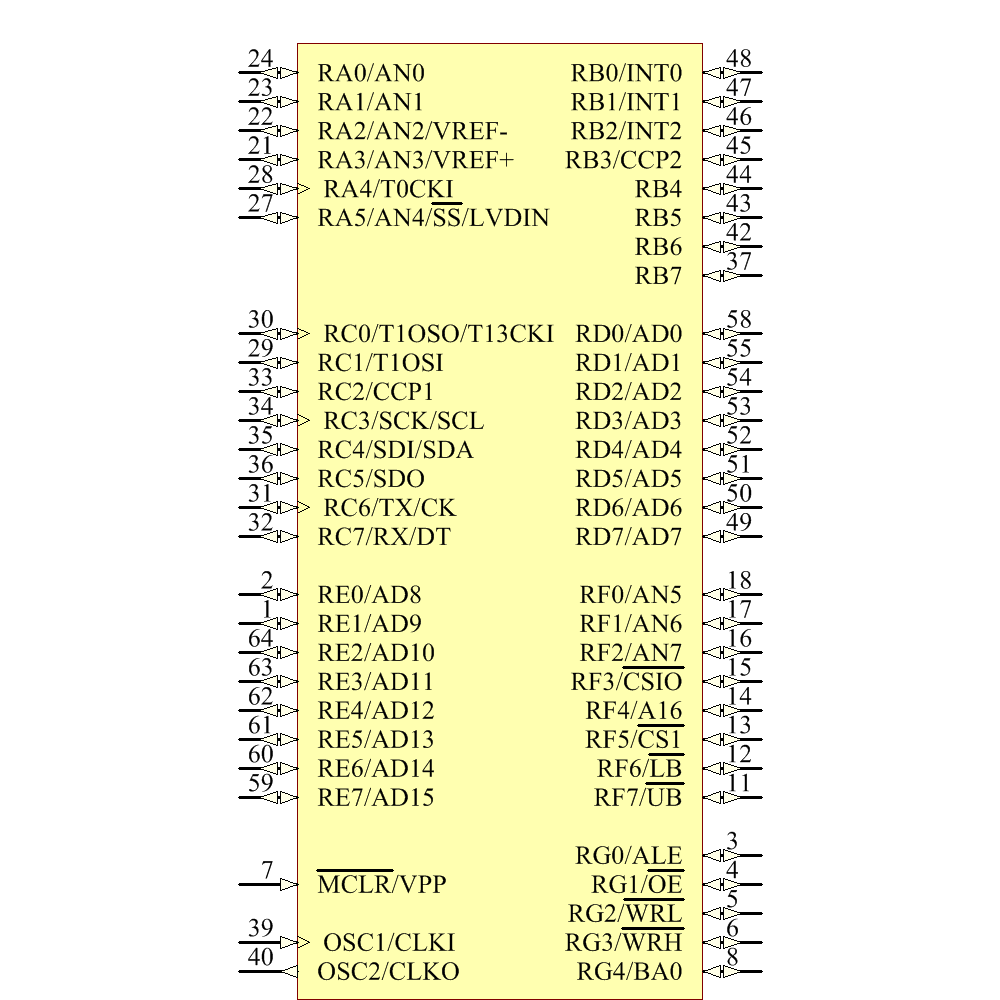

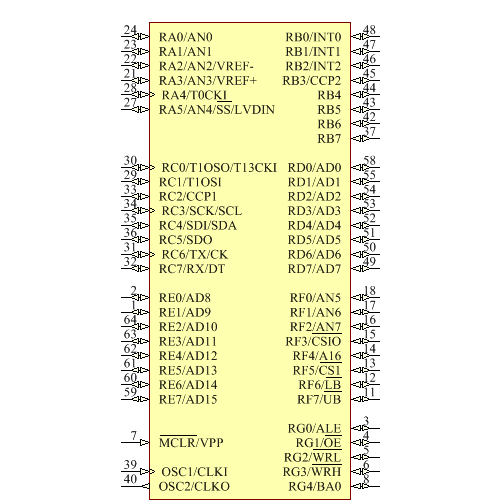

Symbol

‹ ›

Footprint

‹ ›
