PIC18F6493-I/PT - Microchip

Microchip PIC18F6493-I/PT, 8 Bit Pic Microcontroller, 40MHZ, 16 Kb Flash, 64-PIN TQFP

Projected EOL Date	2034-10-05
Case/Package	TQFP
Core Architecture	PIC
Country of Assembly	Philippines, Thailand
Country of Fabrication	United States of America
Country of Origin	Philippines, Thailand
Data Bus Width	8b
Density	128kb
Export Control Classification Number (ECCN) Code	3A991.a.2
Frequency	40MHz
Height	1.05mm
Harmonized Tariff Schedule (HTS) Code	8542.31.0015
Interface	I2C, SPI, UART, USART
Introduction Date	2007-10-05
Lead Free	Lead Free
Length	10mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	40MHz
Max Operating Temperature	85°C
Max Power Dissipation	1W
Max Supply Voltage	5.5V
Memory Size	16kB
Memory Type	FLASH
Min Operating Temperature	-40°C
Min Supply Voltage	4.2V
Mount	Surface Mount
Number of ADC Channels	12
Number of Bits	8
Number of I2C Channels	1
Number of I/Os	51
Number of Pins	64
Number of Programmable I/O	50
Number of PWM Channels	2
Number of SPI Channels	1
Number of Timers/Counters	4
Peripherals	HLVD, LCD, POR, PWM, WDT
Radiation Hardening	No
RAM Size	768B
REACH SVHC	No
RoHS	Compliant
Watchdog Timer	Yes
Width	10mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

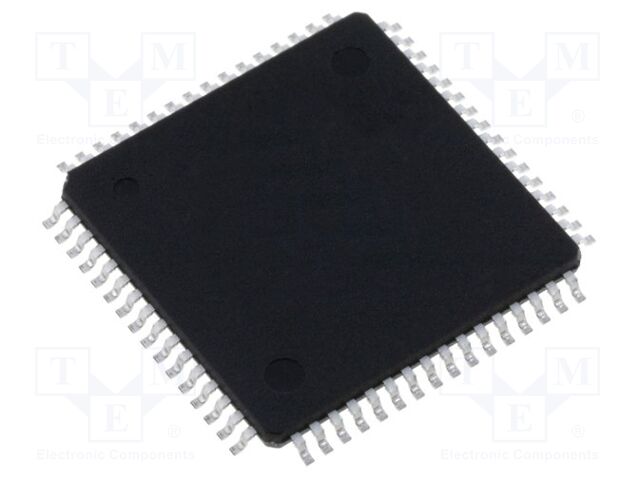

Microchip PIC18F6493-I/PT | TME

TME

Production

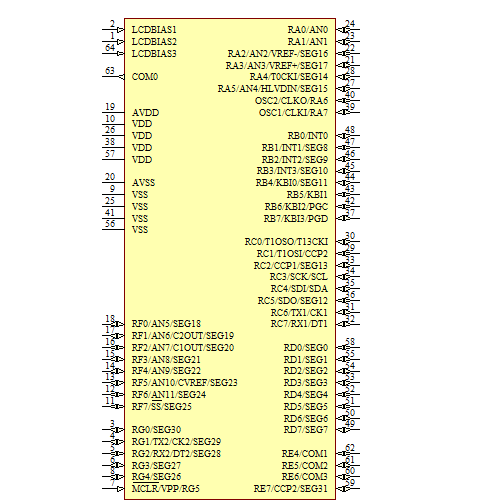

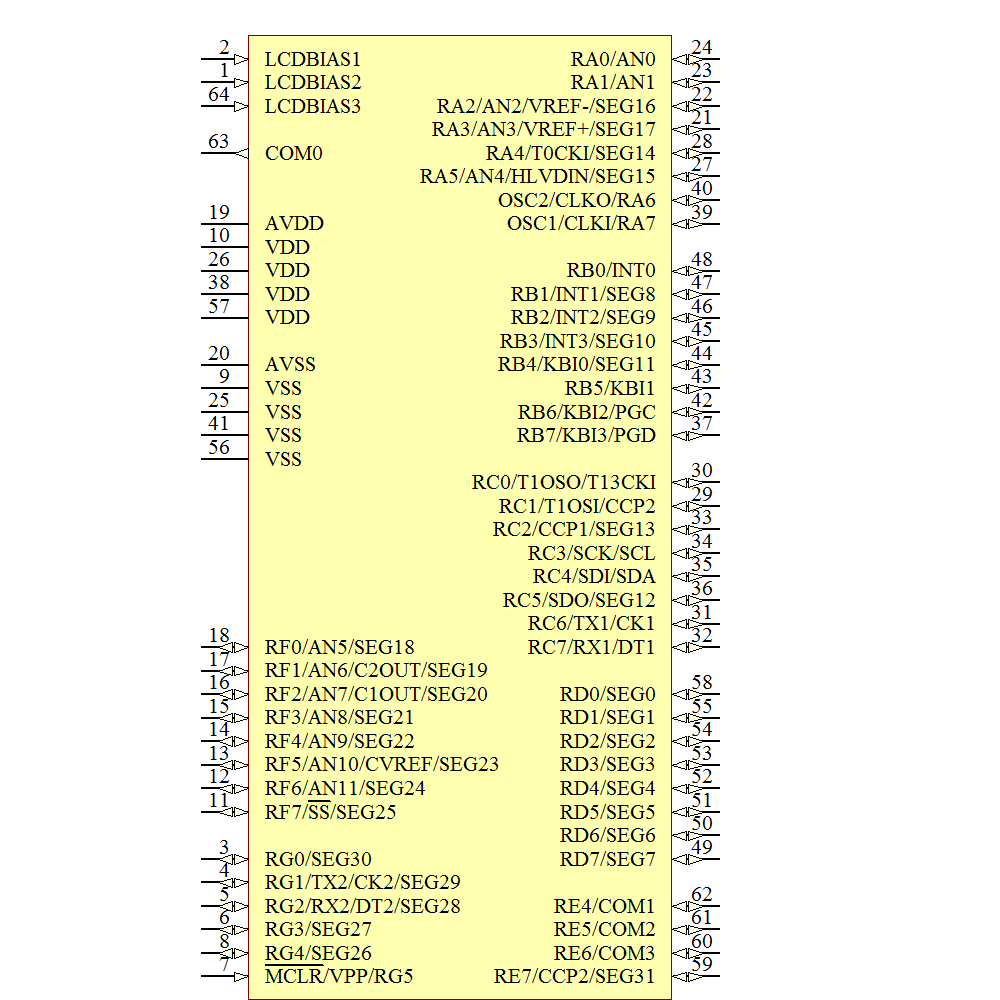

Symbol

‹ ›

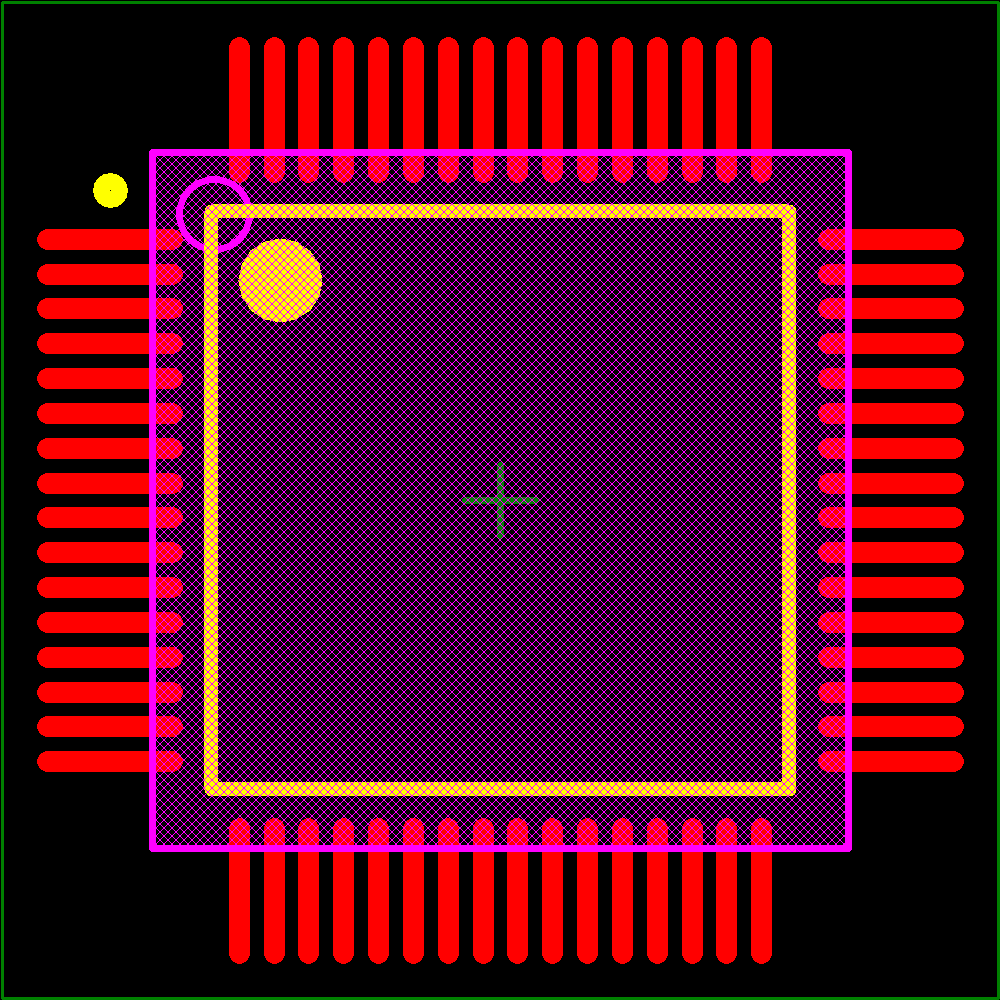

Footprint

‹ ›
