Microchip - PIC18F6520-I/PT

PIC18F6520-I/PT - Microchip

PIC18F6520-I/PT, 8 Bit Pic Microcontroller, 40MHZ, 32KB, 1024 B Flash, 64-PIN TQFP

 Datasheets

Technical Details

Projected EOL Date 2034-04-29
Access Time 40µs
Case/Package TQFP
Contact Plating Tin
Core Architecture PIC
Country of Assembly Philippines, Thailand
Country of Fabrication United States of America
Country of Origin Philippines, Thailand
Data Bus Width 8b
Density 256kb
Export Control Classification Number (ECCN) Code EAR99
Frequency 40MHz
Height 1.05mm
Harmonized Tariff Schedule (HTS) Code 8542.31.0015
Interface I2C, SPI, UART, USART
Introduction Date 2003-04-29
Lead Free Lead Free
Lead Pitch 500µm
Length 10.1mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Frequency 40MHz
Max Operating Temperature 85°C
Max Power Dissipation 1W
Max Supply Voltage 5.8V
Memory Size 32kB
Memory Type FLASH
Min Operating Temperature -40°C
Min Supply Voltage 4.2V
Mount Surface Mount
Number of A/D Converters 1
Number of ADC Channels 12
Number of Bits 8
Number of I2C Channels 1
Number of I/Os 52
Number of Pins 64
Number of Programmable I/O 52
Number of PWM Channels 5
Number of SPI Channels 1
Number of Timers/Counters 5
Number of UART Channels 2
Operating Supply Voltage 5V
Oscillator Type External
Packaging Bulk
Peripherals Brown-out Detect/Reset, I2C, LVD, POR, PWM, WDT
Radiation Hardening No
RAM Size 2kB
REACH SVHC No
RoHS Compliant
Schedule B 8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|85
Watchdog Timer Yes
Width 10.1mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Microchip PIC18F6520-I/PT | Farnell

Farnell

Datasheets

 Farnell
 Chip One Stop
 Onlinecomponents.com

Lifecycle Status Indicator

   Production

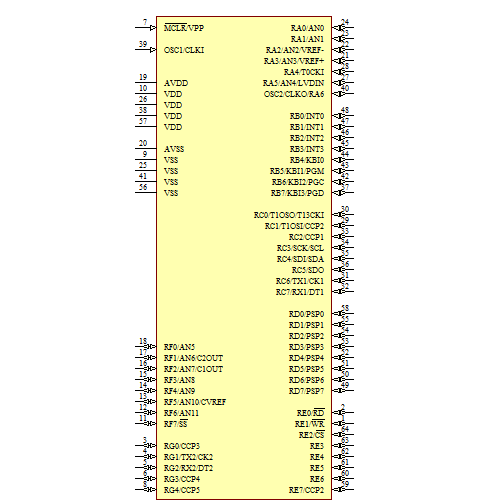

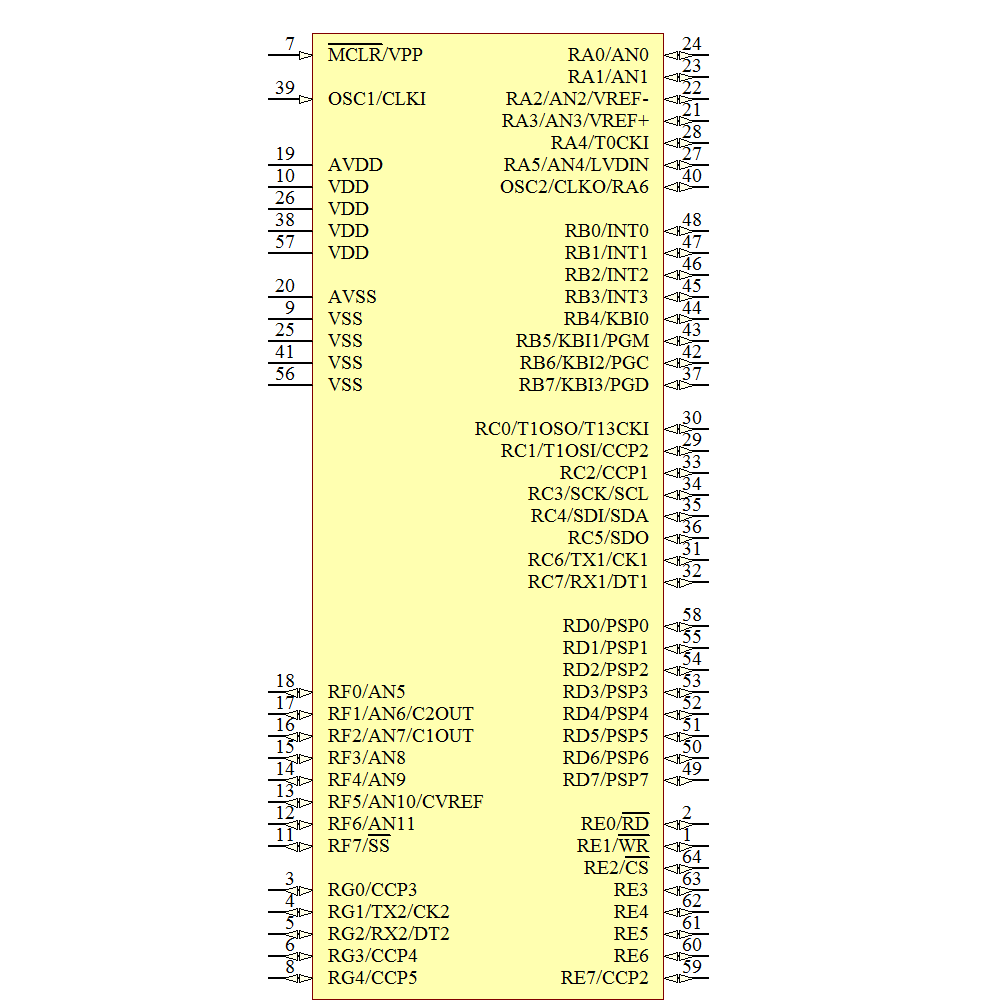

Symbol

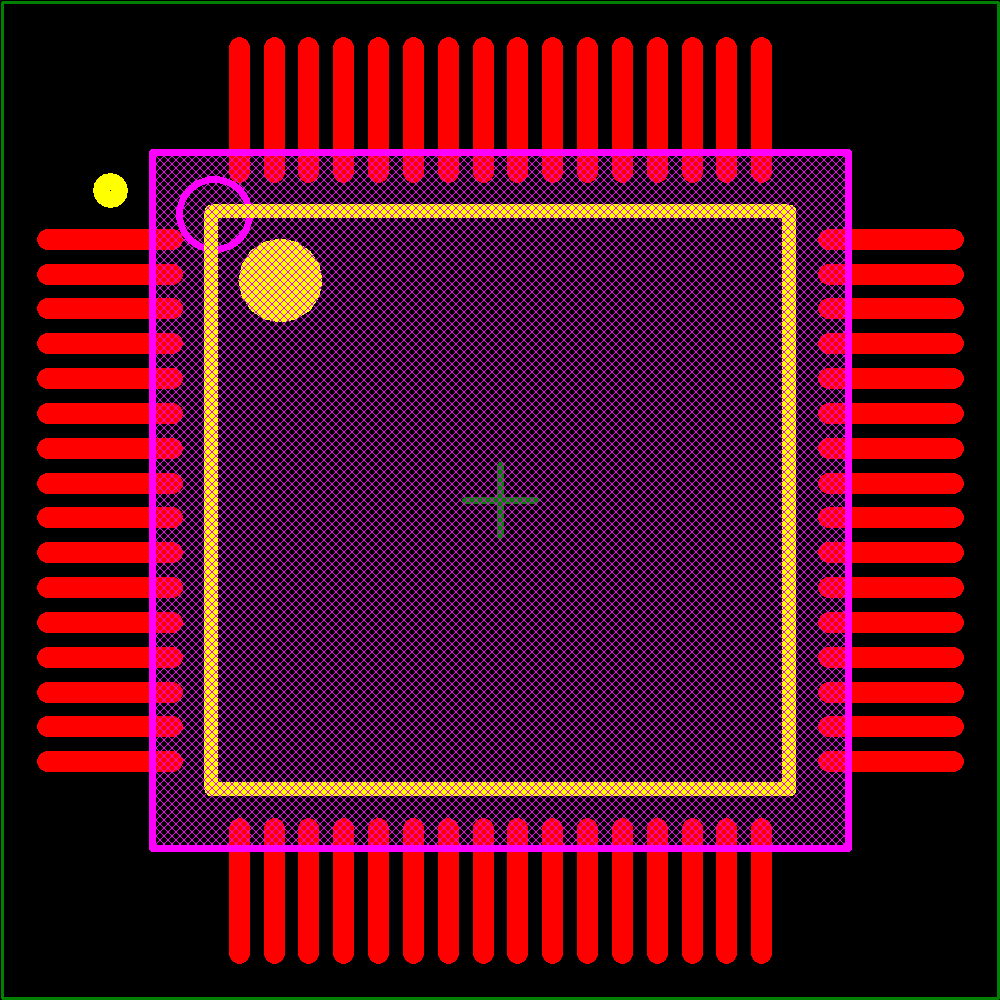

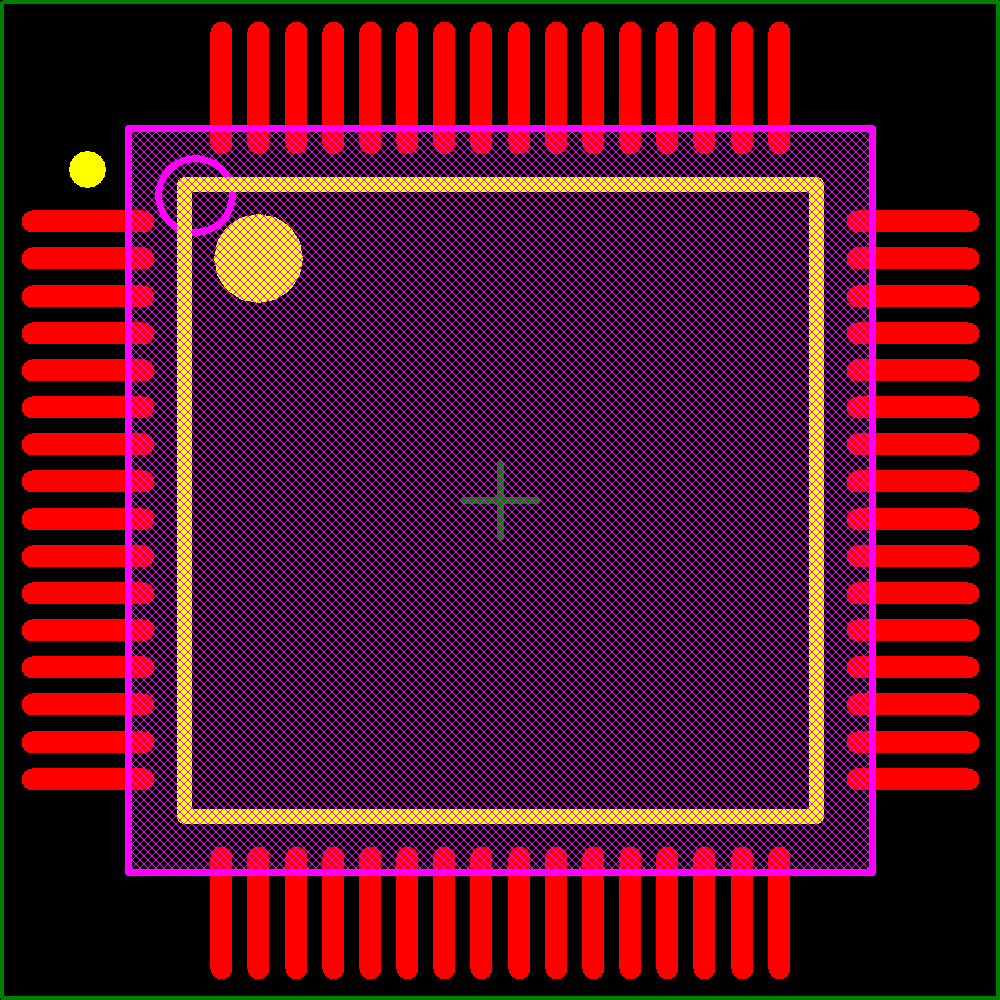

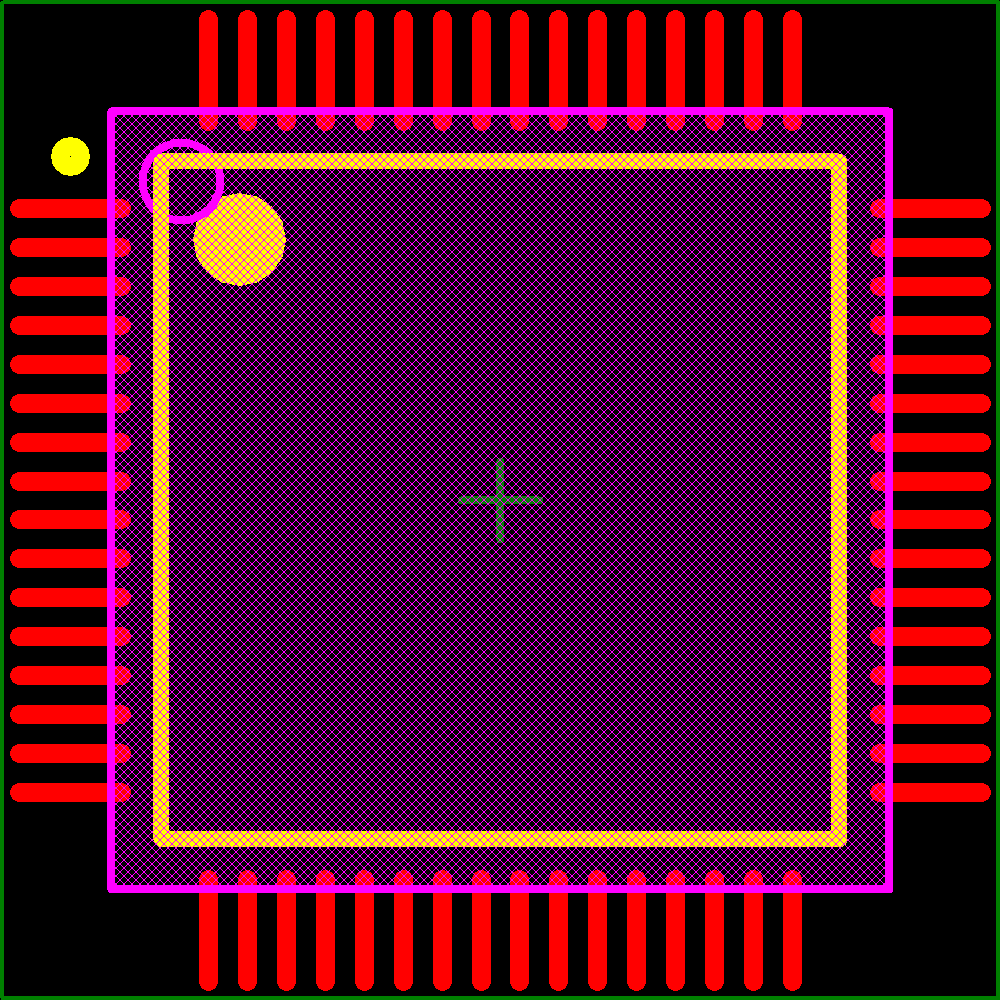

Footprint
