Integrated Circuits (ICs)  >  Embedded Processors and Controllers  >  Microcontrollers

Microchip - PIC18F65K22-E/MR

PIC18F65K22-E/MR - Microchip

MCU 8-bit PIC RISC 32KB Flash 2.5V/3.3V/5V Automotive 64-Pin QFN EP Tube

 Datasheets

Technical Details

Projected EOL Date 2039-05-11
Core Architecture PIC
Country of Assembly Thailand
Country of Fabrication United States of America
Country of Origin Thailand
Data Bus Width 8b
Export Control Classification Number (ECCN) Code EAR99
Frequency 64MHz
Harmonized Tariff Schedule (HTS) Code 8542.31.0015
Interface I2C, LIN, SPI, UART, USART
Introduction Date 2011-05-11
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Frequency 64MHz
Max Operating Temperature 125°C
Max Power Dissipation 1W
Max Supply Voltage 5.5V
Memory Size 32kB
Memory Type FLASH
Min Operating Temperature -40°C
Min Supply Voltage 1.8V
Number of I/Os 53
Number of Pins 64
Number of Programmable I/O 53
Number of Timers/Counters 8
Radiation Hardening No
RAM Size 2kB
RoHS Compliant
Watchdog Timer Yes

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Microchip PIC18F65K22-E/MR | Microchip

Microchip

Datasheets

 TME
 DigiKey
 Microchip

Lifecycle Status Indicator

   Production

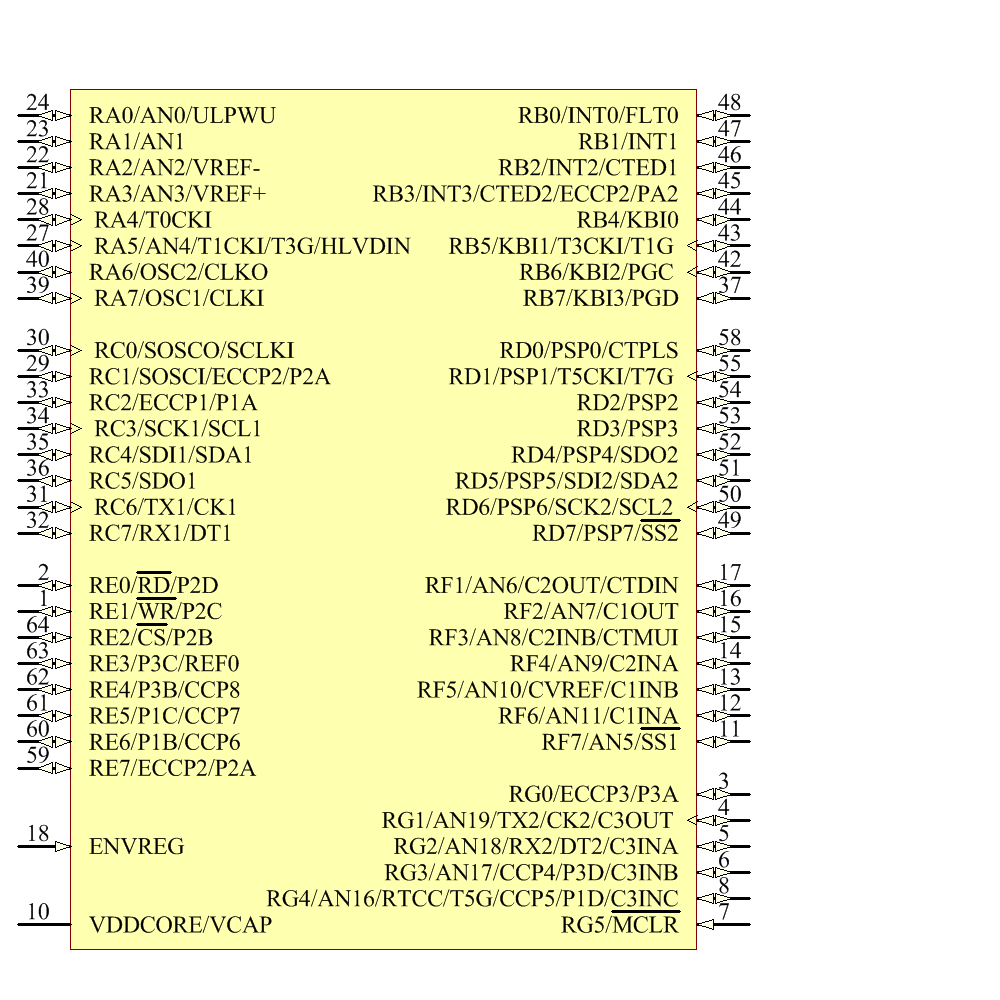

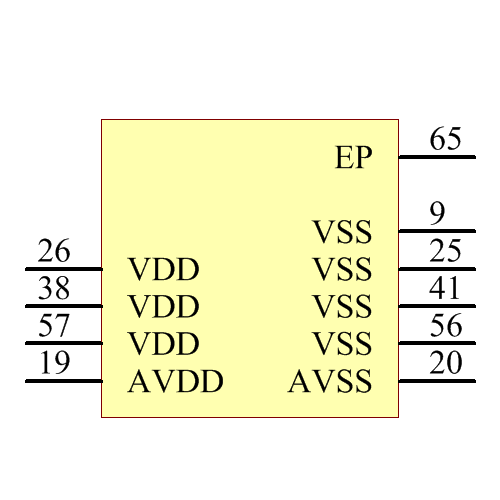

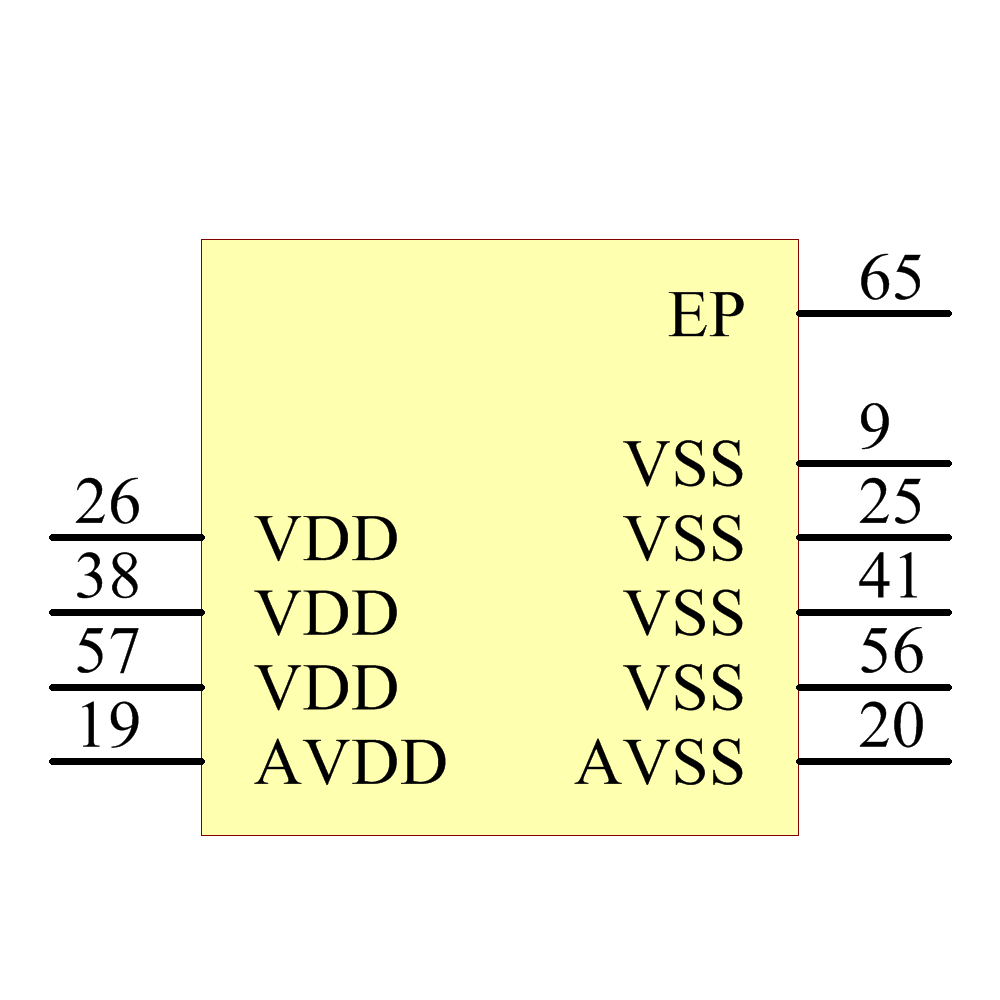

Symbol

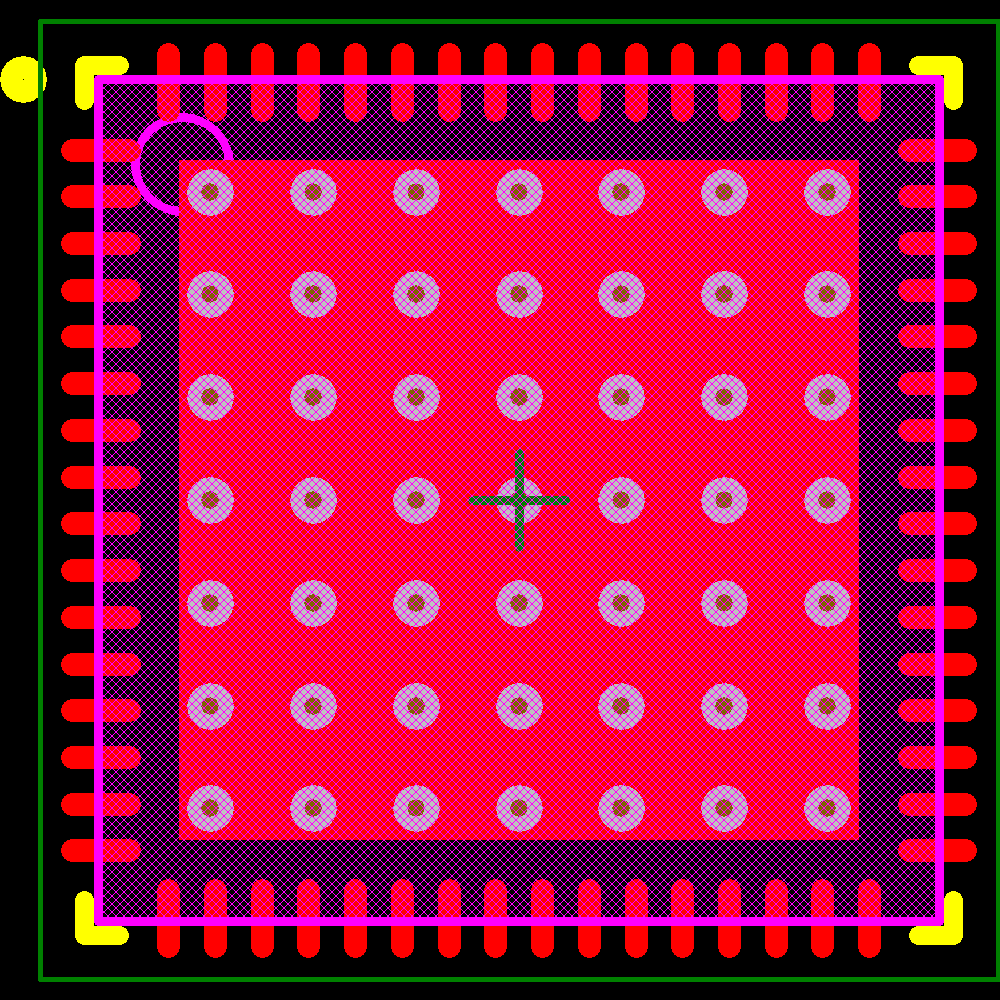

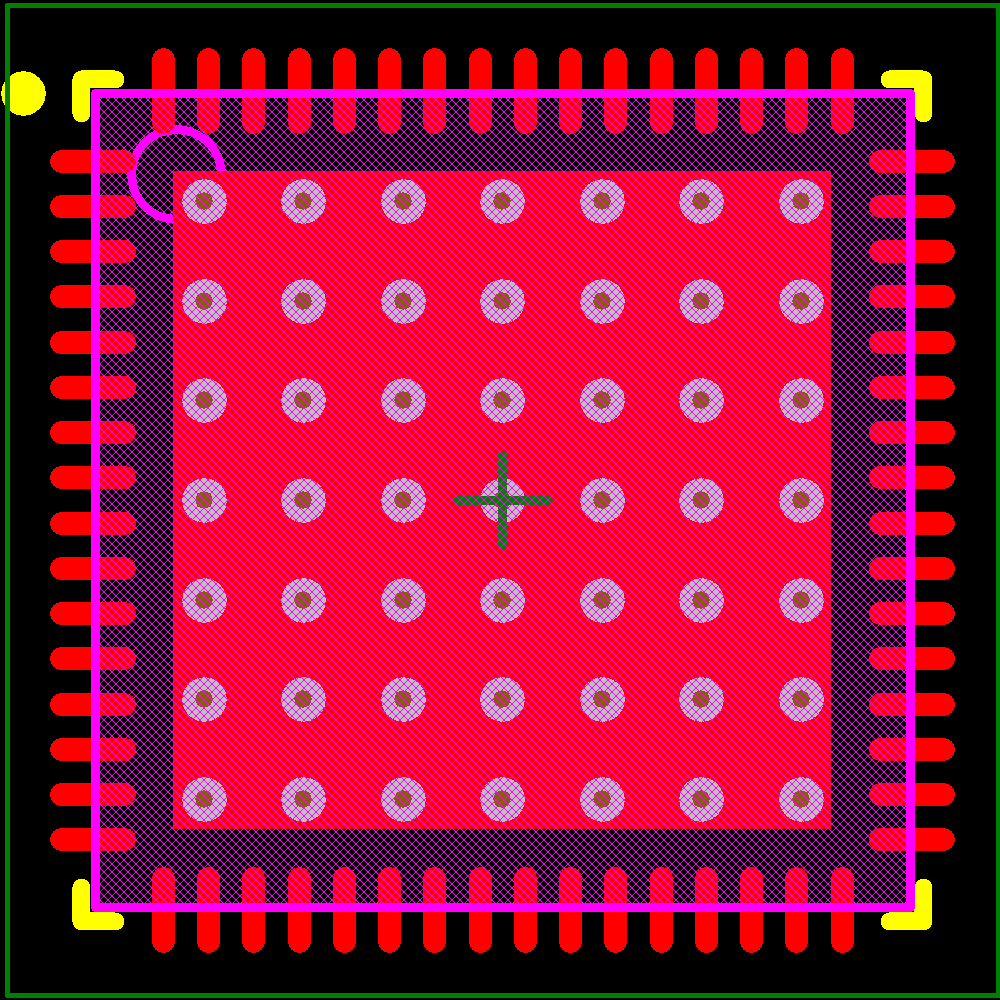

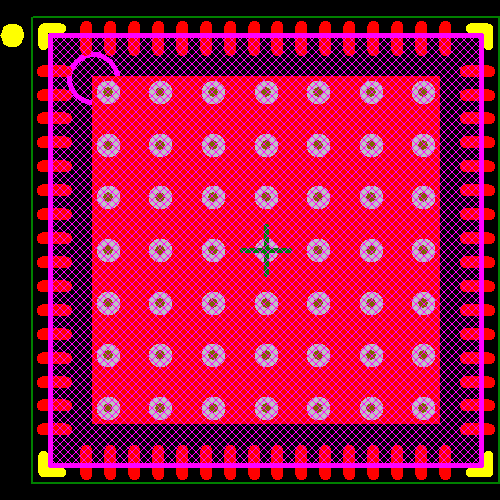

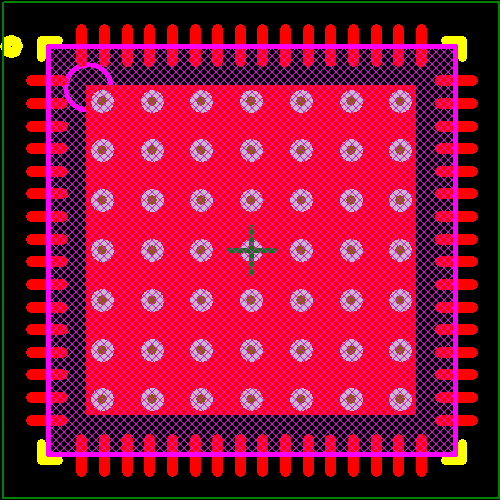

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
PIC18F65K22-I/MRRSL
Unknown
Microchip
PIC18F65K22-I/MR
Production
Microchip
PIC18F65K22T-I/MRRSL
Unknown
Microchip
PIC18F65K22T-I/MR
Unknown
Microchip
PIC18F65K22T-E/MR
Production
Microchip
PIC18F65K22T-E/PT
Production
Microchip
PIC18F65K22T-I/PTRSL
Unknown
Microchip
PIC18F65K22-I/PTRSL
Production
Microchip
PIC18F65K22-I/PT
Production
Microchip
PIC18F65K22T-I/PT
Production

See more alternatives See less alternatives

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
TME
PIC18F65K22-E/MR
PL: 0
 $ 5.4734 5.1282 4.9556 4.9556 4.5981 4.5981
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
PIC18F65K22-E/MR-ND
DE: 0
 $ 4.2646 4.2646
 Historical Pricing  Historical Stock Levels
Quantity
Location
Microchip
PIC18F65K22-E/MR
US: 1280
 $ 4.86 4.86 4.45 4.04 3.71 3.54
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
3634272
DE: 0
 $ 4.1667 4.1667
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Silica
PIC18F65K22-E/MR
EU: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
PIC18F65K22-E/MR
US: 0
 $ 6.20 4.65 4.25 4.25
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
PIC18F65K22-E/MR
US: 0
 $ 6.20 4.65 4.25 4.25
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
PIC18F65K22-E/MR
US: 0
 $ 4.50 4.275
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
PIC18F65K22-E/MR
US: 0
 $ 4.763 4.484
 Historical Pricing  Historical Stock Levels
Quantity
Location
NAC Semi
PIC18F65K22-E/MR
US: 1040
 $ 4.56 4.17 4.17
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
PIC18F65K22-E/MR
US: 0
 $ 4.17 4.17
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Worldway Electronics
PIC18F65K22-E/MR
HK: 35158
 $ 0.7904 0.7904 0.7662 0.7259 0.7259
 Historical Pricing  Historical Stock Levels
Quantity
Location
UnikeyIC
PIC18F65K22-E/MR
SG: 1160
 $ 5.2104 5.2104
 Historical Pricing  Historical Stock Levels
Quantity
Location
SHENGYU ELECTRONICS
PIC18F65K22-E/MR
CN: 10463
 $ 6.2082 6.084 6.084 5.90 5.71 5.46
 Historical Pricing  Historical Stock Levels
Quantity
Location
Lingto Electronic Ltd.
PIC18F65K22-E/MR
CN: 16912
 $ 4.025 3.864 3.864 3.6225 3.5823 3.542
 Historical Pricing  Historical Stock Levels
Quantity
Location
