Integrated Circuits (ICs) > Embedded Processors and Controllers > Microcontrollers

PIC18F65K22-E/PT - Microchip

MCU 8-bit PIC18 PIC Harvard 32KB Flash 2.5V/3.3V/5V Automotive 64-Pin TQFP Tray

Projected EOL Date	2039-05-11
Case/Package	TQFP
Core Architecture	PIC
Country of Assembly	Philippines, Thailand
Country of Fabrication	United States of America
Country of Origin	Philippines, Thailand
Data Bus Width	8b
Export Control Classification Number (ECCN) Code	EAR99
Frequency	64MHz
Height	1.05mm
Harmonized Tariff Schedule (HTS) Code	8542.31.0015
Interface	I2C, LIN, SPI, UART, USART
Introduction Date	2011-05-11
Length	10mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	64MHz
Max Operating Temperature	125°C
Max Power Dissipation	1W
Max Supply Voltage	5.5V
Memory Size	32kB
Memory Type	FLASH
Min Operating Temperature	-40°C
Min Supply Voltage	1.8V
Number of ADC Channels	16
Number of I2C Channels	2
Number of I/Os	53
Number of Pins	64
Number of Programmable I/O	53
Number of SPI Channels	2
Number of Timers/Counters	8
Number of UART Channels	2
Radiation Hardening	No
RAM Size	2kB
RoHS	Compliant
Watchdog Timer	Yes
Width	10mm

RoHS : Unconfirmed

Radiation Hardening : No

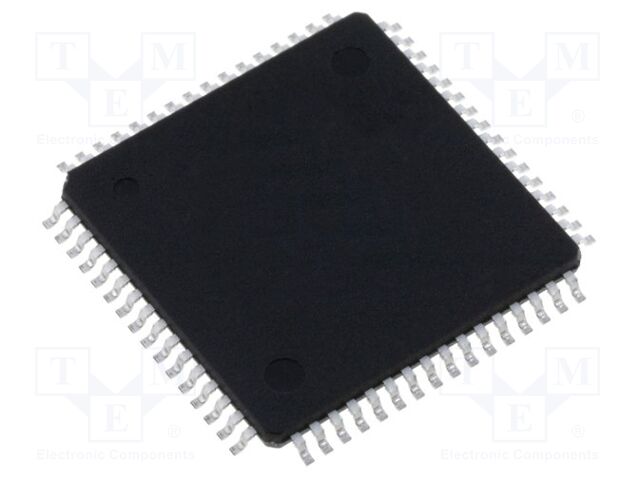

Microchip PIC18F65K22-E/PT | TME

TME

Production

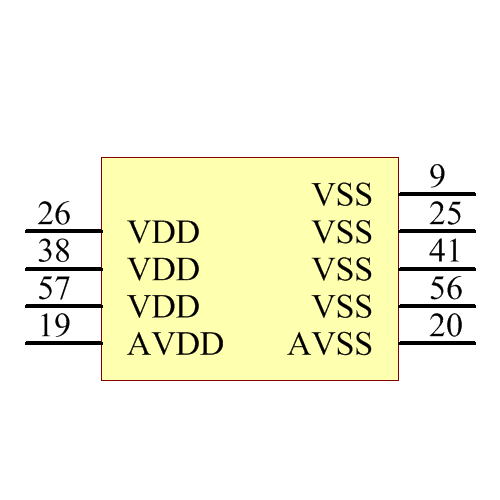

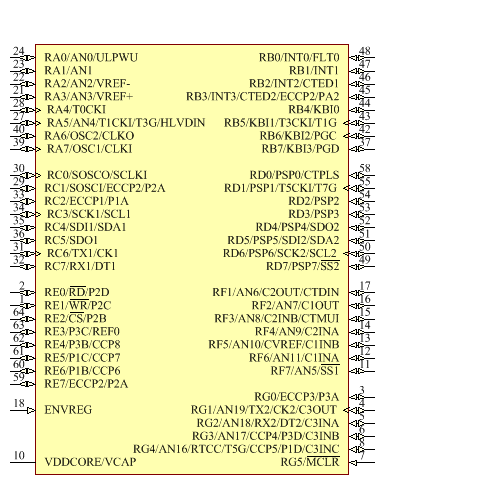

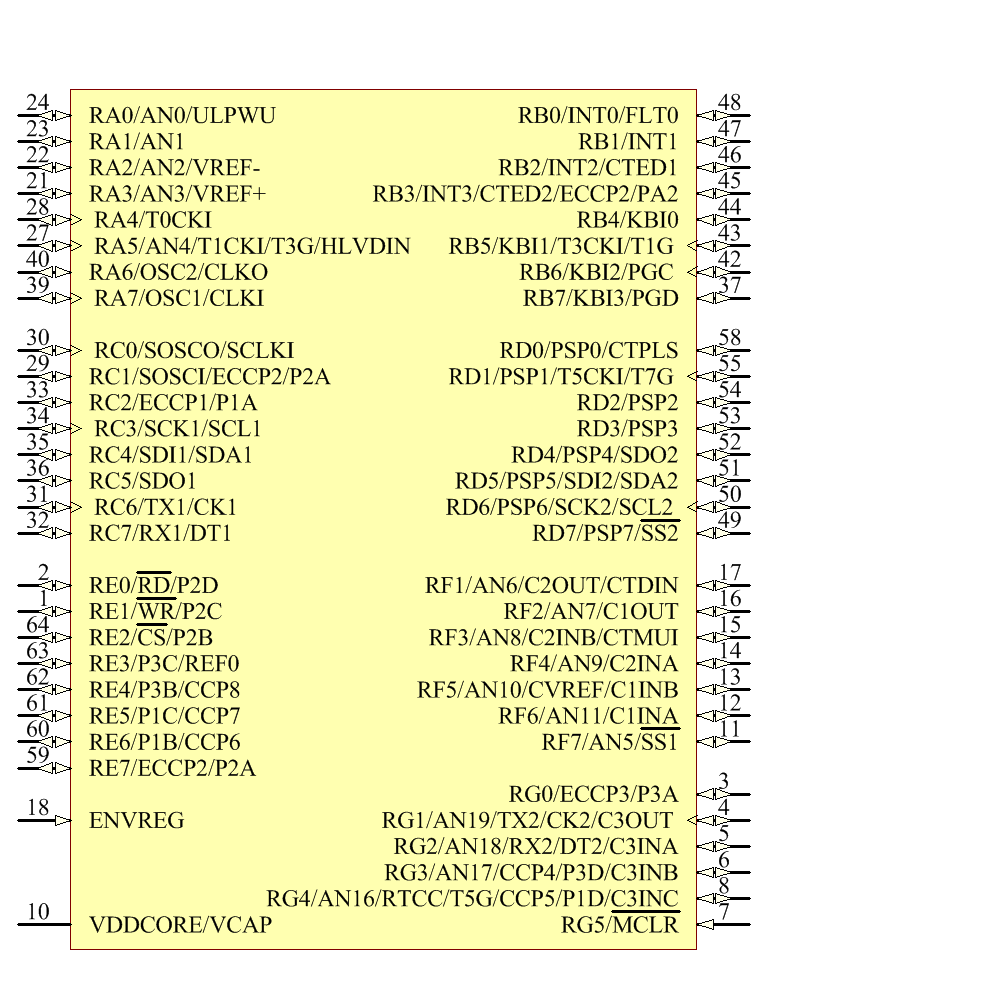

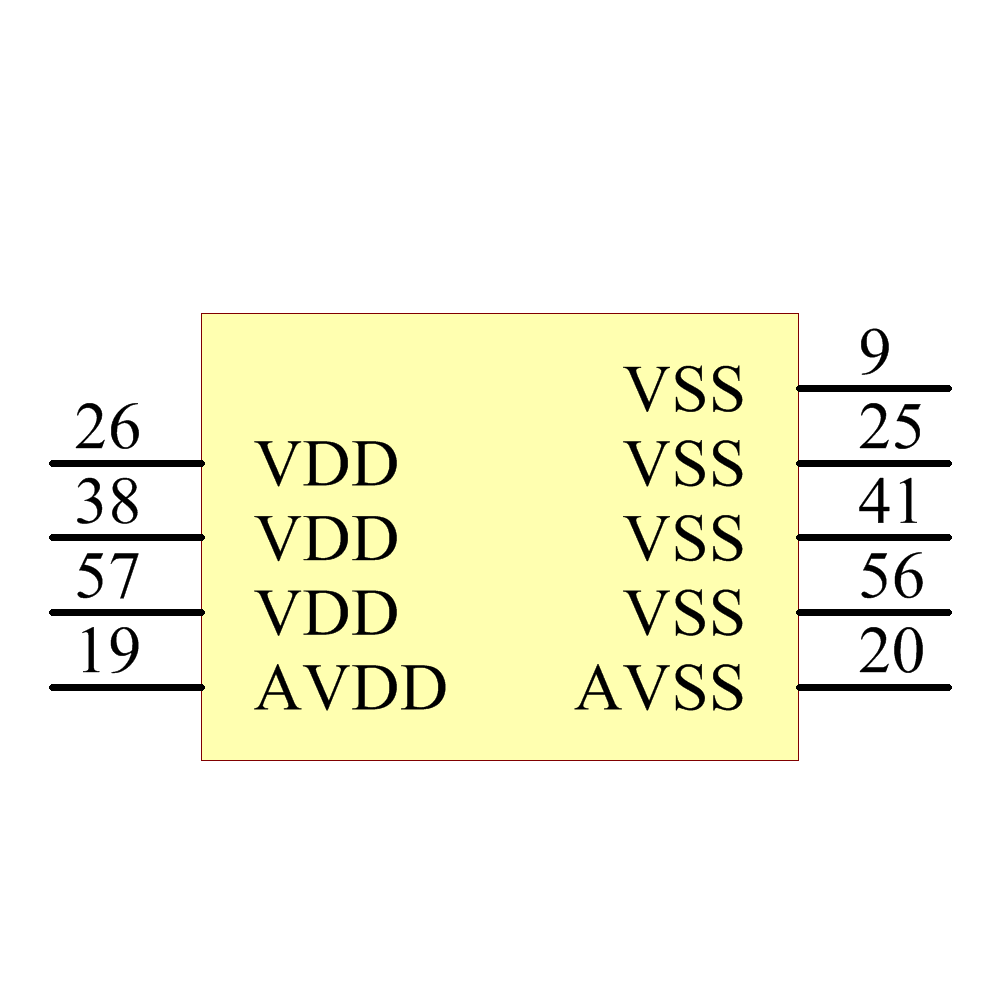

Symbol

‹ ›

Footprint

‹ ›
