PIC18F6620-I/PT - Microchip
PIC18F Series 64 kB Flash 3.75 kB RAM 40 MHz 8-Bit Microcontroller - TQFP-64
Technical Details
| Projected EOL Date | 2034-07-22 |
| Access Time | 25µs |
| Case/Package | TQFP |
| Contact Plating | Tin |
| Core Architecture | PIC |
| Country of Assembly | Philippines, Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Philippines, Thailand |
| Data Bus Width | 8b |
| Export Control Classification Number (ECCN) Code | 3A991.a.2 |
| Frequency | 25MHz |
| Height | 1.05mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.0015 |
| Interface | I2C, SPI, UART, USART |
| Introduction Date | 2002-07-22 |
| Lead Free | Lead Free |
| Lead Pitch | 500µm |
| Length | 10.1mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Frequency | 40MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.8V |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.2V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 12 |
| Number of Bits | 8 |
| Number of I2C Channels | 1 |
| Number of I/Os | 52 |
| Number of Pins | 64 |
| Number of Programmable I/O | 52 |
| Number of PWM Channels | 5 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 2 |
| Operating Supply Voltage | 5V |
| Oscillator Type | External |
| Packaging | Bulk |
| Peripherals | Brown-out Detect/Reset, I2C, LVD, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 3.8kB |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000 |
| Watchdog Timer | Yes |
| Width | 10.1mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

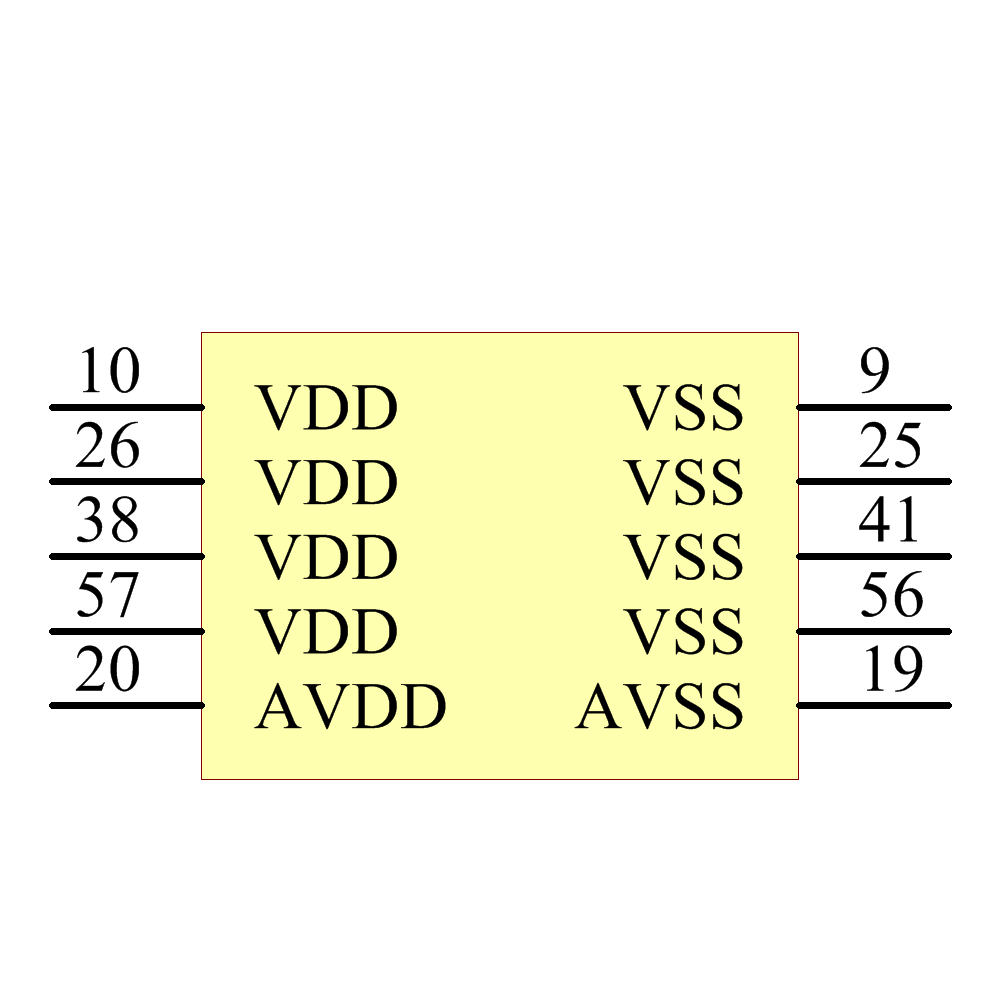

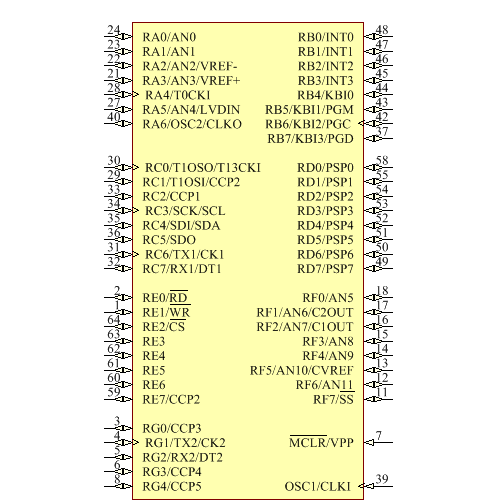

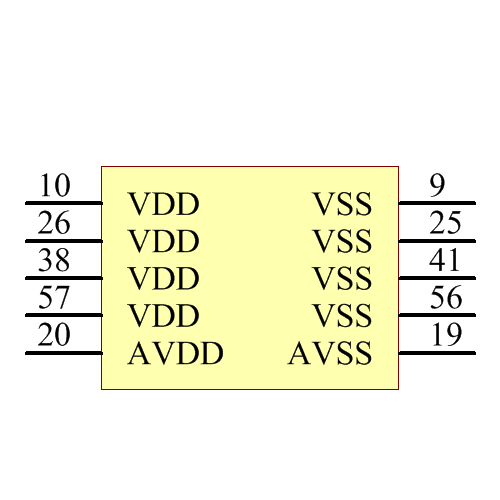

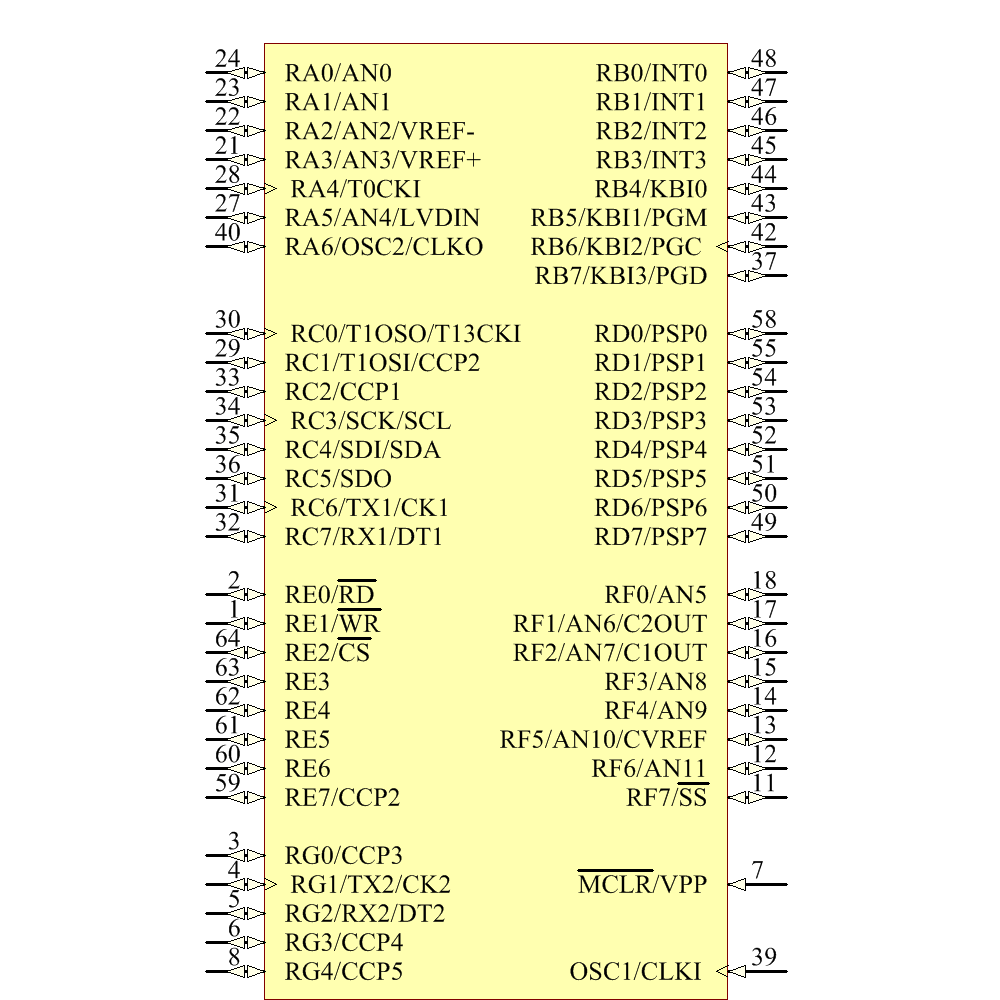

Images
Microchip
