Integrated Circuits (ICs) > Embedded Processors and Controllers > Microcontrollers

PIC18F6628-E/PT - Microchip

IC MCU 8BIT 96KB FLASH 64TQFP PIC PIC® 18F Microcontroller IC 8-Bit 25MHz 96KB (48K x 16) FLASH 64-TQFP (10x10)

Projected EOL Date	2034-09-07
Case/Package	TQFP
Core Architecture	PIC
Country of Assembly	Philippines, Thailand
Country of Fabrication	United States of America
Country of Origin	Philippines, Thailand
Data Bus Width	8b
Export Control Classification Number (ECCN) Code	3A991.a.2
Frequency	25MHz
Harmonized Tariff Schedule (HTS) Code	8542.31.0015
Interface	I2C, SPI, UART, USART
Introduction Date	2007-09-07
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	40MHz
Max Operating Temperature	125°C
Max Power Dissipation	1W
Max Supply Voltage	5.5V
Memory Size	96kB
Memory Type	FLASH
Min Operating Temperature	-40°C
Min Supply Voltage	4.2V
Mount	Surface Mount
Number of Pins	64
Number of Programmable I/O	54
Number of Timers/Counters	5
Operating Supply Voltage	5V
Radiation Hardening	No
RAM Size	3.8kB
RoHS	Compliant

RoHS : Unconfirmed

Radiation Hardening : No

Microchip PIC18F6628-E/PT | Microchip

Microchip

Production

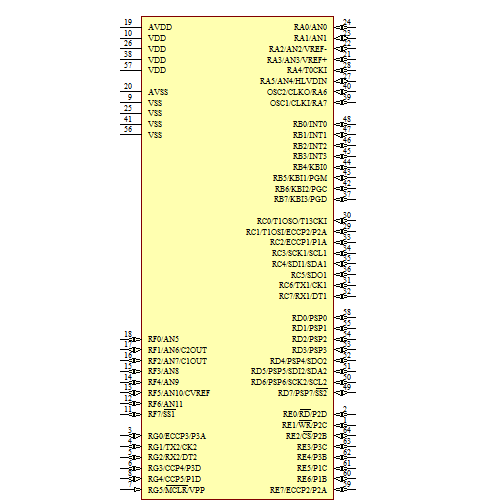

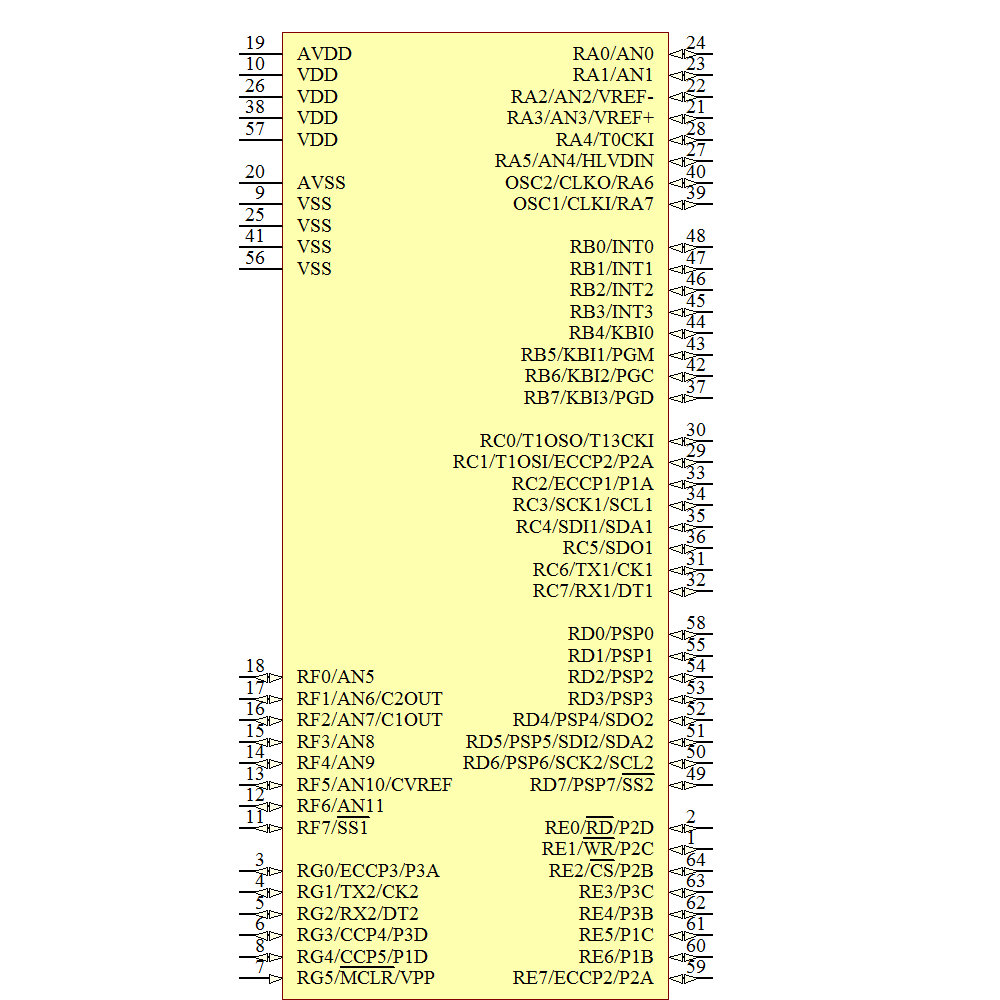

Symbol

‹ ›

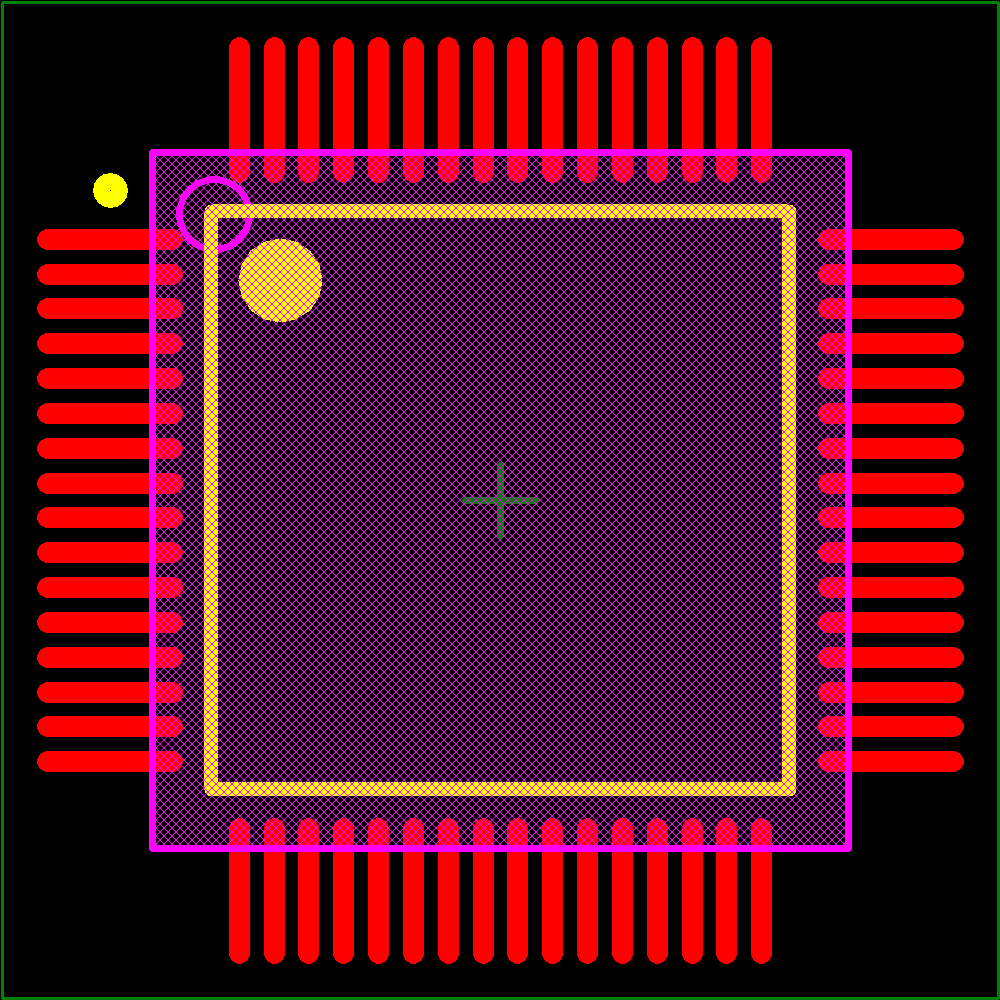

Footprint

‹ ›
