Integrated Circuits (ICs) > Embedded Processors and Controllers > Microcontrollers

PIC18F6680-E/PT - Microchip

MCU 64K Flash 3328 RAM ECAN TQFP64 | Microchip Technology Inc. PIC18F6680-E/PT

Projected EOL Date	2034-07-18
Access Time	40µs
Case/Package	TQFP
Core Architecture	PIC
Country of Assembly	Philippines, Thailand
Country of Fabrication	United States of America
Country of Origin	Philippines, Thailand
Data Bus Width	8b
Export Control Classification Number (ECCN) Code	EAR99
Frequency	25MHz
Height	1.05mm
Harmonized Tariff Schedule (HTS) Code	8542.31.0015
Interface	CAN, I2C, SPI, UART, USART
Introduction Date	2003-07-18
Lead Free	Lead Free
Length	10.1mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	40MHz
Max Operating Temperature	125°C
Max Power Dissipation	1W
Max Supply Voltage	5.5V
Memory Size	64kB
Memory Type	FLASH
Min Operating Temperature	-40°C
Min Supply Voltage	4.2V
Mount	Surface Mount
Number of ADC Channels	12
Number of I2C Channels	1
Number of I/Os	53
Number of Pins	64
Number of Programmable I/O	53
Number of SPI Channels	1
Number of Timers/Counters	5
Packaging	Bulk
Peripherals	LVD, POR, PWM, WDT
Radiation Hardening	No
RAM Size	3.3kB
RoHS	Compliant
Watchdog Timer	Yes
Width	10.1mm

RoHS : Unconfirmed

Radiation Hardening : No

Microchip PIC18F6680-E/PT | Microchip

Microchip

Production

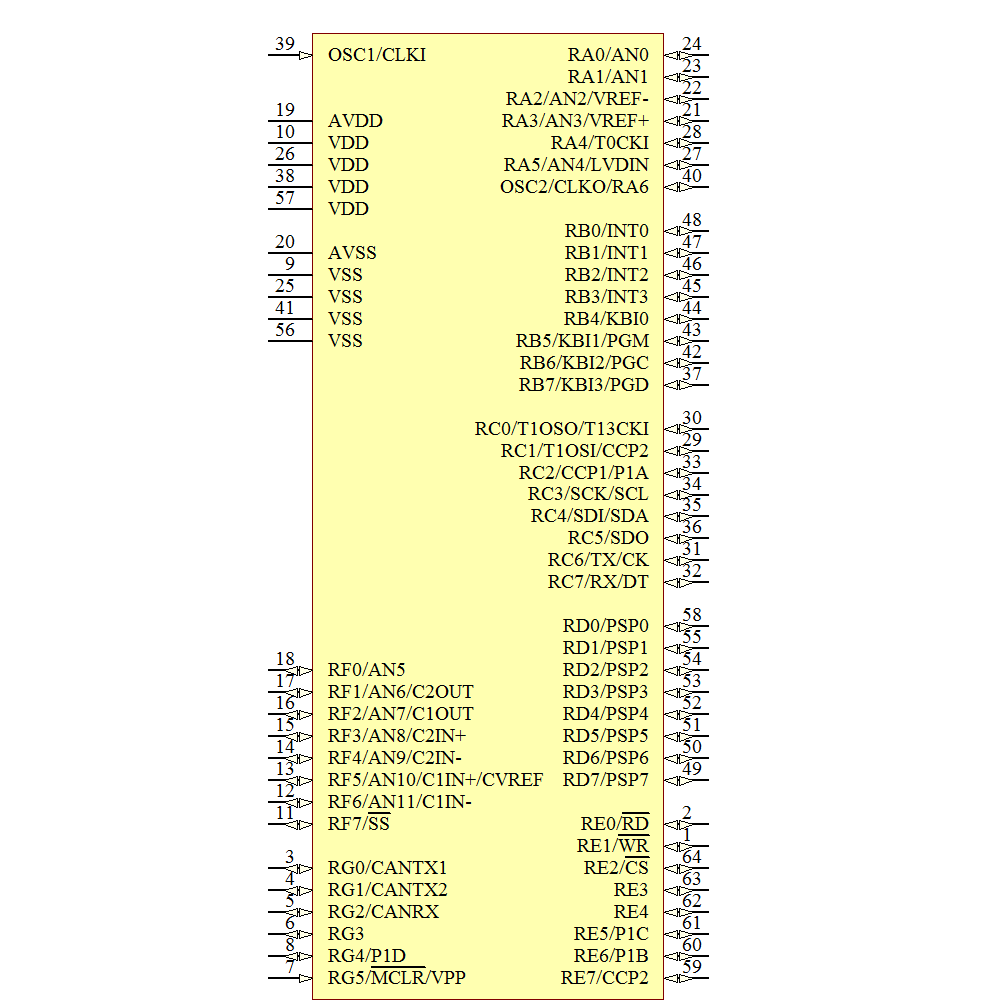

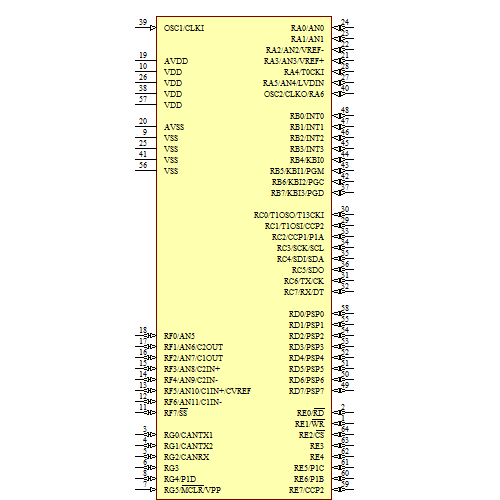

Symbol

‹ ›

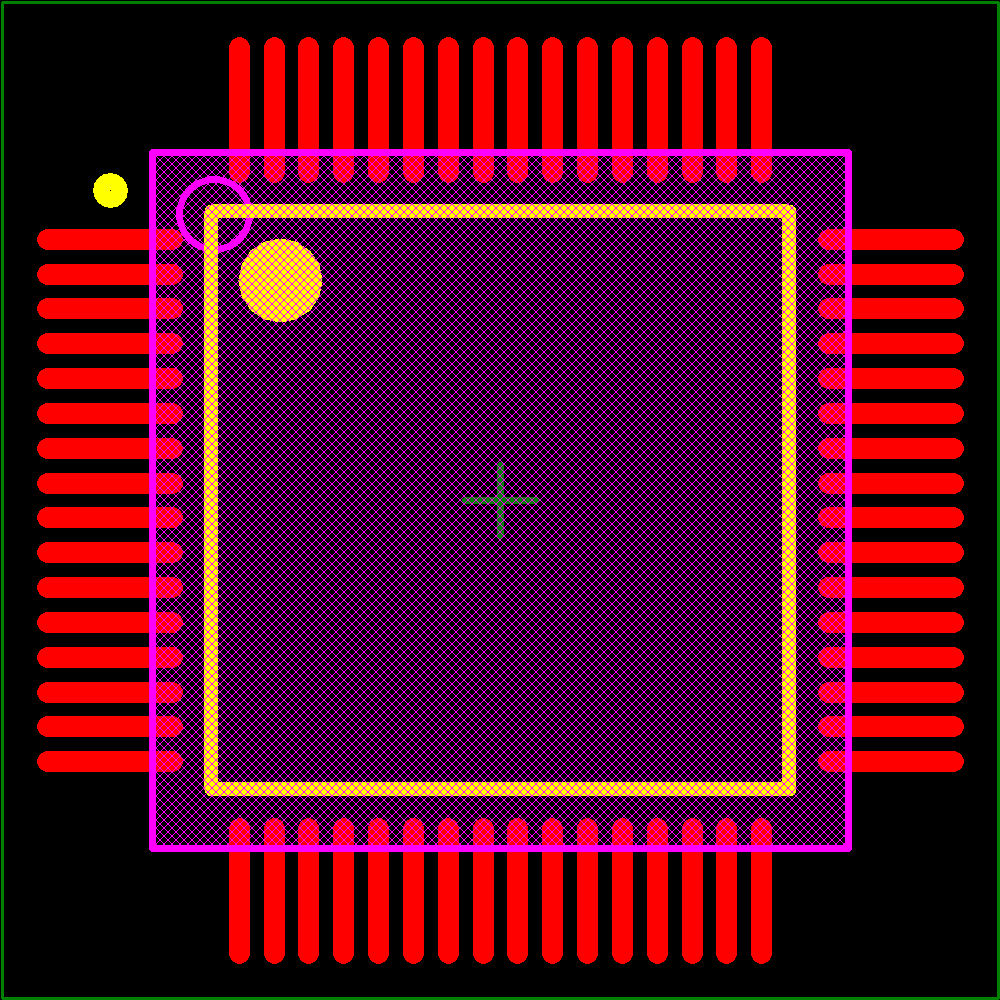

Footprint

‹ ›
