PIC18F66K80-E/PT - Microchip
64KB 1.8V~5.5V PIC 64MHz 54 TQFP-64(10x10) Microcontroller Units (MCUs/MPUs/SOCs) ROHS
Technical Details
| Projected EOL Date | 2039-02-03 |
| Case/Package | TQFP |
| Core Architecture | PIC |
| Country of Assembly | Philippines, Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | Philippines, Thailand |
| Data Bus Width | 8b |
| Export Control Classification Number (ECCN) Code | 3A991.a.2 |
| Frequency | 64MHz |
| Height | 1.05mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.31.0015 |
| Interface | CAN, I2C, LIN, SPI, UART, USART |
| Introduction Date | 2011-02-03 |
| Lead Free | Lead Free |
| Length | 10mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Frequency | 64MHz |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 64kB |
| Memory Type | FLASH |
| Min Operating Temperature | 40°C |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 11 |
| Number of Bits | 8 |
| Number of I2C Channels | 1 |
| Number of I/Os | 54 |
| Number of Pins | 64 |
| Number of Programmable I/O | 54 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 2 |
| Radiation Hardening | No |
| RAM Size | 3.6kB |
| RoHS | Compliant |
| Schedule B | 8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000 |
| Watchdog Timer | Yes |
| Width | 10mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

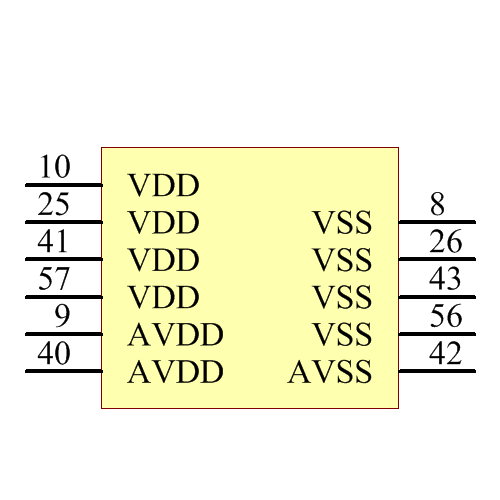

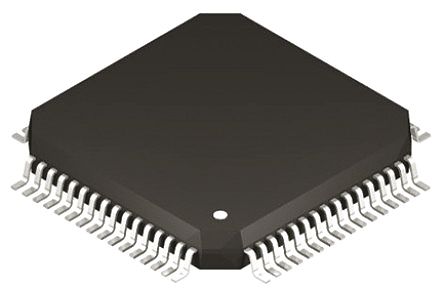

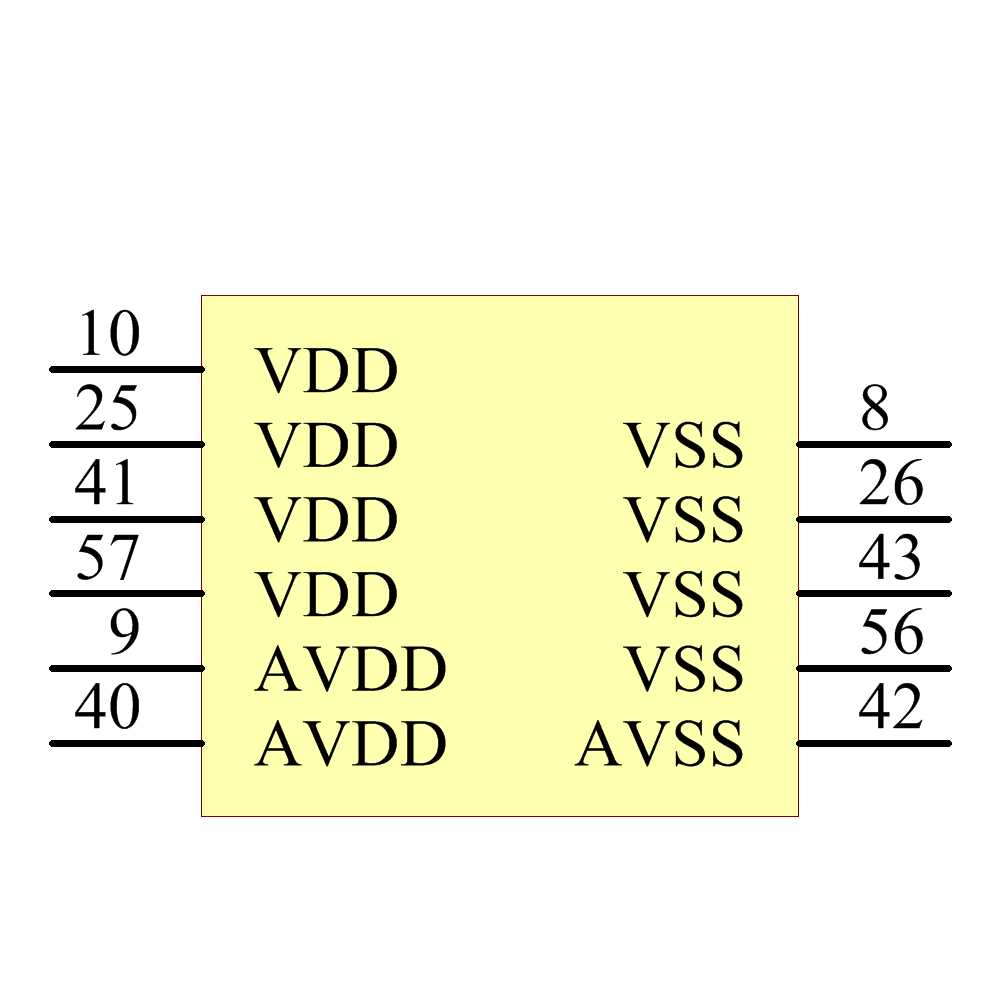

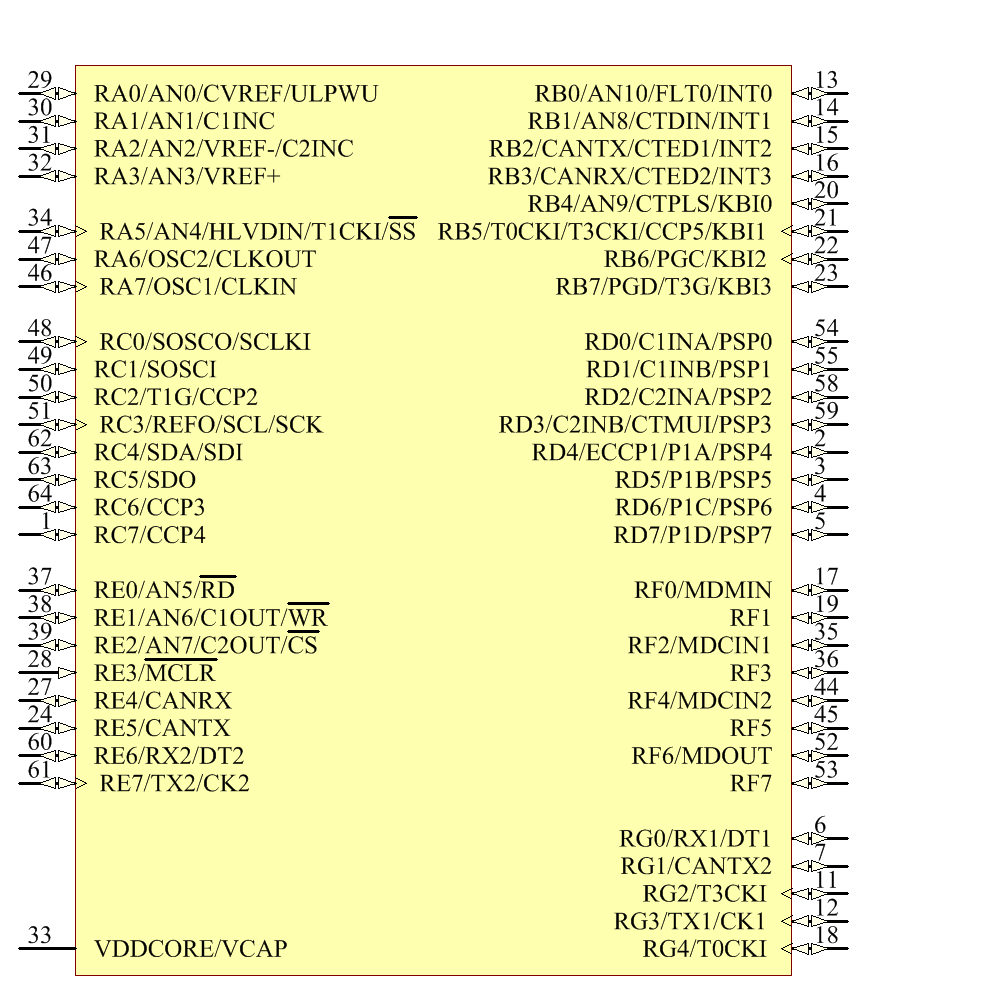

Images
