PIC18F66K90-I/PT - Microchip

MCU 8-bit PIC RISC 64KB Flash 2.5V/3.3V/5V Automotive AEC-Q100 64-Pin TQFP Tray

Projected EOL Date	2039-03-25
Case/Package	TQFP
Core Architecture	PIC
Country of Assembly	Philippines, Thailand
Country of Fabrication	United States of America
Country of Origin	Philippines, Thailand
Data Bus Width	8b
Export Control Classification Number (ECCN) Code	3A991.a.2
Frequency	64MHz
Height	1.05mm
Harmonized Tariff Schedule (HTS) Code	8542.31.0015
Interface	I2C, LIN, SPI, UART, USART
Introduction Date	2011-03-25
Lead Free	Lead Free
Length	10mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	64MHz
Max Operating Temperature	85°C
Max Power Dissipation	1W
Max Supply Voltage	5.5V
Memory Size	64kB
Memory Type	FLASH
Min Operating Temperature	-40°C
Min Supply Voltage	1.8V
Number of ADC Channels	16
Number of I2C Channels	2
Number of I/Os	53
Number of Pins	64
Number of Programmable I/O	53
Number of SPI Channels	2
Number of Timers/Counters	11
Oscillator Type	Internal
Peripherals	Brown-out Detect/Reset, LCD, POR, PWM, WDT
Radiation Hardening	No
RAM Size	4kB
RoHS	Compliant
Schedule B	8542310000, 8542310000\|8542310000\|8542310000\|8542310000\|8542310000
Watchdog Timer	Yes
Width	10mm

RoHS : Unconfirmed

Radiation Hardening : No

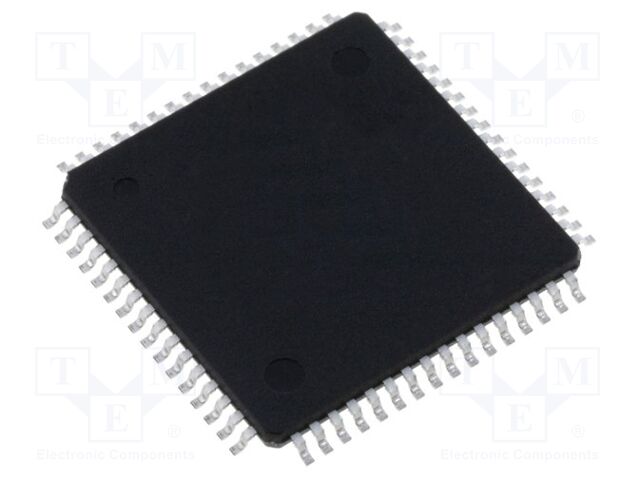

Microchip PIC18F66K90-I/PT | TME

TME

Production

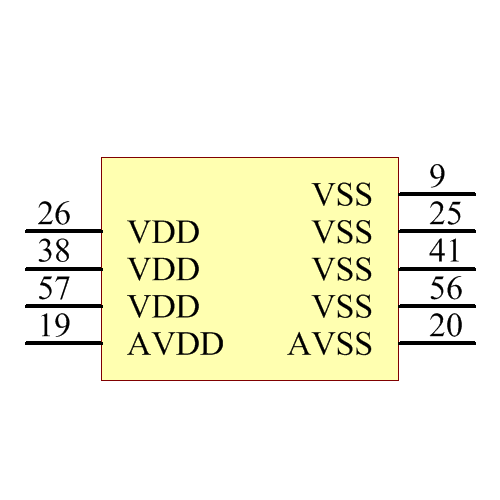

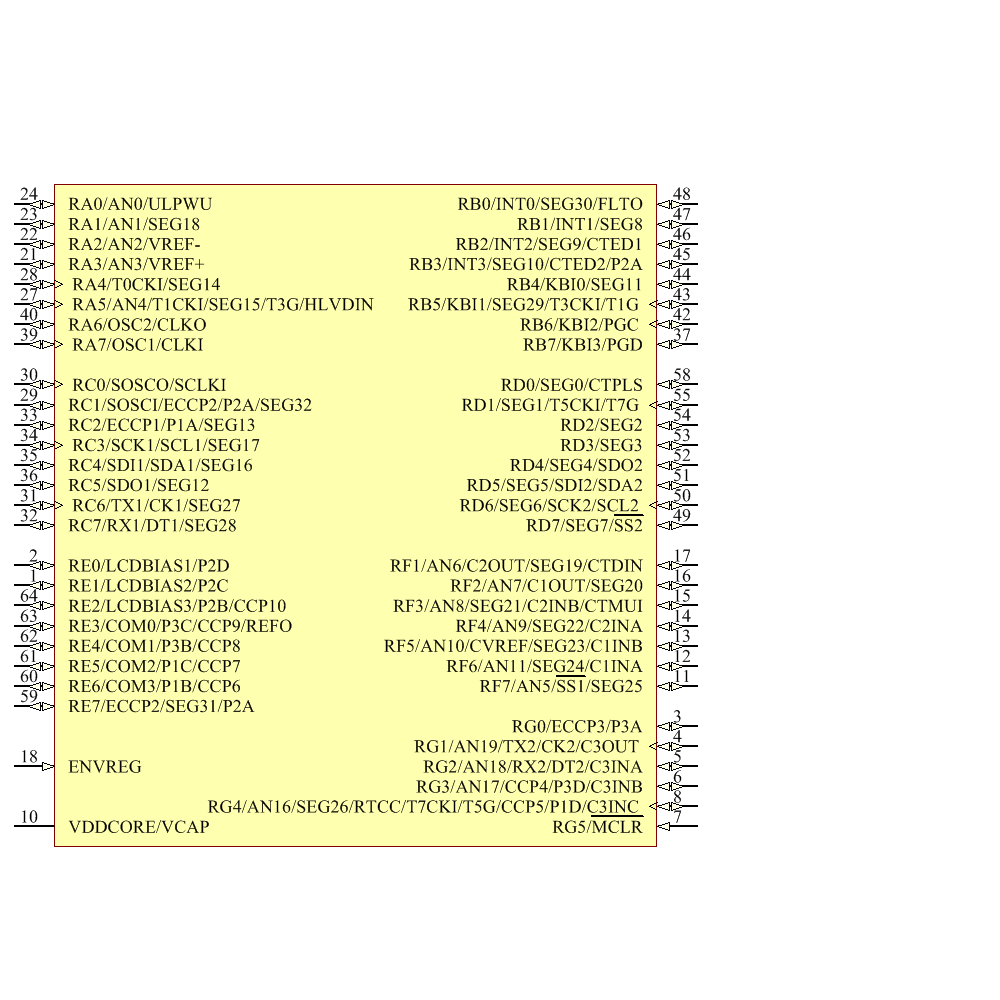

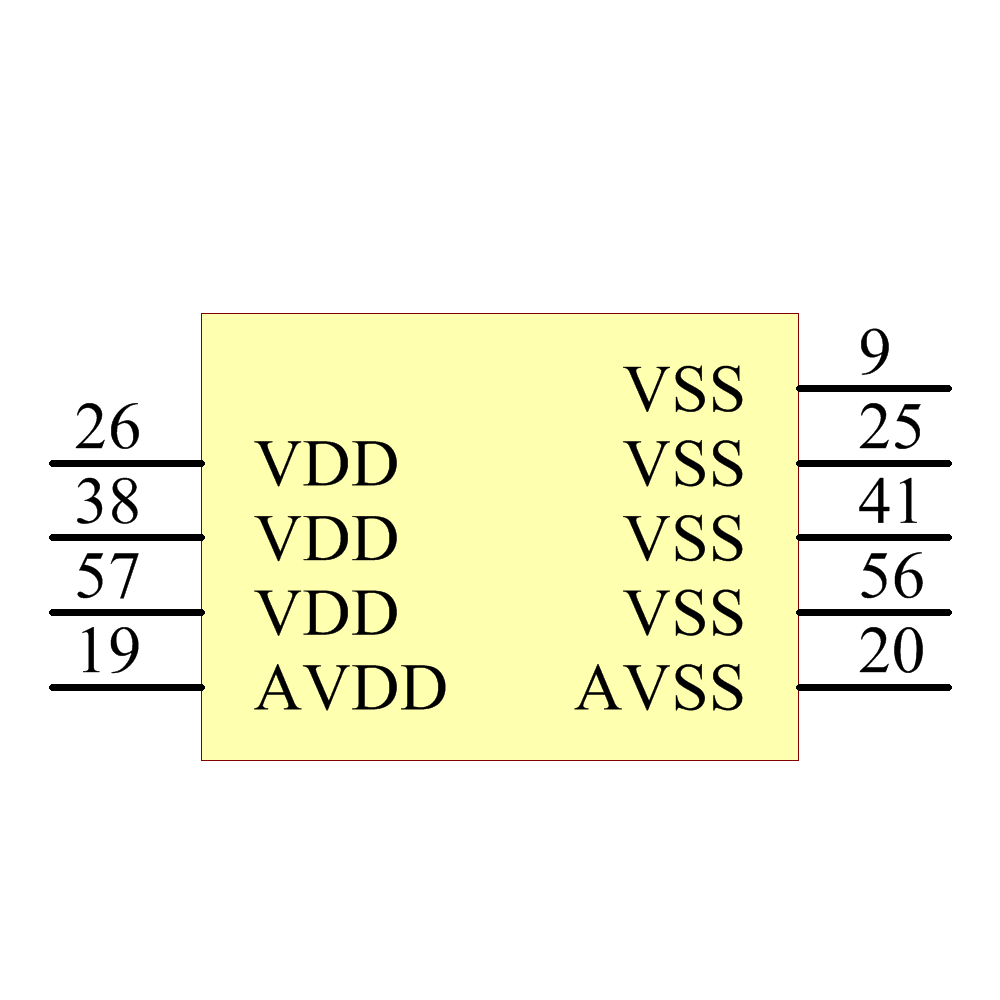

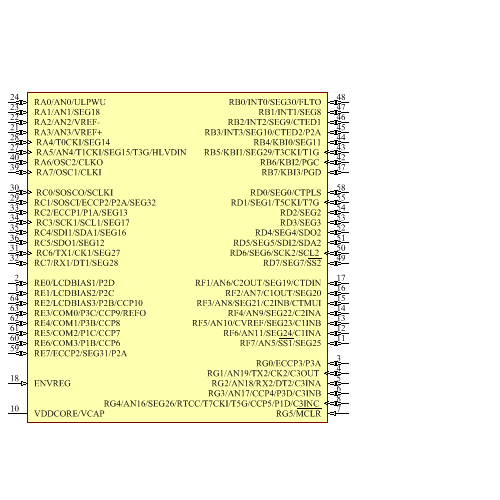

Symbol

‹ ›

Footprint

‹ ›

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Microchip	PIC18F66K90-E/PT	Unknown
Microchip	PIC18F66K90-I/PTRSL	Production
Microchip	PIC18F66K90T-I/PT	Production
Microchip	PIC18F66K90T-I/PTRSL	Unknown
Microchip	PIC18F66K90T-E/PTVAO	Production
Microchip	PIC18F66K90-I/MR	Production
Microchip	PIC18F66K90T-I/MR	Unknown
Microchip	PIC18F66K90-I/MRRSL	Unknown
Microchip	PIC18F66K90T-I/MRRSL	Unknown
Microchip	PIC18F66K90-E/MR	Unknown
