Integrated Circuits (ICs) > Embedded Processors and Controllers > Microcontrollers

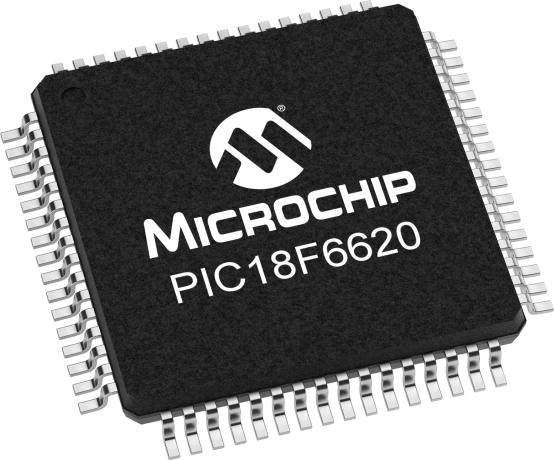

PIC18LF6620-I/PT - Microchip

MCU 64K Flash 3840 RAM 12x10b ADC TQFP64 | Microchip Technology Inc. PIC18LF6620-I/PT

Projected EOL Date	2034-07-22
Access Time	25µs
Case/Package	TQFP
Core Architecture	PIC
Country of Assembly	Philippines, Thailand
Country of Fabrication	United States of America
Country of Origin	Philippines, Thailand
Data Bus Width	8b
Export Control Classification Number (ECCN) Code	3A991.a.2
Frequency	25MHz
Height	1.05mm
Harmonized Tariff Schedule (HTS) Code	8542.31.0015
Interface	I2C, SPI, UART, USART
Introduction Date	2002-07-22
Lead Free	Lead Free
Lead Pitch	500µm
Length	10.1mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Frequency	25MHz
Max Operating Temperature	85°C
Max Power Dissipation	1W
Max Supply Voltage	5.8V
Memory Type	FLASH
Min Operating Temperature	-40°C
Min Supply Voltage	2V
Number of ADC Channels	12
Number of Bits	8
Number of I2C Channels	1
Number of I/Os	54
Number of Pins	64
Number of Programmable I/O	52
Number of PWM Channels	5
Number of SPI Channels	1
Number of Timers/Counters	5
Operating Supply Voltage	5.5V
Oscillator Type	External
Packaging	Bulk
Peripherals	Brown-out Detect/Reset, I2C, LVD, POR, PWM, WDT
Radiation Hardening	No
RAM Size	3.8kB
REACH SVHC	No
RoHS	Compliant
Schedule B	8542310000
Watchdog Timer	Yes
Width	10.1mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Microchip PIC18LF6620-I/PT | Microchip

Microchip

Production

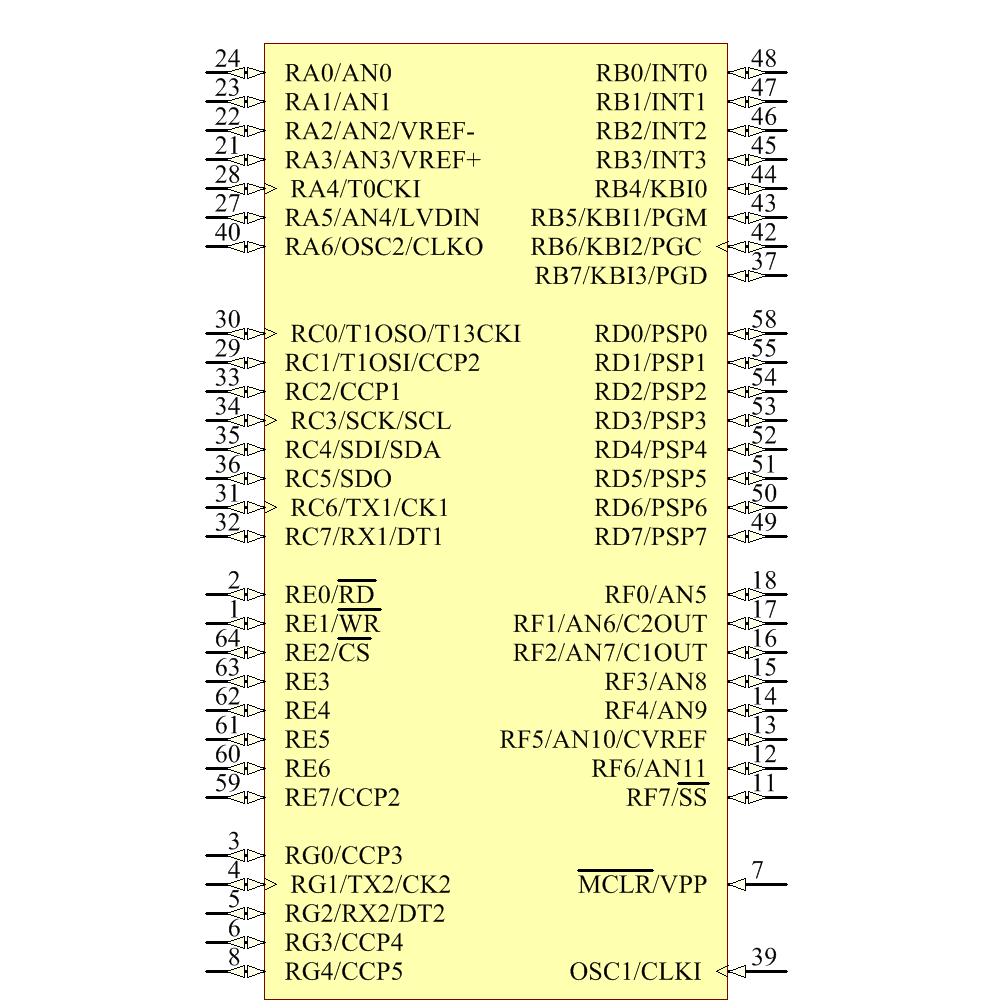

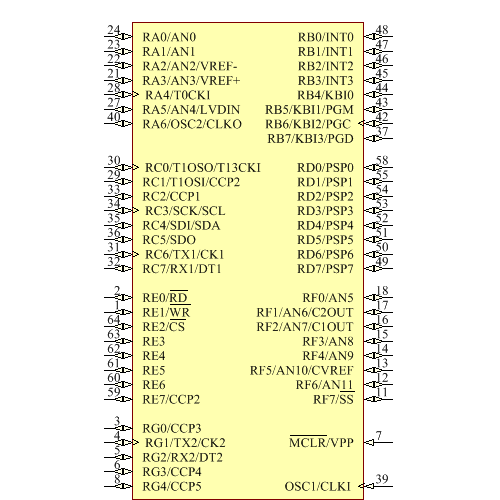

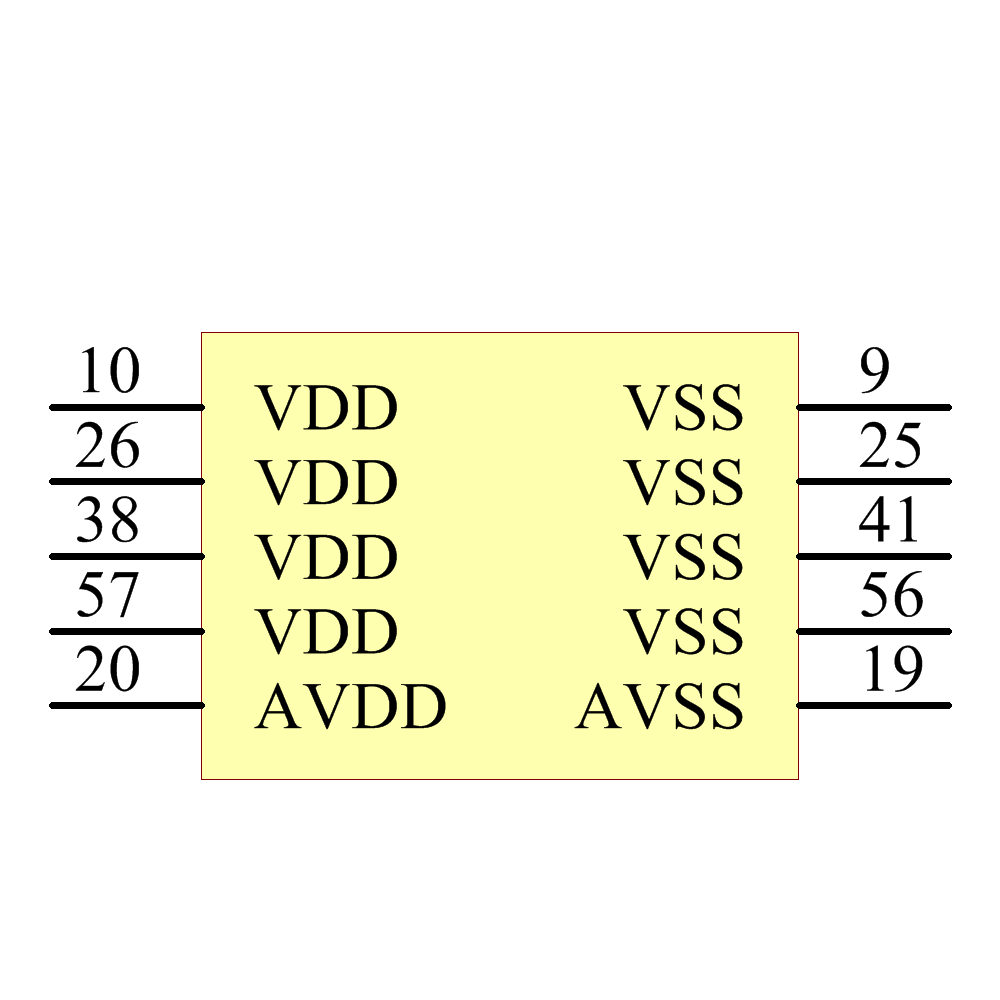

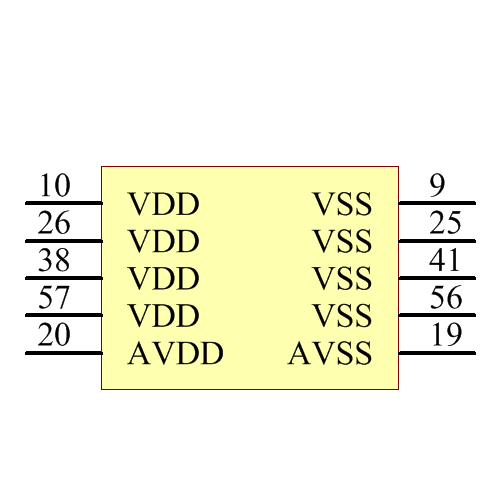

Symbol

‹ ›

Footprint

‹ ›
