Integrated Circuits (ICs)  >  Embedded Processors and Controllers  >  Microcontrollers

Microchip - PIC18LF6720-I/PT

PIC18LF6720-I/PT - Microchip

MCU 8-bit PIC18 PIC RISC 128KB Flash 1.8V/2.5V/3.3V/5V 64-Pin TQFP Tray - Trays

 Datasheets

Technical Details

Projected EOL Date 2034-07-22
Access Time 25µs
Case/Package TQFP
Core Architecture PIC
Country of Assembly Philippines, Thailand
Country of Fabrication United States of America
Country of Origin Philippines, Thailand
Data Bus Width 8b
Export Control Classification Number (ECCN) Code 3A991.a.2
Frequency 25MHz
Height 1.05mm
Harmonized Tariff Schedule (HTS) Code 8542.31.0015
Interface I2C, SPI, UART, USART
Introduction Date 2002-07-22
Lead Free Lead Free
Lead Pitch 500µm
Length 10mm
Lifecycle Status Production
Manufacturer Lifecycle Status REL
Max Frequency 25MHz
Max Operating Temperature 85°C
Max Power Dissipation 1W
Max Supply Voltage 5.8V
Memory Type FLASH
Min Operating Temperature -40°C
Min Supply Voltage 2V
Number of ADC Channels 12
Number of Bits 8
Number of I2C Channels 1
Number of I/Os 52
Number of Pins 64
Number of Programmable I/O 52
Number of PWM Channels 5
Number of SPI Channels 1
Number of Timers/Counters 5
Number of UART Channels 2
Operating Supply Voltage 5.5V
Oscillator Type External
Packaging Bulk
Peripherals Brown-out Detect/Reset, I2C, LVD, POR, PWM, WDT
Radiation Hardening No
RAM Size 3.8kB
REACH SVHC No
RoHS Compliant
Schedule B 8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000
Watchdog Timer Yes
Width 10mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : No

Images

Microchip PIC18LF6720-I/PT | Microchip

Microchip

Datasheets

 DigiKey
 Mouser
 Microchip

Lifecycle Status Indicator

   Production

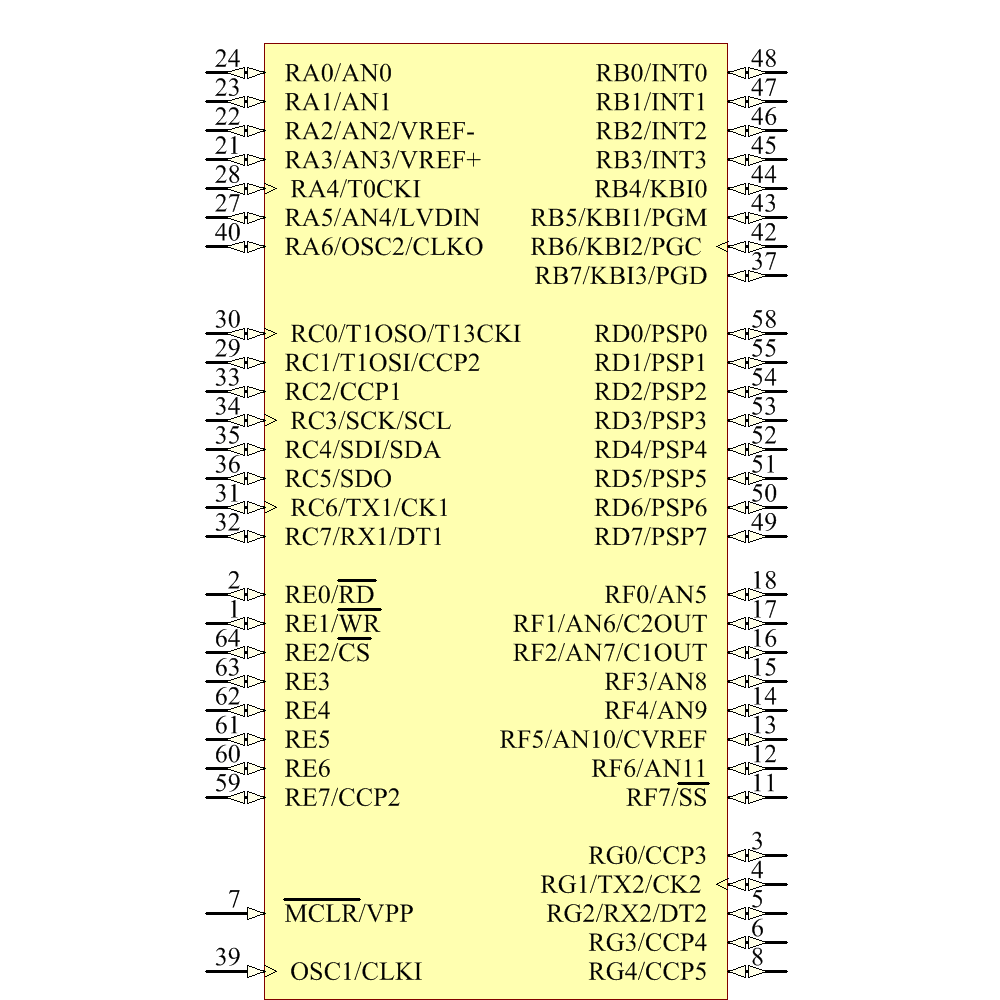

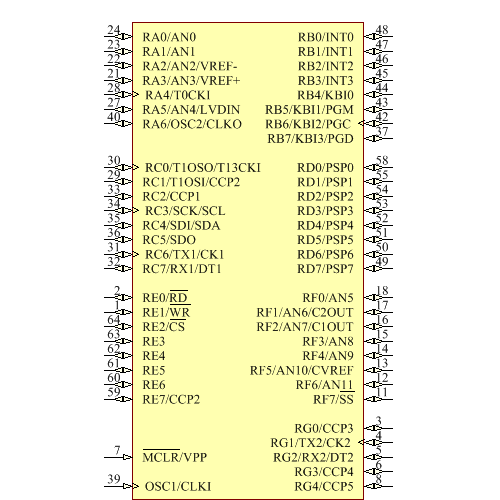

Symbol
Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Microchip
PIC18LF6720T-I/PT
NRND
Microchip
PIC18LF6310-I/PT
Production
Microchip
PIC18LF6621T-I/PT
Unknown
Microchip
PIC18LF6620-I/PT
Production
Microchip
PIC18LF6627-I/PT
Production
Microchip
PIC18LF6527-I/PT
Production
Microchip
PIC18LF6628T-I/PT
Unknown
Microchip
PIC18LF6310T-I/PT
Unknown
Microchip
PIC16F1527-E/PT
Production
Microchip
PIC18LF6525T-I/PT
Unknown

See more alternatives See less alternatives
