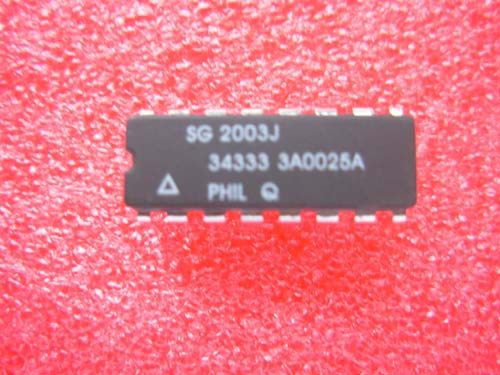

SG2003J - Microchip
TRANS 7NPN DARL 50V 0.5A 16DIP Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Through Hole 16-CDIP
Technical Details
| Projected EOL Date | 2044-01-27 |
| Case/Package | CDIP |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Saturation Voltage | 1.6V |
| Collector Emitter Voltage (VCEO) | 50V |
| Country of Assembly | Thailand |
| Country of Fabrication | United States of America |
| Country of Origin | THA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.0060 |
| Lead Free | Contains Lead |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 500mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 7 |
| Output Current | 100A |
| Output Voltage | 95V |
| Polarity | NPN |
| Radiation Hardening | No |
| RoHS | Compliant |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Microchip | Production | ||
| Allegro MicroSystems | Obsolete | ||
| STMicroelectronics | Production | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Texas Instruments | Obsolete | ||
| Toshiba | Obsolete | ||
| STMicroelectronics | Production | ||
| Linfinity | Obsolete | ||
| Mitsubishi | Obsolete |
