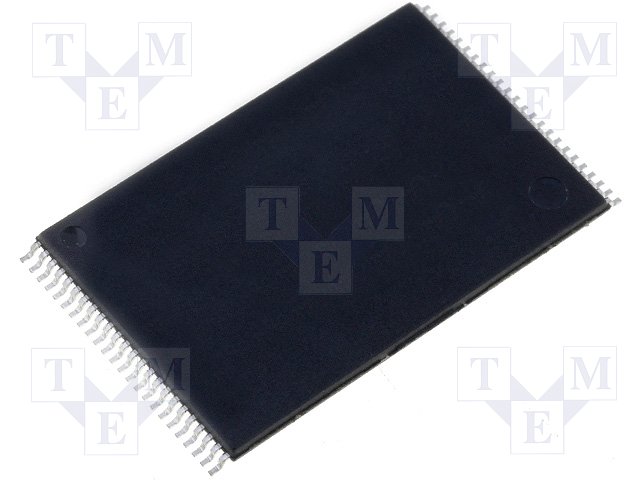

SST39VF6401B-70-4I-EKE - Microchip
NOR Flash Parallel 3.3V 64M-bit 4M x 16 70ns 48-Pin TSOP Tray / IC FLASH 64MBIT 70NS 48TSOP
Technical Details
| Projected EOL Date | 2034-08-27 |
| Access Time | 70ns |
| Address Bus Width | 22b |
| Case/Package | TSOP |
| Country of Assembly | Taiwan |
| Country of Fabrication | China |
| Country of Origin | Taiwan |
| Data Bus Width | 16b |
| Density | 64Mb |
| Export Control Classification Number (ECCN) Code | 3A991.b.1.a |
| Height | 1.05mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.0051 |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 18.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | REL |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 8MB |
| Memory Type | FLASH, NOR |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Nominal Supply Current | 18mA |
| Number of Pins | 48 |
| Operating Supply Voltage | 3.3V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Sync/Async | Asynchronous |
| Width | 12.2mm |
| Word Size | 16b |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
